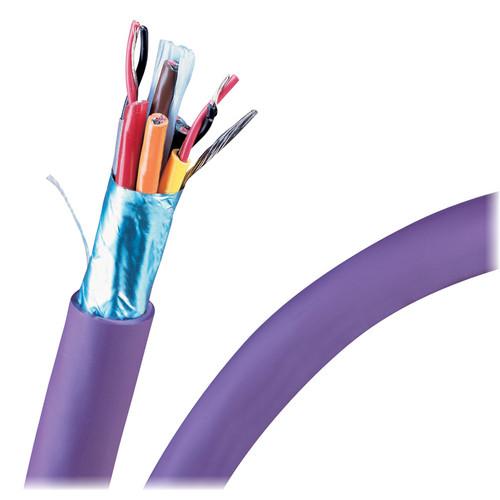

Product description The violet, 1,000' 1801B Multi-Conductor Single-Pair Bulk Cable from Belden features 24 AWG stranded (7 x 32) tinned copper conductors, plenum, foam FEP Teflon insulation, twisted pairs, an overall Beldfoil shield (100% coverage), a 24 AWG drain wire, and a Flamarrest jacket. In the Box Belden 1801B Multi-Conductor Single-Pair Bulk Cable (1,000', Violet) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1801B Multi-Conductor Single-Pair Bulk Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1801B-1000VI Specs | Conductor | Number of Pairs: 1, 24 AWG
Stranding: 7 x 32
Conductor Material: TC (Tinned Copper)
Diameter: 0.024" (0.610 cm) | | Insulation Material | Insulation Trade Name: Teflon
Insulation Material: FFEP (Foam Fluorinated Ethylene Propylene)
Diameter: 0.066" (0.167 cm) | | Outer Shield Material | Outer Shield Trade Name: Beldfoil
Type: Tape
Outer Shield Material: Aluminum foil-polyester tape
Coverage (%): 100 | | Drain Wire | 24 AWG
Stranding: 7 x 32
Drain Wire Conductor Material: TC (Tinned Copper) | | Outer Jacket Material | Outer Jacket Trade Name: Flamarrest
Outer Jacket Material: LS PVC (Low Smoke Polyvinyl Chloride) | | Cable | Cabling Color Code:
1: Black and red
Nominal Diameter: 0.165" (0.419 cm) Teflon is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. | | Impedance | 110 Ω | | Inductance | 0.18 µH/feet | | Capacitance | Nominal Capacitance Conductor to Conductor: 12 pF/feet
Nominal Capacitance Conductor to Other Conductor & Shield: 26 pF/feet | | Velocity of Propagation | 78% | | Conductor DC Resistance | 23.7 at 20°C (Ω/1,000') | | Maximum Voltage | 300 Vrms (UL) | | Current | 2.75 A per conductor at 25°C | | Plenum | Non-Plenum Number: 1800B
Plenum: Yes | | Attenuation | Frequency (MHz): 0.384, Attenuation (dB/100'): 0.82
Frequency (MHz): 0.705, Attenuation (dB/100'): 1.01
Frequency (MHz): 0.768, Attenuation (dB/100'): 1.02
Frequency (MHz): 1.024, Attenuation (dB/100'): 1.08
Frequency (MHz): 1.411, Attenuation (dB/100'): 1.15
Frequency (MHz): 1.536, Attenuation (dB/100'): 1.16
Frequency (MHz): 2.048, Attenuation (dB/100'): 1.23
Frequency (MHz): 2.822, Attenuation (dB/100'): 1.34
Frequency (MHz): 3.072, Attenuation (dB/100'): 1.38
Frequency (MHz): 4.096, Attenuation (dB/100'): 1.58
Frequency (MHz): 5.645, Attenuation (dB/100'): 1.79
Frequency (MHz): 6.144, Attenuation (dB/100'): 1.85
Frequency (MHz): 8.192, Attenuation (dB/100'): 2.05
Frequency (MHz): 11.290, Attenuation (dB/100'): 2.34
Frequency (MHz): 12.288, Attenuation (dB/100'): 2.43
Frequency (MHz): 24.576, Attenuation (dB/100'): 3.33 | | Compliance | NEC / (UL) Specification: CMP
CEC/C (UL) Specification: CMP
EU Directive 2011/65/EU (ROHS II)
EU CE Mark
EU Directive 2000/53/EC (ELV)
EU Directive 2002/95/EC (RoHS)
EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
EU Directive 2002/96/EC (WEEE)
EU Directive 2003/11/EC (BFR)
CA Prop 65 (CJ for Wire and Cable)
MII Order #39 (China RoHS)
Other Specification: AES/EBU
CSA Flame Test: FT6 | | Temperature | Operating Temperature Range: -4 to 167°F (-20 to +75°C)
Non-UL Temperature Rating: 167°F (75°C) | | Tension Control | Recommended Pulling Tension: 16.50 lb (7.48 kg) | | Bend Radius | 1.75" (4.45 cm) | | Length | 1,000' (304.8 m) | | Weight | 12.00 lb (5.44 kg) |
