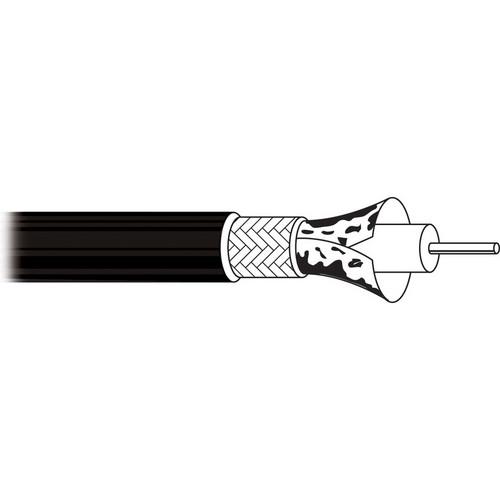

User Manual for Belden 1855A Sub Miniature Coax Black with BNC Connectors 100 ft Click to enlarge the picture
Contents of the user manual for the Belden 1855A Sub Miniature Coax Black
- Product category: BNC to BNC Cables Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden BNC to BNC Cables
|
User manual for the Belden 1855A Sub Miniature Coax Black contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|
Product description The Belden 1855A Sub Miniature Coax Black with BNC Connectors 100 ft is a precision broadcast video cable with BNC connectors for narrow-band composite through wide-band SDI transmissions.
The cable is 23 AWG and features solid stranding, a bare copper conductor, and gas-injected foam HDPE insulation. The outer shield is of two layers, one with 100% coverage and the other with 95%. The color is black and total length comes to 100 ft. In the Box Belden 1855A Sub Miniature Coax Black with BNC Connectors 100 ft 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1855A Sub Miniature Coax Black with BNC Connectors 100 ft in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden BBD7100BK Specs | Cable Length | 100' / 30.5 m | | Conductor | Bare Copper | | Conductor DC Resistance | 0.0201 Ohms/ft (Up to 1000' / 304.8 m) | | Shielding | 95% Tinned Copper Braid
100% Aluminum Foil | | Wire Gauge | 23 AWG | | Outer Diameter | 0.159" / 4 mm | | Jacket Type | Polyvinyl Chloride (PVC) | | Coaxial Type | RG-59 | | Insulation Type | Polyethylene | | Maximum Impedance | 75 Ohms | | Capacitance | 16.3 pF/ft | | Maximum Signal Loss | 22.8 dB at 4500 MHz over 100' / 30.5 m | | Bend Radius | 1.5" / 3.8 cm | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | -22 to 167°F / -30 to 75°C | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.0 x 8.6 x 0.9" |
