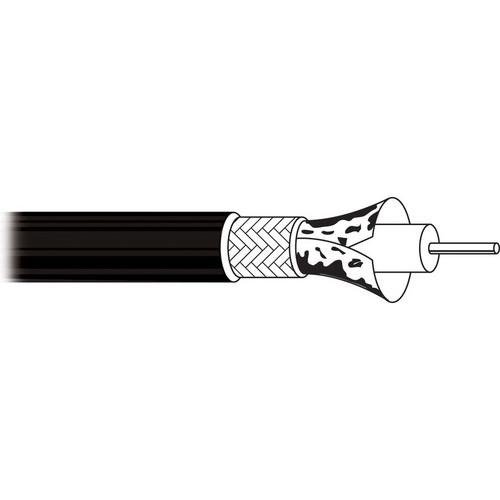

Product description The Belden 1855A Sub Miniature Coax Black with BNC Connectors 12 ft is a precision broadcast video cable with BNC connectors for narrow-band composite through wide-band SDI transmissions.
The cable is 23 AWG and features solid stranding, a bare copper conductor, and gas-injected foam HDPE insulation. The outer shield is of two layers, one with 100% coverage and the other with 95%. The color is black and total length comes to 12 ft. In the Box Belden 1855A Sub Miniature Coax Black with BNC Connectors 12 ft 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1855A Sub Miniature Coax Black with BNC Connectors 12 ft in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden BBD712BK Specs | Cable Length | 12' / 3.7 m | | Conductor | Bare Copper | | Conductor DC Resistance | 0.0201 Ohms/ft (Up to 1000' / 304.8 m) | | Shielding | 95% Tinned Copper Braid
100% Aluminum Foil | | Wire Gauge | 23 AWG | | Outer Diameter | 0.159" / 4 mm | | Jacket Type | Polyvinyl Chloride (PVC) | | Coaxial Type | RG-59 | | Insulation Type | Polyethylene | | Maximum Impedance | 75 Ohms | | Capacitance | 16.3 pF/ft | | Maximum Signal Loss | 22.8 dB at 4500 MHz over 100' / 30.5 m | | Bend Radius | 1.5" / 3.8 cm | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | -22 to 167°F / -30 to 75°C | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 13.0 x 11.5 x 0.1" |
