User Manual for Belden 1855A Sub Miniature Video Coax 23 AWG 1000 ft Orange Click to enlarge the picture
Contents of the user manual for the Belden 1855A Sub Miniature Video Coax
- Product category: Bulk Video Cables Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden Bulk Video Cables
|
User manual for the Belden 1855A Sub Miniature Video Coax contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|

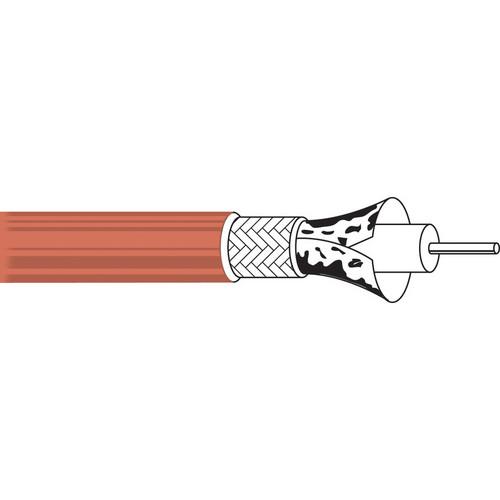

Product description The Belden 1855A Sub Miniature Video Coax 23 AWG 1000 ft Orange is a precision broadcast video cable for analog and digital signals. It can be used for narrow-band composite through wide-band SDI transmissions.
Stranding is solid and the conductor is bare copper. Insulation material is gas-injected foam high density polyethylene and the outer shield is of two layers, with layer 1 made of aluminum foil-polyester tape-aluminum foil and featuring 100% coverage and layer 2 made of tinned copper with 95% coverage.
Max pull tension is at 36 lbs and bend radius at 1.5". Impedance is 75 Ohm and overall diameter .159". Ten different colors are available to choose from, with black exclusively offering outdoor and aerial suitability. -
- Precision broadcast video cable for analog and digital signals
- For narrow-band composite through wide-band SDI transmissions
- 10 colors can be chosen from, with black good for outdoor / aerial use
UPC: 612825356844 In the Box Belden 1855A Sub Miniature Video Coax 23 AWG 1000 ft Orange 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1855A Sub Miniature Video Coax 23 AWG 1000 ft Orange in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1855A-1000OR Specs | AWG | # coax: 1
AWG: 23
Stranding: solid
Conductor: BC - bare copper
Diameter: .023" (.06 cm) | | Insulation | Material: gas-injected FHDPE - foam high density polyethylene
Diameter: .102" (.26 cm) | | Outer Shield | Layer 1:
Outer shield trade name: Duofoil
Type: tape
Material: aluminum foil-polyester tape-aluminum foil
Coverage: 100%
Layer 2:
Type: braid
Material: TC - tinned copper
Coverage: 95% | | Outer Jacket | Material: PVC - polyvinyl chloride | | Max. Recommended Pulling Tension | 36 lbs (16.3 kg) | | Min. Bend Radius | (Install)/Minor Axis: 1.5" (3.8 cm) | | Compliance | NEC/(UL) specification: CMR
CEC/C(UL) specification: CMG
EU CE mark: yes
EU directive 2000/53/EC (ELV): yes
EU directive 2002/95/EC (RoHS): yes
EU RoHS compliance date: 01/01/2004
EU directive 2002/96/EC (WEEE): yes
EU directive 2003/11/EC (BFR): yes
CA prop 65 (CJ for wire and cable): yes
MII order #39 (China RoHS): yes
RG type: sub-miniature 59/U | | Flame Test | UL flame test: UL1666 vertical shaft | | Suitability | Indoor: yes
Outdoor: (yes - black only)
Aerial: (yes - black only, when supported by a messenger wire) | | Plenum/Non-Plenum | Non-plenum | | Impedance | 75 Ohm
(tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination) | | Inductance | (µH/ft): .107 | | Capacitance | (pF/ft): 16.3 | | Velocity of Propagation | 82% | | Delay | (ns/ft): 1.22 | | Conductor DC Resistance | DCR @ 68°F (20°C) (Ohm/1000 ft (304.8 m)): 20.1 | | Outer Shield | DCR @ 68°F (20°C) (Ohm/1000 ft (304.8 m)): 7.6 | | Attenuation | Freq. (MHz): 1.000 = attenuation (dB/100 ft (30.48 m)) .390
Freq. (MHz): 3.580 = attenuation (dB/100 ft (30.48 m)) .780
Freq. (MHz): 5.000 = attenuation (dB/100 ft (30.48 m)) .920
Freq. (MHz): 6.000 = attenuation (dB/100 ft (30.48 m)) 1.000
Freq. (MHz): 7.000 = attenuation (dB/100 ft (30.48 m)) 1.080
Freq. (MHz): 10.000 = attenuation (dB/100 ft (30.48 m)) 1.200
Freq. (MHz): 12.000 = attenuation (dB/100 ft (30.48 m)) 1.300
Freq. (MHz): 25.000 = attenuation (dB/100 ft (30.48 m)) 1.800
Freq. (MHz): 67.500 = attenuation (dB/100 ft (30.48 m)) 2.830
Freq. (MHz): 71.500 = attenuation (dB/100 ft (30.48 m)) 3.060
Freq. (MHz): 88.500 = attenuation (dB/100 ft (30.48 m)) 3.160
Freq. (MHz): 100.000 = attenuation (dB/100 ft (30.48 m)) 3.330
Freq. (MHz): 135.000 = attenuation (dB/100 ft (30.48 m)) 3.810
Freq. (MHz): 143.000 = attenuation (dB/100 ft (30.48 m)) 3.920
Freq. (MHz): 180.000 = attenuation (dB/100 ft (30.48 m)) 4.380
Freq. (MHz): 270.000 = attenuation (dB/100 ft (30.48 m)) 5.400
Freq. (MHz): 540.000 = attenuation (dB/100 ft (30.48 m)) 7.700
Freq. (MHz): 720.000 = attenuation (dB/100 ft (30.48 m)) 9.470
Freq. (MHz): 750.000 = attenuation (dB/100 ft (30.48 m)) 9.590
Freq. (MHz): 1000.000 = attenuation (dB/100 ft (30.48 m)) 10.500
Freq. (MHz): 1500.000 = attenuation (dB/100 ft (30.48 m)) 13.000
Freq. (MHz): 2000.000 = attenuation (dB/100 ft (30.48 m)) 15.100
Freq. (MHz): 2250.000 = attenuation (dB/100 ft (30.48 m)) 16.000
Freq. (MHz): 3000.000 = attenuation (dB/100 ft (30.48 m)) 18.500
Freq. (MHz): 4500.000 = attenuation (dB/100 ft (30.48 m)) 22.800 | | Minimum Return Loss | Start freq. (MHz) 5:
Stop freq. (MHz) = 1600
Min. RL (dB) = 23
Start freq. (MHz) 1601:
Stop freq. (MHz) = 4500
Min. RL (dB) = 21
(Return loss tested in accordance with ASTM D-4566 paragraph 45.3 using a 75 Ohm fixed bridge and termination) | | Sweep Testing | 100% sweep tested 5 MHz to 4.5 GHz | | Operating Voltage | Max. - UL: 300 V RMS | | Operating Temperature | -22 to 167°F (-30 to 75°C) | | UL Temperature Rating | 167°F (75°C) | | Overall Diameter | .159" (.4 cm) | | Length | 1000 ft (304.8 m) | | Weight | 17 lbs (7.7 kg) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 9.3 x 8.1 x 6.1" |
