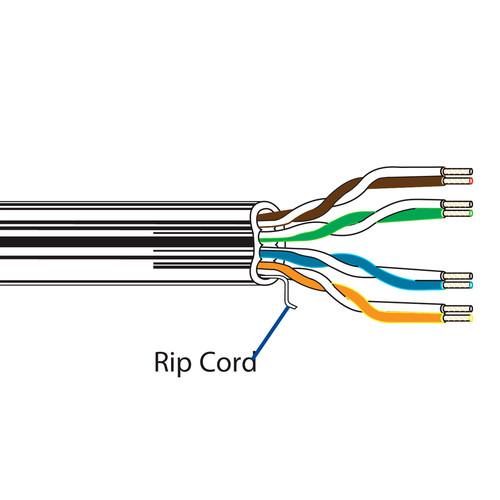

Product description The 1000' black 1872A Multi-Conductor - Enhanced Category 6 Bonded - Pair Cable from Belden features 23 AWG bonded-pairs, solid bare copper conductors, non-plenum, polyolefin insulation, ripcord, and a PVC jacket. The cable is suitable for applications like premises horizontal cabling, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite videos, AES/EBU, digital videos, RS-422, and noisy environments. - The cable is compatible with applications like premises horizontal cabling, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite videos, AES/EBU, digital videos, RS-422, and noisy environments.
- The cable is made of bare copper conductors and has a Polyolefin insulation material.
In the Box Belden 1872A Multi-Conductor - Enhanced Category 6 Bonded - Pair Cable 1000' (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1872A Multi-Conductor - Enhanced Category 6 Bonded - Pair Cable 1000' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1872A-1000-BL Specs | Pairs | 4 | | AWG | 23 | | Stranding | Solid | | Conductor Material | Bare copper | | Compatibility | Premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite video, AES/EBU, digital video, RS-422, and noisy environments | | Insulation Material | Polyolefin | | Outer Shield Material | Unshielded | | Outer Jacket Material | Polyvinyl Chloride | | Outer Jacket Diameter | 0.365" (0.927 cm) and 0.165" (0.419 cm) nominal | | Outer Jacket Ripcord | Yes | | Overall Nominal Diameter | 0.365" (0.927 cm) and 0.165" (0.419 cm) | | Pair Color Code Chart | 1: White/blue stripe and blue
2: White/orange stripe and orange
3: White/green stripe and green
4: White/brown stripe and brown | | NEC/(UL) Specification | CMR | | CEC/C(UL) Specification | CMR | | Other Standards | ISO/IEC 11801 ed 2.1 (2008) Class E | | EU CE Mark | No | | EU Directive 2000/53/EC (ELV) | Yes | | EU Directive 2002/95/EC (RoHS) | Yes | | EU RoHS Compliance Date | 01/01/2004 | | EU Directive 2002/96/EC (WEEE) | Yes | | EU Directive 2003/11/EC (BFR) | Yes | | CA Prop 65 (CJ for Wire and Cable) | Yes | | MII Order #39 (China RoHS) | Yes | | Telecommunications Standards | Category 6 - TIA 568.C.2 | | Other Specification | UL Verified to Category 6 | | Country Patent | - US 5606151
- US 5734126
- US 5821467
| | Flame Test | UL1666 vertical riser | | CSA Flame Test | FT4 | | Plenum | No | | Plenum Number | 1874A | | Nominal Mutual Capacitance | 15 capacitance (pF/ft) | | Maximum Capacitance Unbalance | 49 (pF/100 m) | | Nominal Velocity of Propagation | 70 VP (%) | | Maximum Delay | 510 @ 100 MHz delay (ns/100 m) | | Max. Delay Skew | 25 delay skew (ns/100 m) | | Max Conductor DC Resistance | 7.5 DCR @ 68°F (20°C) (Ohm/100 m) | | Max. Operating Voltage - UL | 300 V RMS | | Maximum DCR Unbalanced | 3 DCR unbalance @ 68°F (20°C) (%) | | Operating Temperature Range | -4 to 176°F (-20 to 80°C) | | Max Recommended Pulling Tension | 45 lb (20.41 kg) | | Min. Bend Radius/Minor Axis | 1" (2.54 cm) | | Length | 1000' (304.8 m) | | Weight | 29 lb (13.15 kg) | | | | Package Weight | 32.4 lb | | Box Dimensions (LxWxH) | 14.3 x 14.3 x 12.7" |
Rating90% users recommend this product to others. And what about you?
