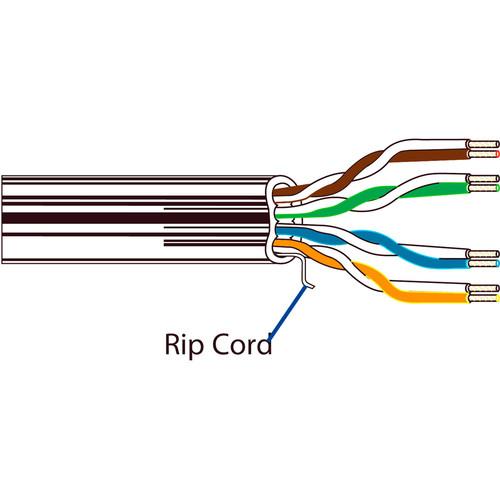

Product description The 1874A Multi-Conductor - Enhanced Category 6 Bonded - Pair Cable from Belden features 23 AWG bonded-pairs, solid bare copper conductors, plenum, FEP Teflon insulation, ripcord, Flamarrest PVC jacket. The cable is suitable for applications like premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite video, AES/EBU, digital video, RS-422, any noisy environments. - The cable is compatible for applications like premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite video, AES/EBU, digital video, RS-422, noisy environments.
- The cable is made of bare copper conductors and Fluorinated Ethylene Propylene insulation material.
UPC: 612825125631 In the Box Belden 1874A Multi-Conductor - Enhanced Category 6 Bonded - Pair Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 1874A Multi-Conductor - Enhanced Category 6 Bonded - Pair Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1874A-1000BK Specs | Pairs | 4 | | AWG | 23 | | Stranding | Solid | | Conductor Material | Bare copper | | Compatibility | Premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite video, AES/EBU, digital video, RS-422, noisy environments. | | Insulation Material | Fluorinated Ethylene Propylene | | Outer Shield Material | Unshielded | | Outer Jacket Material | Flamarrest - LS PVC - Low Smoke Polyvinyl Chloride | | Outer Jacket Diameter | 0.365" (0.927 cm) and 0.165" (0.419 cm) nominal | | Outer Jacket Ripcord | Yes | | Overall Nominal Diameter | 0.365" (0.927 cm) and 0.165" (0.419 cm) | | Pair Color Code Chart | 1: White/blue stripe and blue
2: White/orange stripe and orange
3: White/green stripe and green
4: White/brown stripe and brown | | NEC/(UL) Specification | CMP | | CEC/C(UL) Specification | CMP | | Other Standards | ISO/IEC 11801 ed 2.1 (2008) Class E | | EU Directive 2000/53/EC (ELV) | Yes | | EU Directive 2002/95/EC (RoHS) | Yes | | EU RoHS Compliance Date | 07/01/2006 | | EU Directive 2002/96/EC (WEEE) | Yes | | EU Directive 2003/11/EC (BFR) | Yes | | CA Prop 65 (CJ for Wire and Cable) | Yes | | MII Order #39 (China RoHS) | Yes | | Telecommunications Standards | Category 6 - TIA 568.C.2 | | Other Specification | UL Verified to Category 6 | | Country Patent | - US 5606151
- US 5734126
- US 5821467
| | Flame Test | NFPA 262 Plenum Flame Test (UL910) (FT6) | | CSA Flame Test | FT6 | | Plenum | Yes | | Plenum Number | 1872A non-plenum number | | Nominal Mutual Capacitance | 15 capacitance (pF/ft) | | Maximum Capacitance Unbalance | 49 (pF/100 m) | | Nominal Velocity of Propagation | 72 VP (%) | | Maximum Delay | 510 @ 100 MHz delay (ns/100 m) | | Max. Delay Skew | 25 delay skew (ns/100 m) | | Max Conductor DC Resistance | 7.5 DCR @ 68°F (20°C) (Ohm/100 m) | | Max. Operating Voltage - UL | 300 V RMS | | Maximum DCR Unbalanced | 3 DCR unbalance @ 68°F (20°C) (%) | | Operating Temperature Range | -4 to 176°F (-20 to 80°C) | | Max Recommended Pulling Tension | 45 lb (20.41 kg) | | Min. Bend Radius/Minor Axis | 1" (2.54 cm) | | Length | 1000' (304.8 m) | | Weight | 31 lb (14.06 kg) | | | | Package Weight | 35.75 lb | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 11.0" |
