User Manual for Belden 2-Conductor, 20 AWG Low-Impedance Cable Click to enlarge the picture
Contents of the user manual for the Belden 2-Conductor, 20 AWG Low-Impedance Cable
- Product category: Bulk Audio Cable Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden Bulk Audio Cable
|
User manual for the Belden 2-Conductor, 20 AWG Low-Impedance Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|

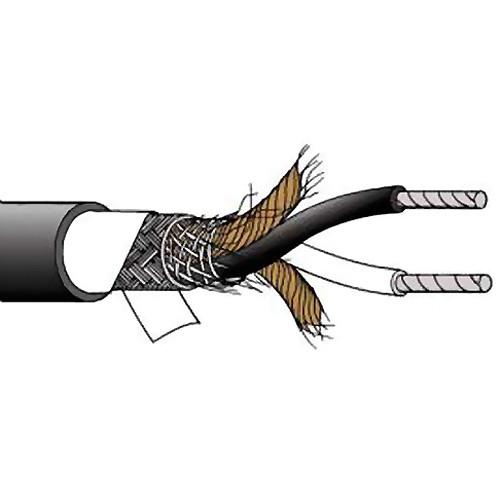

Product description The Belden 2-Conductor, Low-Impedance Cable (1000') features 20 AWG stranded (26 x 34) high-conductivity TC conductors, an EPDM rubber insulation, a rayon braid, a TC braid shield (85% coverage), a cotton wrap, and an EPDM jacket. In the Box Belden 2-Conductor, 20 AWG Low-Impedance Cable (1000') Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 2-Conductor, 20 AWG Low-Impedance Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 8412-1000BK Specs | Conductor | Number of Conductors: 2
AWG: 20
Stranding: 26 x 34
Conductor Material: High Conductivity TC (Tinned Copper)
Diameter: 0.04" (0.94 mm) | | Insulation Material | Insulation Material: EPDM (Ethylene Propylene Diene Monomer Rubber)
Wall Thickness: 0.02" (0.58 mm)
Diameter: 0.08" (2.1 mm) | | Outer Shield Material | Layer: 1
Type: Braid
Outer Shield Material: Cotton
Layer: 2
Type: Braid
Outer Shield Material: TC (Tinned Copper)
Coverage (%): 85
Outer Shield Separator Material: Cotton wrap | | Outer Jacket Material | Outer Jacket Material: EPDM (Ethylene Propylene Diene Monomer Rubber)
Nominal Wall Thickness: 0.04" (0.9 mm) | | Cable | Cabling Color Code:
1: White
2: Black
Cabling Separator Material: Rayon braid
Nominal Diameter: 0.26" (6.65 mm) | | Impedance | 67 Ω | | Inductance | 0.59 µH/m | | Capacitance | Nominal Capacitance Conductor to Conductor: 108.27 pF/m
Nominal Capacitance Conductor to Other Conductor & Shield: 190.29 pF/m | | Conductor DC Resistance | 34.78 Ω/km at 68°F (20°C) | | Outer Shield DC Resistance | 14.77 Ω/km at 68°F (20°C) | | Maximum Voltage | 600 Vrms (Non-UL) | | Current | 4 A per conductor at 77°F (25°C) | | Compliance | EU Directive 2011/65/EU (ROHS II)
EU CE Mark
EU Directive 2000/53/EC (ELV)
EU Directive 2002/95/EC (RoHS)
EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
EU Directive 2002/96/EC (WEEE)
EU Directive 2003/11/EC (BFR)
CA Prop 65 (CJ for Wire and Cable)
MII Order #39 (China RoHS) | | Temperature | Operating Temperature Range: -58 to 194°F (-50 to +90°C)
Non-UL Temperature Rating: 194°F (90°C) | | Tension Control | Recommended Pulling Tension: 444.82 N | | Bend Radius | 2.75" (69.85 mm) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 48.15 lb | | Box Dimensions (LxWxH) | 15.3 x 15.2 x 10.4" |
