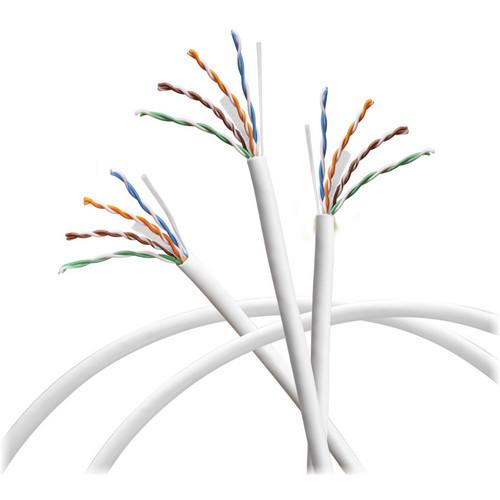

Product description The 2413 Multi-Conductor - Enhanced Cat 6 Nonbonded-Pair Cable (White) from Belden is a 1000' (304.8 m) cable with 23 AWG solid bare copper conductors, dual FRPO/FEP insulation and a tape separator. This is a Plenum cable. It has a ripcord which is situated under the jacket of the cable. The cable is suitable for applications like premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM and 250 MHz Cat 6 cables. - The cable is compatible with the following applications such as premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM and 250 MHz Cat 6 cables.
- The Cat 6 cable is made of flame retardant polyolefin/fluorinated ethylene propylene and has bare copper conductors.
UPC: 612825061571 In the Box Belden 2413 Multi-Conductor - Enhanced Cat 6 Nonbonded-Pair Cable (White) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 2413 Multi-Conductor - Enhanced Cat 6 Nonbonded-Pair Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 2413-1000-WH Specs Pairs | 4 | AWG | 23 | Stranding | Solid | Color | White | Conductor Material | Bare copper | Compatibility | Premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, 250 MHz Cat 6. | Insulation Material | Flame retardant polyolefin/fluorinated ethylene propylene | Outer Shield Material | Unshielded | Outer Jacket Material | LS PVC (low smoke polyvinyl chloride) | Outer Jacket Diameter | 0.225" (0.57 cm) nominal | Outer Jacket Ripcord | Yes | Overall Cabling Separator Material | Dielectric tape | Overall Nominal Diameter | 0.225" (0.57 cm) | Pair Color Code Chart | - White/blue stripe and blue
- White/orange stripe and orange
- White/green stripe and green
- White/brown stripe and brown
| NEC/(UL) Specification | CMR | Other Standards | ISO/IEC 11801 ed 2.1 (2008) Class E | EU CE Mark | Yes | EU Directive 2000/53/EC (ELV) | Yes | EU Directive 2002/95/EC (RoHS) | Yes | EU RoHS Compliance Date | 10/13/2004 | EU Directive 2002/96/EC (WEEE) | Yes | EU Directive 2003/11/EC (BFR) | Yes | CA Prop 65 (CJ for Wire and Cable) | Yes | MII Order #39 (China RoHS) | Yes | Telecommunications Standards | Cat 6 - TIA 568.C.2 | Other Specification | Third party verified to Cat 6 | Country Patent | US 5563377 US 6570095 US 6998537 US 7179999 CANADA 2144694 US 7977575 | Flame Test | NFPA 262 plenum flame test (UL910)(FT6) | C(UL) Flame Test | FT6 | CSA Flame Test | FT6 | Suitability | Indoor: YesOutdoor: No | Plenum | Yes | Velocity of Propagation | 70 VP (%) | Maximum Delay | 537 @ 100 MHz delay (ns/100 m) | Max. Delay Skew | 45 delay skew (ns/100 m) | Max Conductor DC Resistance | 8.2 DCR @ 68°F (20°C) (Ohm/100 m) | Max. Operating Voltage - UL | 300 V RMS | Maximum DCR Unbalanced | 5 DCR unbalance @ 68°F (20°C) (%) | Storage Temperature Range | 68 to 167°F (-20 to 75°C) | Installation Temperature Range | 41 to 122°F (5 to 50°C) | Operating Temperature Range | 32 to 167°F (0 to 75°C) | Max Recommended Pulling Tension | 40 lb (18.14 kg) | Min. Bend Radius/Minor Axis | 1" (2.54 cm) | Length | 1000' (304.8 m) | Weight | 27 lbs (12.24 kg) | | Package Weight | 27.2 lb | Box Dimensions (LxWxH) | 13.8 x 13.2 x 12.0" |
