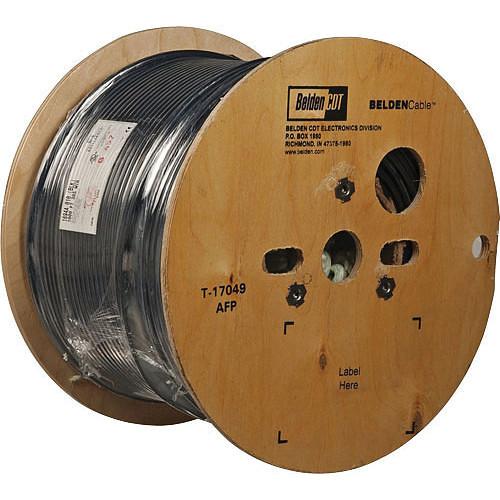

User Manual for Belden 4-Conductor Star Quad, Low-Impedance Cable Click to enlarge the picture
Contents of the user manual for the Belden 4-Conductor Star Quad, Low-Impedance Cable
- Product category: Bulk Audio Cable Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden Bulk Audio Cable
|
User manual for the Belden 4-Conductor Star Quad, Low-Impedance Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|
Product description The Belden 4-Conductor Star Quad, Low-Impedance Cable features 24 AWG stranded (42 x 40) high-conductivity bare copper conductors, polyethylene insulation, tinned copper braid shield (95% coverage), and PVC jacket. In the Box Belden 4-Conductor Star Quad, Low-Impedance Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 4-Conductor Star Quad, Low-Impedance Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1192A-1000BK Specs | Conductor | Number of Conductors: 4, 24 AWG
Conductor Material: SBC, Soft Bare Copper
Diameter: 0.03" (0.06 cm) | | Stranding | 42 x 40 | | Insulation Material | Insulation Material: PE - Polyethylene
Wall Thickness: 0.02" (0.05 cm)
Diameter: 0.06" (0.15 cm) | | Outer Shield Material | Type: Braid
Outer Shield Material: TC - Tinned Copper
Coverage (%): 95 | | Outer Jacket Material | Outer Jacket Material: PVC - Polyvinyl Chloride
Nominal Wall Thickness: 0.05" (0.13 cm) | | Cable | Cabling Color Code:
1: Blue
2: White
3: Blue with white stripe
4: White with blue stripe
Nominal Diameter: 0.25" (0.6 cm) | | Impedance | 40 Ω | | Inductance | 0.21 µH/feet | | Capacitance | Nominal Capacitance Conductor to Conductor: 39.2 pF/feet
Nominal Capacitance Between Conductor in a Quad Configuration: 57.4 pF/feet | | Velocity of Propagation | 66% | | Conductor DC Resistance | 26.6 at 20°C (Ω/1000 ft) | | Outer Shield DC Resistance | 7.1 at 20°C (Ω/1000 ft) | | Maximum Voltage | 100 Vrms (UL) 18.0 kV (Nominal breakdown voltage between conductors) 16.9 kV (Nominal breakdown voltage conductors to shield) | | Current | 2.9 A per conductor at 25°C | | Compliance | EU Directive 2011/65/EU (ROHS II)
EU CE Mark
EU Directive 2000/53/EC (ELV)
EU Directive 2002/95/EC (RoHS)
EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
EU Directive 2002/96/EC (WEEE)
EU Directive 2003/11/EC (BFR)
CA Prop 65 (CJ for Wire & Cable)
MII Order #39 (China RoHS) | | Temperature | Operating Temperature Range: -22 to 167°F (30 to +75°C)
Non-UL Temperature Rating: 167°F (75°C) | | Tension Control | Recommended Pulling Tension: 21 lb (9.5 kg) maximum | | Bend Radius | 2.5" (6.4 cm) | | Weight | 33 lb (15 kg) |
