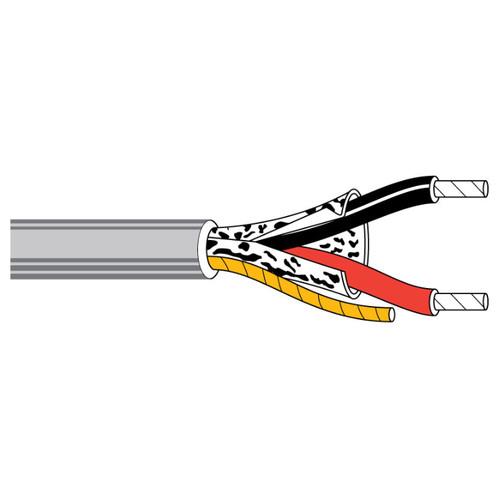

Product description The 1000' 8451 Multi-Conductor Single-Pair Audio Instrument Cable from Belden features stranded (7x30) TC conductors with polypropylene insulation, paper wrap, twisted pair, and a stranded TC drain wire with a PVC jacket. It can be used for audio instrument or microphone cable in studio and live stage applications. -
- Number of Pairs: 1
- Total Number of Conductors: 2
- AWG: 22
- Stranding: 7x30
- Conductor Material: TC - Tinned copper
- Insulation Material: PP - Polypropylene
- Outer Shield Material Trade Name: Beldfoil (Z-Fold)
- Outer Shield Material: Aluminum foil-polyester tape
- Outer Jacket Material: PVC - Polyvinyl chloride
- Plenum (Y/N): N
- Applications: Audio, control and instrumentation cable, analog audio cables
- Single Pair
In the Box Belden 8451 Multi-Conductor Single-Pair Audio Instrument Cable (1000', Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden 8451 Multi-Conductor Single-Pair Audio Instrument Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 8451-1000 Specs | Pairs per Cable | 1 | | AWG | 22 | | Stranding | 7 x 30 | | Conductor Material | Tinned copper (TC) | | Insulation Material | Polypropylene: .008" (0.20 mm) wall thickness | | Outer Shield Material | Beldfoil (Z-Fold): Aluminum foil-polyester tape 100% coverage
Drain Wire: 22 AWG, 7x30 stranding, tinned copper conductor material | | Outer Jacket | PVC: Polyvinyl chloride | | Cable Diameter | 0.138" (3.5 mm) | | Mechanical Characteristics | Operating Temperature Range: -4.0 to 137°F (-20 to 75°C) | | Max Recommended Pulling Tension | 27 lb (12 kg) | | Minimum Bend Radius/Minor Axis | 1.50" (3.81 cm) | | Cable Length | 1000' (305 m) | | Bulk Cable Weight | 15 lb (6.8 kg) 1000' | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 7.5 x 7.4 x 6.5" |
