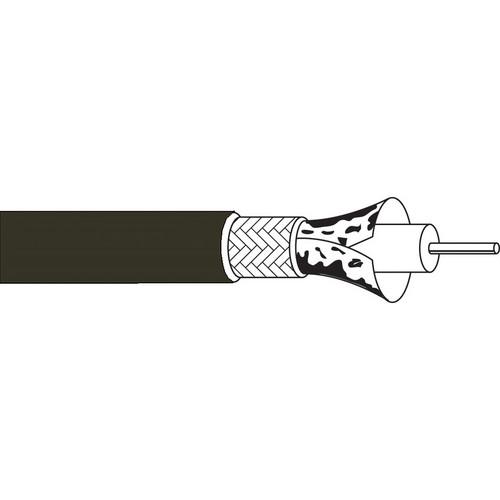

User Manual for Belden Coax Sub-Miniature Plenum Click to enlarge the picture
Contents of the user manual for the Belden Coax Sub-Miniature Plenum
- Product category: Bulk Video Cables Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden Bulk Video Cables
|
User manual for the Belden Coax Sub-Miniature Plenum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|
Product description The 1,000' coil of Belden Coax Sub-Miniature Plenum cable is designed for SDI/HDTV Digital Video, High Definition (HD), Standard Definition (SD) and digital audio equipment in professional and commercial applications such as for TV stations, stadiums, arenas, convention centers, and other large facilities requiring digital video transmissions.
The cable is made of a 23 AWG solid 0.023" bare copper conductor with gas injected foam FEP insulation, Duofoil (100% coverage) plus a tinned copper braid shield (95% coverage), and a flexible Flamarrest jacket. In the Box Belden Coax Sub-Miniature Plenum (1,000') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden Coax Sub-Miniature Plenum in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1855P-1000-BLK Specs | Conductor | Number of Coax: 1, 23 AWG
Stranding: Solid
Conductor Material: BC (Bare Copper) Diameter: 0.023" (0.058cm) | | Insulation Material | Insulation Material: Gas-injected FEP (Foam Florinated Ethylene Propylene)
Wall Thickness: 0.102" (0.259 cm) | | Outer Shield Material | Outer Shield Trade Name: Duofoil
Type: Tape
Outer Shield Material: Aluminum foil-polyester tape
Coverage: 100% Type: Braid
Outer Shield Material: TC (Tinned Copper)
Coverage: 95% | | Outer Jacket Material | Outer Jacket Trade Name: Flamarrest
Outer Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride | | Cable | Nominal Diameter: 0.159" (0.404 cm) | | Impedance | 75 Ω | | Inductance | 0.3 µH/feet | | Capacitance | Nominal Capacitance Conductor to Conductor: 16.3 pF/feet | | Velocity of Propagation | 80% | | Conductor DC Resistance | 20.1 at 20°C (Ω/1000') | | Outer Shield DC Resistance | 3.7 at 20°C (Ω/1000') | | Max Operating Voltage - UL | 300 Vrms (UL) | | Current | 100% sweep tested 5 MHz to 4.5 GHz | | Delay | 1.22 ns/feet | | Compliance | NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
EU Directive 2011/65/EU (ROHS II)
EU CE Mark
EU Directive 2000/53/EC (ELV)
EU Directive 2002/95/EC (RoHS)
EU RoHS Compliance Date (mm/dd/yyyy): 03/28/2008
EU Directive 2002/96/EC (WEEE)
EU Directive 2003/11/EC (BFR)
CA Prop 65 (CJ for Wire & Cable)
MII Order #39 (China RoHS)
RG Type: Sub-miniature 59/U
UL Flame Test: UL910 Steiner Tunnel
CSA Flame Test: FT6 | | Attenuation | Frequency (MHz): 1, Attenuation (dB/100'): 0.38
Frequency (MHz): 3.6, Attenuation (dB/100'): 0.76
Frequency (MHz): 10, Attenuation (dB/100'): 1.30
Frequency (MHz): 71.5, Attenuation (dB/100'): 3.10
Frequency (MHz): 135, Attenuation (dB/100'): 4.10
Frequency (MHz): 270, Attenuation (dB/100'): 5.80
Frequency (MHz): 360, Attenuation (dB/100'): 6.90
Frequency (MHz): 540, Attenuation (dB/100'): 8.70
Frequency (MHz): 720, Attenuation (dB/100'): 10.30
Frequency (MHz): 750, Attenuation (dB/100'): 10.50
Frequency (MHz): 1000, Attenuation (dB/100'): 12.40
Frequency (MHz): 1,500, Attenuation (dB/100'): 15.70
Frequency (MHz): 2,250, Attenuation (dB/100'): 19.90
Frequency (MHz): 3,000, Attenuation (dB/100'): 23.80
Frequency (MHz): 4,450, Attenuation (dB/100'): 30.30 | | Return Loss | Start Frequency: 5 MHz
Stop Frequency: 1,600 MHz
Minimum RL: 23 dB
Start Frequency: 1,601 MHz
Stop Frequency: 4,500 MHz
Minimum RL: 21 dB | | Suitability | Indoor: Yes
Outdoor: Yes (Black only)
Aerial: Yes (Black only) | | Plenum | Yes | | Temperature | Operating Temperature Range: -4 to 167°F (-20 to +75°C)
UL Temperature Rating: 167°F (75°C) | | Tension Control | Recommended Pulling Tension: 40.00 lb (18.14 kg) | | Bend Radius | 1.5" (3.8 cm) | | Dimensions | Not specified by manufacturer | | Weight | Bulk: 21.0 lb / 1,000' (9.5 kg / 304.8 m) | | | | Package Weight | 22.8 lb | | Box Dimensions (LxWxH) | 14.2 x 12.6 x 10.7" |
