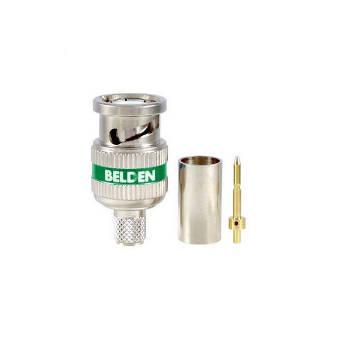

Product description This HD BNC 3-Piece Crimp Connector 50-pack from Belden is designed for use with Belden 1694A RG6 coax cable. This brass connector delivers better than -23 dB return loss at 4.5 GHz with its solid insulator materials to deliver professional, high-definition broadcast audio and video. Its traditional three-piece design and 360° compression rings make for durability and a solid performance. The connector is color-coded with a green ring to identify its compatibility with 1694A RG6 coax cables. UPC: 845671002423 In the Box Belden HD BNC 3-Piece Crimp Connector for 1694A RG6 Coax Cable (50-Pack) Limited Lifetime Warranty (When Used with Belden Cable) Limited 10-Year Warranty (When Used with Third-Party Cable) Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden HD BNC 3-Piece Crimp Connector for 1694A RG6 Coax Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1694ABHD3-50 Specs | Connector Type | BNC Coaxial, 3-Piece Crimp | | Compatibility | Belden 1694A RG6 Coax Cable | | Body Type | Straight Plug | | Contact Material | Brass | | Termination | Crimp | | Impedance | 75 Ohms | | Voltage Rating | 500 VRMS | | Return Loss | 3 to 4.5 GHz / ≥ 21 to -27 dB | | Insulation Resistance | > 5000 MOhms at 100 VDC | | Durability | 500 Cycles | | Cable Retention Force | > 90 lb / 41 kg | | Finish | Body/Bayonet: Brass, Nickel-Plated | | | | Package Weight | 1.685 lb | | Box Dimensions (LxWxH) | 10.6 x 5.9 x 1.7" |
