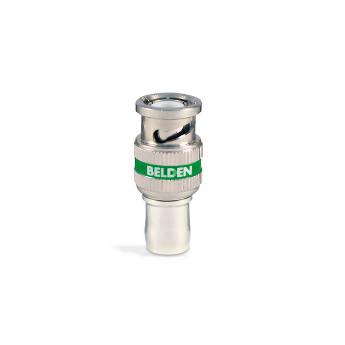

User Manual for Belden HD BNC Compression Connector for 1694A RG6 Coax Cable Click to enlarge the picture
Contents of the user manual for the Belden HD BNC Compression Connector for
- Product category: Video Connectors Belden
- Brand: Belden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belden Video Connectors
|
User manual for the Belden HD BNC Compression Connector for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belden product will considerably shorten its lifespan!
|
Product description The HD BNC Compression Connector from Belen is designed for use with a Belden 1694A RG6 coax cable. This brass connector delivers better than -20 dB at 4.5 GHz return loss with its solid insulator materials to deliver professional, high-definition broadcast audio and video. Its one-piece design and 360° compression rings make for fast and easy installation. The connector is color-coded with a green ring to identify its compatibility with 1694A RG6 coax cables. UPC: 845671002416 In the Box Belden HD BNC Compression Connector for 1694A RG6 Coax Cable (1 Piece) Limited Lifetime Warranty (When Used with Belden Cable) Limited 10-Year Warranty (When Used with Third-Party Cable) Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden HD BNC Compression Connector for 1694A RG6 Coax Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden BL-1694ABHD1 Specs | Connector Type | BNC Coaxial | | Compatibility | Belden 1694A RG6 Coax Cable | | Body Type | Straight Plug | | Contact Material | Brass | | Contact Plating | Gold | | Termination | Compression | | Impedance | 75 Ohms | | Voltage Rating | 500 VRMS | | Return Loss | 1 to 4.5 GHz / <-22 to -32 dB | | Insulation Resistance | >5000 MOhms at 100 VDC | | Durability | 500 Cycles | | Cable Retention Force | >100 lb / 45 kg | | Finish | Body/Bayonet: Brass, Nickel-Plated | | | | Package Weight | 0.035 lb | | Box Dimensions (LxWxH) | 1.25 x 0.6 x 0.5" |
