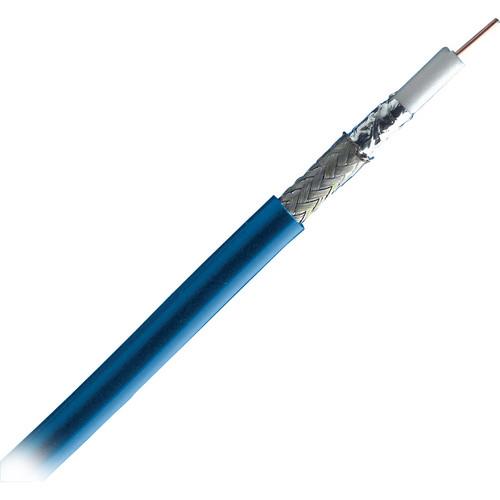

Product description The Belden RG59 Digital Video Coax Cable 1000 ft Blue is a precision broadcast video cable for analog and digital signals.
It's 20 AWG thick and features a solid .032" bare copper conductor and gas-injected foam HDPE insulation. Its shield is made of Dufoil and tinned copper braid and has 95% coverage. Total length is 1000 ft and the weight comes to 31 lbs. Eight different colors are available to choose from and this one that you've clicked into is blue. UPC: 612825358305 In the Box Belden RG59 Digital Video Coax Cable 1000 ft Blue 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden RG59 Digital Video Coax Cable 1000 ft Blue in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1505A-1000BL Specs | AWG | # coax: 1
AWG: 20
Stranding: solid
Conductor: BC - bare copper
Diameter: .032" (.08 cm) | | Insulation | Material: gas-injected FHDPE - foam high density polyethylene
Diameter: .145" (.36 cm) | | Outer Shield | Layer 1:
Outer shield trade name: Duofoil
Type: tape
Material: aluminum foil-polyester tape-aluminum foil
Coverage: 100%
Layer 2:
Type: braid
Material: TC - tinned copper
Coverage: 95% | | Outer Jacket | Material: PVC - polyvinyl chloride | | Max. Recommended Pulling Tension | 47 lbs (21.3 kg) | | Min. Bend Radius | (Install)/Minor Axis: 2.5" (6.35 cm) | | Compliance | NEC/(UL) specification: CMR
CEC/C(UL) specification: CMG
EU CE mark: yes
EU directive 2000/53/EC (ELV): yes
EU directive 2002/95/EC (RoHS): yes
EU RoHS compliance date: 01/01/2005
EU directive 2002/96/EC (WEEE): yes
EU directive 2003/11/EC (BFR): yes
CA prop 65 (CJ for wire and cable): yes
MII order #39 (China RoHS): yes
RG type: sub-miniature 59/U | | Flame Test | UL flame test: UL1666 vertical shaft | | Suitability | Indoor: yes
Outdoor: (yes - black only)
Aerial: (yes - black only, when supported by a messenger wire) | | Plenum/Non-Plenum | Non-plenum | | Impedance | 75 Ohm
(tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination) | | Inductance | (µH/ft): .107 | | Capacitance | (pF/ft): 16.3 | | Velocity of Propagation | 82% | | Delay | (ns/ft): 1.240 | | Conductor DC Resistance | DCR @ 68°F (20°C) (Ohm/1000 ft (304.8 m)): 10 | | Outer Shield | DCR @ 68°F (20°C) (Ohm/1000 ft (304.8 m)): 3.8 | | Attenuation | Freq. MHz: 1.000 = attenuation dB/100 ft (dB/30.48 m): .300
Freq. MHz: 3.600 = attenuation dB/100 ft (dB/30.48 m): .600
Freq. MHz: 5.000 = attenuation dB/100 ft (dB/30.48 m): .630
Freq. MHz: 6.000 = attenuation dB/100 ft (dB/30.48 m): .690
Freq. MHz: 7.000 = attenuation dB/100 ft (dB/30.48 m): .740
Freq. MHz: 10.000 = attenuation dB/100 ft (dB/30.48 m): .900
Freq. MHz: 12.000 = attenuation dB/100 ft (dB/30.48 m): .910
Freq. MHz: 25.000 = attenuation dB/100 ft (dB/30.48 m): 1.300
Freq. MHz: 67.500 = attenuation dB/100 ft (dB/30.48 m): 2.050
Freq. MHz: 71.500 = attenuation dB/100 ft (dB/30.48 m): 2.100
Freq. MHz: 88.500 = attenuation dB/100 ft (dB/30.48 m): 2.200
Freq. MHz: 100.000 = attenuation dB/100 ft (dB/30.48 m): 2.300
Freq. MHz: 135.000 = attenuation dB/100 ft (dB/30.48 m): 2.700
Freq. MHz: 143.000 = attenuation dB/100 ft (dB/30.48 m): 2.800
Freq. MHz: 180.000 = attenuation dB/100 ft (dB/30.48 m): 3.100
Freq. MHz: 270.000 = attenuation dB/100 ft (dB/30.48 m): 3.800
Freq. MHz: 360.000 = attenuation dB/100 ft (dB/30.48 m): 4.400
Freq. MHz: 540.000 = attenuation dB/100 ft (dB/30.48 m): 5.500
Freq. MHz: 720.000 = attenuation dB/100 ft (dB/30.48 m): 6.400
Freq. MHz: 750.000 = attenuation dB/100 ft (dB/30.48 m): 6.500
Freq. MHz: 1000.000 = attenuation dB/100 ft (dB/30.48 m): 7.600
Freq. MHz: 1500.000 = attenuation dB/100 ft (dB/30.48 m): 9.300
Freq. MHz: 2000.000 = attenuation dB/100 ft (dB/30.48 m): 10.900
Freq. MHz: 2250.000 = attenuation dB/100 ft (dB/30.48 m): 11.600
Freq. MHz: 3000.000 = attenuation dB/100 ft (dB/30.48 m): 13.400
Freq. MHz: 4500.000 = attenuation dB/100 ft (dB/30.48 m): 16.400 | | Minimum Return Loss | Start freq. (MHz) 5:
Stop freq. (MHz) = 1600
Min. RL (dB) = 23
Start freq. (MHz) 1600:
Stop freq. (MHz) = 4500
Min. RL (dB) = 21
(Return loss tested in accordance with ASTM D-4566 paragraph 45.3 using a 75 Ohm fixed bridge and termination) | | Sweep Testing | 100% sweep tested 5 MHz to 4.5 GHz | | Operating Voltage | Max. - UL: 300 V RMS | | Operating Temperature | -22 to 167°F (-30 to 75°C) | | UL Temperature Rating | 167°F (75°C) | | Overall Diameter | .233" (.59 cm) | | Length | 1000 ft (304.8 m) | | Weight | 31 lbs (14 kg) | | | | Package Weight | 33.5 lb | | Box Dimensions (LxWxH) | 15.4 x 15.4 x 10.9" |
