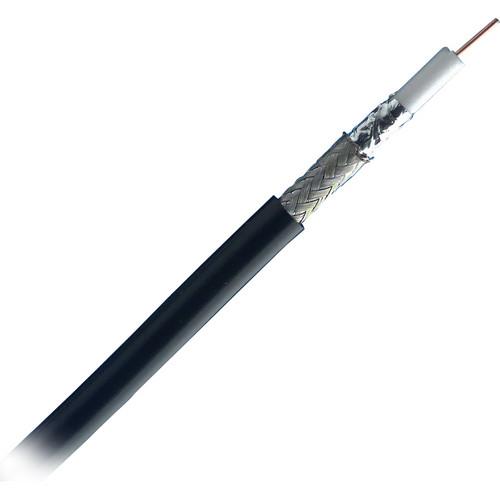

Product description The black RG59 Plenum Cable (1000') from Belden features 20 AWG solid 0.03" (0.08cm) bare copper conductor, plenum, foam FEP insulation, Duofoil + tinned copper braid shield (95% coverage), and Flamarrest jacket. In the Box Belden RG59 Plenum Cable (1000', Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Belden RG59 Plenum Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelden 1506A-1000BK Specs | Conductor | Number of Coax: 1
AWG: 20
Stranding: Solid
Conductor Material: BC (Bare Copper)
Diameter: 0.03" (0.06 cm) | | Insulation Material | Insulation Trade Name: Teflon
Insulation Material: FFEP (Foam Fluorinated Ethylene Propylene)
Diameter: 0.14" (0.33 cm) | | Outer Shield Material | Outer Shield Trade Name: Duofoil
Type: Tape, Braid
Outer Shield Material: Aluminum Foil Polyester, Tape Aluminum Foil, TC (Tinned Copper)
Coverage (%): 100, 95 | | Outer Jacket Material | Outer Jacket Trade Name: Flamarrest Outer Jacket Material: PVC (Polyvinyl Chloride) | | Cable | Nominal Diameter: 0.2" (0.5 cm) | | Impedance | 75 Ω | | Inductance | 0.1 µH/feet | | Capacitance | Nominal Capacitance Conductor to Shield: 16.1 pF/feet | | Velocity of Propagation | 84% | | Conductor DC Resistance | 10 Ω/1,000' at 68°F (20°C) | | Delay | 1.21 ns/feet | | Outer Shield DC Resistance | 3.2 Ω/1,000' at 68°F (20°C) | | Maximum Voltage | 300 Vrms (UL) 18.0 kV (Nominal breakdown voltage between conductors) 16.9 kV (Nominal breakdown voltage conductors to shield) | | Return Loss | Start Frequency: 5 MHz, 1,600 MHz
Stop Frequency: 1,600 MHz, 4,500 MHz
Minimum RL (dB): 23, 21 | | Attenuation | Frequency (MHz): 1, Attenuation (dB/100'): 0.29
Frequency (MHz): 3.58, Attenuation (dB/100'): 0.62
Frequency (MHz): 5, Attenuation (dB/100'): 0.70
Frequency (MHz): 7, Attenuation (dB/100'): 0.82
Frequency (MHz): 10, Attenuation (dB/100'): 1.05
Frequency (MHz): 67.5, Attenuation (dB/100'): 2.20
Frequency (MHz): 71.5, Attenuation (dB/100'): 2.25
Frequency (MHz): 100, Attenuation (dB/100'): 2.70
Frequency (MHz): 135, Attenuation (dB/100'): 3.20
Frequency (MHz): 143, Attenuation (dB/100'): 3.25
Frequency (MHz): 180, Attenuation (dB/100'): 3.65
Frequency (MHz): 270, Attenuation (dB/100'): 4.55
Frequency (MHz): 360, Attenuation (dB/100'): 5.25
Frequency (MHz): 540, Attenuation (dB/100'): 6.4
Frequency (MHz): 720, Attenuation (dB/100'): 7.3
Frequency (MHz): 750, Attenuation (dB/100'): 7.5
Frequency (MHz): 1000, Attenuation (dB/100'): 9.4
Frequency (MHz): 1500, Attenuation (dB/100'): 12.8
Frequency (MHz): 2250, Attenuation (dB/100'): 17.5
Frequency (MHz): 3000, Attenuation (dB/100'): 21.9 | | Compliance | NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
EU Directive 2011/65/EU (ROHS II)
EU CE Mark
EU Directive 2000/53/EC (ELV)
EU Directive 2002/95/EC (RoHS)
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
EU Directive 2002/96/EC (WEEE)
EU Directive 2003/11/EC (BFR)
CA Prop 65 (CJ for Wire & Cable)
MII Order #39 (China RoHS)
RG Type: 59/U
UL Flame Test: NFPA 262 | | Suitability | Indoor | | Plenum | Yes
Non-Plenum Number: 1505A | | Temperature | Operating Temperature Range: -4 to 167°F (-20 to +75°C)
Non-UL Temperature Rating: 167°F (75°C) | | Tension Control | Recommended Pulling Tension: 68.0 lb (30.8 kg) maximum | | Bend Radius | 2.0" (6.1 cm) | | Weight | 29.00 lb (13.15 kg) | | | | Package Weight | 33.5 lb | | Box Dimensions (LxWxH) | 12.8 x 12.8 x 10.7" |
