User Manual for Belkin Advanced Secure 4-Port Dual-Head KVM Switch Click to enlarge the picture
Contents of the user manual for the Belkin Advanced Secure 4-Port Dual-Head KVM
- Product category: KVM Switches Belkin
- Brand: Belkin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belkin KVM Switches
 |
User manual for the Belkin Advanced Secure 4-Port Dual-Head KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belkin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belkin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belkin product will considerably shorten its lifespan!
|

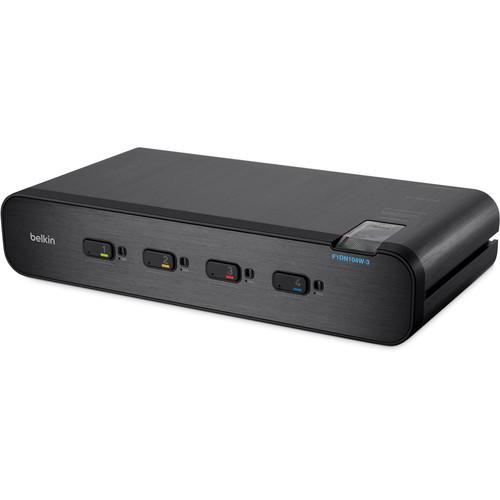

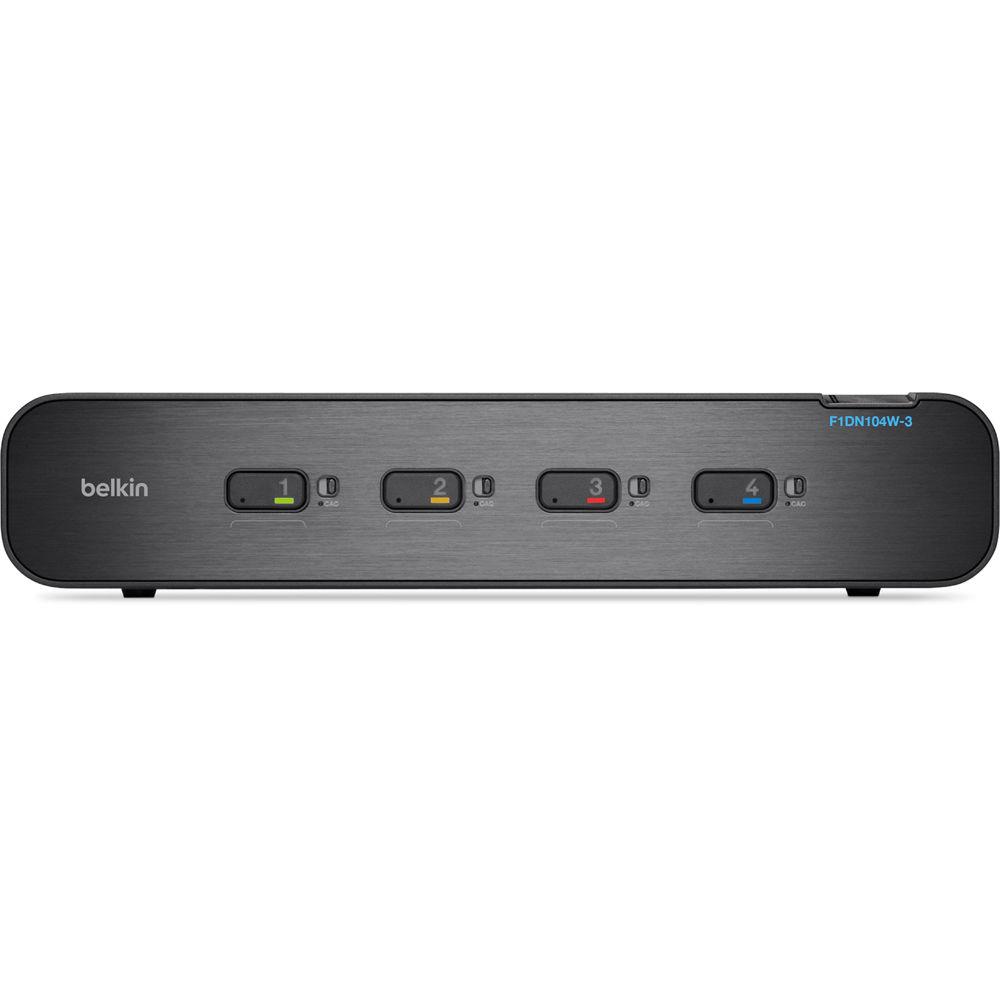

Product description Multi-Monitors: Maximizing Multitasking Read More aezrurvrcacsbfwqrxzes Control up to four computer systems using a single set of peripherals with the Advanced Secure 4-Port Dual-Head KVM Switch from Belkin. You can access these systems utilizing two HDMI-enabled monitors as well as a keyboard and mouse via USB or PS/2 connection. This switch is compatible with host systems that feature DisplayPorts and USB ports. For audio, Belkin has outfitted this switch with 3.5mm ports. To prevent tampering, electrical sensors are on board. Moreover, the port paths are isolated to stop data leaks between systems. - Allows each system to use up to two monitors in order to increase user productivity
- Fully compatible with video cards using DisplayPort 1.1 and 1.2 protocols, supporting resolutions up to 3840 x 2160 pixels (UHD 4K) @ 30 Hz and 2560 x 1600 pixels @ 60 Hz
- Supports HDMI monitors as well as DVI monitors via separately available adapter
- Uses a unique anti-tampering battery with a low self-discharge rate, allowing for a switch life expectancy of over 15 years
- Validated with NIAP Protection Profile 3.0
- Isolated port paths for video, audio, peripherals, and smart card readers prevent data leaks between computers
- Optical unidirectional data diodes prevent peripherals from being used to breach systems
- USB device detection prevents unauthorized peripheral usage
- Internal electrical sensors render unit inoperable if opened
- Unibody chassis minimizes entry points and prevents physical tampering
- A holographic tamper-evident product label provides visual indication and prevention of tampering
- Customizable port coloring and naming facilitates port identification and reduces user switching errors
- Supports Common Access Card (CAC) switching that prevents unwanted system log-off while switching ports
- Integrated mounting track allows under-desk or side-wall mounting
- Semi-locking USB ports prevent accidental disconnection
- Audio security for speakers
UPC: 745883694662 In the Box Belkin Advanced Secure 4-Port Dual-Head KVM Switch 12V, 3A External DC Power Supply Package of Interchangeable Port Color Chips and Port-Naming Labels Limited 3-Year Warranty More info from Belkin aezrurvrcacsbfwqrxzes Table of Contents
|
Upload User Manual
Have you got an user manual for the Belkin Advanced Secure 4-Port Dual-Head KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

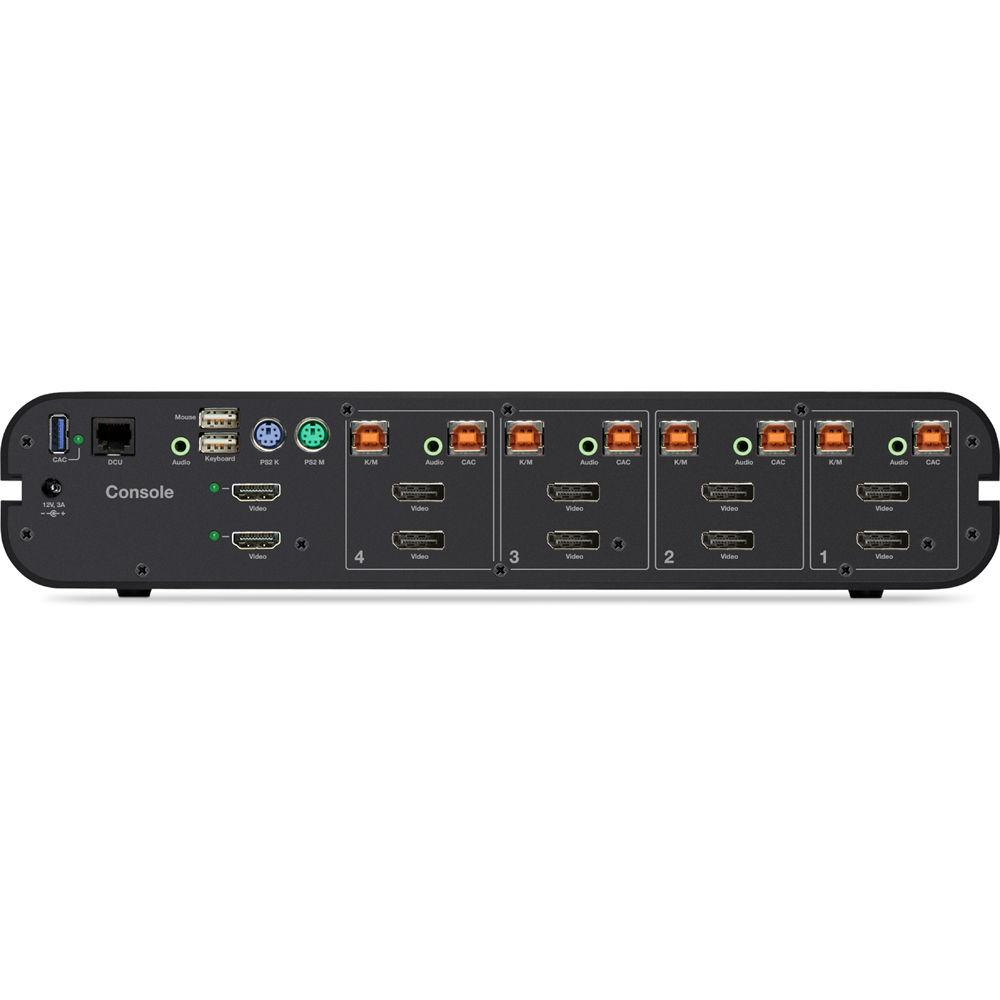

Technical parametersBelkin F1DN104W-3 Specs | | | # of Systems Supported | 4 | | CPU Connections | 8 x DisplayPort
4 x USB (Unspecified Version) Type-B (Keyboard/Mouse)
4 x USB (Unspecified Version) Type-B (CAC)
4 x 3.5 mm | | Console Connections | 2 x HDMI
1 x PS/2 (Keyboard)
1 x PS/2 (Mouse)
1 x 3.5 mm Audio
3 x USB (Unspecified Version) Type-A (Keyboard/Mouse/CAC) | | Supported Resolutions | 3840 x 2160 @ 30 Hz
2560 x 1600 @ 60 Hz | | Operating System Support | Linux, Windows, macOS/OS X | | | | AC Input Power | 120 to 230 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 12.5 x 2.5 x 6.4" / 31.8 x 6.4 x 16.3 cm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 6.785 lb | | Box Dimensions (LxWxH) | 15.1 x 11.5 x 4.9" |
