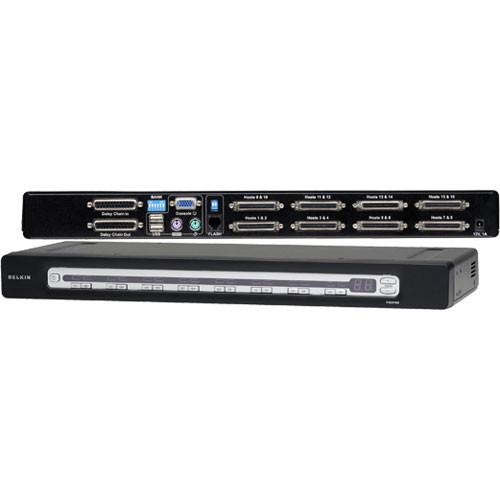

User Manual for Belkin F1DA116Z 16-Port OmniView PRO3 USB & PS 2 KVM Switch Click to enlarge the picture
Contents of the user manual for the Belkin F1DA116Z 16-Port OmniView PRO3 USB
- Product category: KVM Switches Belkin
- Brand: Belkin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belkin KVM Switches
|
User manual for the Belkin F1DA116Z 16-Port OmniView PRO3 USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belkin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belkin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belkin product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The F1DA116Z 16-Port OmniView PRO3 USB & PS/2 KVM Switch from Belkin, is a device that allows network administrators to monitor and control a mixed-server environment from a single console. It supports both USB and PS/2 connectivity. This unit is well suited for small to medium-size server rooms, branch locations, and development laboratories, among other possible uses.
The switch can be scaled to meet your growing needs, either by using its extra ports or daisy chaining up to (16) OmniView PRO Series KVM or SMB KVM switches to support up to (256) servers. This unit also includes programmable AutoScan and hot keys. Note: Please note that cables for this unit must be purchased separately due to the varying connections found on different servers. You must reference your server's connection type to find a compatible Belkin cable. - Mixed-Server Environment Monitoring & Administration
- Use this switch to monitor and control a mixed server environment from a single console.
- Scaling
- This unit can grow with your needs by taking advantage of extra ports or by daisy chaining multiple units.
- Customization
- The switch includes programmable AutoScan and hot keys.
UPC: 722868631249 In the Box Belkin F1DA116Z 16-Port OmniView PRO3 USB & PS/2 KVM Switch Switch Power Supply Three-Year Warranty More info from Belkin wsasfxcwvddfcvcbbecysbtawae Table of Contents
|
Upload User Manual
Have you got an user manual for the Belkin F1DA116Z 16-Port OmniView PRO3 USB & PS 2 KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelkin PRO3 Specs | Construction | Enclosure: metal
Faceplate: plastic | | Finish | Black | | Inputs | Server ports: (16), connection type dependent upon server(s)
Keyboard input: (1) PS/2 (miniDIN6), USB (Type A)
Mouse input: (1) PS/2 (miniDIN6), USB (Type A)
Monitor port: (1) VGA (HDDB15 female)
CPU port: (1) SCSI-50
Daisy-chain port: (1) DB25 female
Flash-upgrade port: (1) RJ11 | | Display | Compatibility: CRT and LCD (with VGA support)
Resolution: up to 1920 x 1440 @ 75Hz *Monitors are not included with this unit. | | Operating System | -Windows NT, 95, 98, 2000, Me, XP, Server 2003, or Vista
-Microsoft DOS 5.x and above
-Red Hat Linux 8.x and above
-Novell NetWare 5.x
-Mac OS X and above (with USB support)
-SunTM SolarisTM 8.x and above | | Controls | (16) direct port selectors on faceplate | | Power | 12VDC, 1A power adapter, center-pin-positive polarity | | Dimensions | 3.5 x 17.25 x 7.5" (89 x 438 x 190mm) | | Weight | 12.0 lbs (5.5kg) | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 21.3 x 12.0 x 5.1" |
