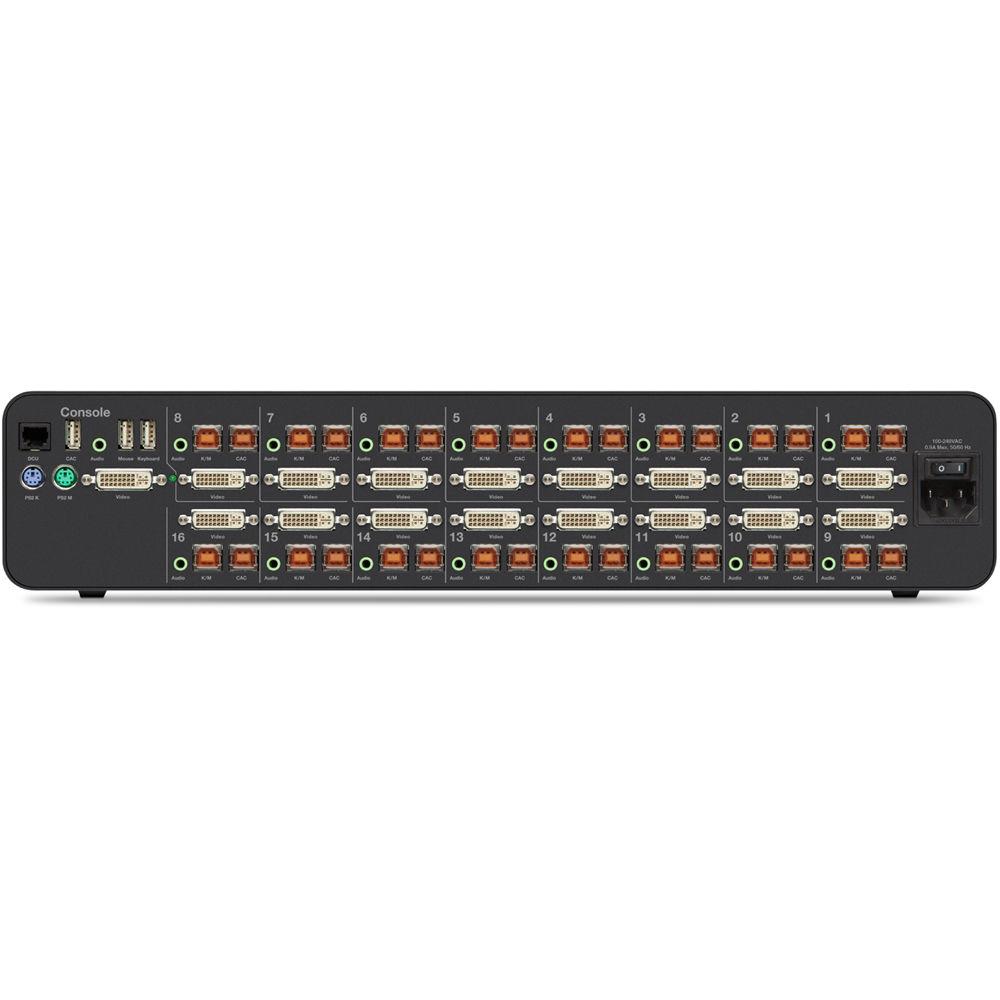

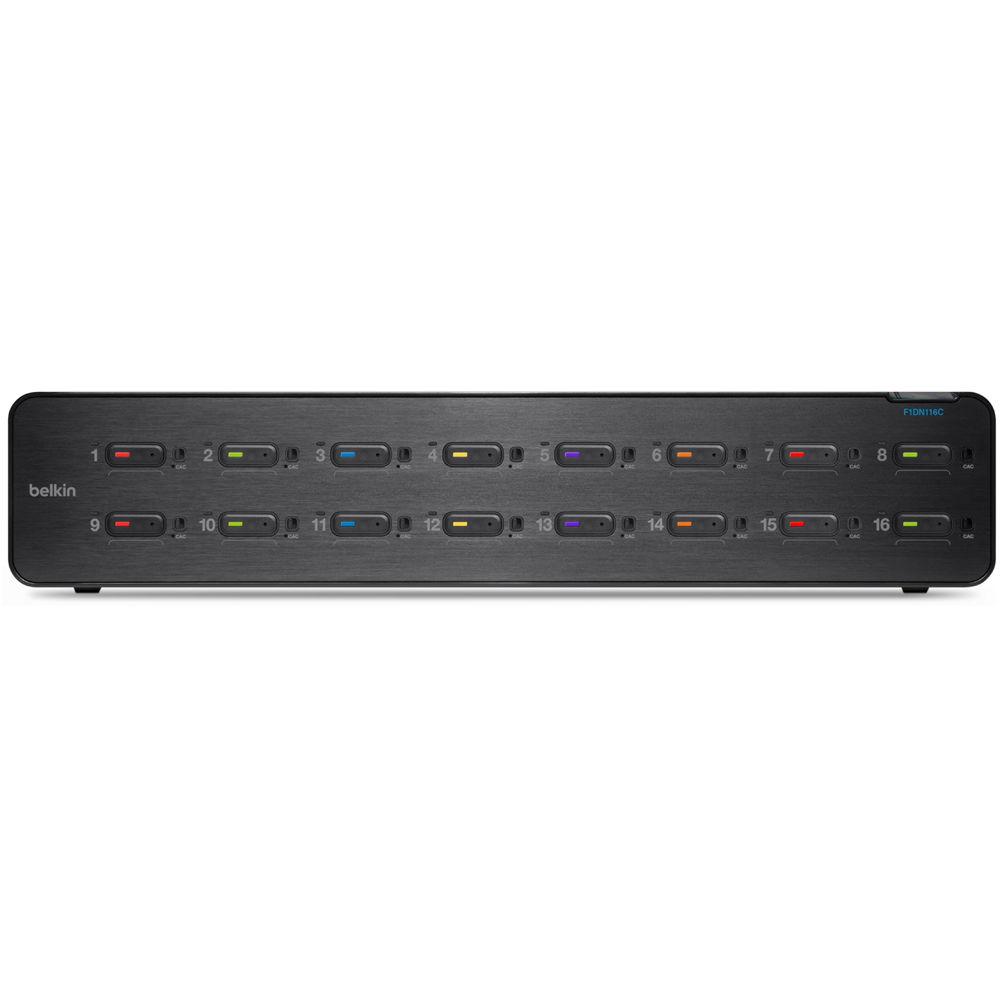

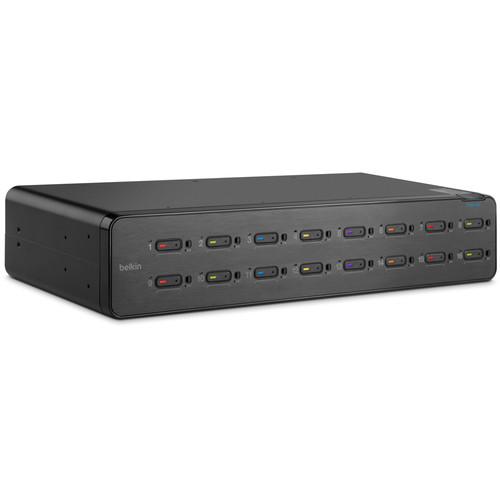

User Manual for Belkin F1DN116C Advanced Secure 16-Port Single-Head DVI-I KVM Switch Click to enlarge the picture
Contents of the user manual for the Belkin F1DN116C Advanced Secure 16-Port Single-Head
- Product category: KVM Switches Belkin
- Brand: Belkin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belkin KVM Switches
 |
User manual for the Belkin F1DN116C Advanced Secure 16-Port Single-Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belkin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belkin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belkin product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More Belkin's F1DN116C Advanced Secure 16-Port Single-Head DVI-I KVM Switch makes connecting a single console to multiple systems connected to different networks safe and easy. Handling up to 8 systems, the F1DN116C provides one DVI-I port, one audio jack, and two USB Type-B ports for each system. This advanced switch offers security and data protection for users by utilizing a unidirectional data path between systems and networks. Data-path isolation prevents internal and external attacks, and peripherals from being used to leak information from one system to another.Additional security is provided through its end-to-end tamper-proof system that prevents physical tampering. This switch is government certified and ideal for government agencies, financial institutions, and other organizations that handle sensitive or confidential data on separate networks with different levels of security. The streamlined form-factor allows the switch to be quickly mounted to a 2 RU system rack. - True Data-Path Isolation
- Provides a single, unbuffered, dedicated processor for each KVM peripheral port to prevent data breaches.
- Peripheral Security
- Unidirectional data flow, using optical diodes, eliminates data leaks via a keyboard or mouse. Because they can only communicate in one direction, these devices are prevented from receiving information from the computer.
- Peripheral Management
- USB signals are monitored in real time to prevent the attachment of unauthorized devices that could transport malware.
- Display Security
- Prevents infected networks from writing to the monitor's EDID EEPROM chip and then using the display to leak information using a KVM switch.
- End-to-End Tamper-Proof System
- Ensures that the product remains tamper-free throughout the manufacturing and delivery process. A uni-body chassis reduces entry points, and tamper-evident holographic labels provide visual indication and prevention of external tampering. Internal sensors render the KVM inoperable if the chassis is opened.
- Enhanced Usability Features
- Reduces user error with customizable color-coded ports with labels that can be used to associate each port with the correct network. The port buttons illuminate to indicate which computer the console is controlling.
UPC: 745883700547 In the Box Belkin F1DN116C Advanced Secure 16-Port Single-Head DVI-I KVM Switch Color Chips Labels USB Type-A Cable Power Adapter Limited 3-Year Warranty More info from Belkin Table of Contents
|
Upload User Manual
Have you got an user manual for the Belkin F1DN116C Advanced Secure 16-Port Single-Head DVI-I KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBelkin F1DN116C-3 Specs | General | Device Type: KVM / audio switch - 16 ports
Enclosure Type: Desktop
Ports: 16 x KVM / audio
KVM Local Users Qty: 1 local user
Keyboard / Mouse Interface: PS/2, USB
Features: Common Access Card (CAC) reader support
Status Indicators: Port status | | No. of Computers Supported | 16 | | Monitors Supported | Single-Link digital DVI-D
Dual-Link digital DVI-D
Analog VGA monitors with adapter | | Resolutions Supported | DVI: Up to 2560 x 1600 @ 60 Hz
VGA: Up to 2048 x 1536 | | Input | Per Port
1 x Audio jack
1 x DVI port
2 x USB Type-B | | Output | 1 x DCU Jack
3 x USB Type-A
1 x Audio jack
2 x PS2 ports
1 x DVI port | | Power | 100-240VAC, 0.9A Max, 50/60Hz | | Certification | EAL 2 | | System Requirements | Microsoft Windows CE
Microsoft Windows Server 2003
Microsoft Windows 2000/XP/Vista/7
Apple Mac OS X 10.3 or later
Red Hat Enterprise Linux Desktop | | Operating Temperature | Min Operating Temperature: 32°F / 0°C
Max Operating Temperature: 104°F / 40°C
| | Storage Temperature | Min Storage Temperature: -4°F / -20°C
Max Storage Temperature: 140°F / 60°C | | Humidity | Humidity Range Operating: 0 - 80% | | Dimensions (W x D x H) | 17.25 x 7.95 x 3.4" / 43.8 x 20.2 x 8.6 cm | | Weight | 13.85 lb / 6.28 kg |
