User Manual for Belkin Thunderbolt 3 Express Dock HD Click to enlarge the picture
Contents of the user manual for the Belkin Thunderbolt 3 Express Dock HD
- Product category: Docking Stations & Port Replicators Belkin
- Brand: Belkin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Belkin Docking Stations & Port Replicators
 |
User manual for the Belkin Thunderbolt 3 Express Dock HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Belkin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Belkin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Belkin product will considerably shorten its lifespan!
|

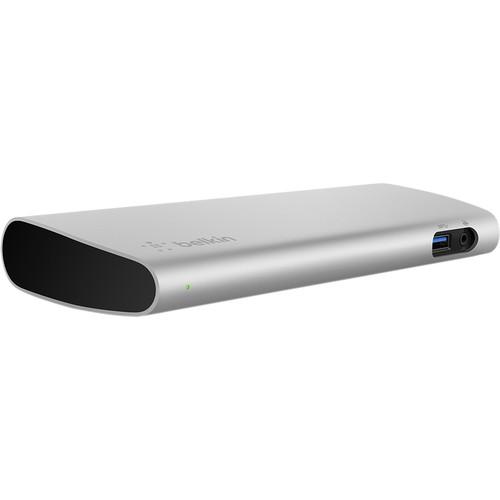

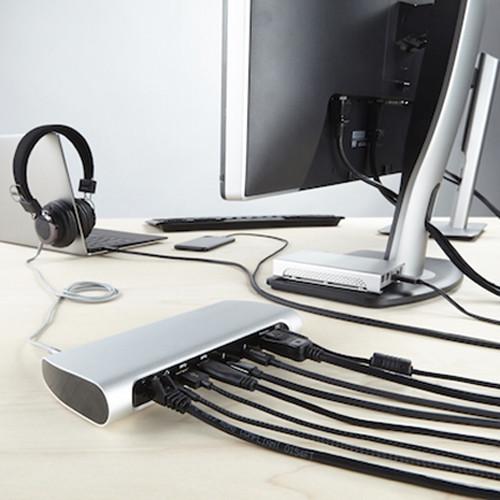

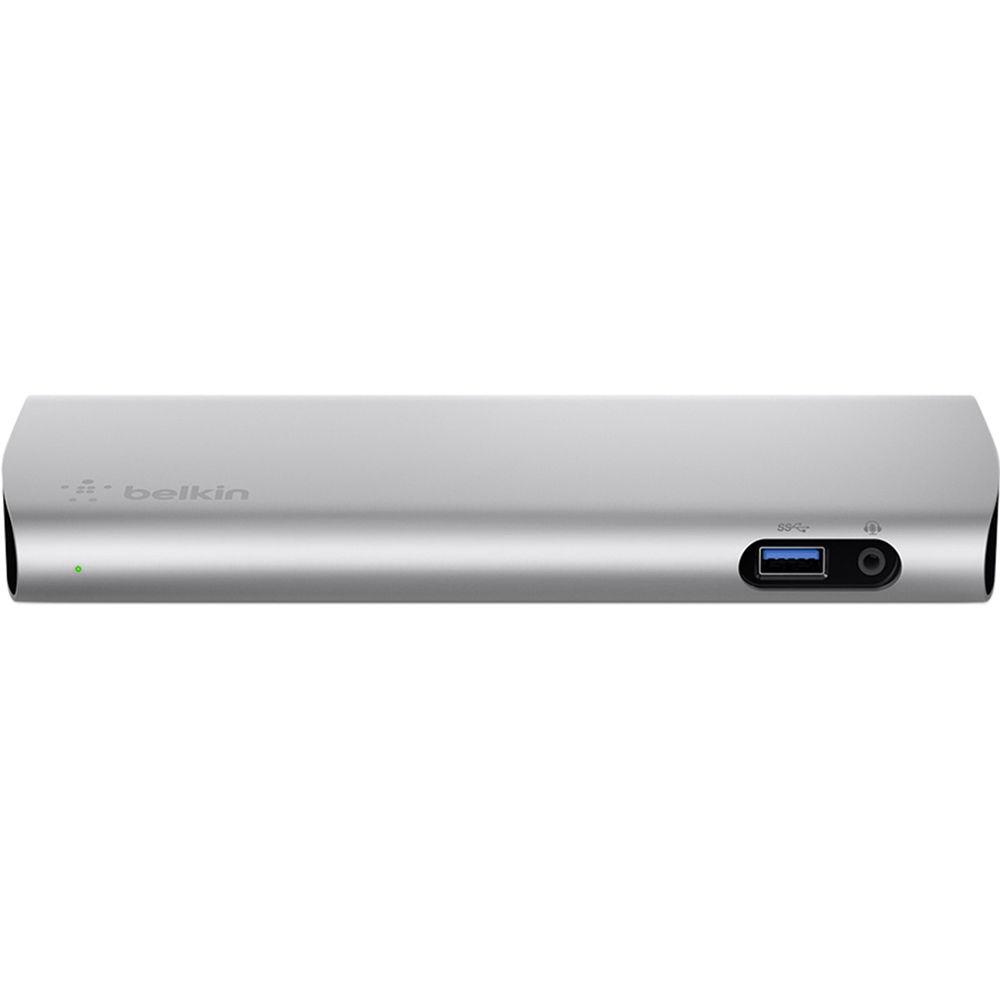

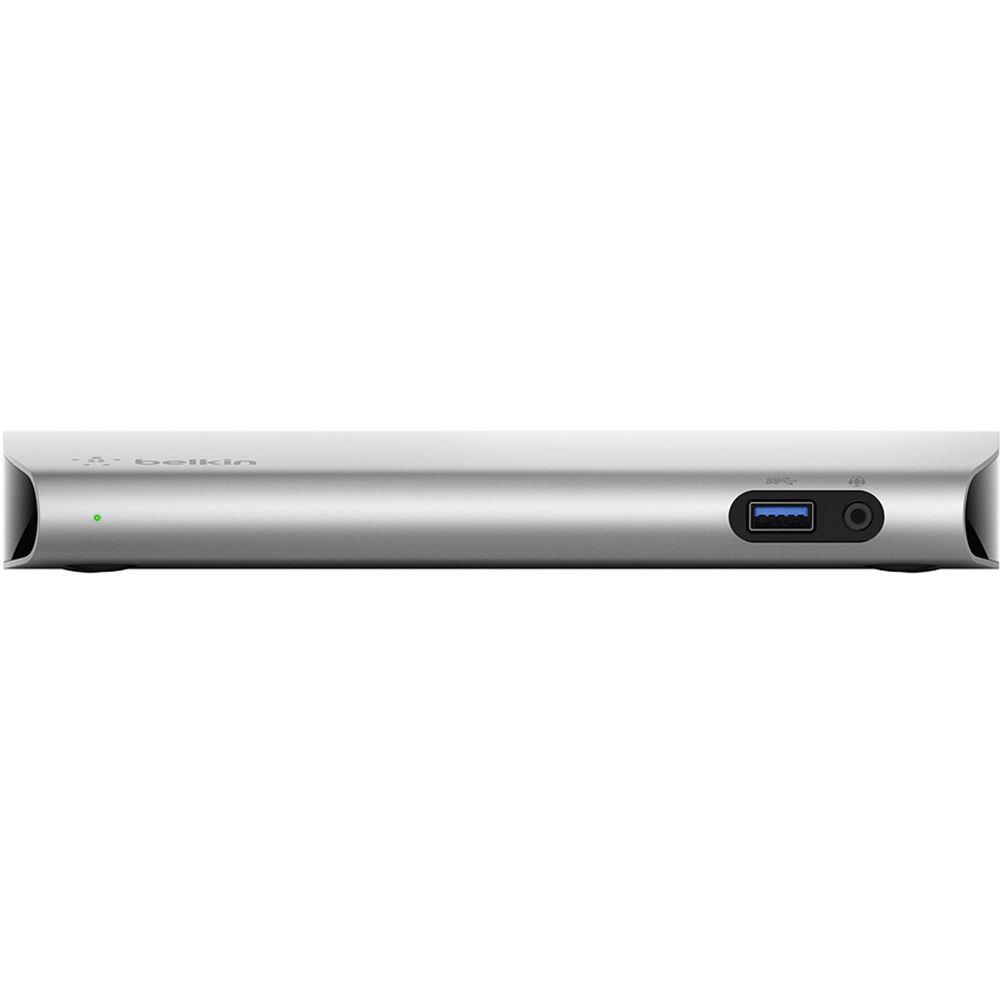

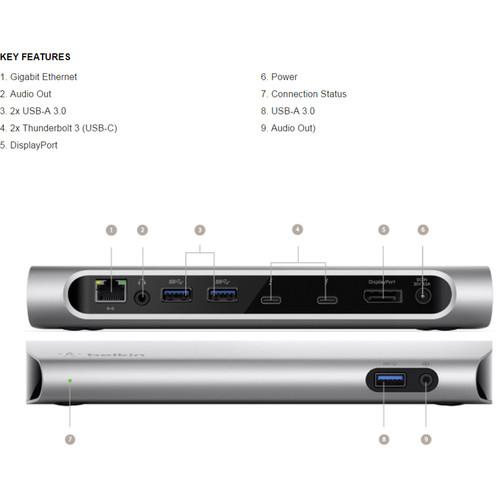

Product description The Thunderbolt 3 Express Dock HD from Belkin features two Thunderbolt 3 ports, one DisplayPort output, three USB 3.0 ports, one Gigabit Ethernet port, and two 3.5mm audio output jacks. Using only a single Thunderbolt connection, you can expand your system's capabilities with printers, monitors, external storage drives, and other devices. The Thunderbolt 3 ports sport a small and reversible USB-C design, transfer data at a rate of up to 40 Gb/s, and deliver up to 85W of power for charging a mobile equipment's battery. Moreover, the Thunderbolt 3 Express dock supports up to two 4K-capable displays, which are connected to its DisplayPort and Thunderbolt 3 port. - The Thunderbolt 3 Express Dock HD delivers up to 85W of power to your computer or mobile device
- Thunderbolt 3 technology transfers data at a rate of up to 40 Gb/s
- With a single Thunderbolt 3 connection, you can daisy chain up to 5 additional Thunderbolt devices from the dock.
- The Thunderbolt 3 Express Dock HD supports dual 4K displays, from both the DisplayPort and Thunderbolt 3 port
- Compatible with USB Type-C video adapters such as HDMI and VGA
UPC: 745883729517 In the Box Belkin Thunderbolt 3 Express Dock HD 3.3' / 1m Thunderbolt 3 Cable 170W Power Adapter Limited 1-Year Warranty More info from Belkin Table of Contents
|
Upload User Manual
Have you got an user manual for the Belkin Thunderbolt 3 Express Dock HD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

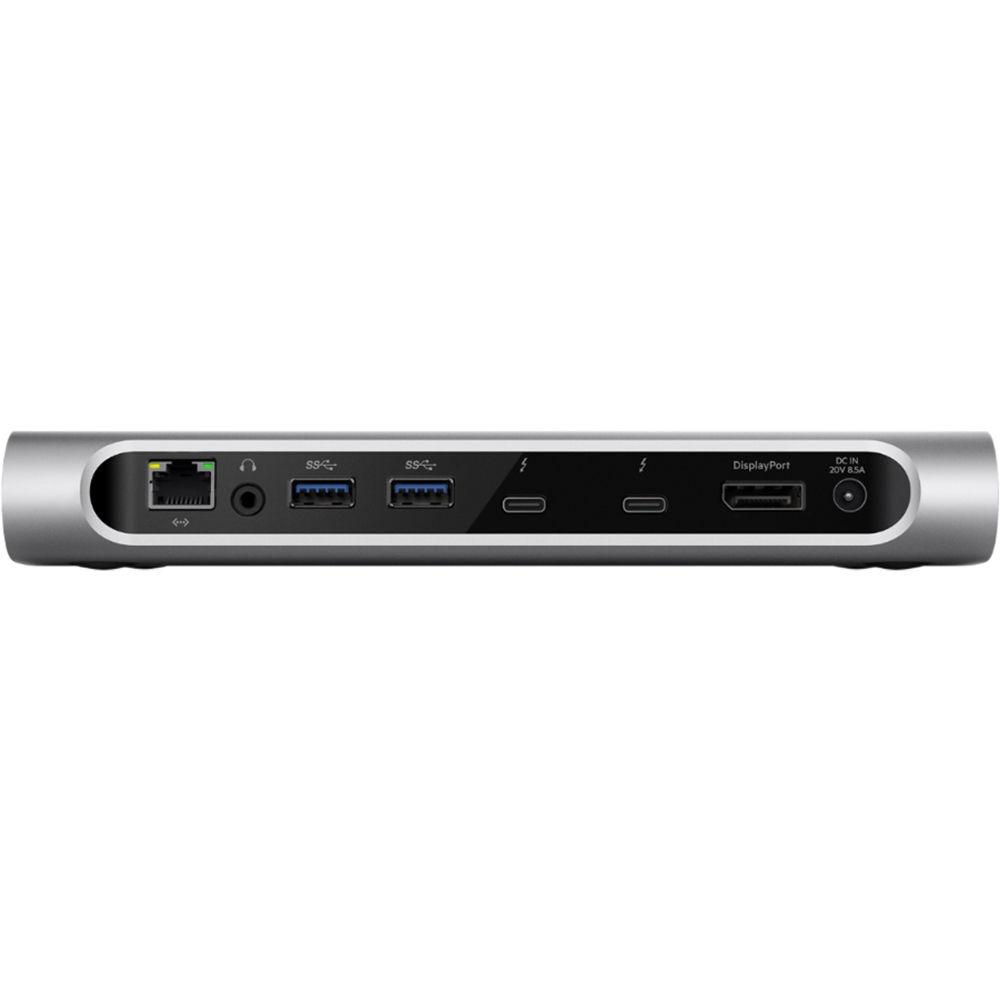

Technical parametersBelkin F4U095TT Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 2 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort | | Audio | 2 x 1/8" / 3.5 mm Headphone | | Memory Card Slots | None | | | | Data Transfer Rate | 40 Gb/s Thunderbolt 3
5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | macOS/OS X | | | | LED Indicator | Connection | | Dimensions | 8.2 x 3.4 x 1.2" / 20.8 x 8.6 x 3 cm | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 11.5 x 7.0 x 3.0" |
