User Manual for Bell & Howell Rogue DNV6HD 1080p HD Night Vision Camera with Touch Screen Click to enlarge the picture
Contents of the user manual for the Bell & Howell Rogue DNV6HD 1080p
- Product category: Consumer Camcorders Bell & Howell
- Brand: Bell & Howell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bell & Howell Consumer Camcorders
 |
User manual for the Bell & Howell Rogue DNV6HD 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bell & Howell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bell & Howell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bell & Howell product will considerably shorten its lifespan!
|

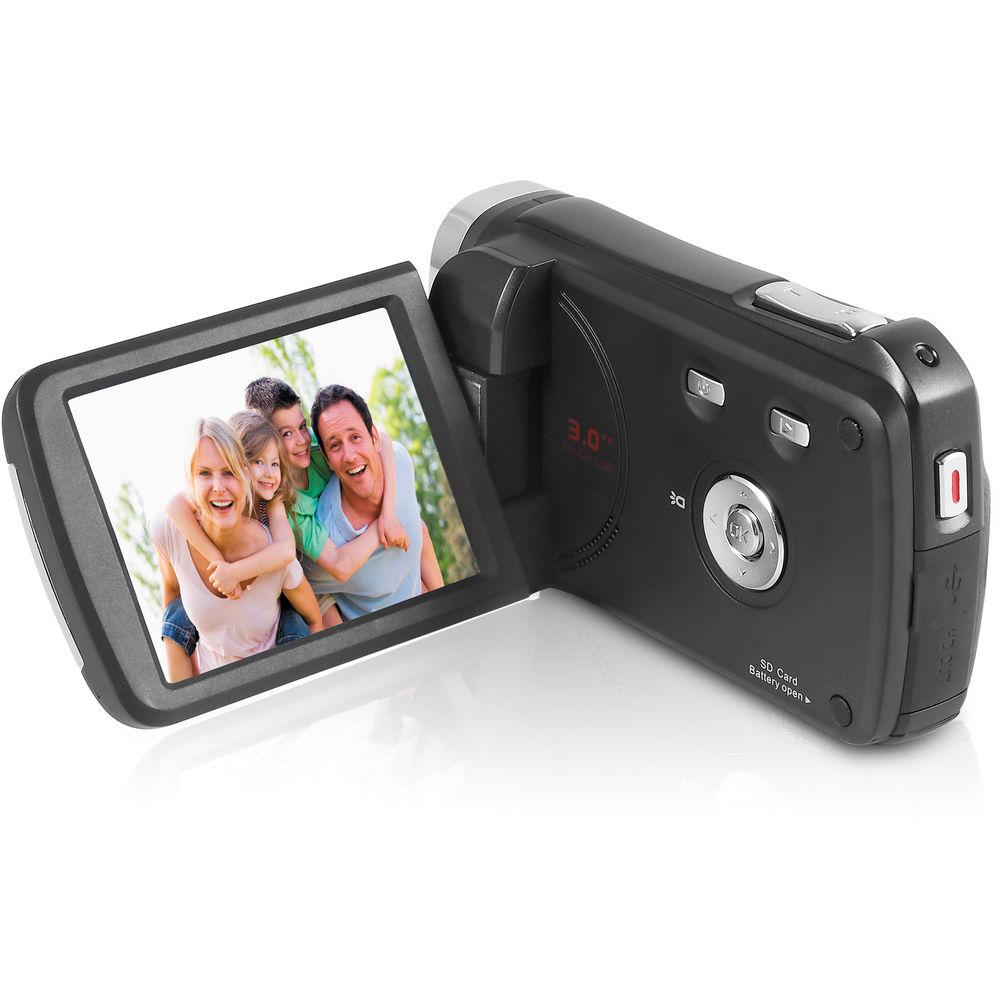

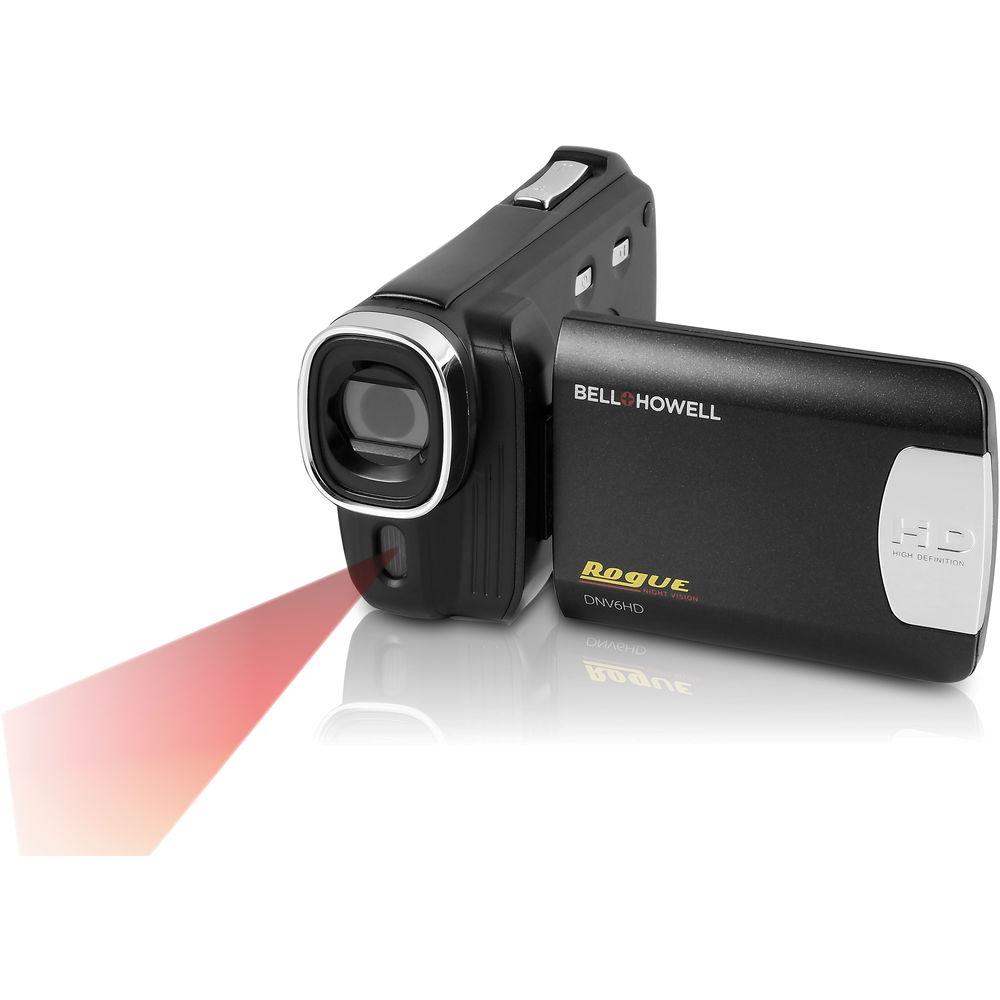

Product description Combining a slim body design, with a flip-out three inch LCD touchscreen the black Rogue DNV6HD 1080p HD Night Vision Camera from Bell & Howell records HD video in 1080 and 720p as well as SD Video, is compatible with NTSC video standards, and captures 20MP still photographs. It features a 5MP CMOS sensor, and incorporates a fixed 7.5mm lens, with digital 8x zoom to bring you closer to your subject. The camera shoots color images in normal lighting conditions, and it has built-in IR illumination for dim or dark conditions.
The camera features electronic image stabilization, and a choice of nineteen built-in shooting modes. The three inch LCD touchscreen allows you to see what is going on, and control the camera via its menu. The camcorder records using M-JPEG compression to optional SDHC cards, supporting media cards up to 32GB. - Records HD & SD Video
-
- Records 1920 by 1080 HD video at 20 fps
- Records 1280 x 720 HD video at 30 fps
- Records 720 x 480 SD Video
- Records 640 x 480 SD video
- Night Vision
- The camera incorporates IR LED illumination for night vision shooting, in black and white.
- Shooting Modes
- Allows you to choose from 19 different shooting modes:
Auto, Normal, Black and White, Sepia, Red, Blue, Sunset, Warm, Cool, Over Exposure, IR, Binary, Vivid, Undertone, Dog Eye, Aibao, Gothic, Japan Style, Lomo, Negative - Scene Modes
- Auto,Sport ,Night, Portrait, Landscape ,Backlight ,Party ,Beach ,High Sensitivity
- Media Card Slots
- Records to optional SDHC media cards up to 32GB
UPC: 084438900897 In the Box Bell & Howell Rogue DNV6HD 1080p HD Night Vision Camera with Touch Screen (Black) HDMI Cable USB Cable Lithium-Ion Battery Battery Charger Camera Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bell & Howell Rogue DNV6HD 1080p HD Night Vision Camera with Touch Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBell & Howell DNV6HD Specs | | | Sensor | 1-Chip CMOS | | Sensor Resolution | 5 MP | | | | Focal Length | 7.5mm | | Maximum Aperture | f/3.1 | | Zoom | Digital: 8x | | | | System | NTSC | | Recording Media | x SDHC (32 GB Maximum) | | Video Format | 1920 x 1080 (M-JPEG)
1280 x 720 at 30 fps (M-JPEG)
720 x 480 at 30 fps (M-JPEG)
640 x 480 at 30 fps (M-JPEG) | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 3.0" | | Rotation | Opening Angle: 90°
Turning Angle: 270° | | | | Image Stabilization | Digital | | Scene Modes | Preset: Yes | | Creative Effects | Yes | | Built-In Speaker | Yes | | | | Dimensions (W x H x D) | 2.3 x 2.2 x 4.7" / 58.0 x 56.0 x 120.0 mm | | Weight | 13.00 oz / 368.55 g | | | | Package Weight | 1.305 lb | | Box Dimensions (LxWxH) | 9.1 x 6.6 x 2.75" |
