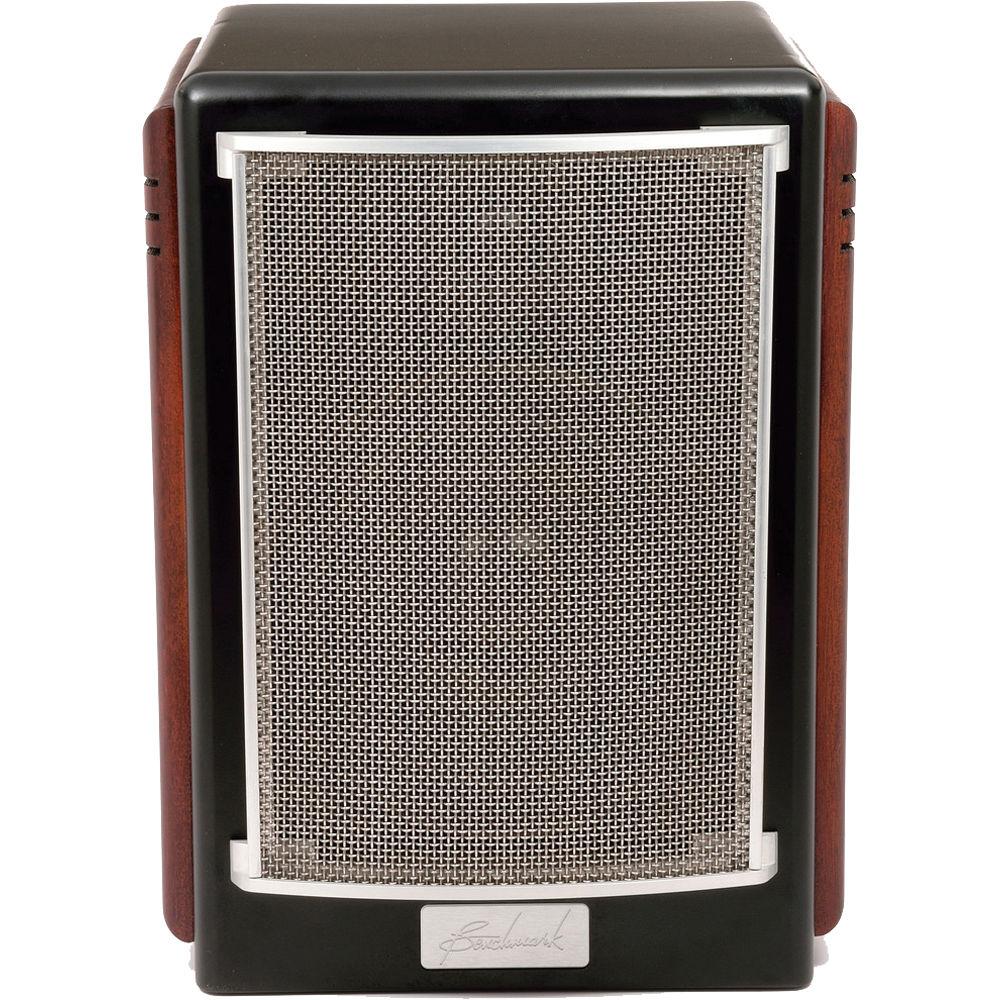

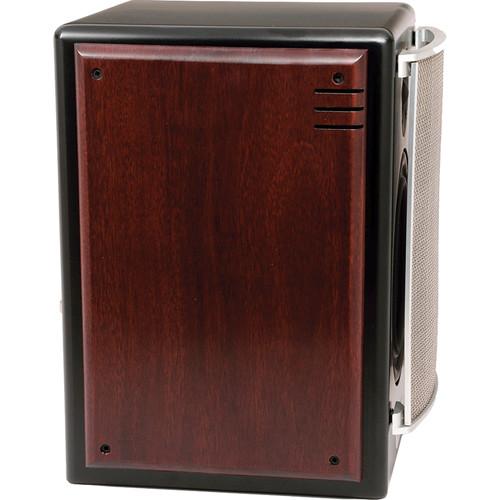

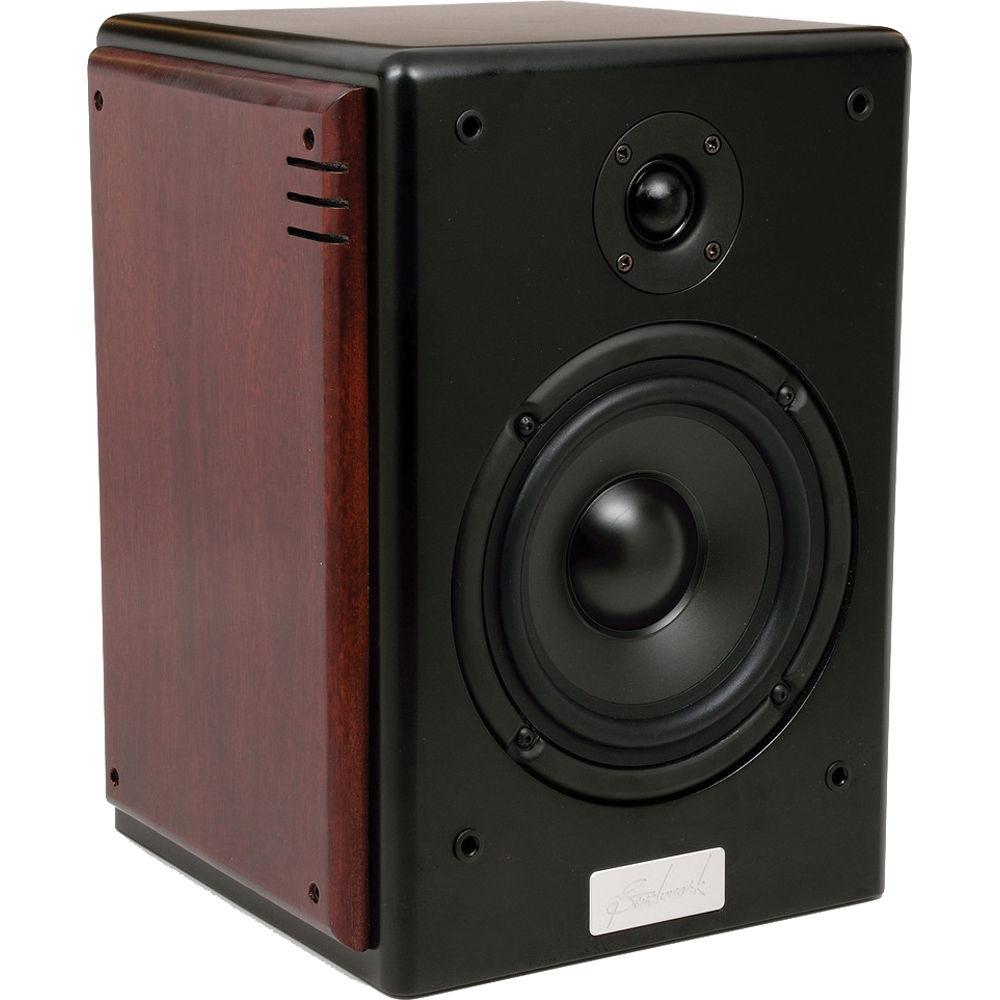

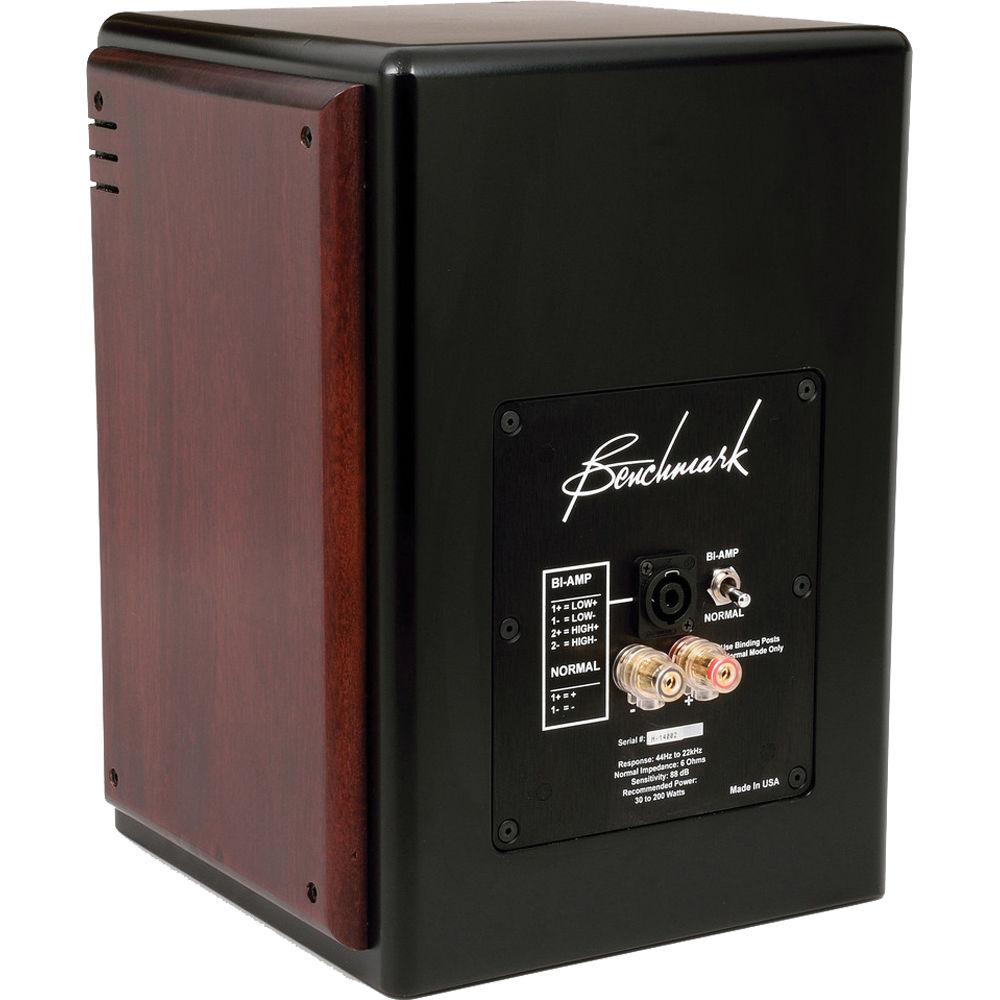

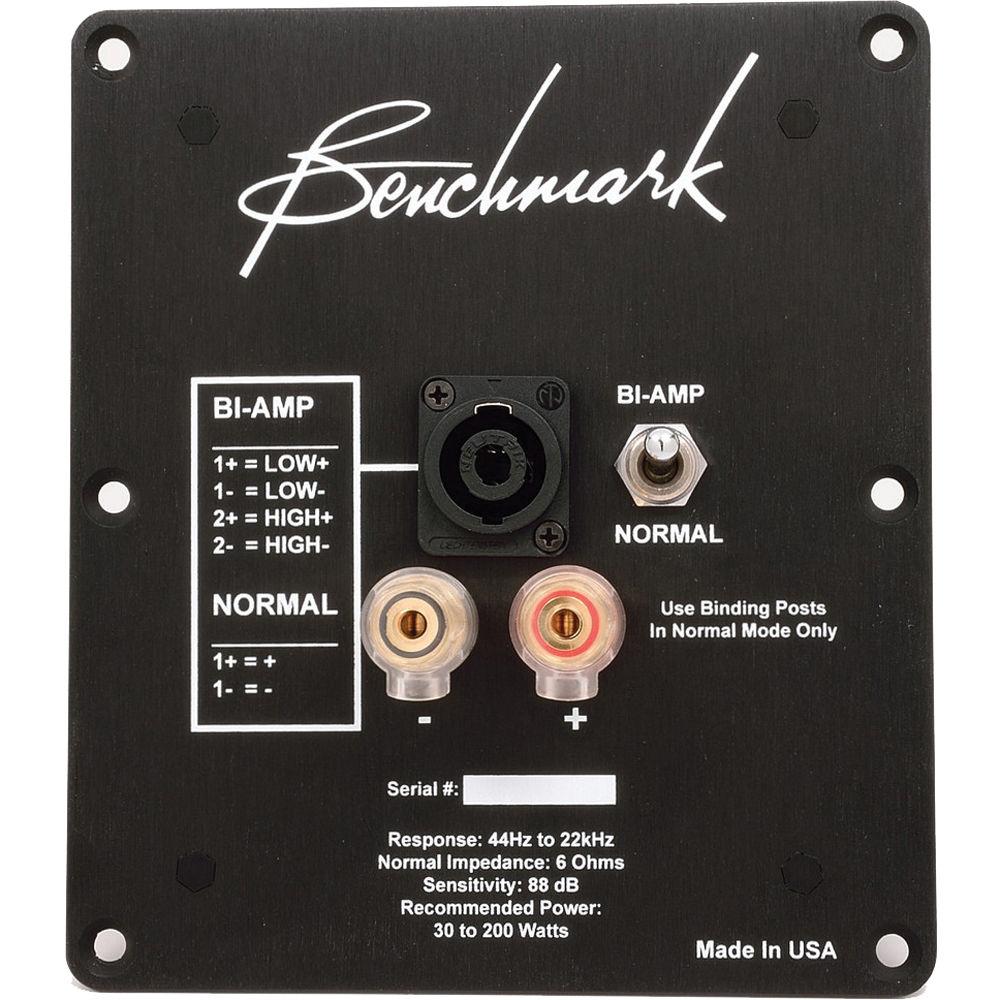

Product description The pair of mahogany SMS1 Loudspeakers from Benchmark is a two-way passive acoustic-suspension monitor/loudspeaker with BI-AMP capabilities. It features a 6.7" woofer with a copolymer cone, and a 25mm soft dome tweeter. The SMS1 has two sets of input connections: traditional binding posts, and Speakon NL4 twist-lock speaker connectors. Both sets of connectors support standard 2-wire connections from the power amplifier. The NL4 connectors also provide separate connections to the high-frequency and low-frequency sides of the crossover network when the BI-AMP switch is activated. The NL4 connectors are compatible with 4-pole NL4 plugs or 2-pole NL2 plugs. Use two-pole NL2 pugs and cable for standard wiring, and four-pole NL4 pugs and cable for Bi-Wire and BI-AMP applications. In the Box Benchmark SMS1 Loudspeaker (Mahogany, Pair) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Benchmark SMS1 Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenchmark SMS1 Specs | | | Monitor Type | Passive 2-Way | | Enclosure | Sealed, Shielded | | Passive Power Handling | 30 to 200 W | | Drivers | HF Driver: 1 x 1" / 2.5 cm Soft Dome Tweeter
LF Driver: 1 x 6.7" / 170 mm Copolymer Cone | | | | Frequency Range | 44 Hz to 22 kHz | | Speaker Sensitivity | 88 dB | | | | Crossover Frequency | 3 kHz | | | | I/O | 1 x speakON 4-Pole Analog Input (6 Ohms)
2 x Binding Post Analog Input (6 Ohms) | | | | Certifications | RoHS, as per Manufacturer | | Dimensions (W x H x D) | 10.8 x 13.5 x 9.9" / 27.0 x 34.5 x 25.0 cm (Each) | | Weight | 23.0 lb / 10.4 kg (Each with Grille) | | | | Package Weight | 47.1 lb | | Box Dimensions (LxWxH) | 29.0 x 16.75 x 13.0" |
