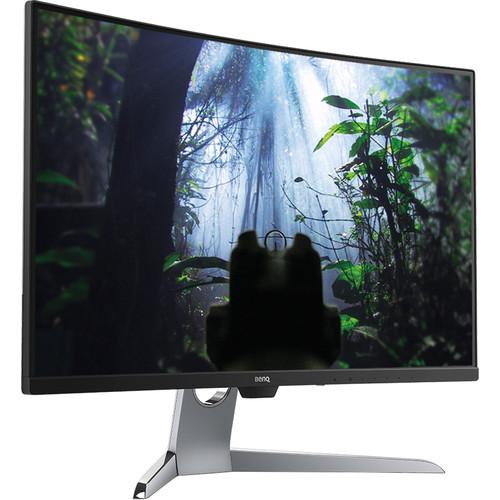

User Manual for BenQ 31.5" EX3203R 16:9 Curved 144 Hz FreeSync 2 HDR LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ 31.5" EX3203R 16:9 Curved 144
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ 31.5" EX3203R 16:9 Curved 144 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

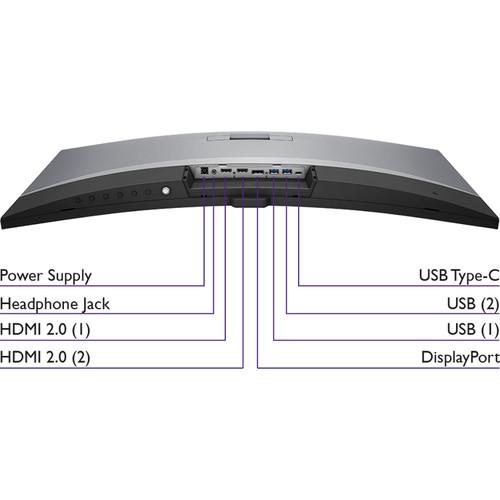

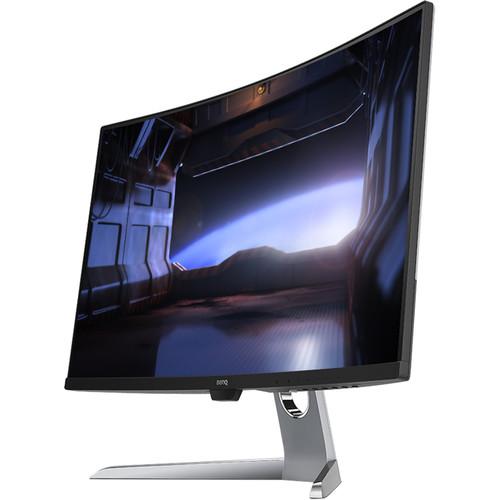

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 31.5" EX3203R 16:9 Curved 144 Hz FreeSync 2 HDR LCD Monitor from BenQ features an expansive 31.5" VA (Vertical Alignment) panel with a 1800R curvature that wraps around your field of view for a more immersive viewing experience. It has a 2560 x 1440 resolution for crisp and clear details and a 3000:1 static ratio for enhanced color depth and definition. Additionally, it has a 400 cd/m² brightness rating for HDR 400 support that can provide you with vivid colors. For gamers, this monitor supports AMD's FreeSync 2 and has a 144 Hz refresh rate, ideal for fast-paces games such as FPS or racing games. Connect it to your system via HDMI, DisplayPort, or USB Type-C and tilt it to your preferred viewing angle. It supports VESA-mounting as well; however, you will need to buy a separate mounting kit. - VESA Certified Display HDR 400
- The EX3203R has a 400 cd/m² brightness rating, adhering to HDR 400 requirements. Moreover, by combining HDR and Brightness Intelligence Plus mode, this monitor can provide you with detailed images, even in dark environments.
- FreeSync 2
- Like its previous version, AMD's FreeSync 2 technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing and stuttering. The second version adds HDR support, so you can enjoy better details with smooth gameplay.
- Brightness Intelligence Plus Technology
- Brightness Intelligence Plus Technology helps to reduce eye strain in any environment by detecting ambient brightness and color temperature, and adjusting the display as needed.
- Low Blue Light Technology
- BenQ's Low Blue Light Technology helps to reduce blue light emissions, which can cause eye fatigue and irritation over extended viewing sessions. It includes four presets including: Multimedia, Web-surfing, Office, and Reading.
- ZeroFlicker
- ZeroFlicker reduces flickering at all brightness levels to reduce eye fatigue and improve user-comfort.
UPC: 840046039653 In the Box BenQ 31.5" EX3203R 16:9 Curved 144 Hz FreeSync 2 HDR LCD Monitor USB Type-C Cable DP to mini-DP Cable HDMI Cable Power Cable & Adapter Back Cover Limited 3-Year Warranty User Manual PDF 7.2mb More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ 31.5" EX3203R 16:9 Curved 144 Hz FreeSync 2 HDR LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ EX3203R Specs | | | Size | 31.5" | | Screen Area | 27.45 x 15.44" / 697.34 x 392.26 mm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 90% DCI-P3
100% Rec. 709 | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI 2.0
1 x DisplayPort
1 x USB Type-C
1 x 3.5 mm | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | Supported Languages | Arabic
Croatian
Czech
Dutch
English
French
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish

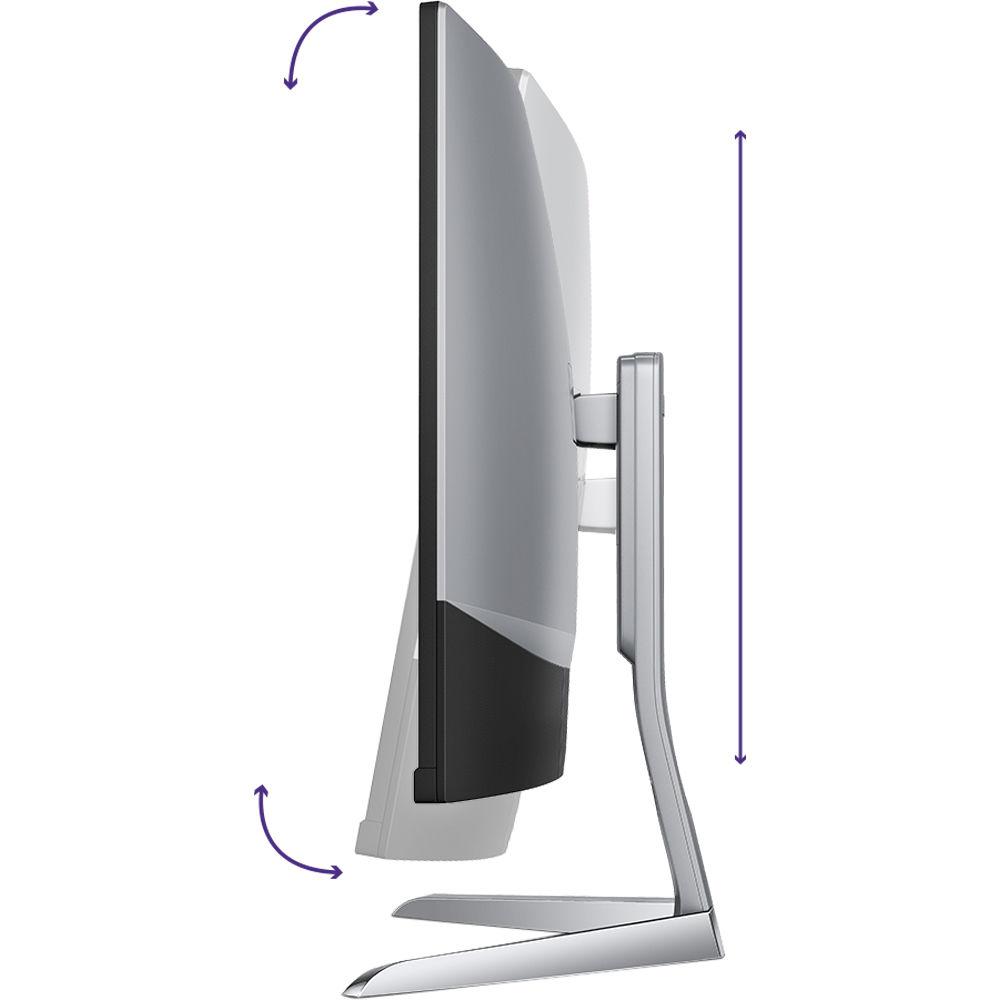

Traditional Chinese | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | USB Power Delivery | 10 W | | | | Height Adjustment | 2.36" / 60 mm | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | None | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 28.1 x 21.1 x 8.8" / 712.7 x 536.0 x 223.9 mm | | Weight | 17.86 lb / 8.1 kg | | | | Package Weight | 29.2 lb | | Box Dimensions (LxWxH) | 34.0 x 25.6 x 11.8" |
