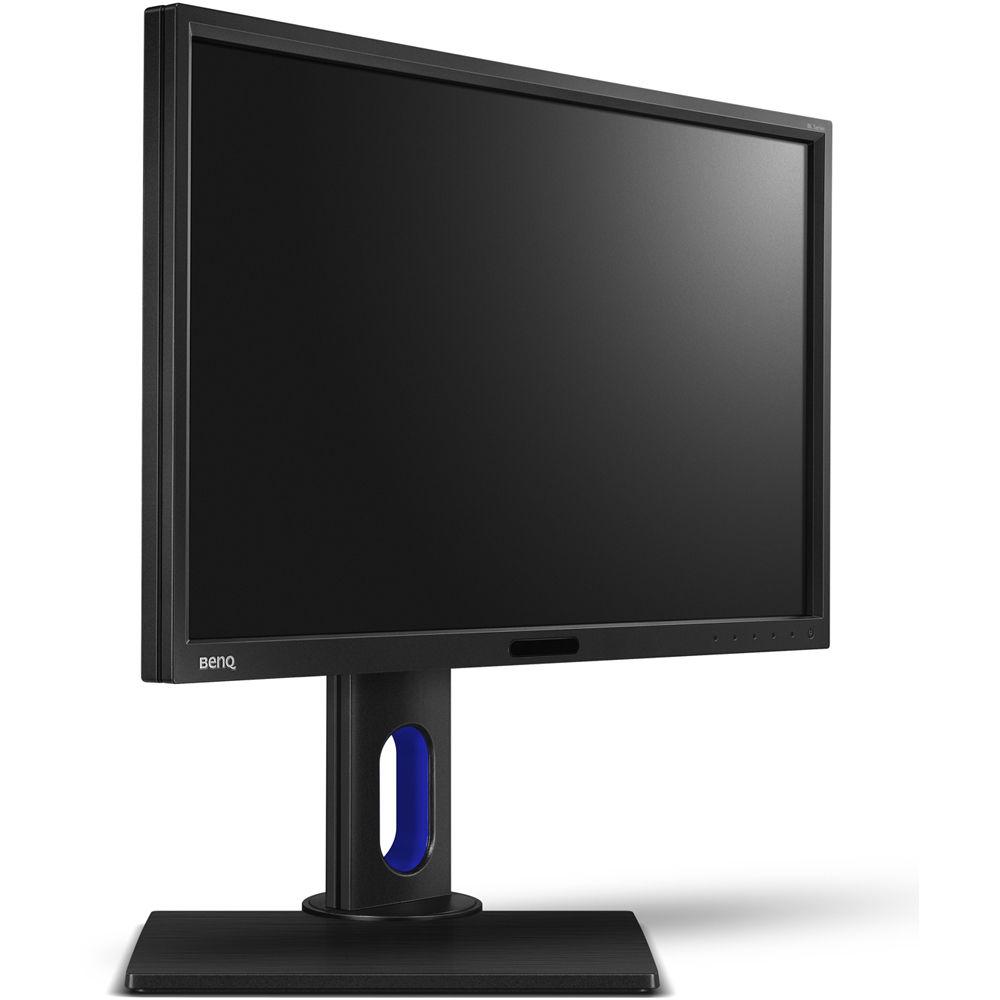

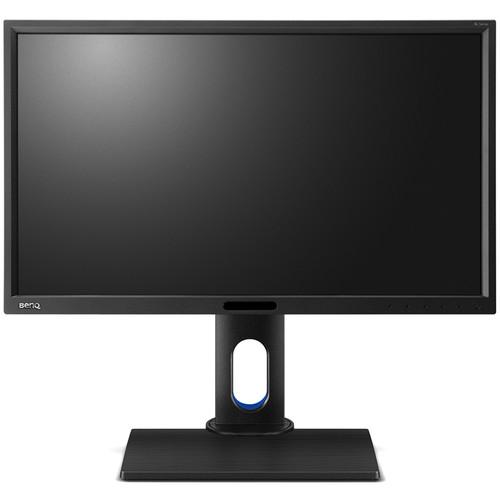

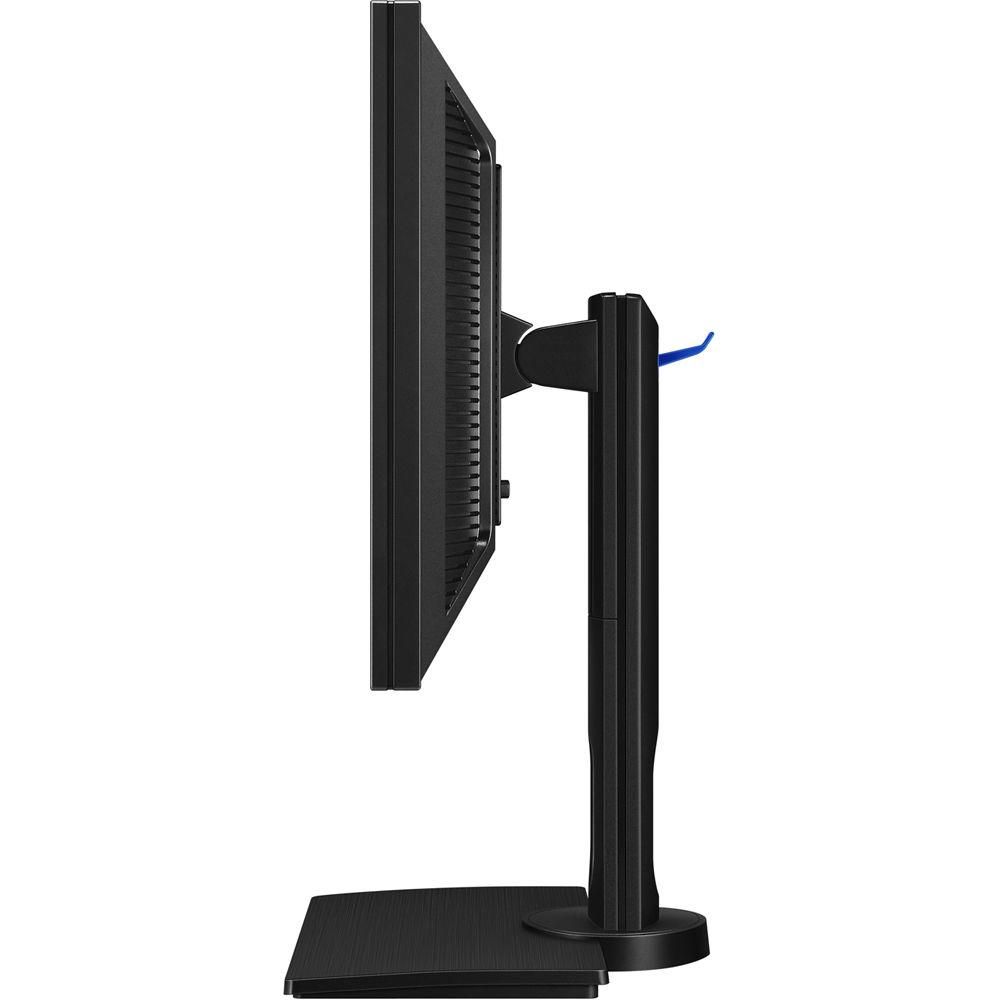

User Manual for BenQ BL2420PT 24" 16:9 CAD CAM IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ BL2420PT 24" 16:9 CAD CAM
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ BL2420PT 24" 16:9 CAD CAM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Covering 100% of the sRGB color space and supporting the Rec. 709 standard, the BL2420PT 24" 16:9 CAD/CAM IPS Monitor from BenQ is designed to be used for a variety of tasks such as graphic design, photo editing, and animation. The BL2420PT even comes equipped with a CAD/CAM mode supporting high color contrast for use with 3D color lines. To switch between the various viewing modes, BenQ has included an OSD controller built right into the monitor, making it easy to switch between CAD/CAM, animation, and low blue light modes as well as the ability to customize controller settings with the click of a button. In addition to low blue light mode, this monitor features ZeroFlicker which virtually eliminates all flicker from the display to reduce eye fatigue during periods of extended viewing.
This CAD/CAM IPS (In-Plane Switching) monitor from BenQ features a QHD 2560 x 1440 resolution along with a 16:9 widescreen aspect ratio, a 1,000:1 contrast ratio, a brightness rating of 300 cd/m², and a 5 ms response time to provide enhanced picture quality along with reduced ghosting when viewing movies and videos. Setup and configuration is simple as this monitor comes equipped with D-Sub, DVI-DL, DisplayPort 1.2, and HDMI 1.4 input connectors, and both a headphone jack and audio line-in jack. Users can also take advantage of a built-in USB hub to connect USB enabled peripherals directly to the display. Once configured, the IPS panel offers 178° horizontal and vertical viewing angles to see the screen from virtually any angle. - Sharp 2K/QHD Monitor
- This 2K/QHD monitor has over 77% working space compared with 1920 x 1080 FHD displays.
- Improved Color Rendering with 100% sRGB Coverage and Rec. 709 Support
- Work with 100% sRGB and Rec. 709 color space where more than 1 billion vibrant colors are accurately reproduced on the screen for professional photo editing and image viewing.
- CAD/CAM
- The CAD/CAM Mode offers high contrast on 3D color lines. You can clearly distinguish details in complicated object wire frames, as well as alter monitor color.
- Animation
- Animation mode enhances details in dark shadows so you can fine-tune creations, while areas that do not require this function remain unaltered.
- Video-Editing
- A large working plane and precision QHD image quality make it easier to work in multiple windows or on multiple programs at one time. Rec. 709 color space ensures that every color is faithfully represented with precision.
- Graphic Arts
- This BenQ monitor features a QHD resolution, ultra-refined 8-bit display, advanced IPS technology and 100% sRGB color rendering.
- OSD Controller
- Switch between CAD/CAM, Animation and Low Blue Light Modes, or you can customize with a simple click of a button with the OSD Controller.
- Zero Flicker
- Stable feedback technology prevents the harmful effects of flickering from tiring or damaging the eyes.
- Low Blue Light
- The unique BenQ Low Blue Light Technology is designed to filter out harmful blue light, effectively diminishing eye fatigue and irritation.
UPC: 840046035457 In the Box BenQ BL2420PT 24" 16:9 CAD/CAM IPS Monitor Limited 3-Year Warranty More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ BL2420PT 24" 16:9 CAD CAM IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ BL2420PT Specs | | | Size | 23.8" | | Screen Area | 20.7 x 11.7" / 52.7 x 29.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 100% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.205 x 0.205 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
2 x USB Type-A 2.0
1 x DVI-D
1 x DisplayPort 1.2 Input
1 x HDMI 1.4
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 0.5 W (Standby)
28 W (Typical) | | | | Certifications | ENERGY STAR, as per Manufacturer | | | | Height Adjustment | 5.5" / 14 cm | | Rotation Adjustment | 90° | | Tilt Adjustment | -5 to 20° | | Dimensions (W x H x D) | 13.3 x 22.2 x 2.8" / 33.8 x 56.3 x 7.2 cm | | Weight | 15.4 lb / 7 kg | | | | Package Weight | 19.95 lb | | Box Dimensions (LxWxH) | 26.1 x 19.3 x 7.9" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
