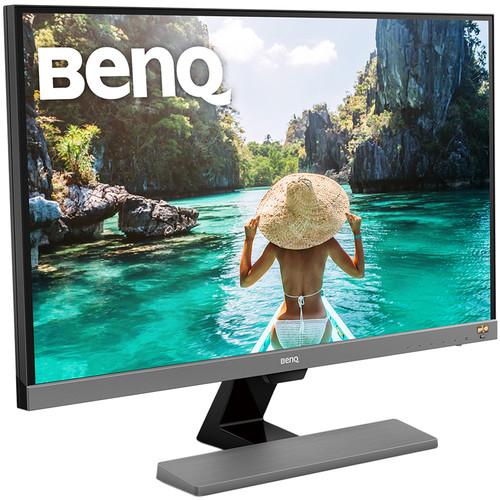

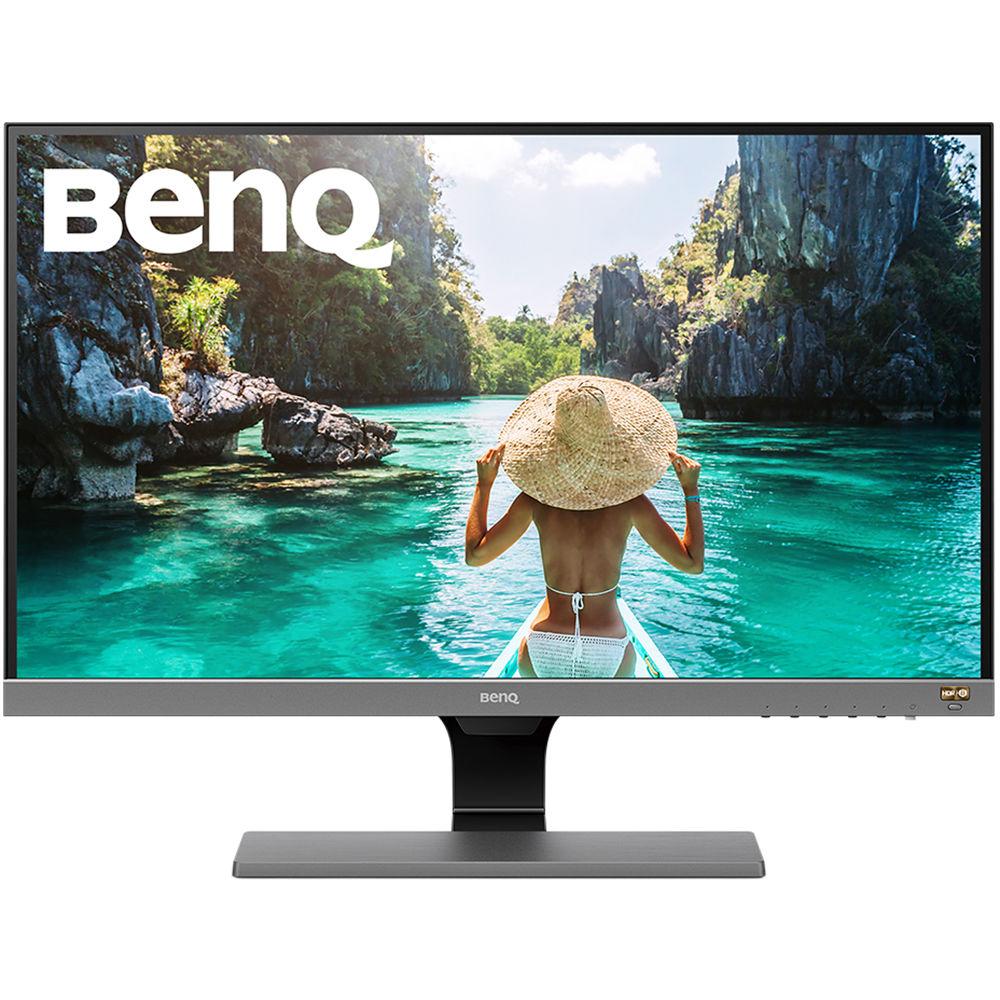

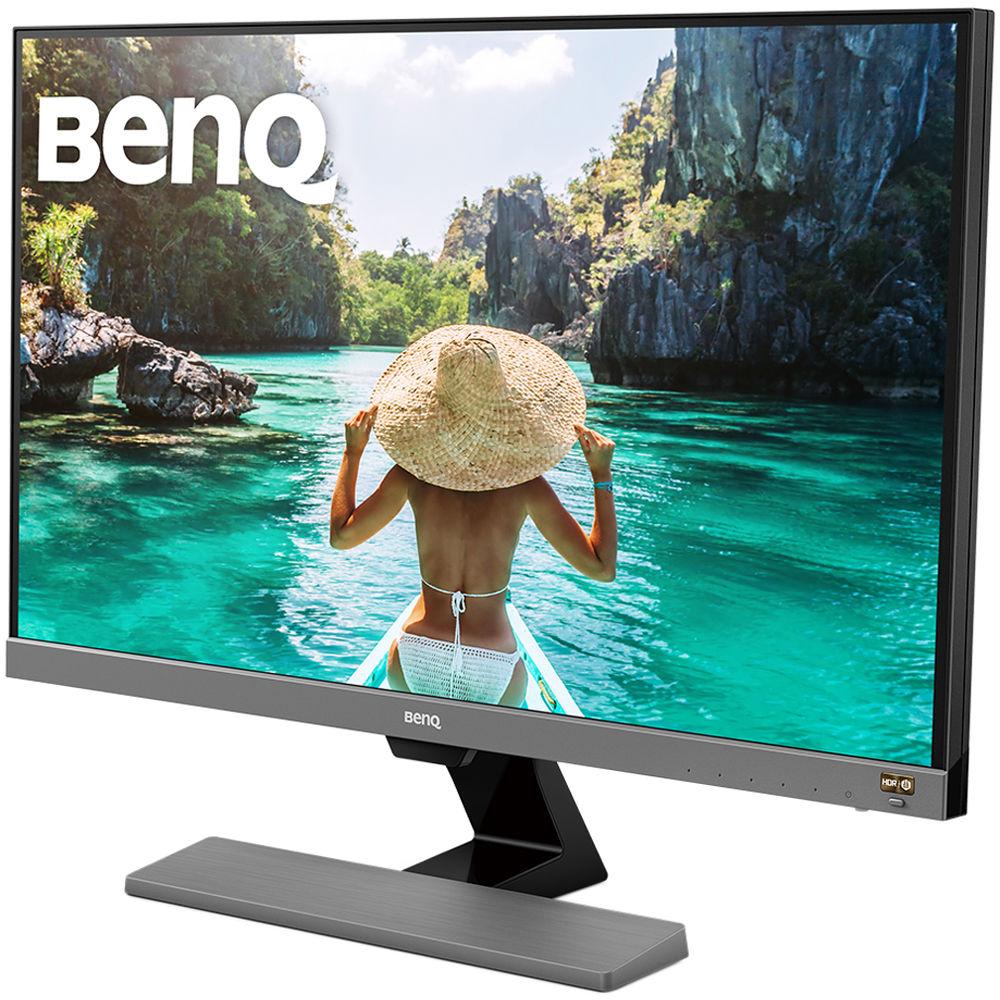

User Manual for BenQ EW277HDR 27" 16:9 LCD HDR Monitor Click to enlarge the picture
Contents of the user manual for the BenQ EW277HDR 27" 16:9 LCD HDR
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ EW277HDR 27" 16:9 LCD HDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With HDR (High Dynamic Range) support, the EW277HDR 27" 16:9 LCD HDR Monitor from BenQ offers a more realistic viewing experience with true black and bright white colors. Couple that with BenQ Brightness Intelligence Plus functionality, which helps to soften bright areas without affecting the dark areas of the display and you have a truly immersive viewing experience.
In addition to HDR support, this BenQ monitor covers up to 93% of the DCI-P3 color gamut for enhanced color accuracy while built-in brightness enhancement technology increases brightness by up to 33%. With this monitor, BenQ included specialized viewing modes designed to accommodate the content being viewed, Smart Focus to help viewers concentrate on a specific portion of the display, and more. This display also comes equipped with Eye-Care technology features such as a blue light filter and reduced flicker technology to help alleviate the strain placed on the eyes during periods of extended viewing.
Setup and configuration of the BenQ EW277HDR monitor is simple as it comes equipped with HDMI and VGA inputs, making it easy to plug this monitor into nearly any computer. Once configured, viewers benefit from a Full HD 1920 x 1080 resolution display, a 3000:1 contrast ratio, a 4 ms response time, a 300 cd/m² brightness rating, and support for up to 16.7 million colors. The EW277HDR can even be viewed from nearly any angle thanks to 178° horizontal and vertical viewing angles. - HDR Support
- The EW277HDR monitor showcases High Dynamic Range (HDR) for improved brightness with stark contrast for deep blacks and wide color range for intense video performance.

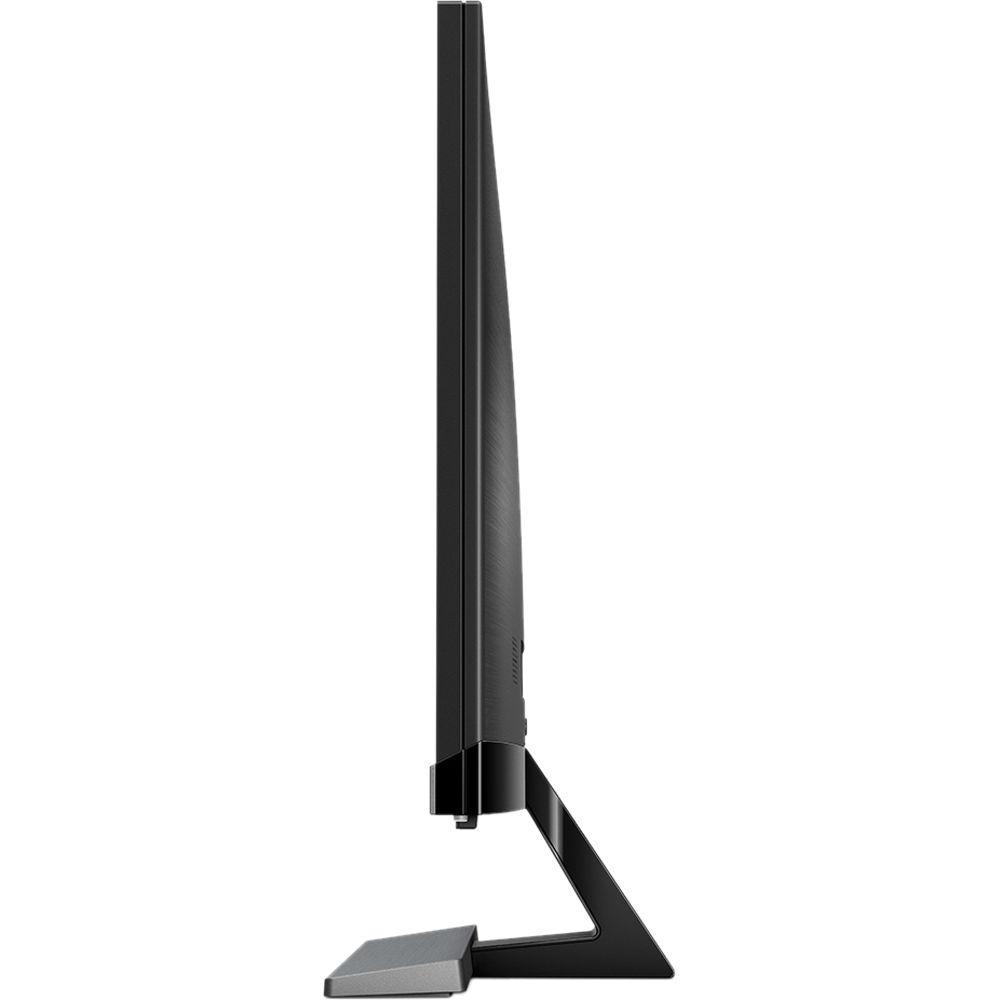

- Ultra Slim Design with Powerful Functionality

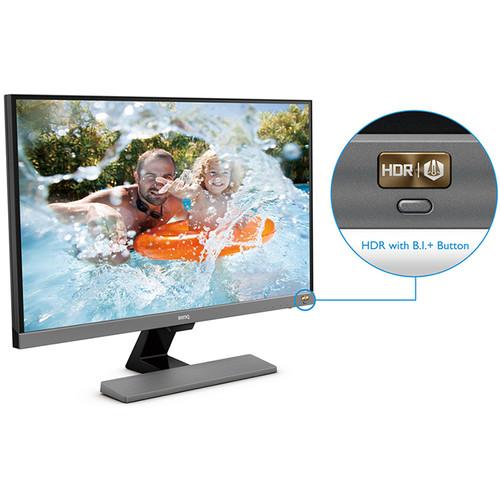

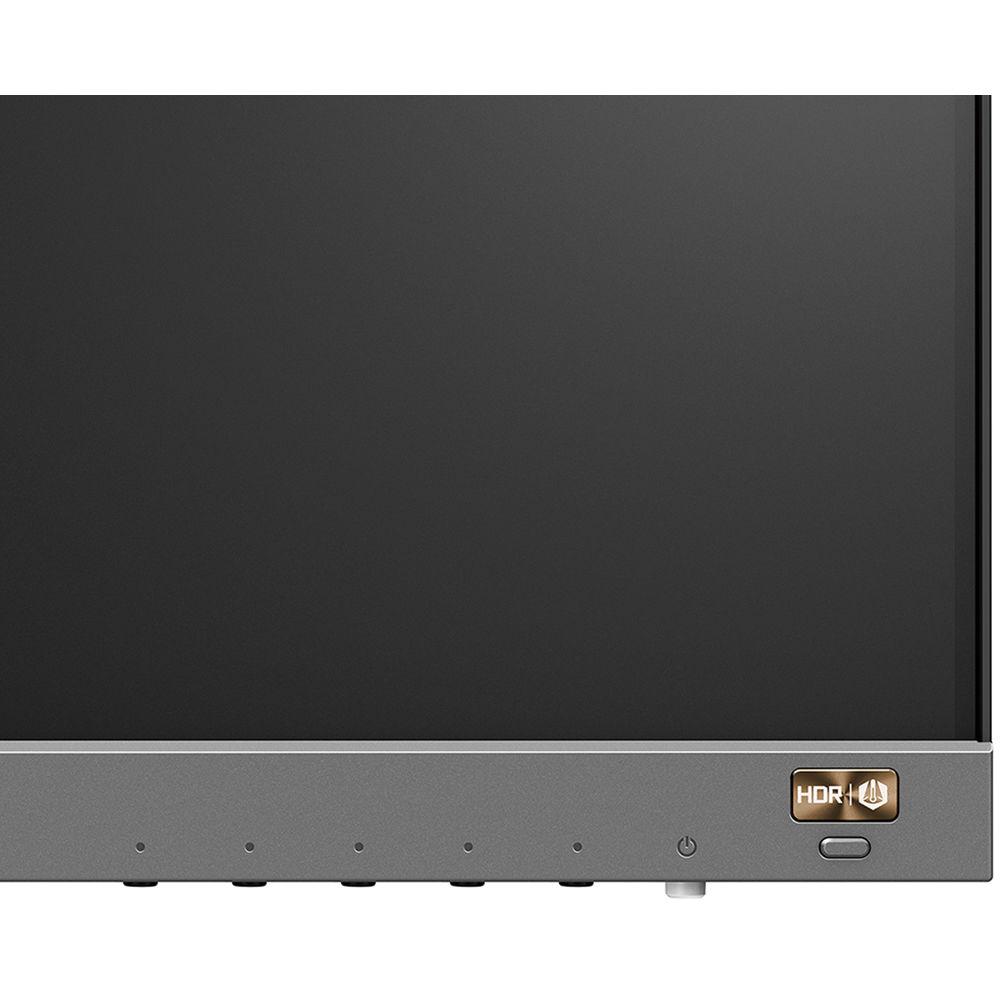

- The EW277HDR brings HDR together with Brightness Intelligence Plus to gently soften bright areas while keeping dark details clear, even in dimmed environments. Additionally, the EW277HDR's simple hotkey switches between 4 levels of HDR modes and Brightness Intelligence Plus Technology to balance maximum contrast, vibrancy, and realism with comfortable viewing.
- Improved Video Quality for a More Realistic Viewing Experience
- FHD HDR Support for Brilliant Brightness and Deep Contrast
HDR increases the overall dynamic range between true black and bright white to resemble what your eyes see in the natural world.
3000:1 Ultra-High Native Contrast for Depth and Definition
Ultra-high 3000:1 native contrast adds stunning color depth and detail to dark images with exquisite subtlety and clarity.
Brightness Enhancement Technology to Boost Contrast Levels
Under HDR mode, BenQ's exclusive Brightness Enhancement delivers unprecedented visual quality by increasing luminance up to 33% for significantly higher contrast performance.
93% DCI-P3 Coverage for Authentic Digital Cinema Color
The EW277HDR covers 100% of Rec. 709 and 93% of DCI-P3 standards to ensure HDTV and Digital Cinema accuracy to match your defined authentic colors. - Universal Multi-Device Connectivity and Integrated Speakers

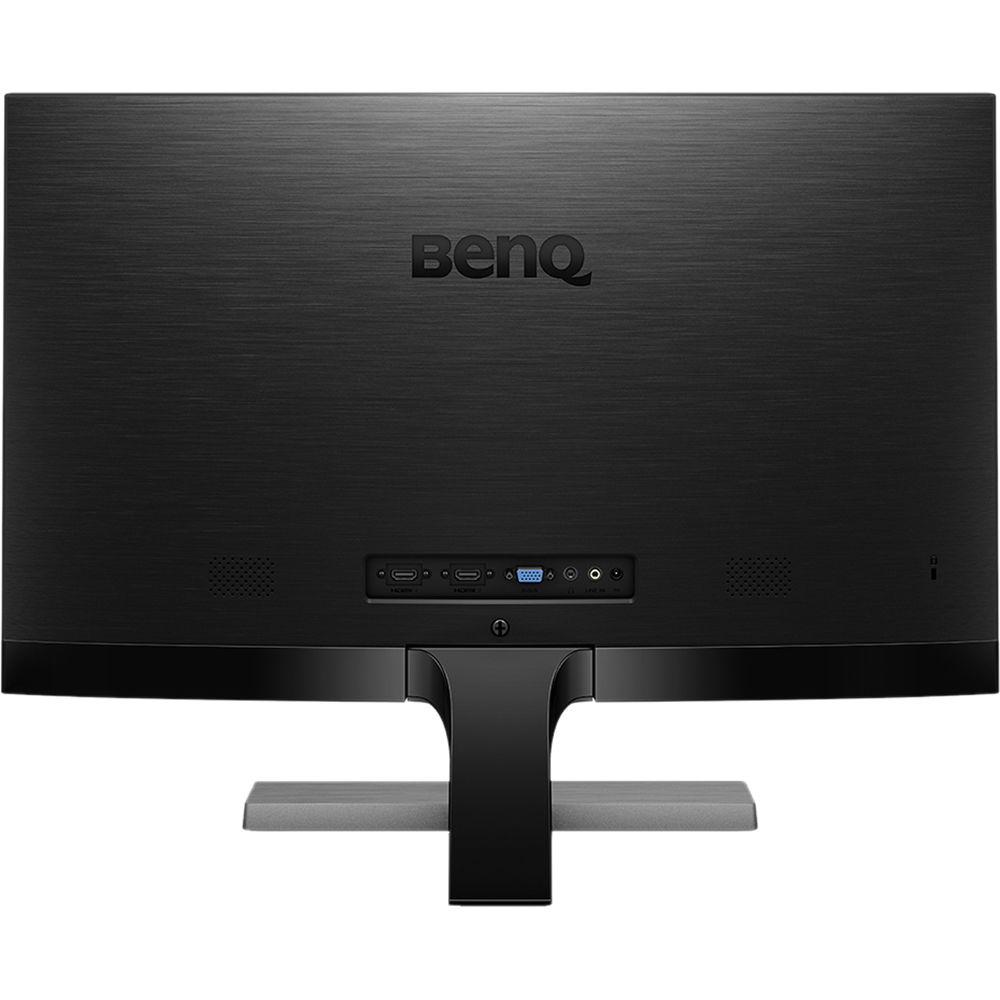

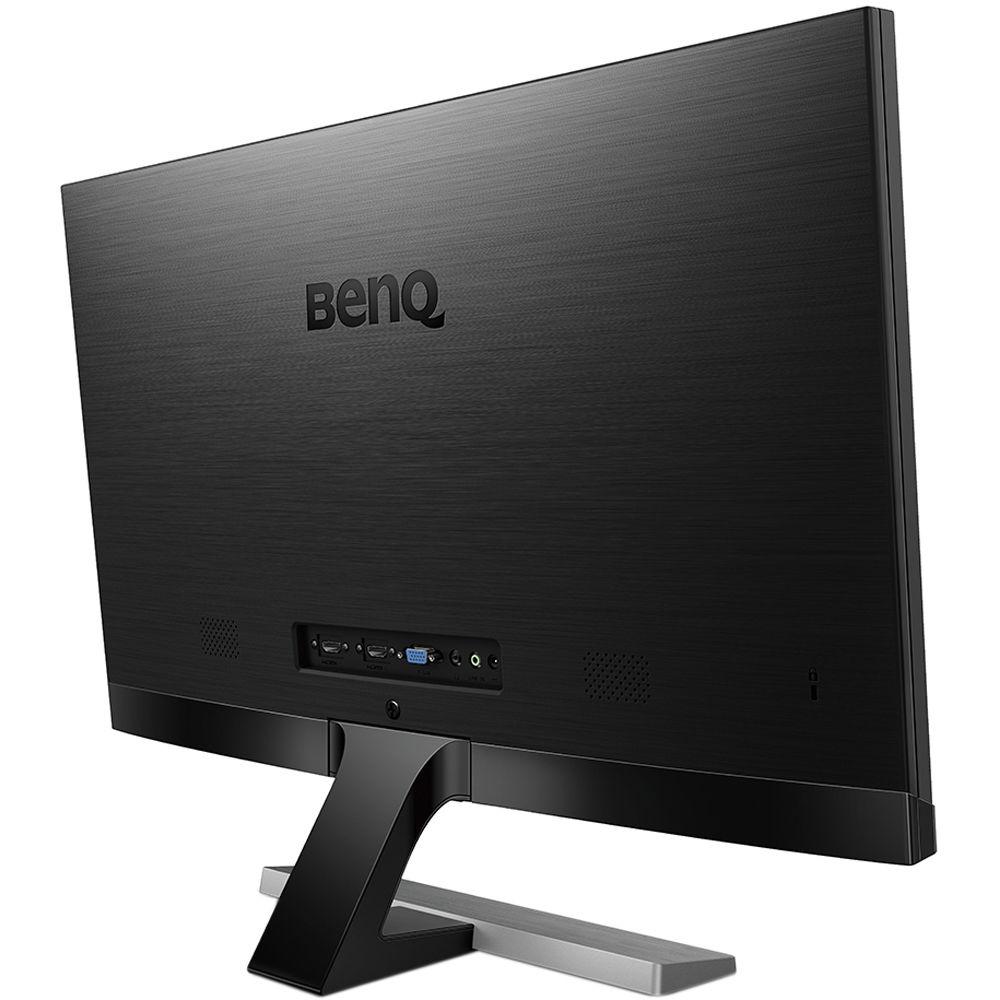

- Enjoy expanded flexibility and HDR video quality from any source with one VGA and dual HDMI 2.0 ports while being immersed in powerful integrated audio.
- Specialized Viewing Modes
- Super Resolution to Enhance Standard Image Quality
The EW277HDR simulates high resolution picture quality by increasing pixel density of low-resolution standard-definition content for astounding clarity.
Smart Focus to Bring Important Details to Life
Smart Focus highlights the selected window or area, helping users concentrate on the main viewing content by reducing distractions in the background. - Colors Stay Original for Picture Perfect Contents
- B.I.+ Tech. adjusts brightness to avoid overexposure and to enhance details in dark areas, preserving original color saturation and hue with smooth gradation.
- Caring for Your Eyes
- TUV Rheinland Certification
Global safety authority T
|
Upload User Manual
Have you got an user manual for the BenQ EW277HDR 27" 16:9 LCD HDR Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ EW277HDR Specs | LCD Size | 27" / 68.6 cm | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Display Area | 23.53 x 13.24" / 59.76 x 33.62 cm | | Pixel Pitch | 0.311 mm | | Brightness | 300 cd/m² | | Native Contrast Ratio | 3000:1 | | Panel Type | Vertical Alignment (VA) | | Viewing Angles (H/V) | 178°/178° | | Response Time | 12 ms, 4 ms (GtG) | | Display Colors | 16.7 million | | Color Gamut | 93% DCI-P3
8-bit | | Backlight | LED | | Audio/Video Input/Output | Horizontal Frequency
30~83 kHz
Vertical Frequency
50~76 Hz
Video Bandwidth
205 MHz | | Color Temperature | Reddish / Normal/ Bluish /user mode | | Tilt | -5 to 15° | | OSD Languages | 18 languages | | Kensington Lock Support | Yes | | Speakers (Integrated) | Yes | | Input/Output | 2 x HDMI
VGA input
Headphone jack
Audio line in / line out | | Power | Power Supply (90~264 VAC)
Adapter
Power Consumption (On mode)
< 40 W
Power Consumption (Power Saving mode)
< 0.5 W
Power Consumption (Off mode)
< 0.5 W | | Reliability | MTBF (h, exclude lamp)
60,000
Backlight Life (h, minimum)
30,000
Backlight Life (h, typical)
30,000 | | Certifications | Windows 7, 8, 8.1, 10
Mac | | Dimensions | Without Stand
14.5 x 24.2 x 1.5" / 36.8 x 61.4 x 3.8 cm
With Stand
18.1 x 24.2 x 7.1" / 46.1 x 61.4 x 18.1 cm | | Weight | Without Stand
7.9 lb / 3.6 kg
With Stand
9.5 lb / 4.3 kg | | | | Package Weight | 13.3 lb | | Box Dimensions (LxWxH) | 29.5 x 20.0 x 6.0" |
