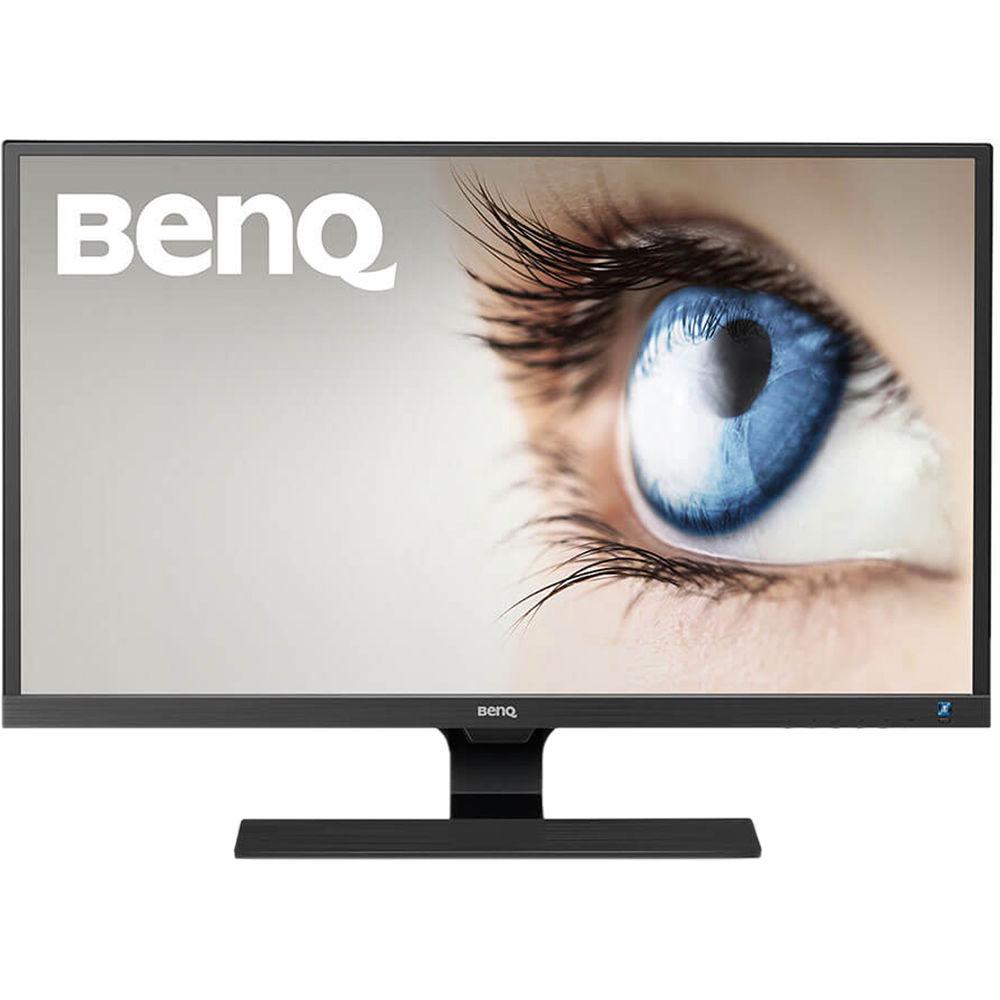

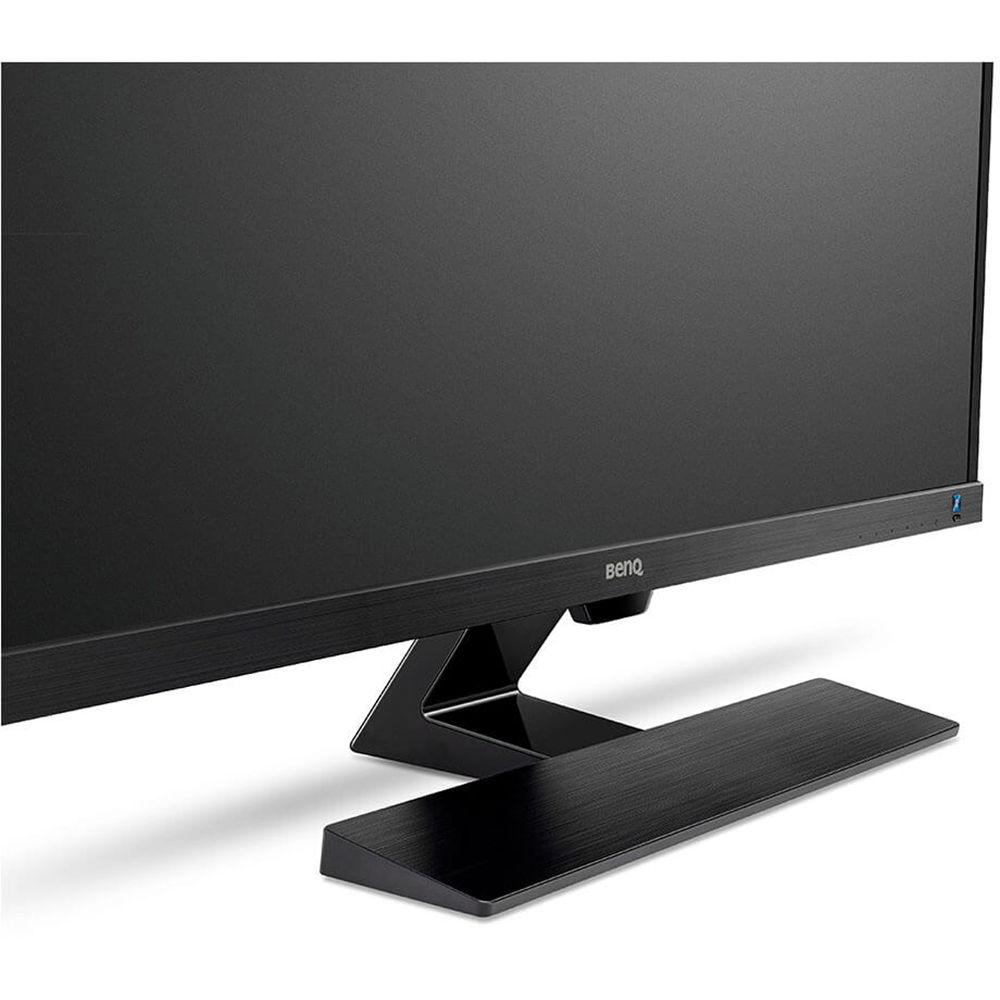

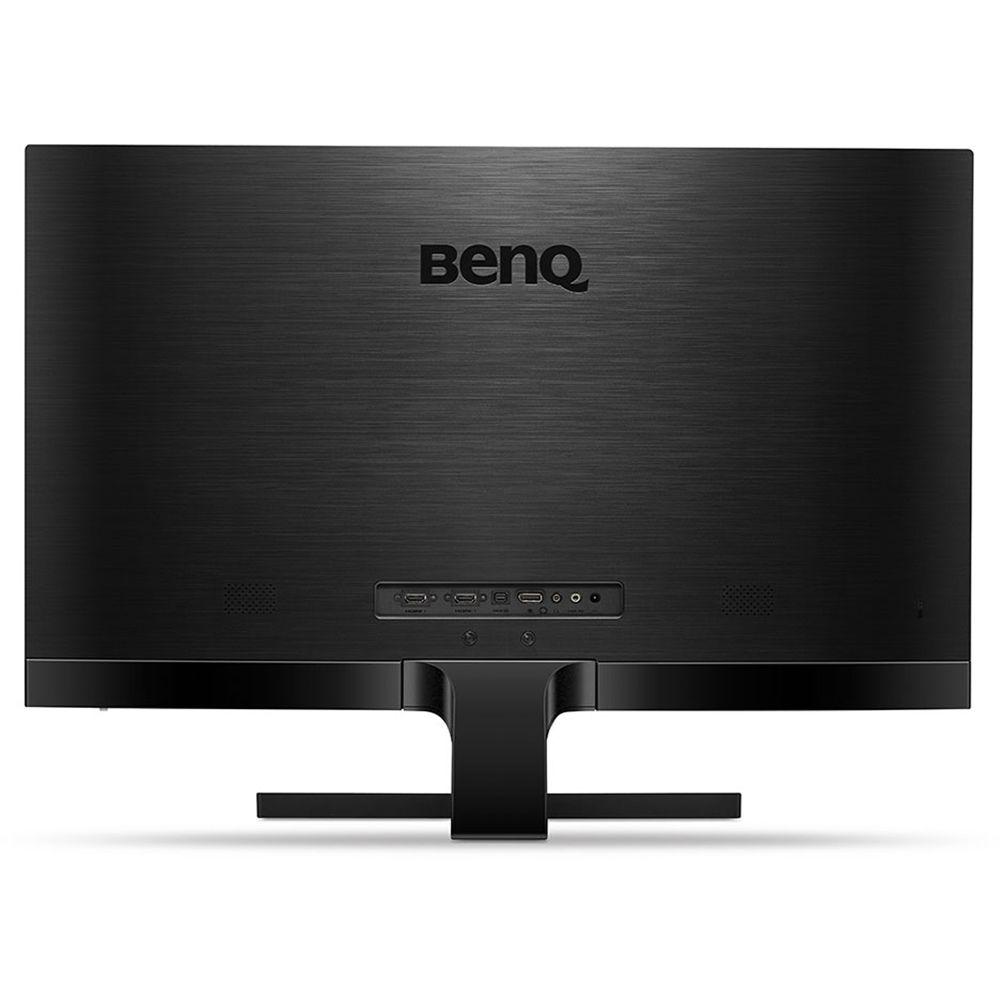

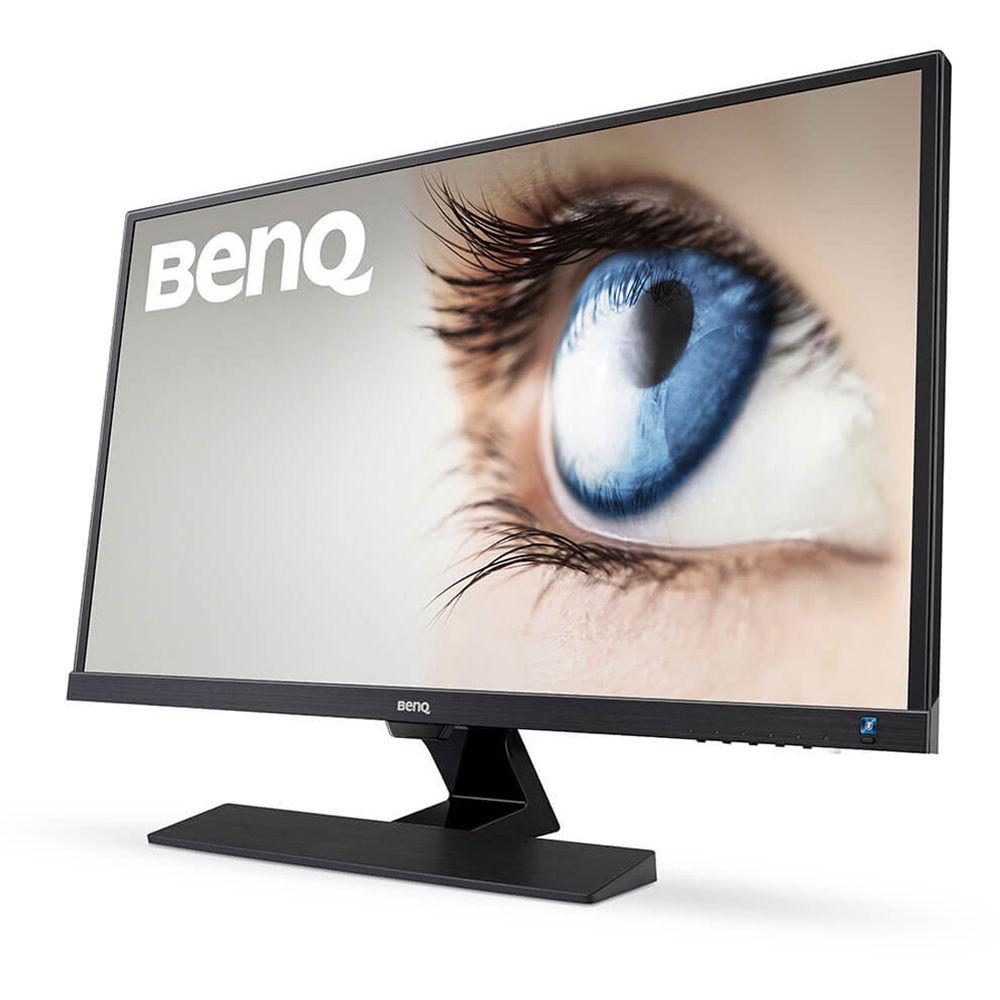

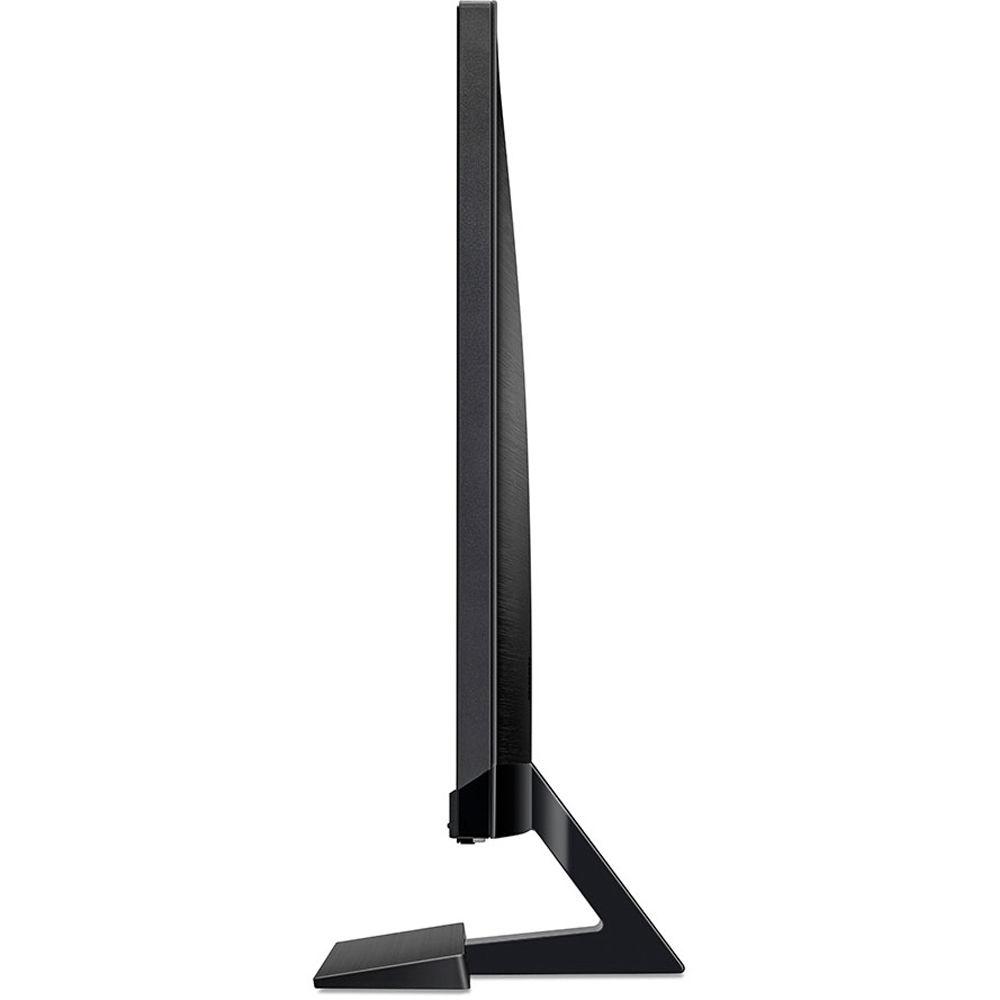

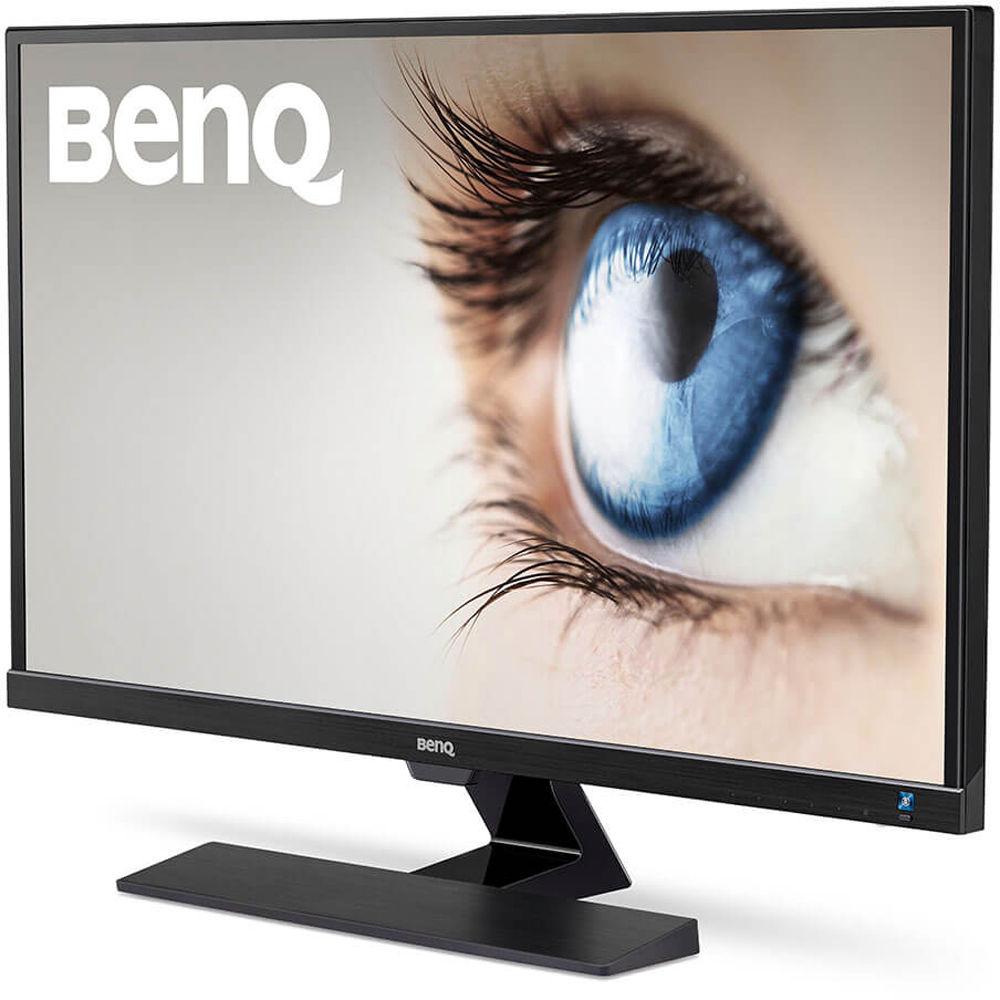

User Manual for BenQ EW3270ZL 32" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ EW3270ZL 32" 16:9 LCD Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ EW3270ZL 32" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With Brightness Intelligence Technology, the EW3270ZL 32" 16:9 LCD Monitor from BenQ allows viewers to benefit from an enhanced picture quality with balanced brightness control. This technology is also capable of detecting ambient light as well as adjusting the screen brightness for a more comfortable viewing experience.
The 32" EW3270ZL monitor features a 2560 x 1440 resolution, a 3000:1 contrast ratio, a 300 cd/m² brightness rating, a 4 ms response time, and support for up to 1.07 billion colors to provide viewers with a crisp, clear picture along with reduced ghosting and blur. For those working with color critical applications, this BenQ monitor features a 10-bit color table along with support for the Rec.709 color space and 100% coverage of the sRGB color gamut.
In addition to the enhanced picture quality found on this BenQ monitor, it is also easy to set up as it comes equipped with HDMI, DisplayPort, and mini DisplayPort inputs. Once configured, viewers can take advantage of 178° horizontal and vertical viewing angles along with the ability to tilt the display from -5 to 15° for maximum viewing comfort. - Brightness Intelligence Technology
- Brightness Intelligence Technology (B.I. Tech.) optimizes display performance for movie watching, protecting your eyes while delivering premium image quality.
- Picture Perfect Content
- Brightness Intelligence Technology (B.I. Tech.) detects the intensity of your content and adjusts to ensure that bright scenes don't get overexposed while dark areas automatically adjust to maintain a visible level of clarity.
- Reduce Eye Strain in any Lighting Environment
- Brightness Intelligence Technology (B.I. Tech.) can detect the amount of ambient light in your viewing environment and make automatic adjustments to brightness for the most comfortable viewing experience possible.
- 32" Large Monitor
- Enjoy the larger area, 41% over screen space than 27" to find more and precise details.
- Optimal Color Precision
- With 10-bits of color depth, Rec.709 and 100% sRGB color space, you'll have more than 1 billion colors to work with astonishing precision.
- Super Resolution
- To give you an optimal movie watching experience, Super Resolution simulates high-resolution images by boosting the pixel density of the original video source.
- Smart Focus
- Smart Focus allows you to pinpoint an area on the screen and make that the focal point. The highlighted area remains bright while the surrounding area is dimmed so you're able to focus on what you enjoy.
- Multi-Device Connectivity

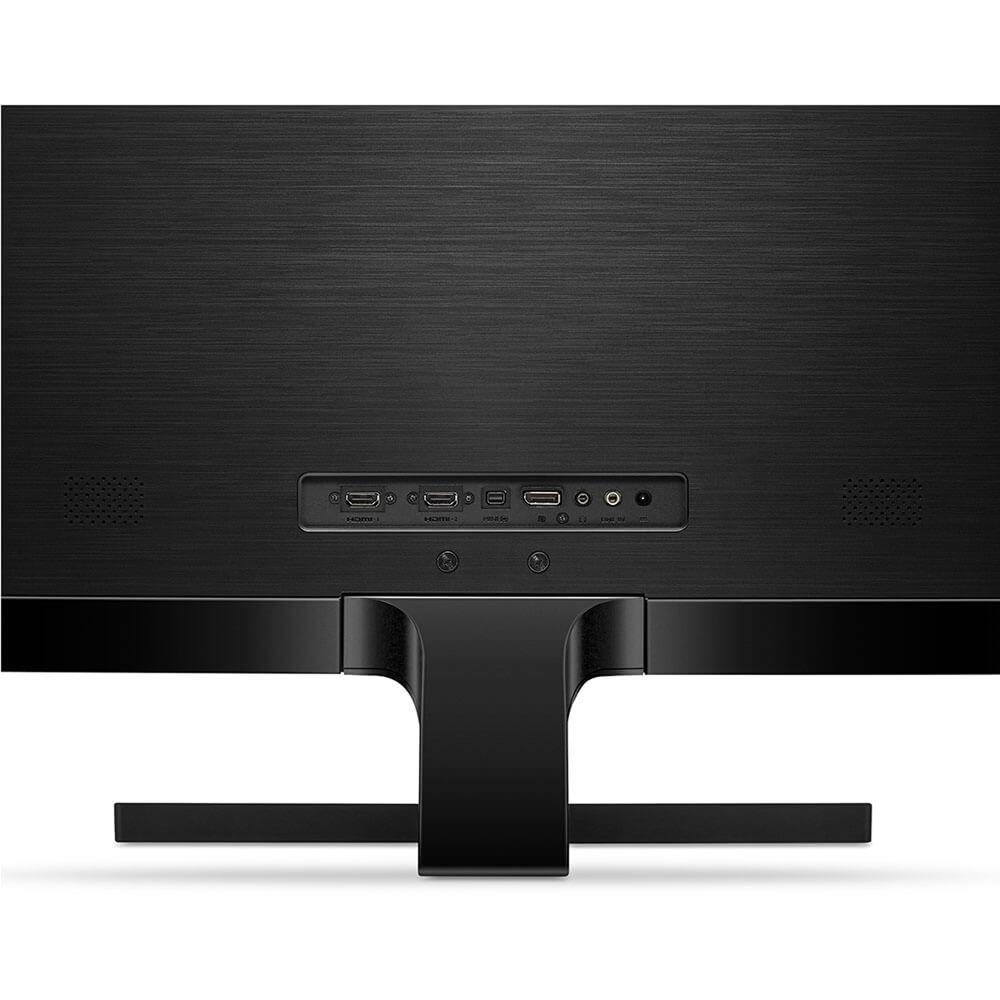

- Enjoy greater flexibility and the best possible video image quality from external sources with HDMI, DisplayPort, and Mini DisplayPort inputs for multi-device connection.
- Eye-Care Technology
- Low Blue Light Plus Technology
Low Blue Light Plus Technology filters out the shorter, higher energy blue-violet radiation which is harmful to the eyes while the remaining beneficial blue turquoise light remains.
Low Blue Light Plus Mode
Easily switch to one of four preset Low Blue Light Plus Modes from the OSD hot key.
• Standard mode
• Entertainment mode
• Office mode
• Dark room mode
Flicker-Free
Flicker-free eliminates flickering at all brightness levels and reduces eye fatigue effectively. Conventional LCD screens flicker at the rate of 250 times per second. Your eyes may not see the flickers but they can certainly feel them. So relieve your eyes from the uncomfortable flickering effect by switching to a BenQ flicker-free monitor. - AMVA+ Panel
- The EW3270ZL monitor utilizes an AMVA+ panel with an ultra-high native contrast ratio of 3000:1, bringing out every hue from the brightest whites to the deepest black with greater subtlety and clarity.
UPC: 840046035570 In the Box BenQ EW3270ZL 32" 16:9 LCD Monitor Limited 3-Year Warranty More info from BenQ yavareeqzt Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ EW3270ZL 32" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ EW3270ZL Specs | | | Size | 32" | | Screen Area | 27.89 x 15.69" / 70.84 x 39.85 cm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 92 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 100% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI 1.4
1 x DisplayPort 1.2
1 x Mini DisplayPort 1.2
1 x 3.5 mm Input
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 70 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Tilt Adjustment | -5 to 15° | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.7 x 29.1 x 8.6" / 526.8 x 739.6 x 218.2 mm | | Weight | 18.74 lb / 8.5 kg | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 12.0" |
