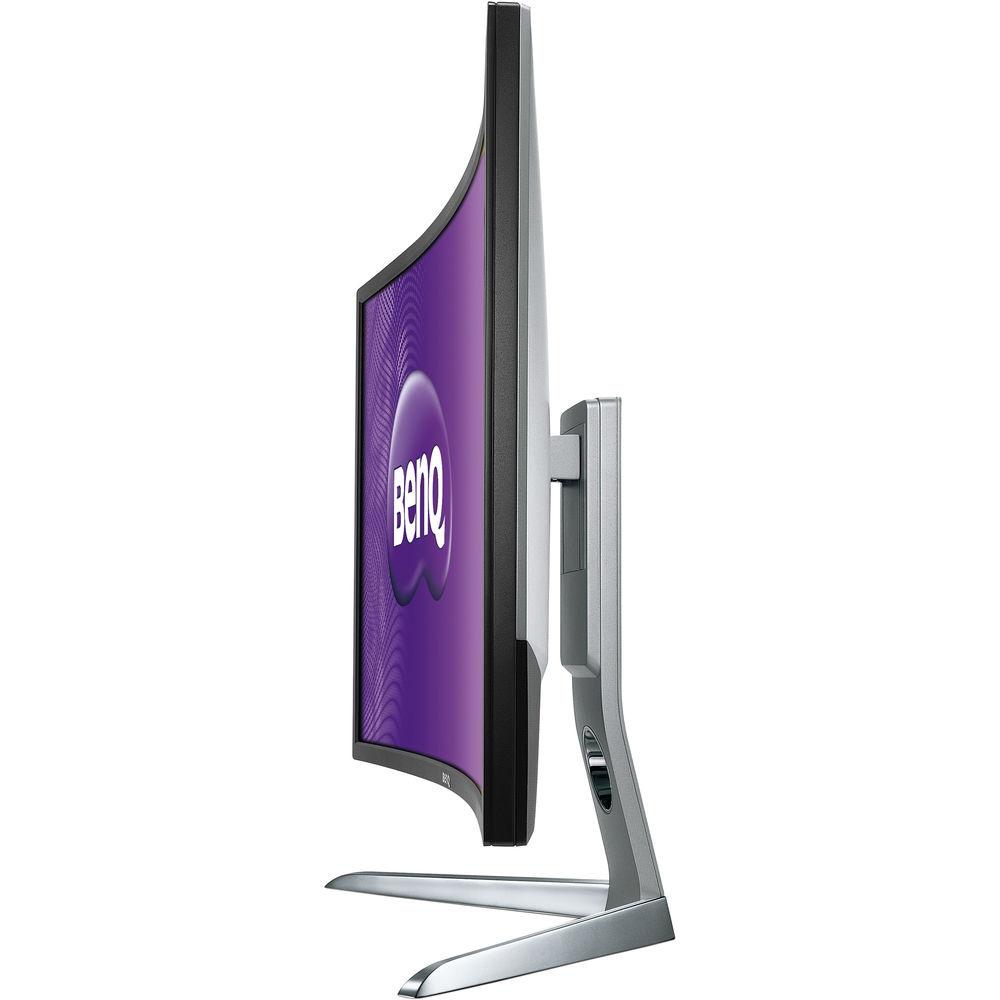

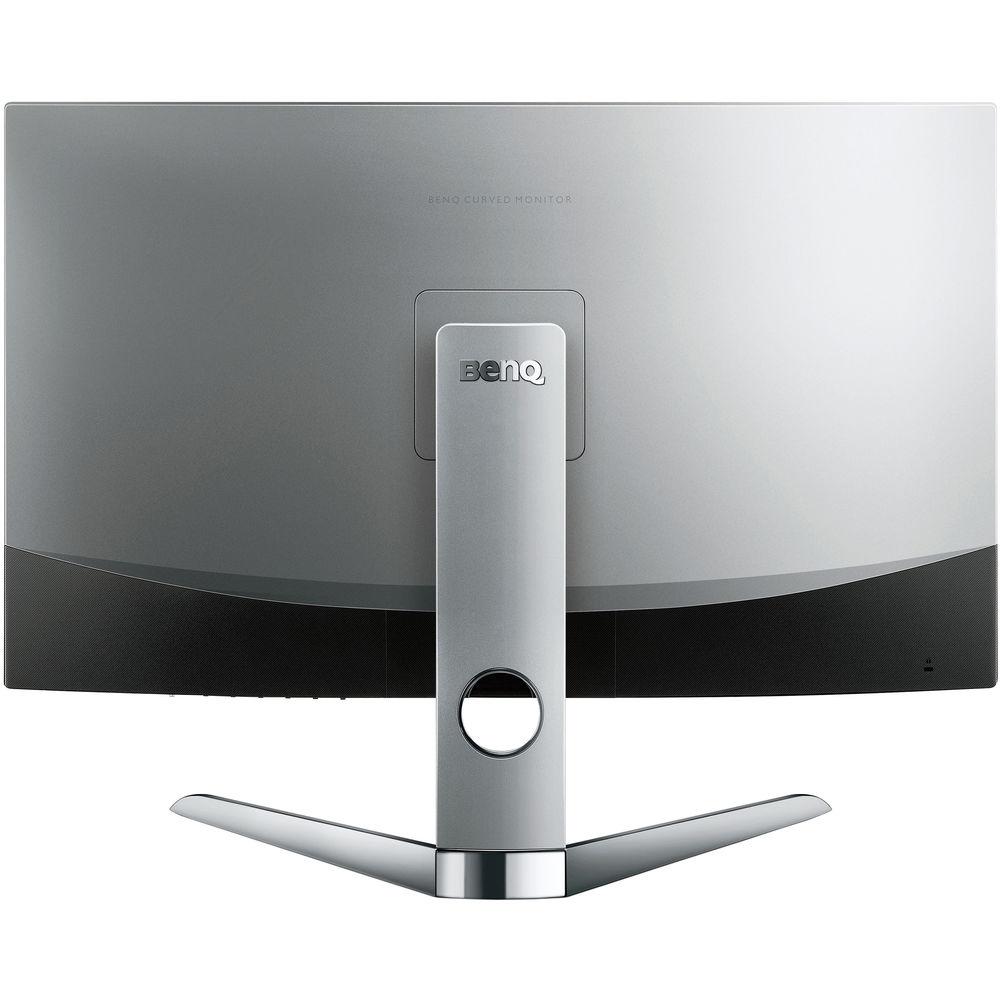

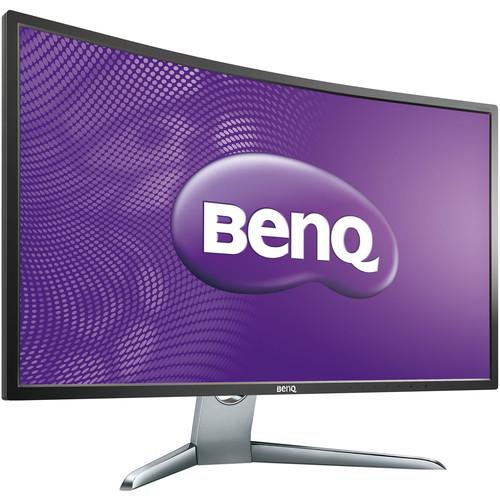

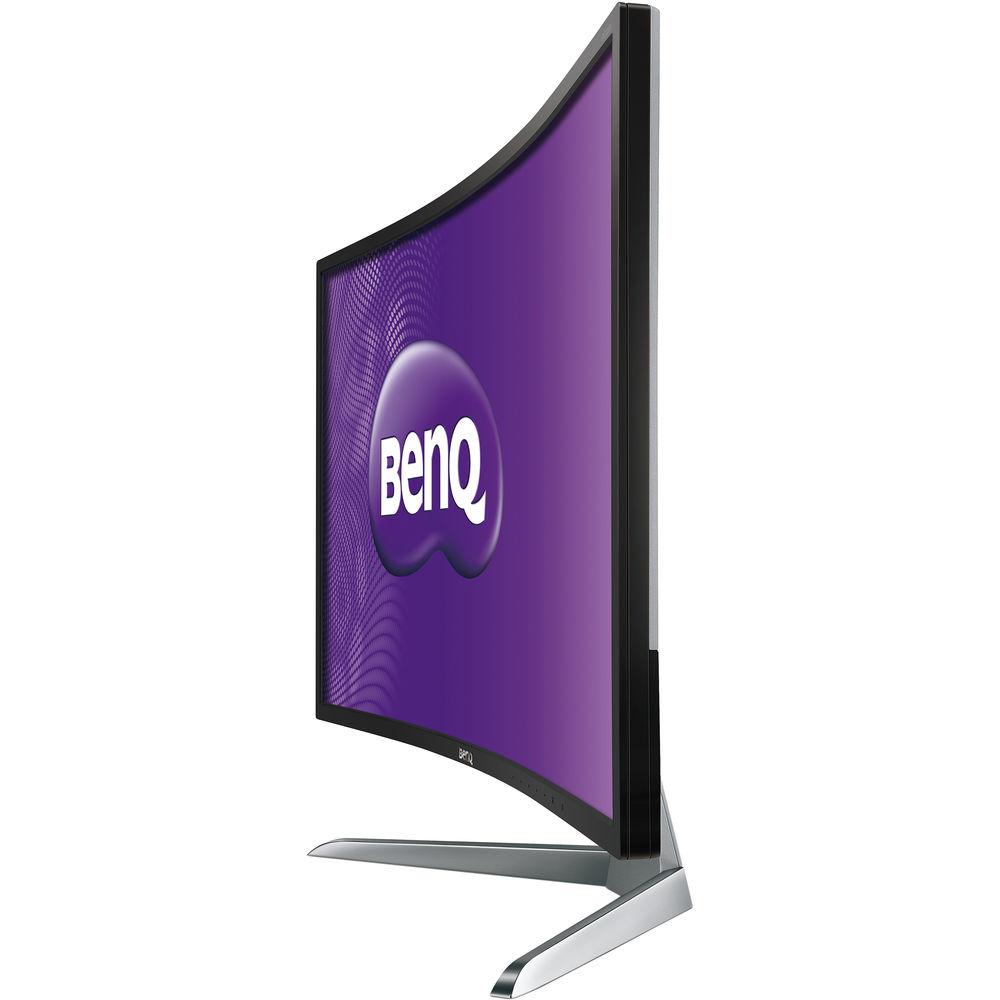

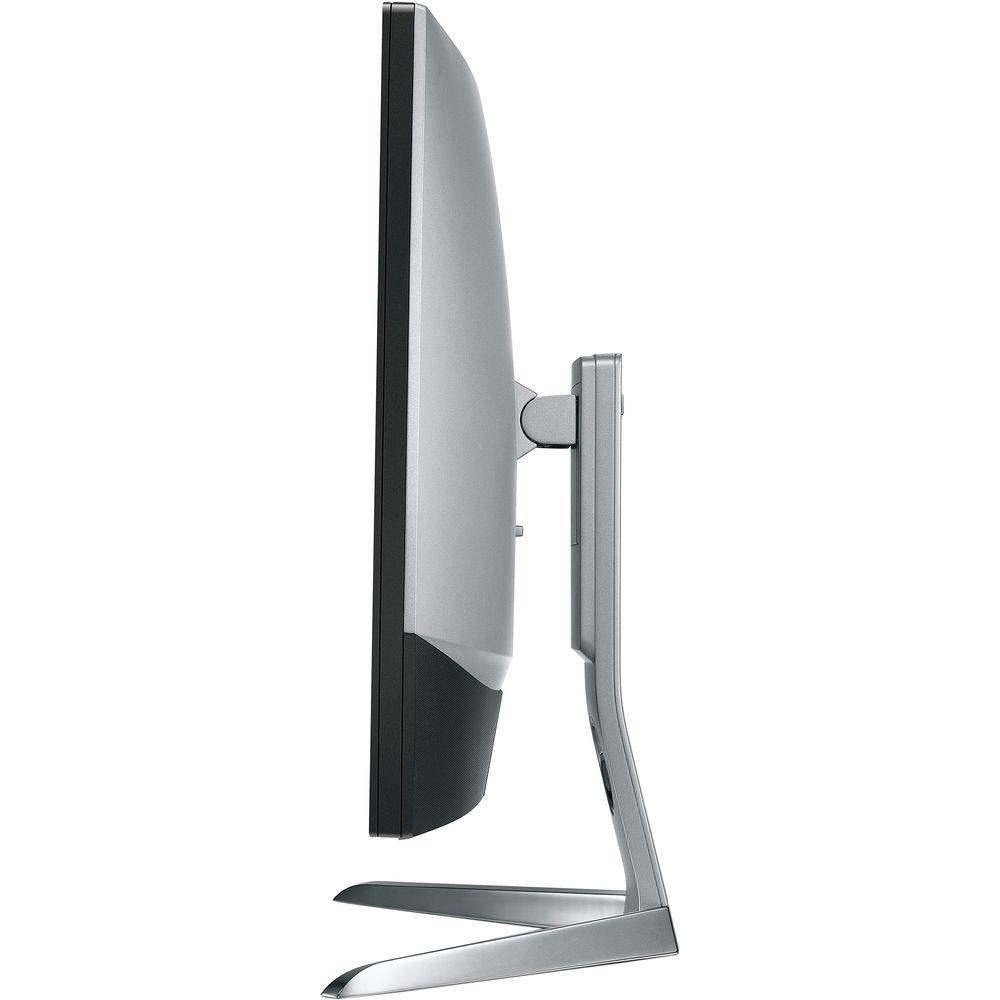

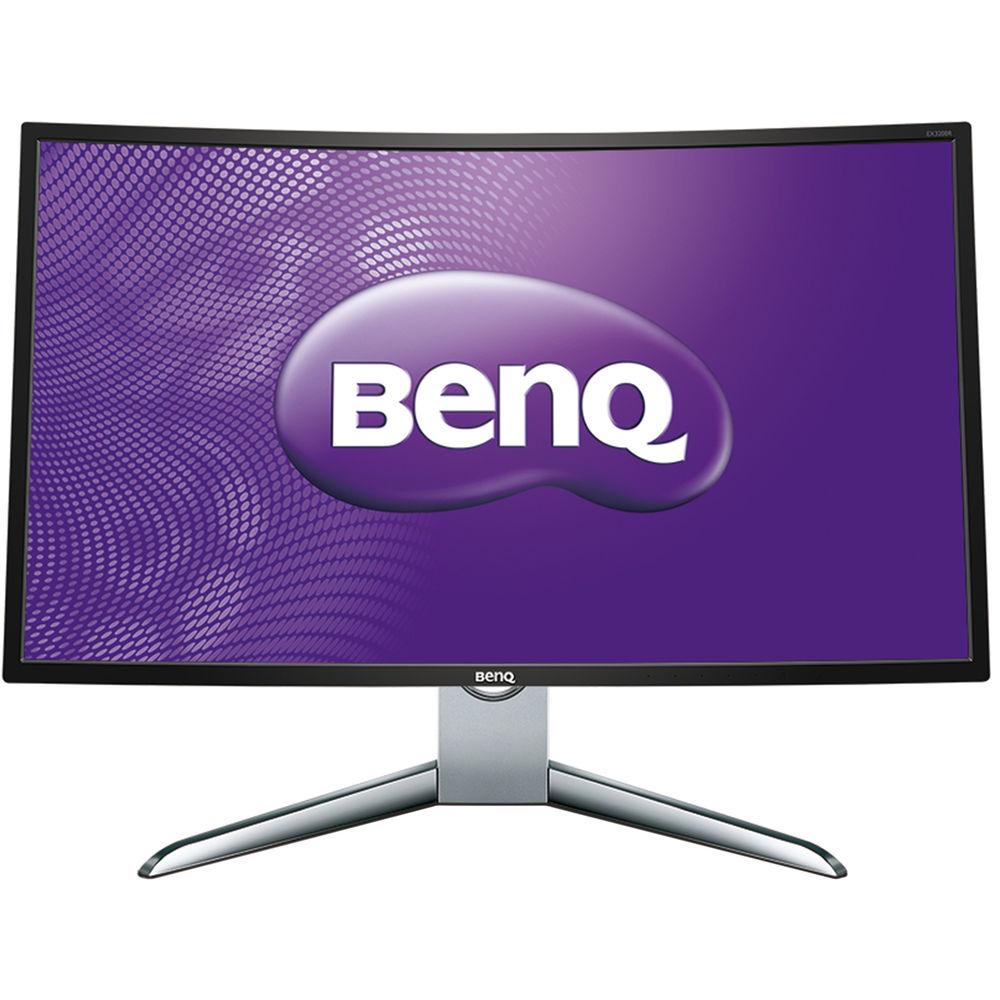

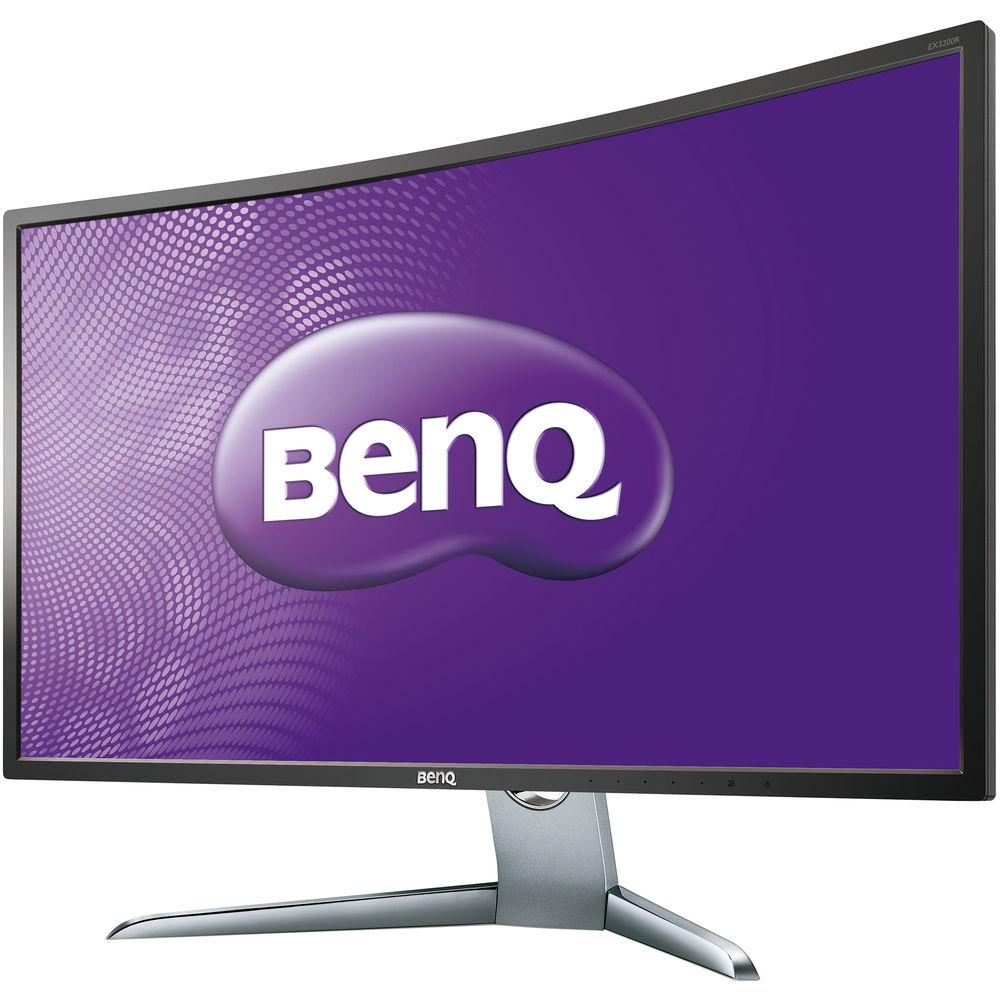

User Manual for BenQ EX3200R 31.5" 16:9 Curved FreeSync Monitor Click to enlarge the picture
Contents of the user manual for the BenQ EX3200R 31.5" 16:9 Curved FreeSync
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ EX3200R 31.5" 16:9 Curved FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

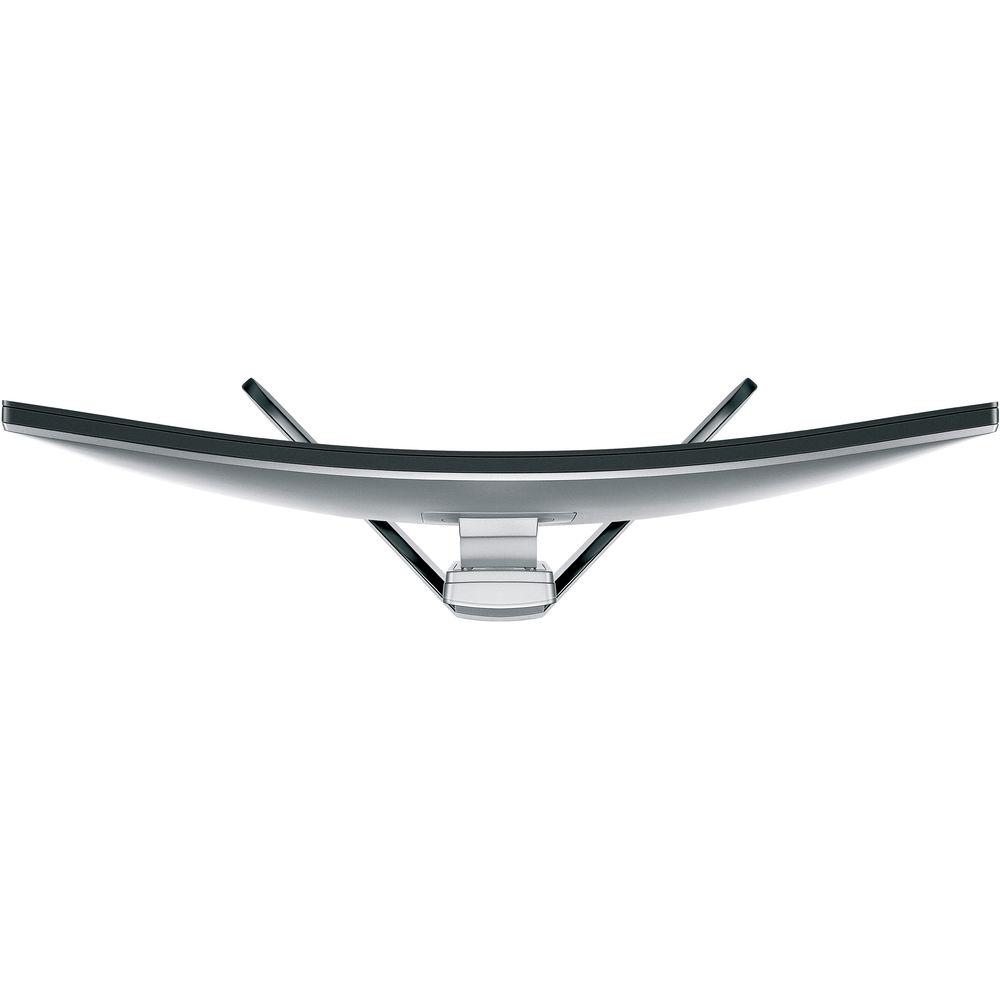

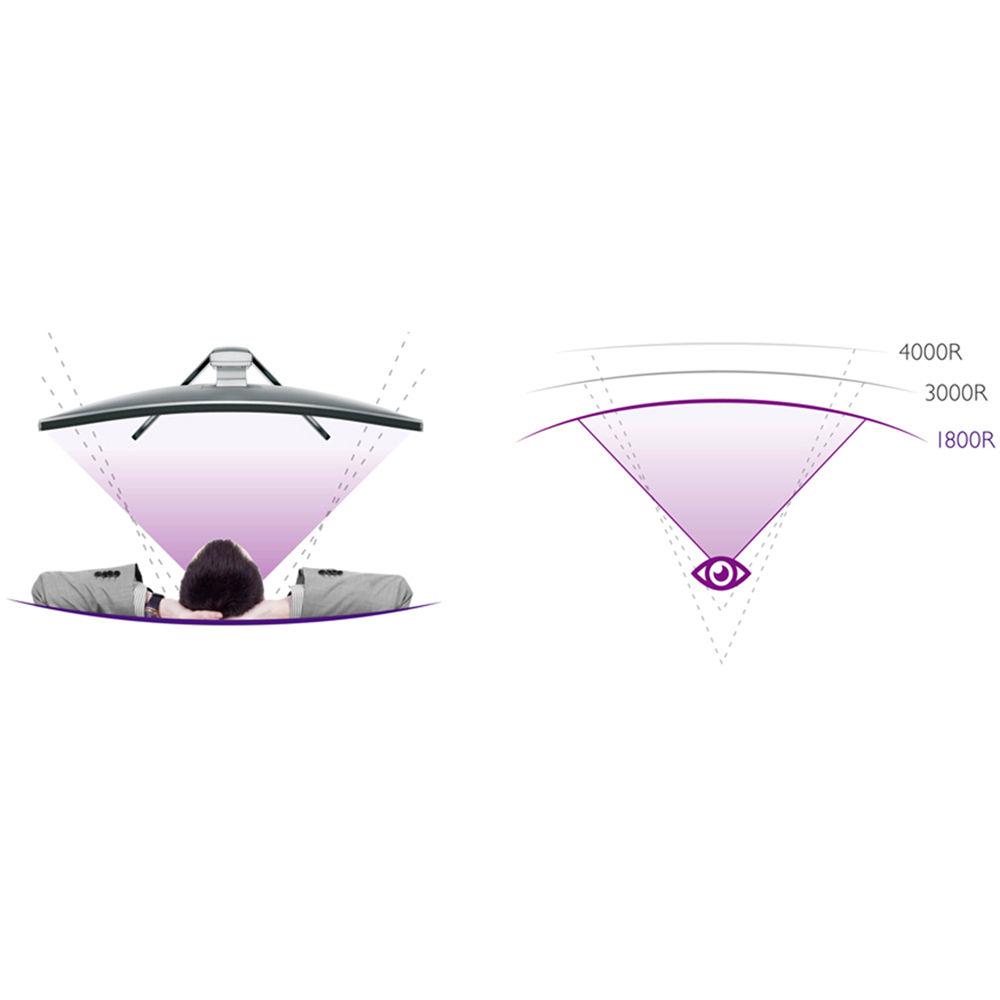

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The EX3200R 31.5" 16:9 Curved FreeSync Monitor from BenQ features an 1800R curvature that wraps around the edges of your field of view for more immersive viewing. Furthermore, it supports FreeSync technology, which syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing and stuttering for a fluid experience. Moreover, it has a 144 Hz refresh rate, which allows for more fluid animations if you have the graphical processing power for it. Aside from those features, this display has a 1920 x 1080 resolution and is built with a VA (Vertical Alignment) panel that offers vivid colors and wide viewing angles. It has a 300 cd/m² brightness rating, a 3000:1 static contrast ratio, and supports 16.7 million colors for brighter bright colors and darker blacks with more depth and details. Connect this display to your system via HDMI or DisplayPort and adjust it to your viewing preference. - 1800R Curvature
- The curved screen provides an immersive viewing experience that lets you enjoy stunning panoramic views for work or play.
- Adaptive-Sync (FreeSync) Technology
- AMD FreeSync Technology syncs the display's refresh rate with the graphics card's frame rate output to reduce tearing, ghosting, and stuttering for a smoother gaming experience.
- 144 Hz Refresh Rate
- The refresh rate is how many times per second a display refreshes its image. With a faster refresh rate, you'll be able to enjoy less blurring, screen tearing, and a more responsive gaming experience. Please note that refresh rate is not to be confused with frame rate, and having a fast refresh rate will not improve your experience unless you have a capable graphics card.
- Cinema Mode
- Cinema Mode automatically fine tunes the color settings in video footage for vibrant and lifelike visuals.
- Video Format Support
- With Video Format Support, videos will be displayed at the correct cadence, without the need for pulldowns that distort playback.
- Low Blue Light
- BenQ's Low Blue Light technology reduces blue light emissions to protect your eyes. It has four different settings you can switch through depending on your current application including multimedia, Web-surfing, office, and reading.
- ZeroFlicker
- ZeroFlicker reduces screen flickering so your eyes won't get tired or damaged over long periods of use.
- Additional Features
-
- 4 x Color Temperature Modes (Normal (6500K) / Reddish (5700K) / Bluish (9300K) / User Define)
- 9 x Picture Modes (sRGB / Gamer1/ Gamer2 / Gamer3 / Cinema / Standard / Photo / Custom 1 /Custom 2)
- Windows 7, 8/8.1, 10 Compatible
- Color Vibrance
- Super Resolution
- AMA
- PIP/PBP
- Dynamic Power Saving (DPS)
UPC: 840046037345 In the Box BenQ EX3200R 31.5" 16:9 Curved FreeSync Monitor Power Cable HDMI Cable DisplayPort to Mini DisplayPort Cable Limited 3-Year Warranty More info from BenQ zzuqtswcxqsrvzcztarxasxyzxzfwrtuuerzyb Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ EX3200R 31.5" 16:9 Curved FreeSync Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ EX3200R Specs | Screen Size | 31.5" (800.1 mm) | | Aspect Ratio | 16:9 | | Curvature | 1800R | | Resolution | 1920 x 1080 | | Display Area (H × V) | 27.5 x 15.47" (698.4 x 392.85 mm) | | Pixel Pitch (H x V) | 0.121 x 0.364 mm | | Brightness | 300 cd/m2 | | Static Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Panel Type | Vertical Alignment (VA) | | Viewing Angles (H/V) | 178°/178° | | Vertical Refresh Rate | 144 Hz | | Response Time (Tr+Tf) | 4 ms (GtG) | | Display Colors | 16.7 Million | | Color Gamut | 72% NTSC | | Color Depth | 8-bit | | Horizontal Frequency | DP: 30-167 kHz
HDMI: 30-84 kHz | | Vertical Frequency | DP: 45-144 Hz
HDMI: 50-76 Hz | | Video Bandwidth | 600 MHz | | Audio | 1 x headphone jack | | I/O Ports | 1 x HDMI 1.4
1 x DisplayPort 1.2
1 x Ethernet LAN 1.2 | | | | Tilt | -5 to 20° | | Pivot | 90° | | Height Adjustment | 2.36" (60 mm) | | VESA Compatibility | Yes | | | | Power Supply | 90-264 VAC | | Power Consumption (Operating) | < 50 W | | Power Consumption (Standby/Sleep) | < 0.5 W | | | | Security | Kensington lock | | Dimensions | 20.85 x 28.64 x 0.89" (529.52 x 727.37 x 22.73 mm) | | Weight | 20.06 lb (9.1 kg) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 34.5 x 22.0 x 11.0" |
