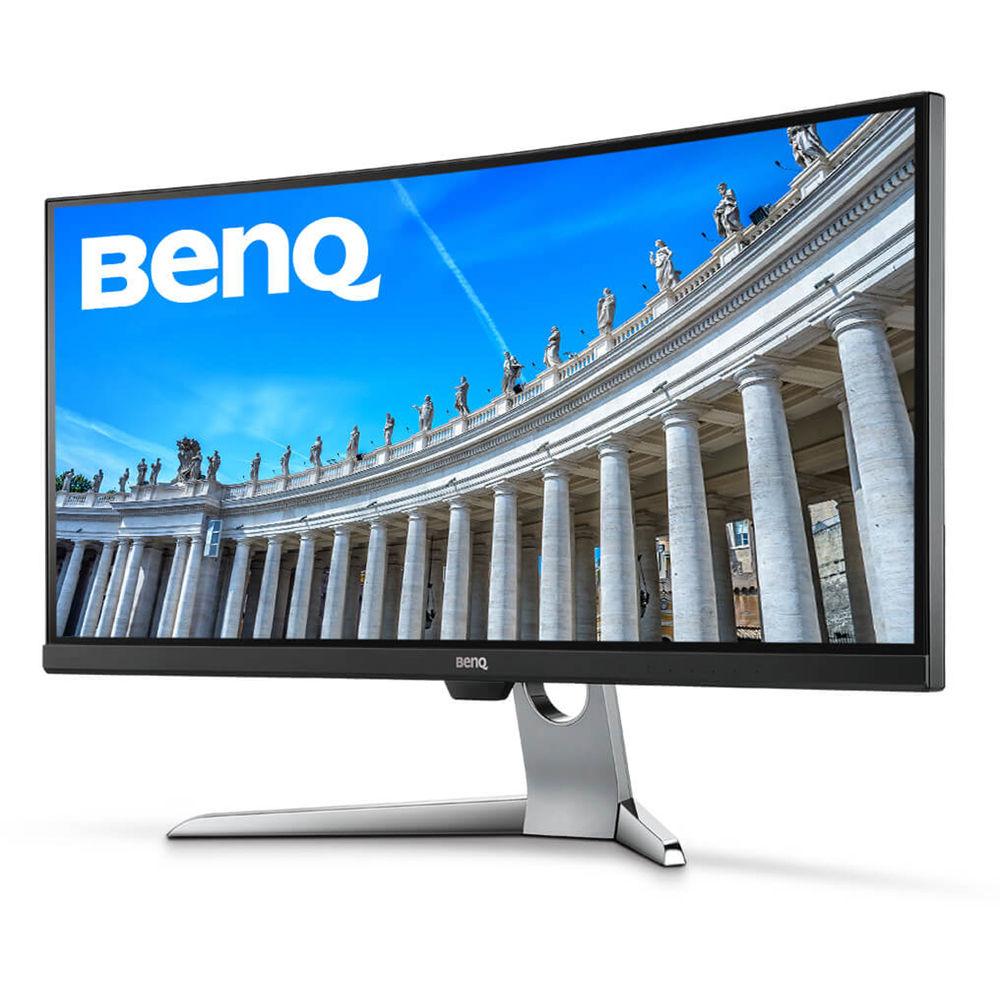

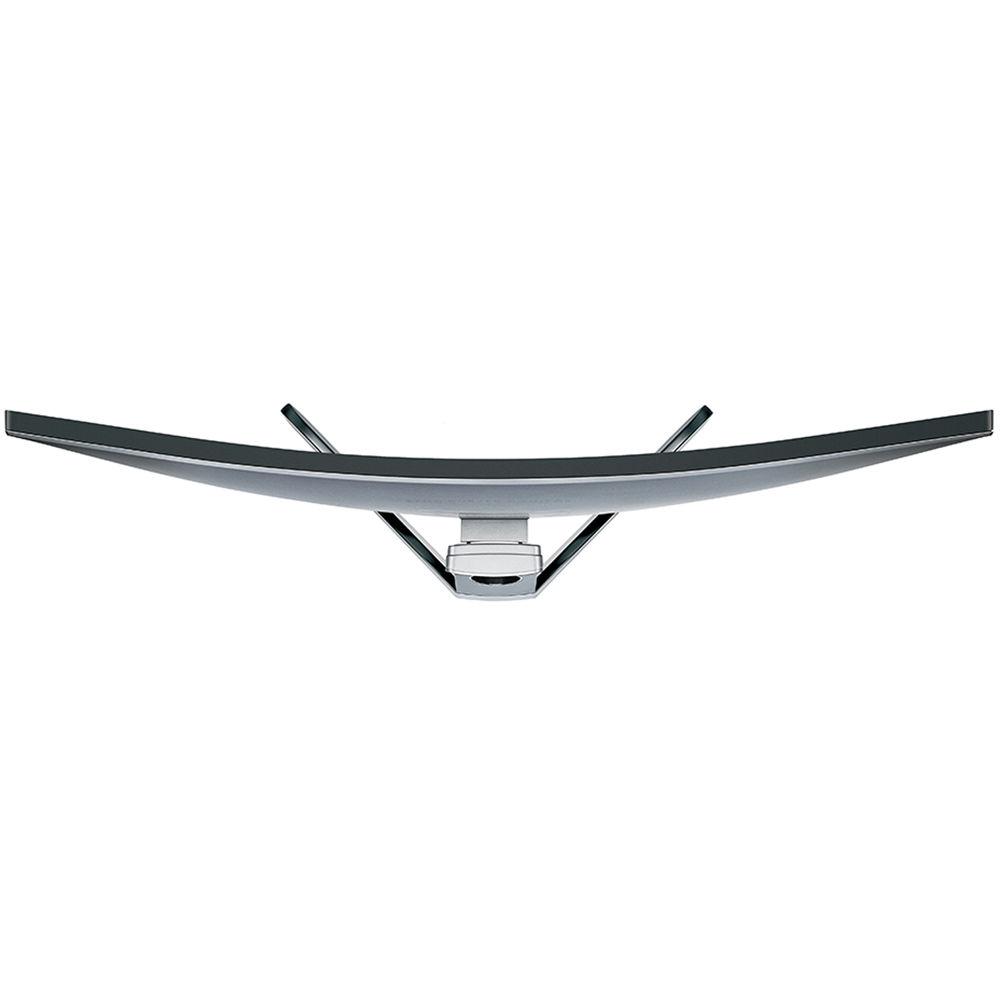

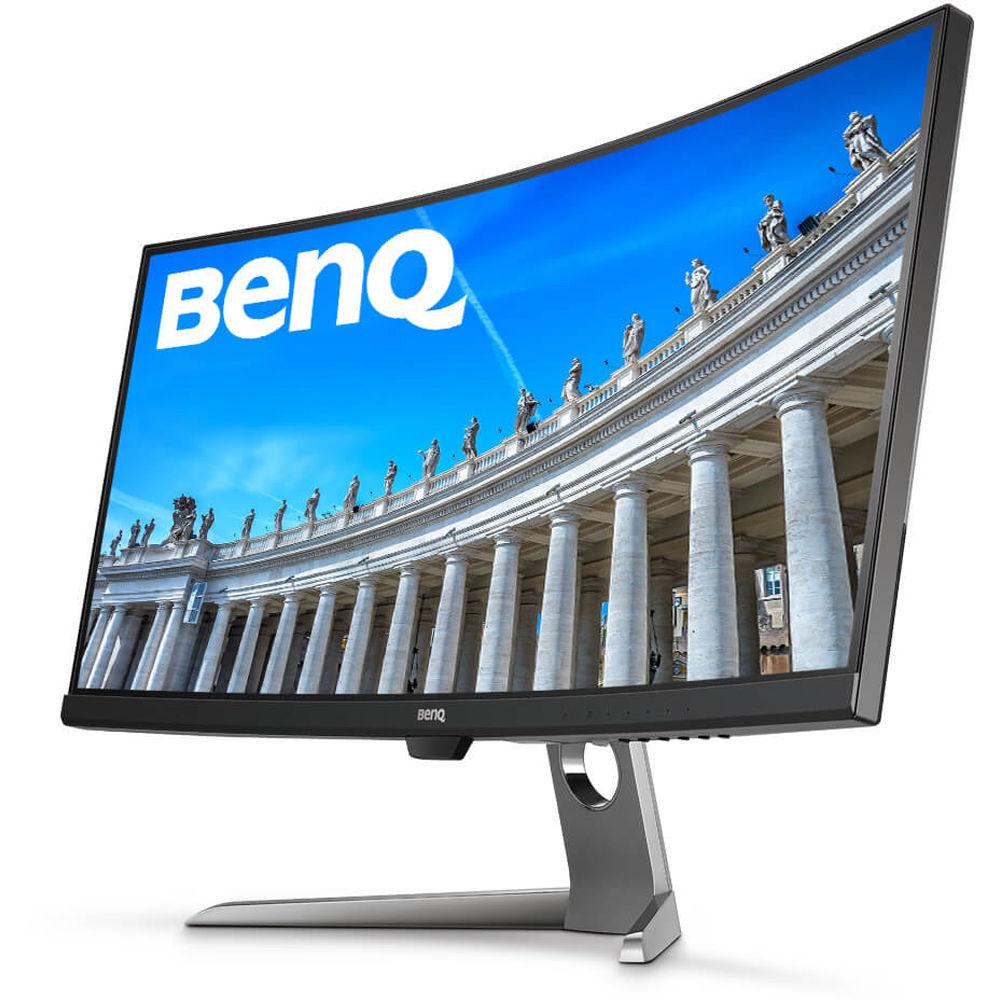

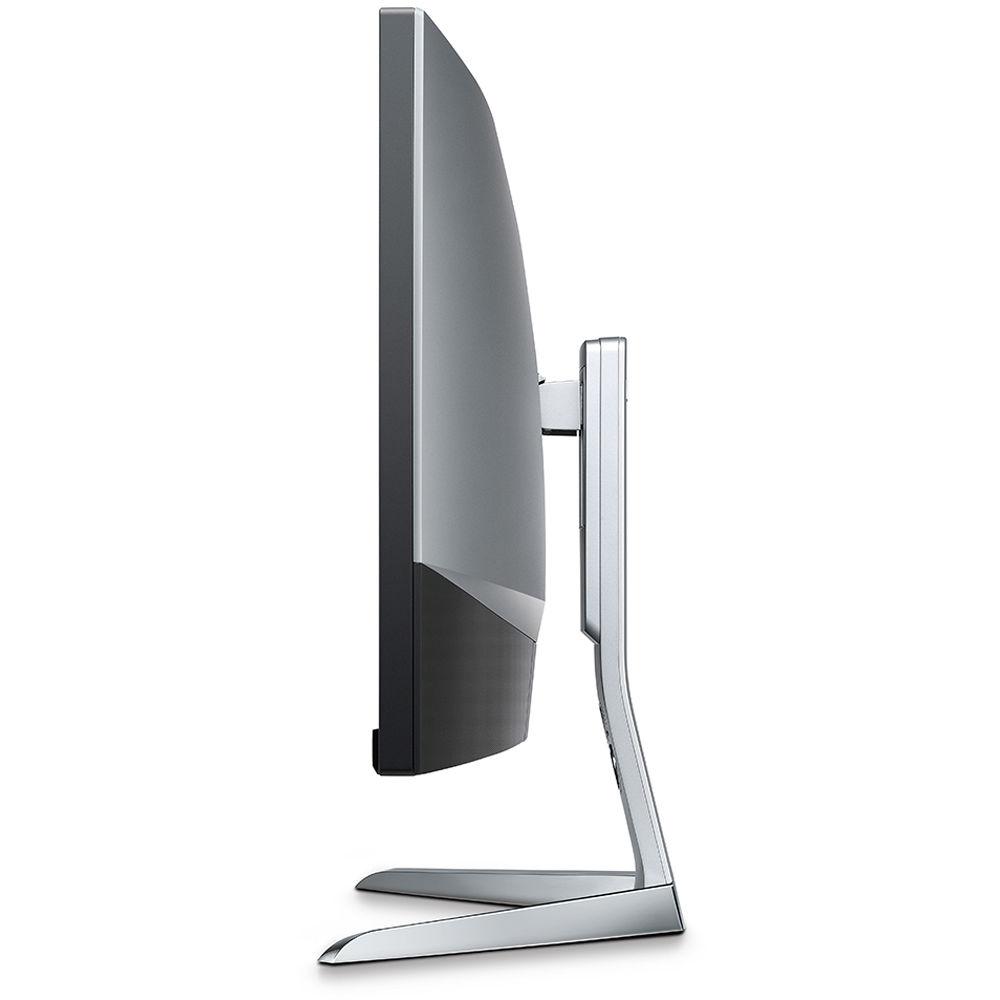

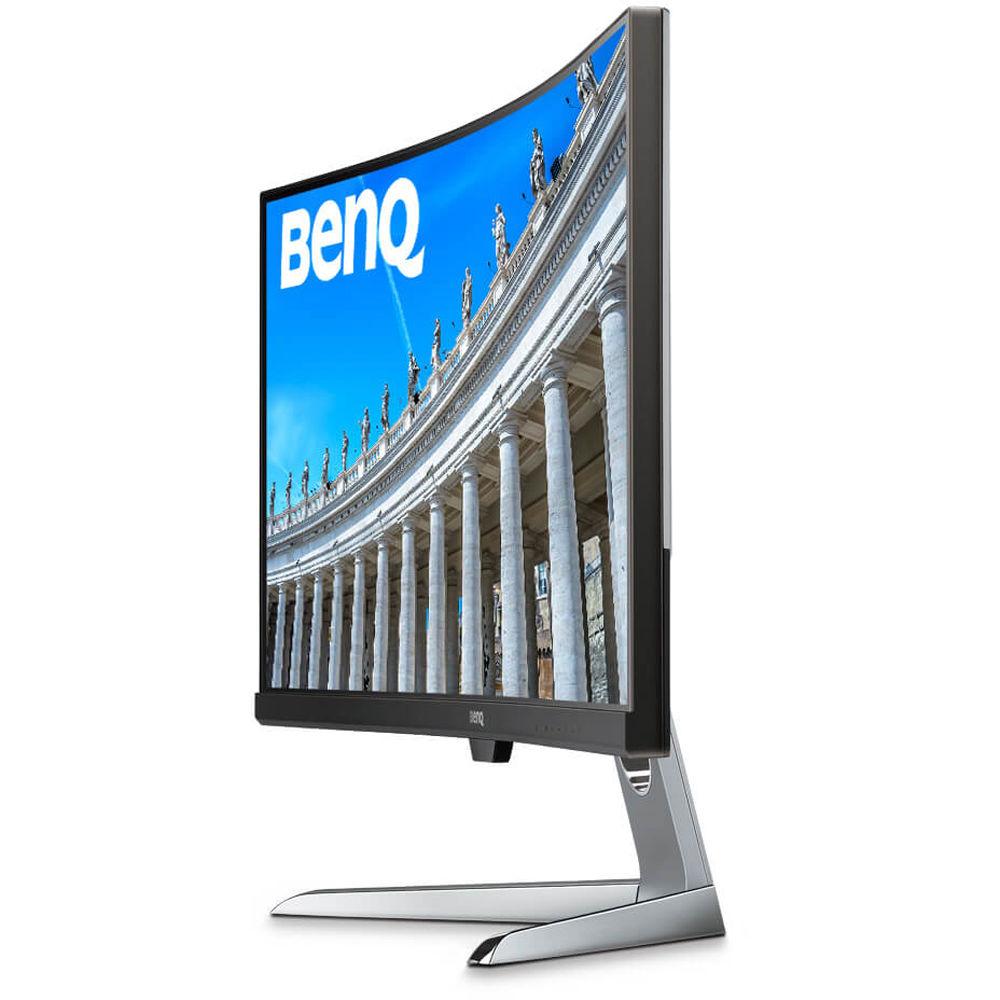

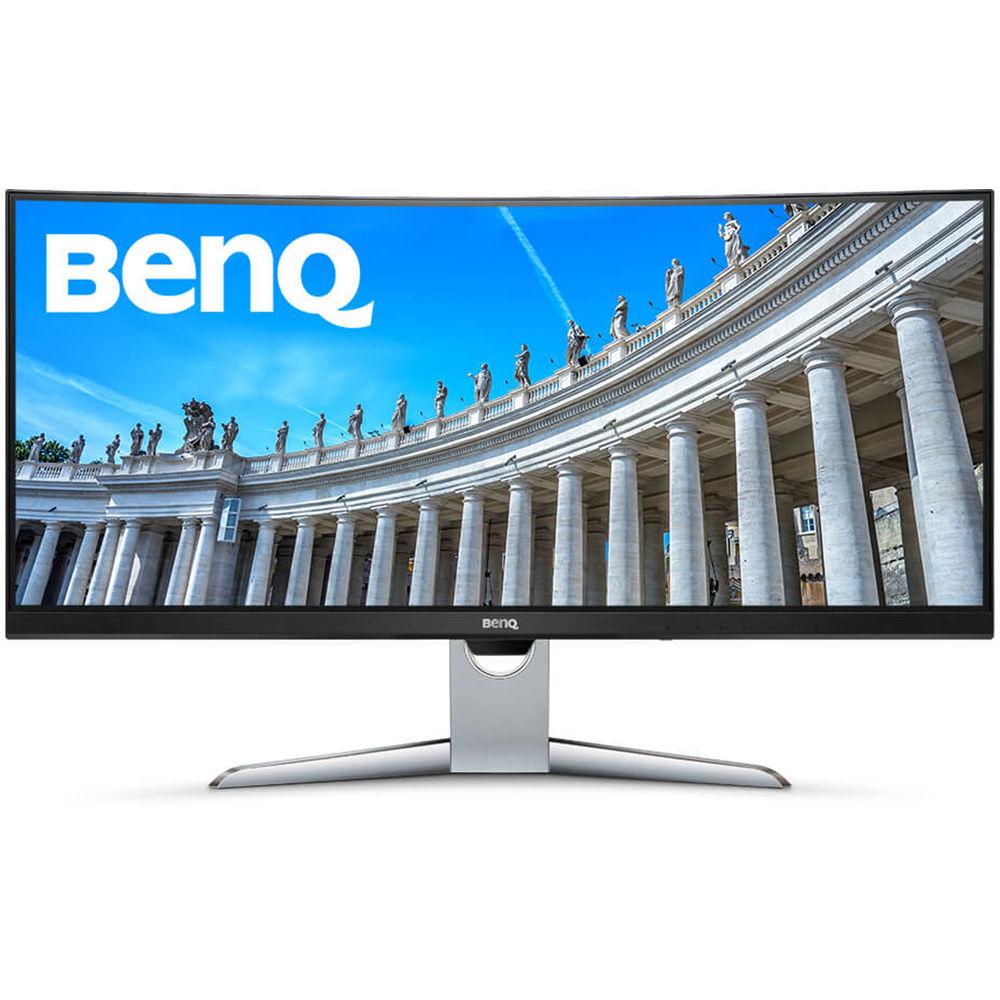

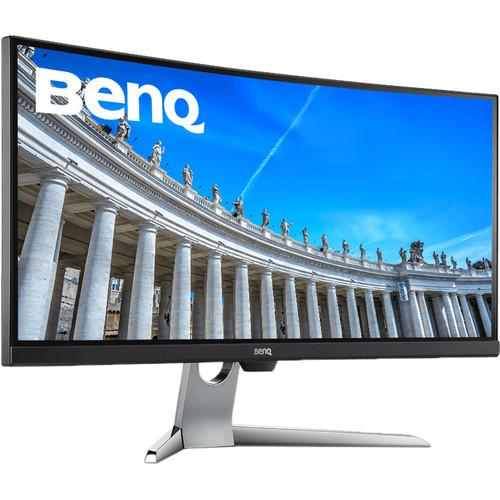

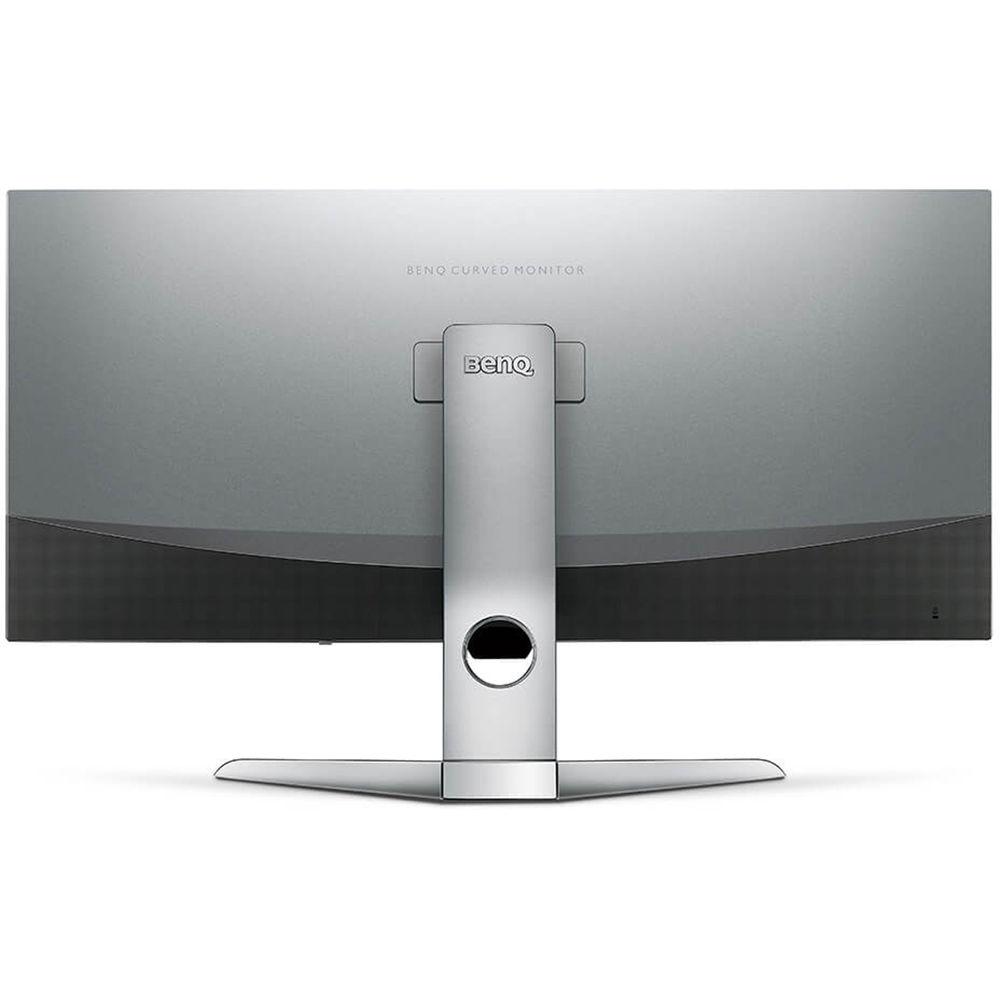

User Manual for BenQ EX3501R 35" 21:9 Curved LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ EX3501R 35" 21:9 Curved LCD
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ EX3501R 35" 21:9 Curved LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an 1800R curvature, the EX3501R 35" 21:9 Curved LCD Monitor from BenQ is designed to offer the viewer an all-encompassing, cinematic viewing experience. In addition to the curvature of the screen, this monitor also features a 21:9 ultra-wide aspect ratio to provide more screen space than traditional 16:9 displays. To complete the immersive viewing experience, BenQ has included HDR support in this display, which helps to create a dynamic picture with deep dark and bright light colors.
Setup and configuration of the EX3501R monitor is simple as it comes equipped with both HDMI and DisplayPort inputs as well as USB connectivity. The built-in USB Type-C port makes it easy to connect a wide variety of USB enabled peripherals directly to the display. Once configured, this monitor offers a 3440 x 1440 resolution, a 2500:1 contrast ratio, a 300 cd/m² brightness rating, a 100 Hz refresh rate, and a 4 ms response time to provide a clear picture with reduced ghosting and blur. The EX3501R even covers 100% of the sRGB color space, making this monitor a great tool for graphics artists and those working on projects where color accuracy is a must. - Realistic Video Quality with HDR
- Featuring HDR technology, the EX3501R offers enhanced brightness and contrast and brings incredible details and and a more vivid picture to video content.
- Cinematic 21:9 Aspect Ratio with Ultra-High Resolution
- The EX3501R monitor proportions 2.35:1 ratio for Cinemascope films and the panoramic background graphics are perfect for gaming fun. The 3440 x 1440 resolution reveals fine details in crisp clarity.
- Ultra-Slim Bezel, Edge-to-Edge Design
- Incorporating ultra-slim bezels with edge-to-edge panels, multiple EX3501R monitors connect seamlessly to surround your vision.
- AMD FreeSync & 100 Hz Refresh Rate
- AMD FreeSync technology eliminates image tearing, broken frames, and choppy gameplay for fluid gaming. And with 100 Hz refresh rate to bring out an ultra-smooth gaming experience, the EX3501R is designed with the gamer in mind.
- Native Video Format Support
- Widely supporting 24p, 25p, and 30p cinematic frame rates natively, the EX3501R transports you to a personal cinema for an authentic movie-going experience without distortion from pulldown artifacting.
- One Cable to Simplify All Connections
- Leveraging USB Type-C architecture, the EX3501R monitor carries high-resolution video and audio, and SuperSpeed data transfers on a single compact and reversible connection.
- Universal Multi-Platform Compatibility
- Comprehensively equipped with multiple HDMI, DisplayPort, and USB 3.0 ports in addition to USB Type-C, the EX3501R hosts multimedia content from a variety of source devices ranging from set-top boxes, Blu-rays, gaming consoles, and smart devices.
- Height Adjustment Stand
- An extensive range of height and tilt adjustments customize your entertainment space for the perfect fit.
- BenQ Eye-Care Technology
- Brightness Intelligence Plus Technology
BenQ's unique Brightness Intelligence Plus brilliantly detects ambient light levels and the color temperature in your viewing environment to automatically adjust on-screen brightness and color temperature for your viewing comfort. Your contents on the screen don't get overexposed while enhancing details in dark areas to maintain a visible level of clarity and intensity.
Reduce Eye Strain in any Lighting Environment
The ambient light sensor detects ambient light levels and the color temperature in your viewing environment, automatically adjusting on-screen brightness and color temperature to fit your surroundings. It also gradually adjusts brightness based on one's usage time. This offers the best display quality for users' viewing comfort, preventing eye strain and protecting your eyes after you watch monitors for hours.
Colors Stay Original for Picture Perfect Content
Brightness Intelligence Plus Technology detects your screen content and balances display color, ensuring that bright scenes don't get overexposed while dark areas maintain a visible level of clarity. It keeps the most authentic picture quality and details.
Low Blue Light
Proprietary BenQ Low Blue Light Technology filters out hazardous blue light, effectively reducing eye fatigue and irritation and bringing viewing comfort.
Flicker-Free
Flicker-free eliminates flickering at all brightness levels and reduces eye fatigue effectively. Conventional LCD screens flicker at the rate of 250 times per second. Your eyes may not see the flickers but they can certainly feel them. So relieve your eyes from the uncomfortable flickering effect by switching to a BenQ flicker-free monitor. UPC: 840046040055 In the Box BenQ EX3501R 35" 21:9 Curved LCD Monitor Limited 3-Year Warranty More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ EX3501R 35" 21:9 Curved LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ EX3501R Specs | | | Size | 35" | | Screen Area | 32.26 x 13.62" / 81.94 x 34.59 cm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 103 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 2500:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 100 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 100% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI 2.0
1 x DisplayPort 1.4
2 x USB (USB 3.1 Gen 1) Output
1 x USB (USB 3.1 Gen 1) Input
1 x USB Type-C
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | Supported Languages | Arabic
Croatian
Czech
Dutch
English
French
German
Hungarian
Japanese
Korean
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese | | | | Power Consumption | 65.7 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Height Adjustment | 2.36" / 60 mm | | Tilt Adjustment | -5 to 20° | | Lock Slot | Yes | | Dimensions (W x H x D) | 32.8 x 19.8 x 8.8" / 83.4 x 50.4 x 22.4 cm | | Weight | 22.93 lb / 10.4 kg | | | | Package Weight | 35.85 lb | | Box Dimensions (LxWxH) | 38.0 x 25.0 x 11.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
