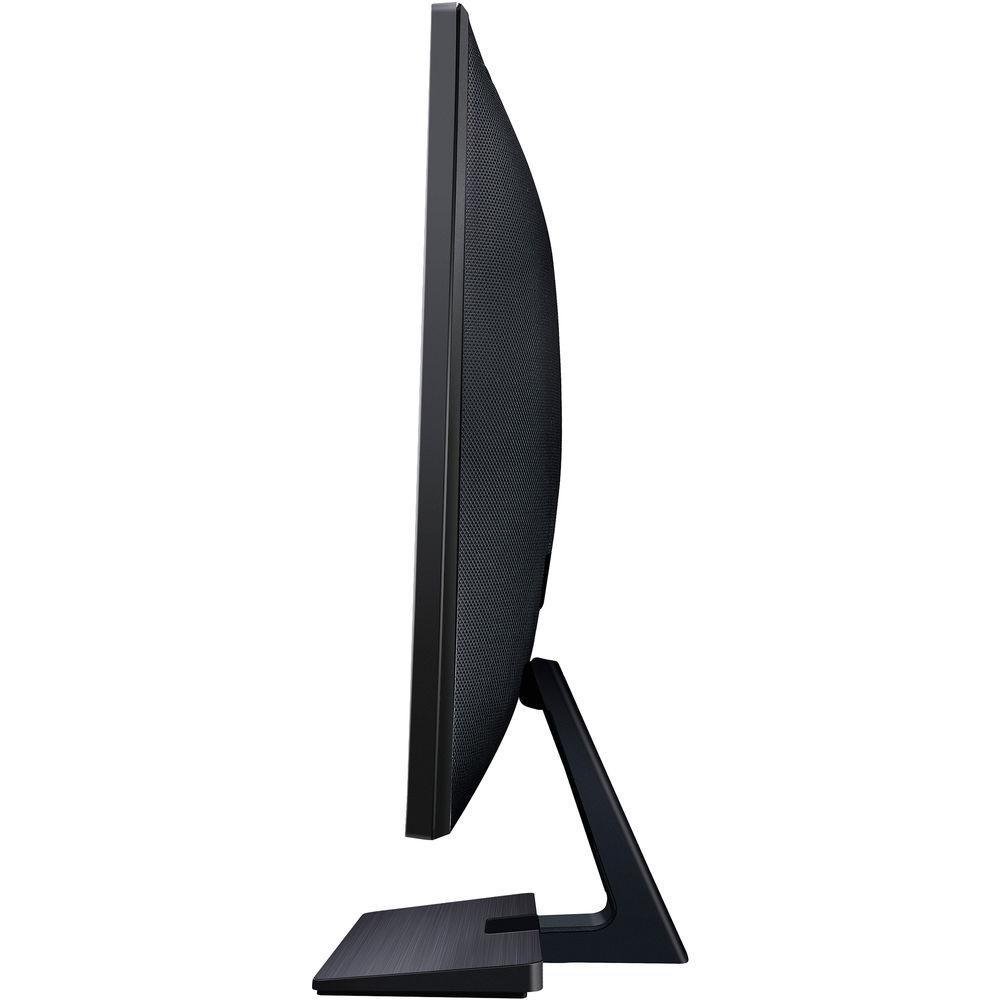

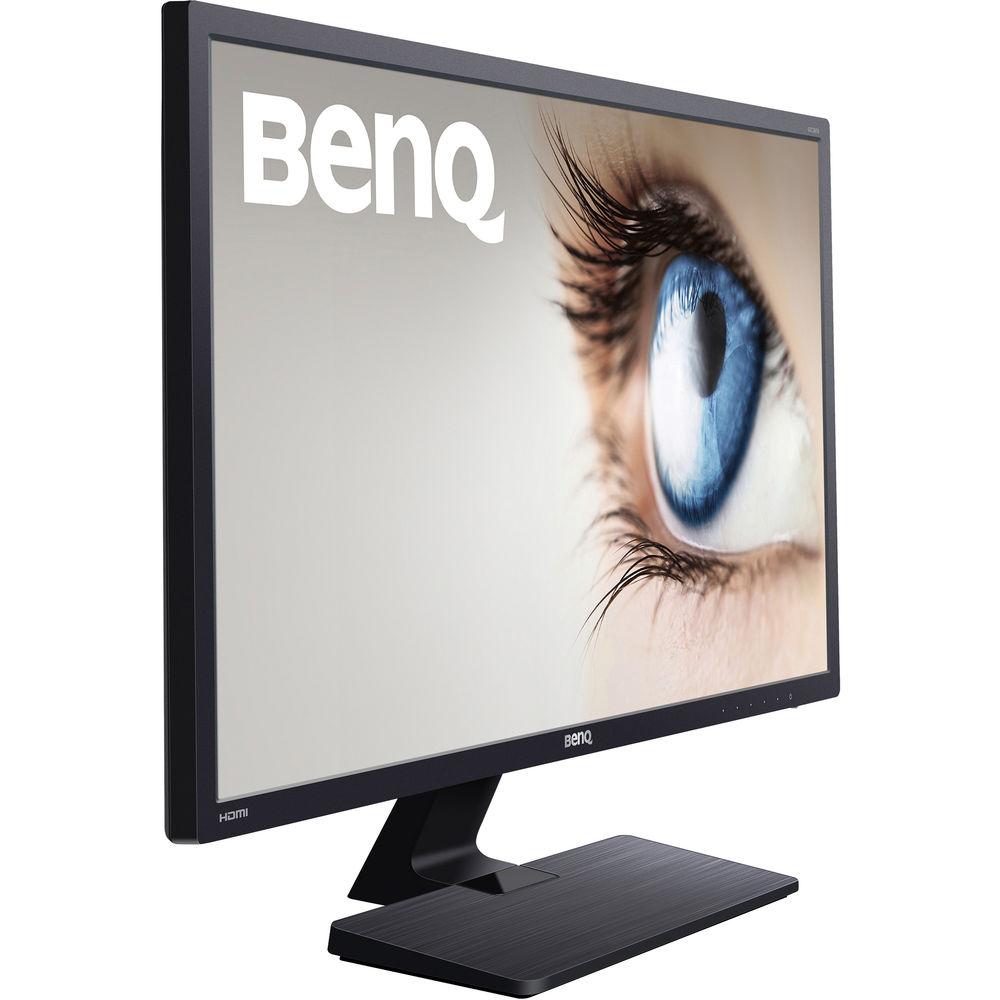

User Manual for BenQ GC2870H 28" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ GC2870H 28" 16:9 LCD Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GC2870H 28" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

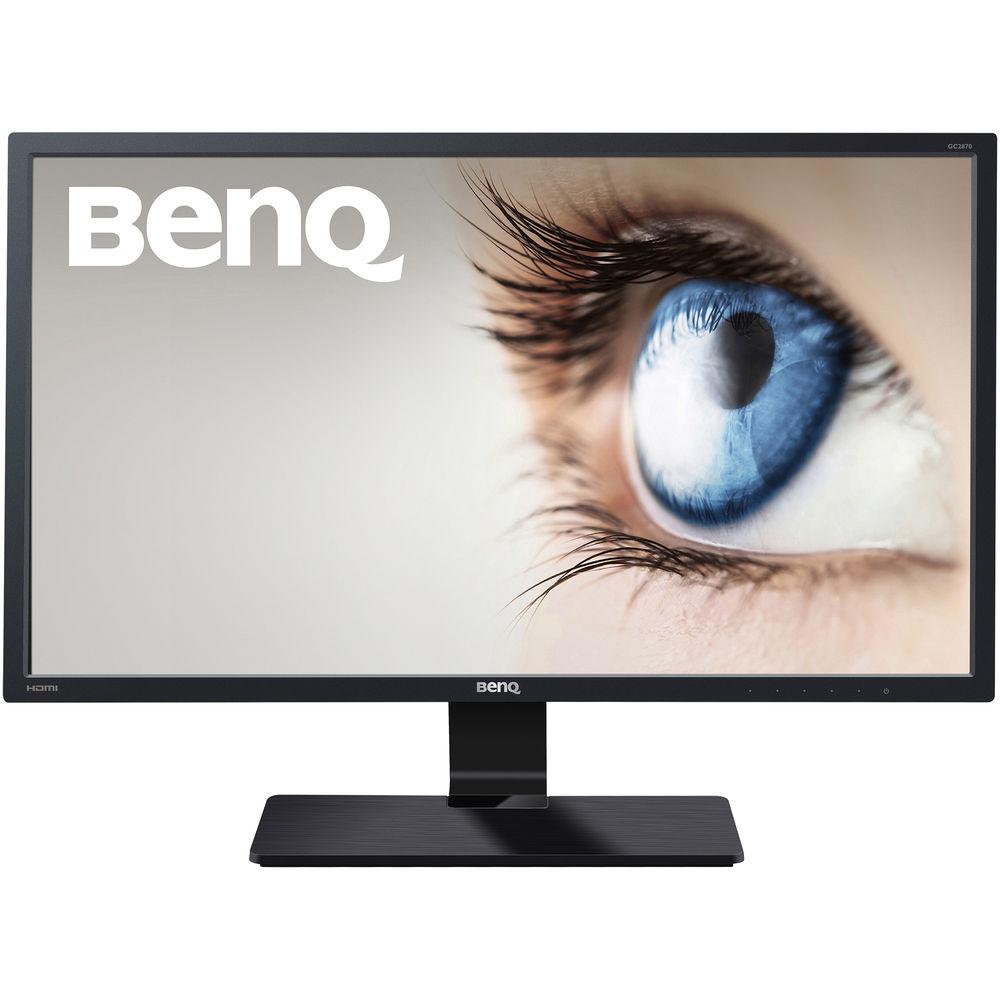

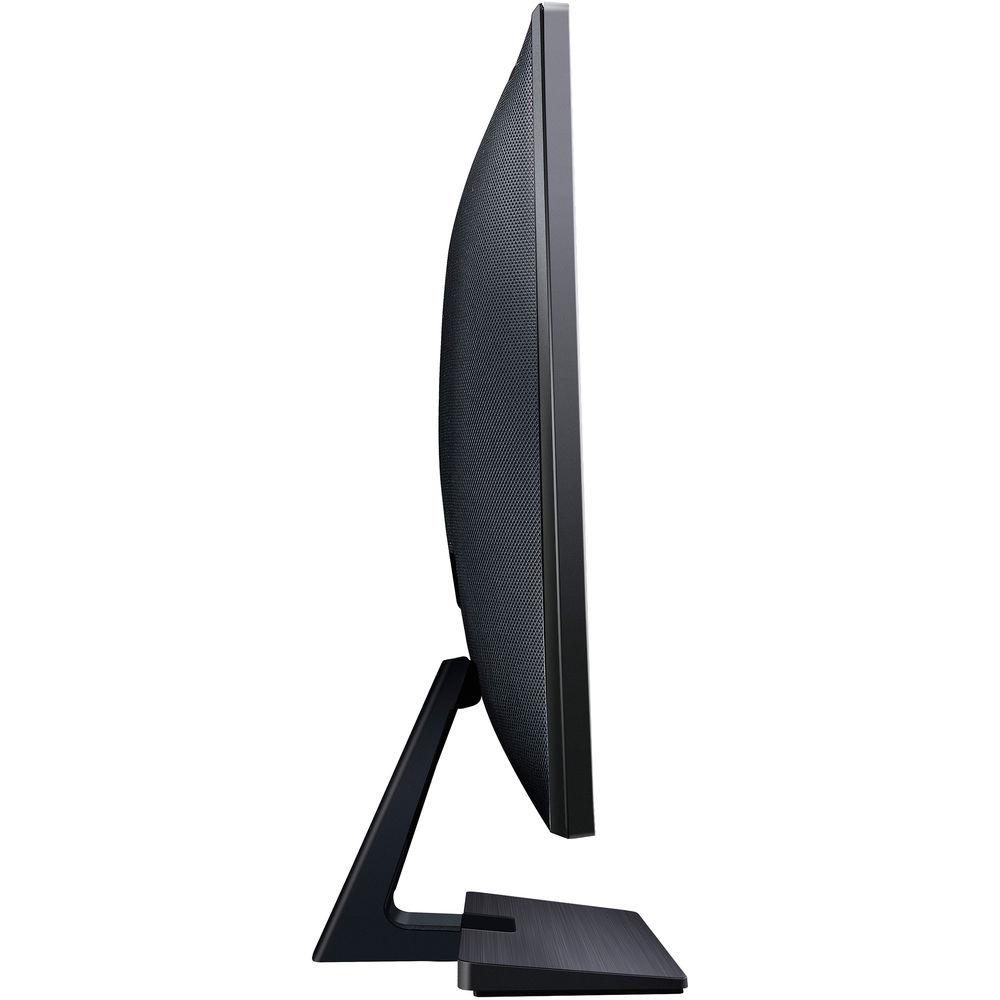

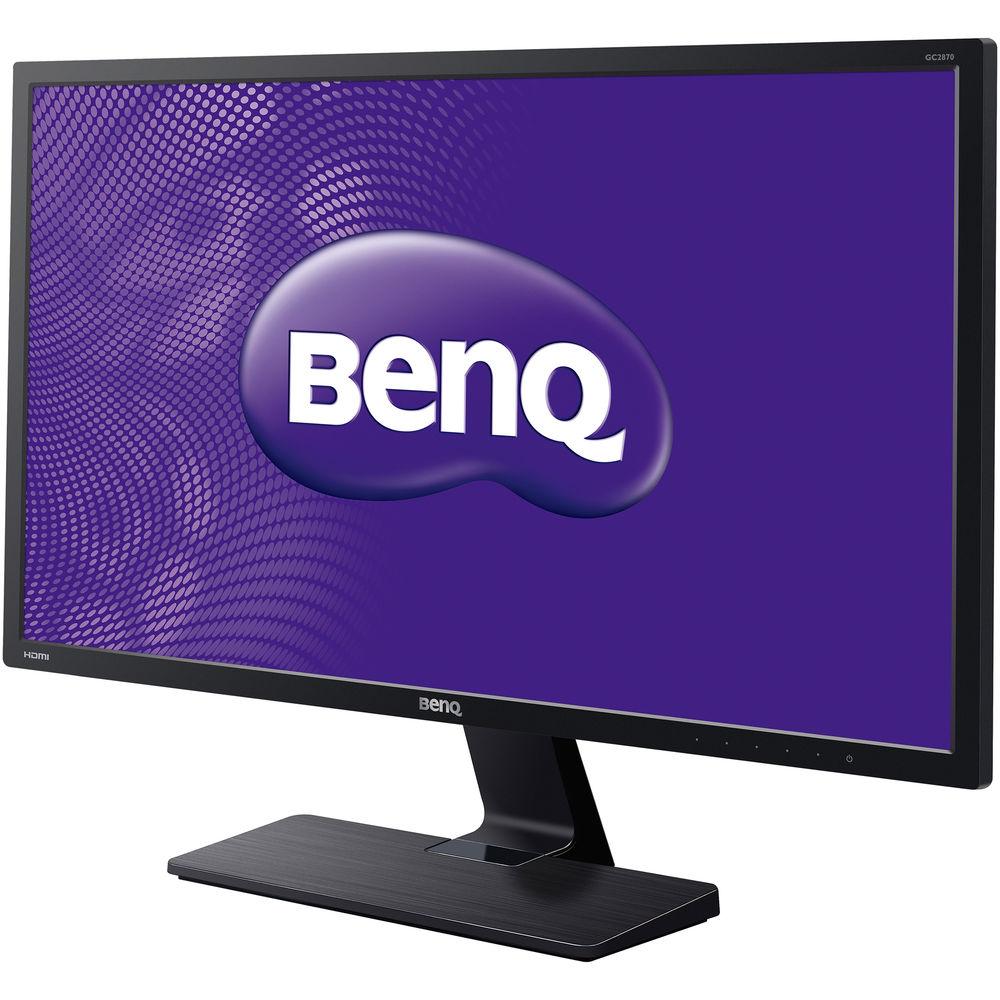

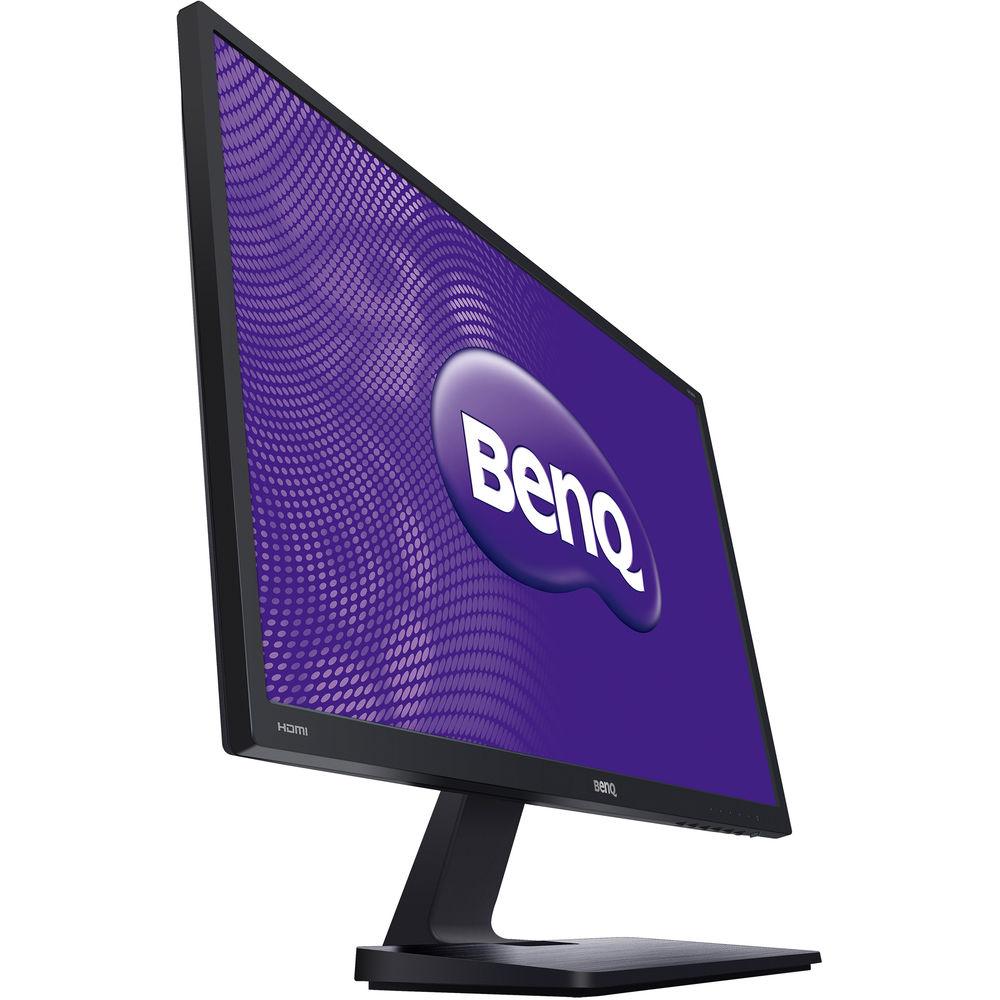

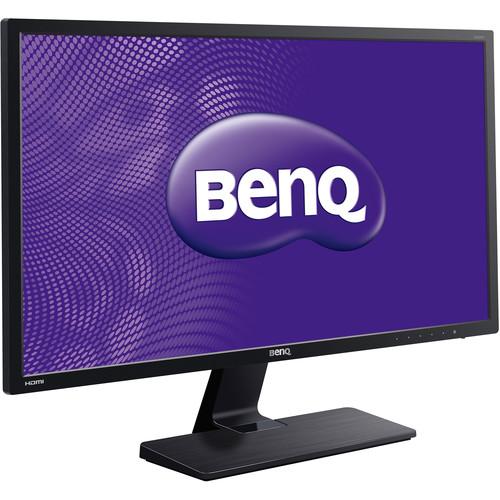

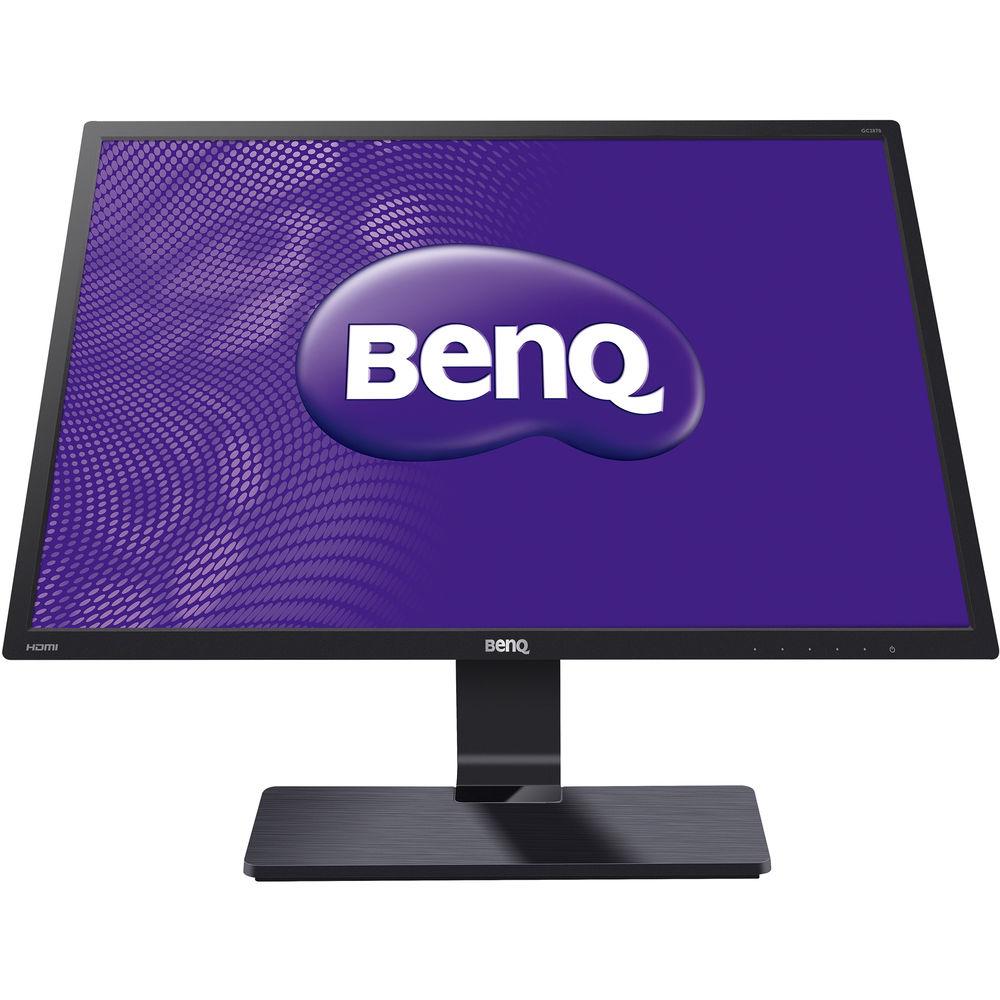

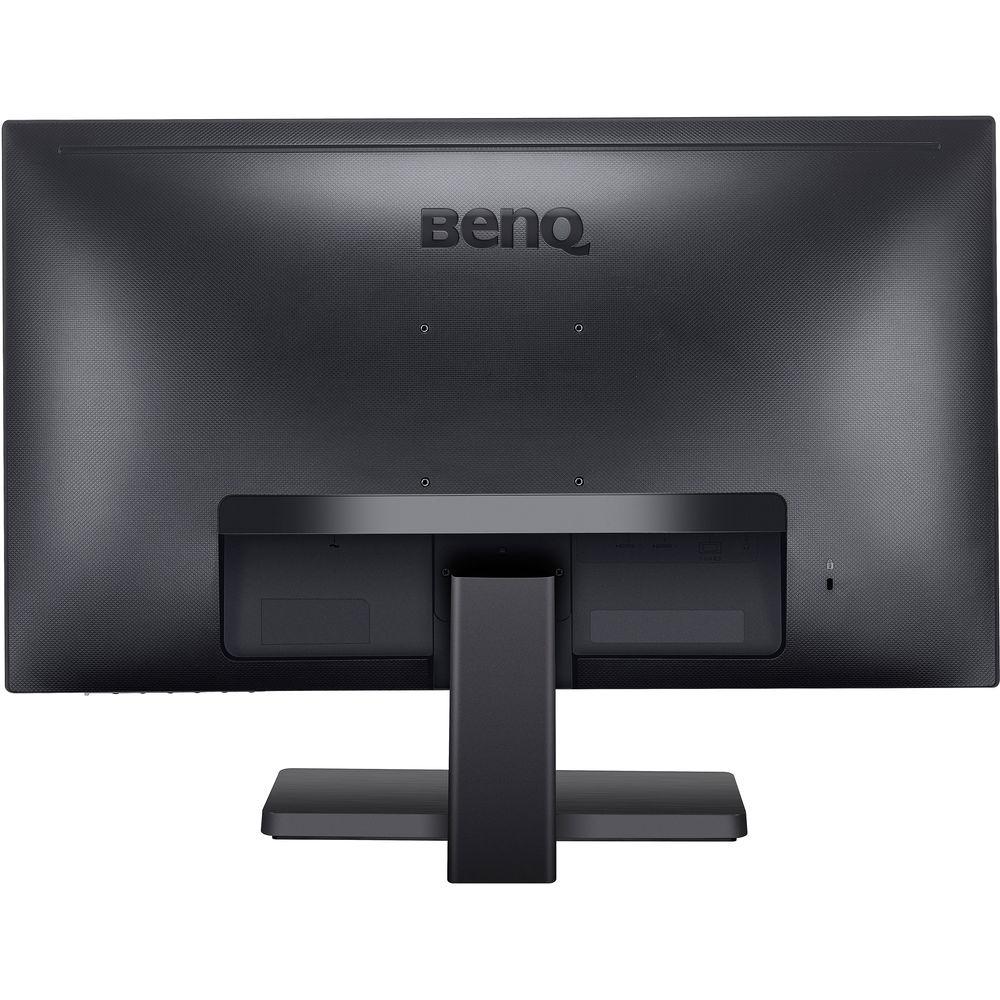

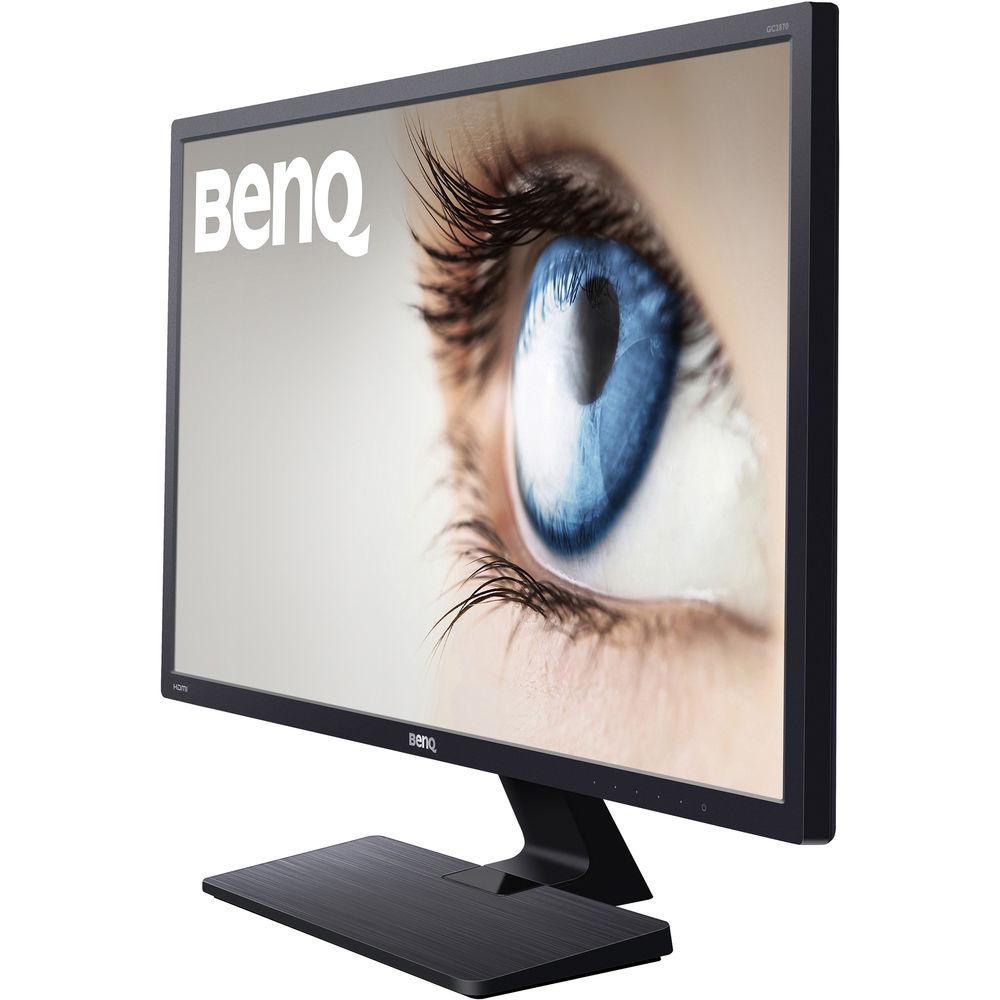

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The GC2870H 28" 16:9 LCD Monitor from BenQ is designed to protect your eyes with technology like Low Blue Light and ZeroFlicker. It's built with a VA (Vertical Alignment) panel that provides you with vivid colors and wide 178° viewing angles, and features a 1920 x 1080 resolution for crisp and clear viewing of high definition content. Moreover, it has a 300 cd/m² brightness rating and a 3000:1 static contrast ratio for brighter bright colors and darker blacks. This monitor supports up to 16.7 million colors and 85% NTSC color gamut, making it ideal for color sensitive work. Connect it to your system via VGA or HDMI and then tilt it to your viewing preference. Otherwise, you can install an optional arm, stand, or mount using the VESA mounting holes on the back. - Wide Color Gamut
- The monitor's 85% NTSC color gamut coverage delivers more vivid pictures for all applications, making it ideal for the everyday consumer and users handling color sensitive work.
- ZeroFlicker
- BenQ's ZeroFlicker technology reduces screen flickering to prevent your eyes from getting tired or damage over long periods of use.
- Low Blue Light
- BenQ's Low Blue Light technology reduces blue light emissions and provides you with four different viewing modes for varying applications such as multimedia, Web-surfing, office, and reading.
- 3000:1 Static Contrast Ratio
- A 3000:1 static contrast ratio adds depth and definition to dark and complex images. You'll be able to experience brighter bright colors and darker blacks for better clarity.
- 8-Bit Color Display
- Covering 16.7 million color shades, this display delivers vivid colors, silky transitions, and stunning image quality.
- 178°/178° Viewing Angles
- With wide 178° viewing angles, you'll be able to view your content from different positions without it losing color and details.
- Additional Features
-
- 4 x Color Temperature Modes (Reddish / Normal / Bluish / User Mode)
- Windows 7, 8/8.1, 10 Compatible
- Senseye
- AMA
- HDCP
- 17 x OSD Languages
- Dynamic Power Saving (DPS)
UPC: 840046034498 In the Box BenQ GC2870H 28" 16:9 LCD Monitor VGA Cable HDMI Cable Power Cable Limited 3-Year Warranty User Manual PDF 6.1mb More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GC2870H 28" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GC2870H Specs | | | Size | 28" | | Screen Area | 24.44 x 13.43" / 620.9 x 341.2 mm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 81 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 85% NTSC | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI 1.4
1 x VGA
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | | | Power Consumption | 38 W (Maximum)
30 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | ENERGY STAR, TCO Certified, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 25.9 x 18.8 x 8.0" / 658.9 x 477.9 x 203.6 mm | | Weight | 12.13 lb / 5.5 kg | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 28.5 x 19.0 x 5.0" |
