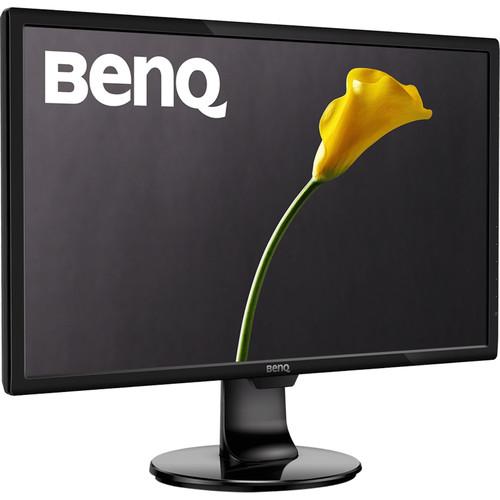

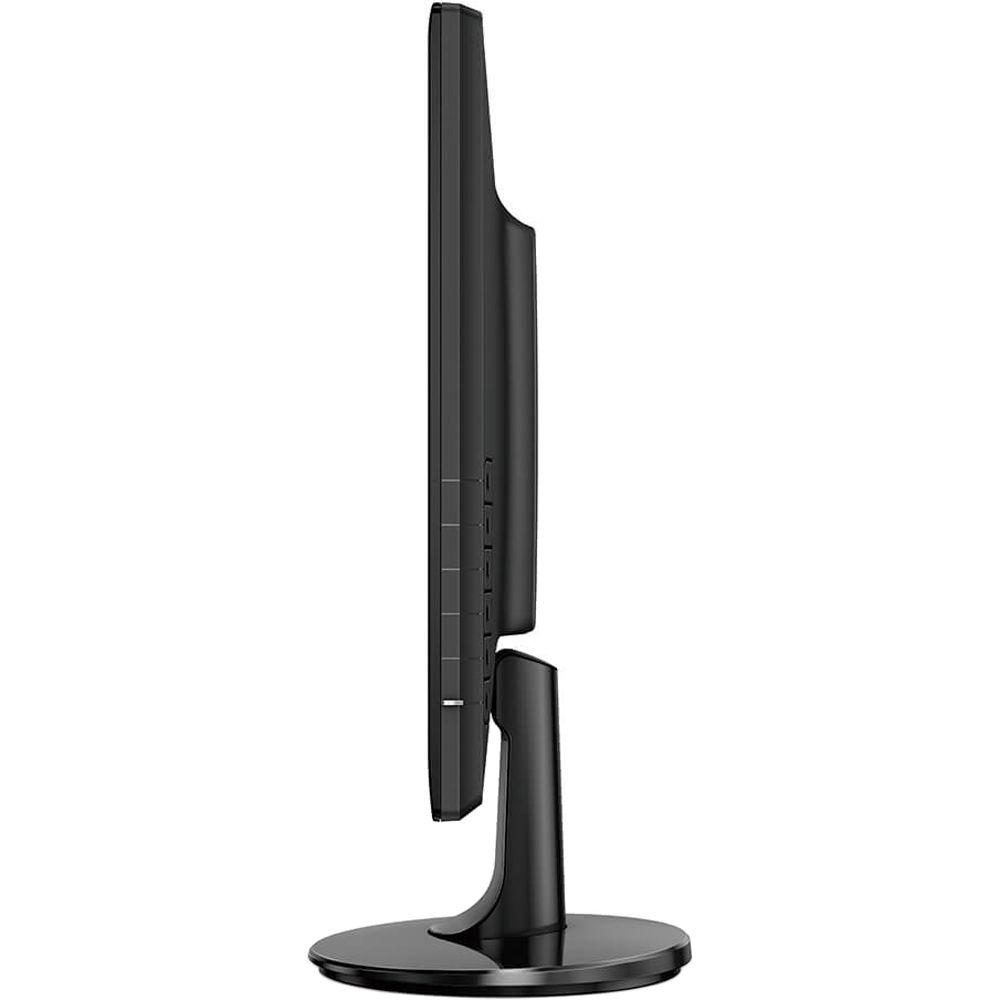

User Manual for BenQ GL2460BH 24" 16:9 LCD Display Click to enlarge the picture
Contents of the user manual for the BenQ GL2460BH 24" 16:9 LCD Display
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GL2460BH 24" 16:9 LCD Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

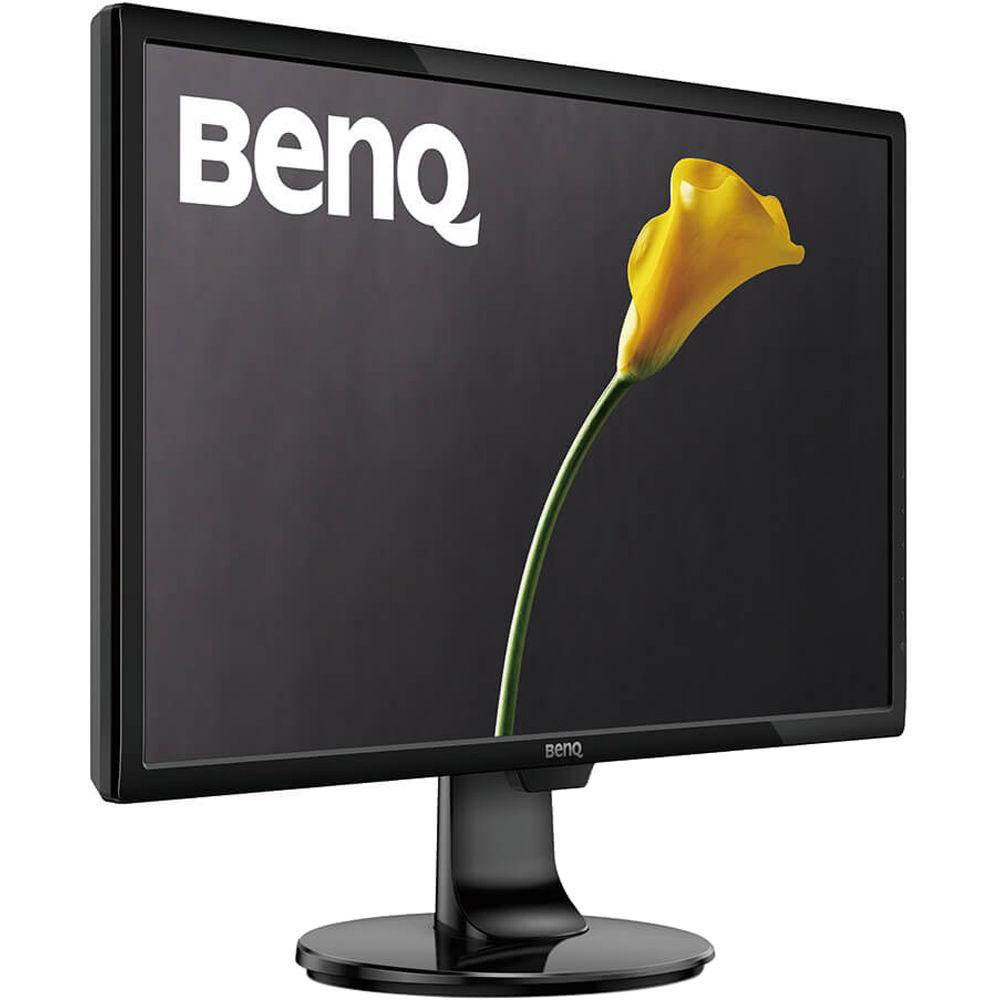

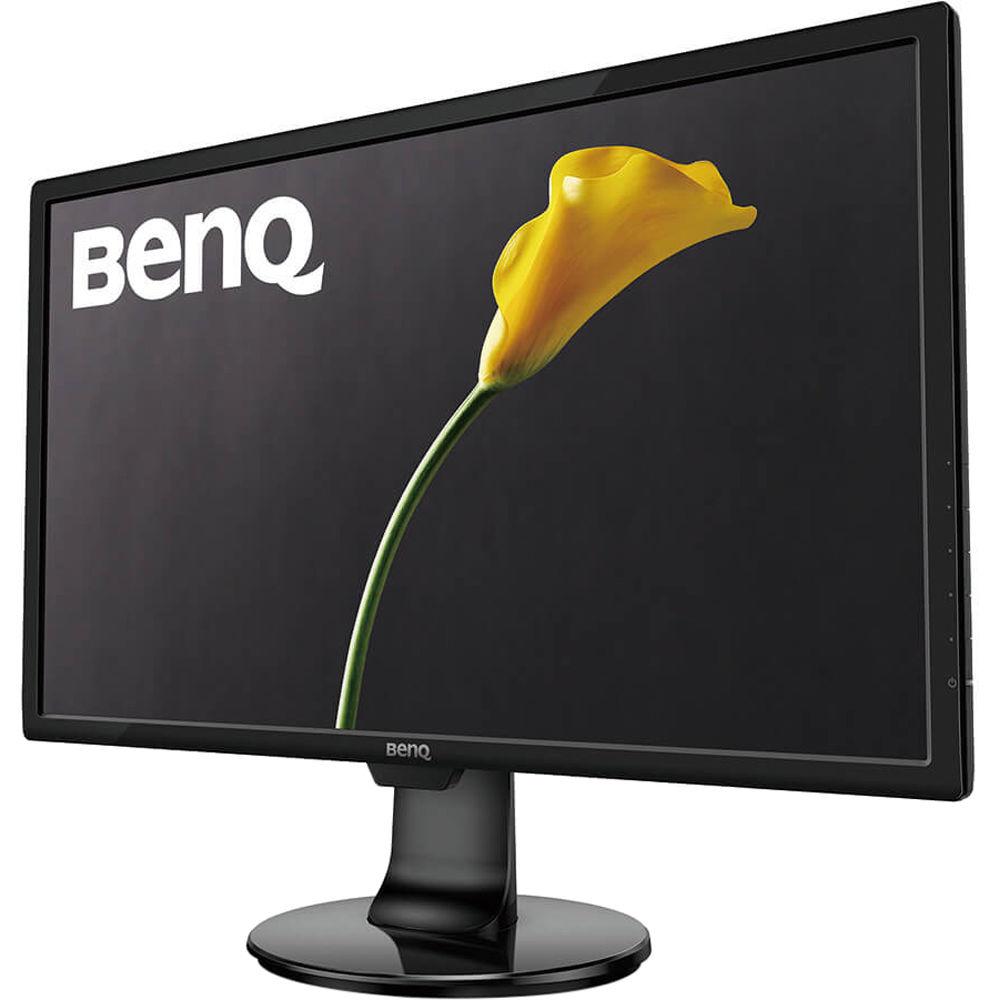

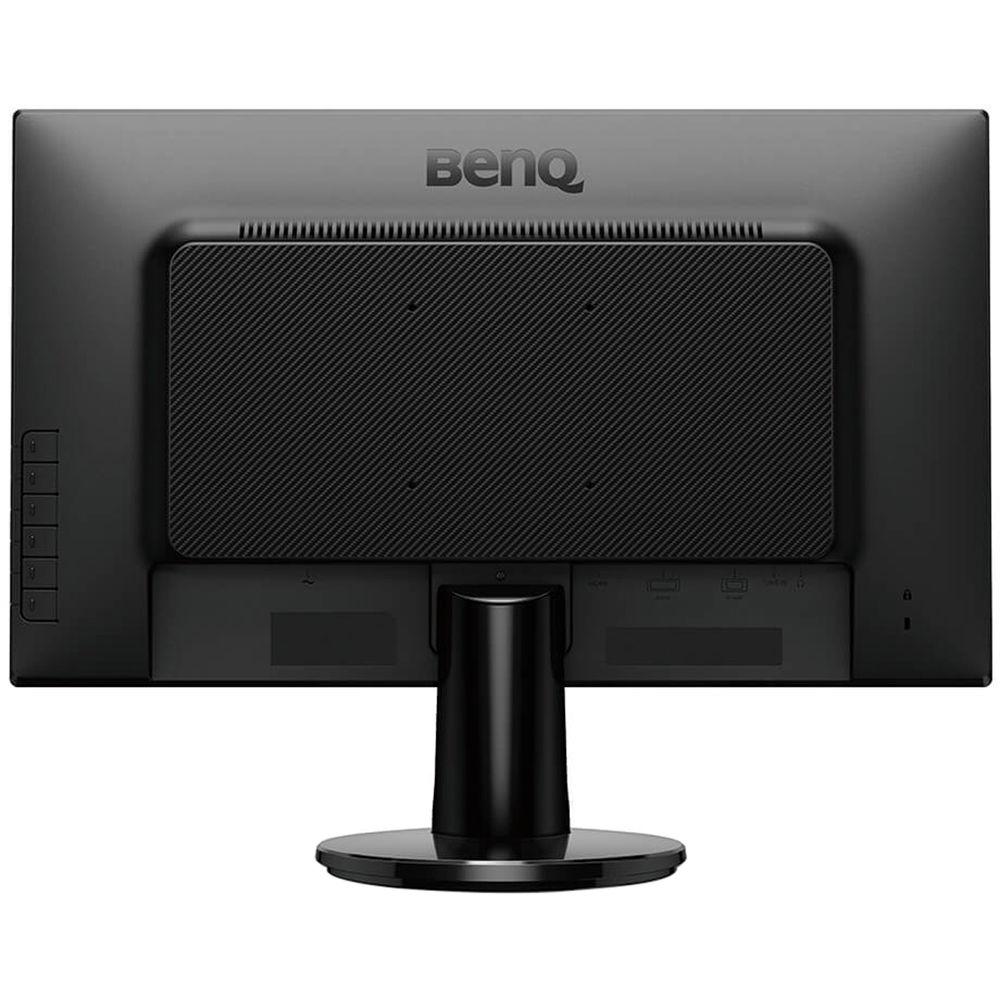

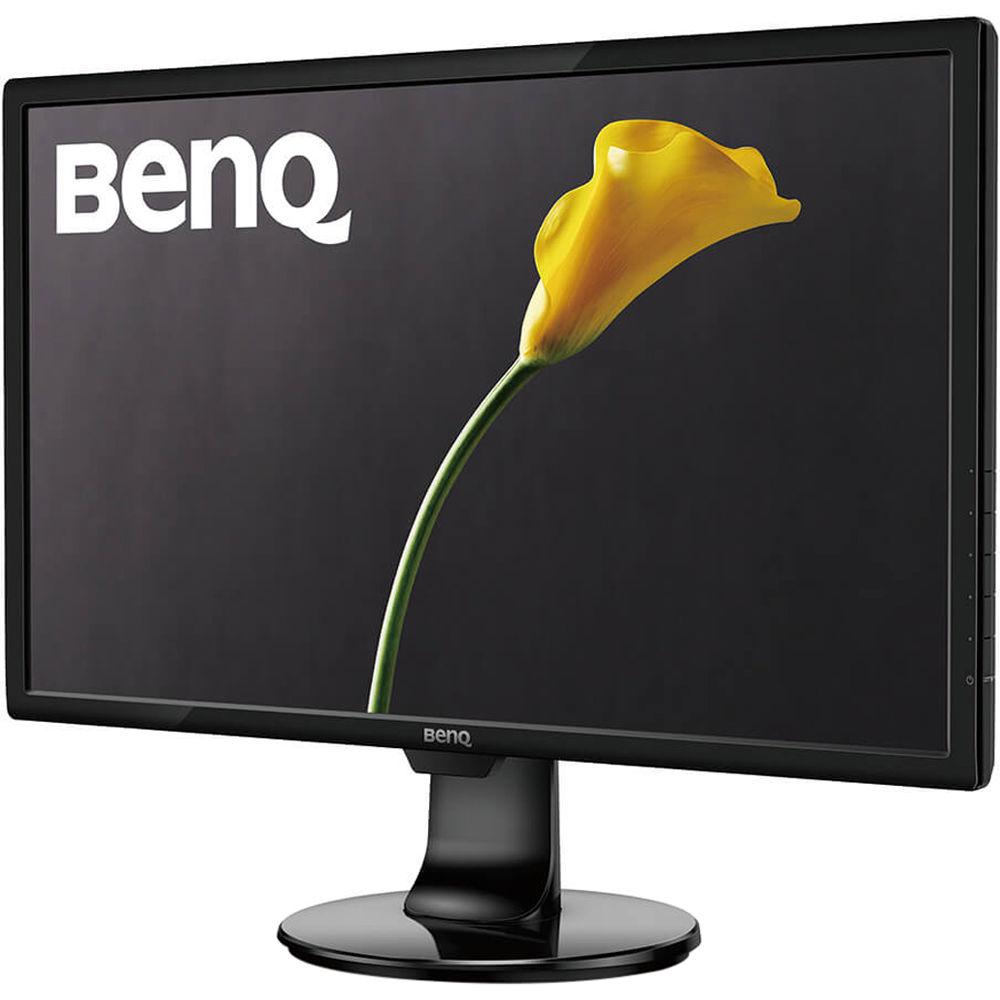

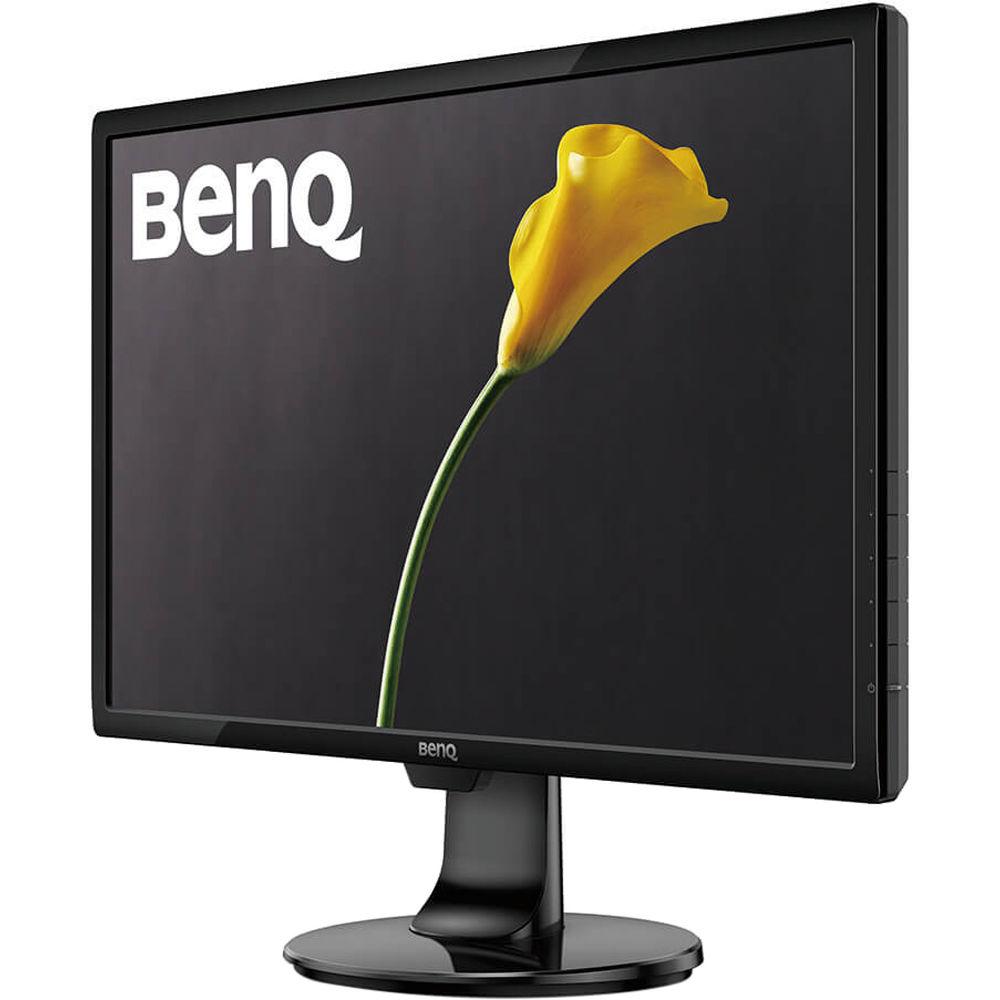

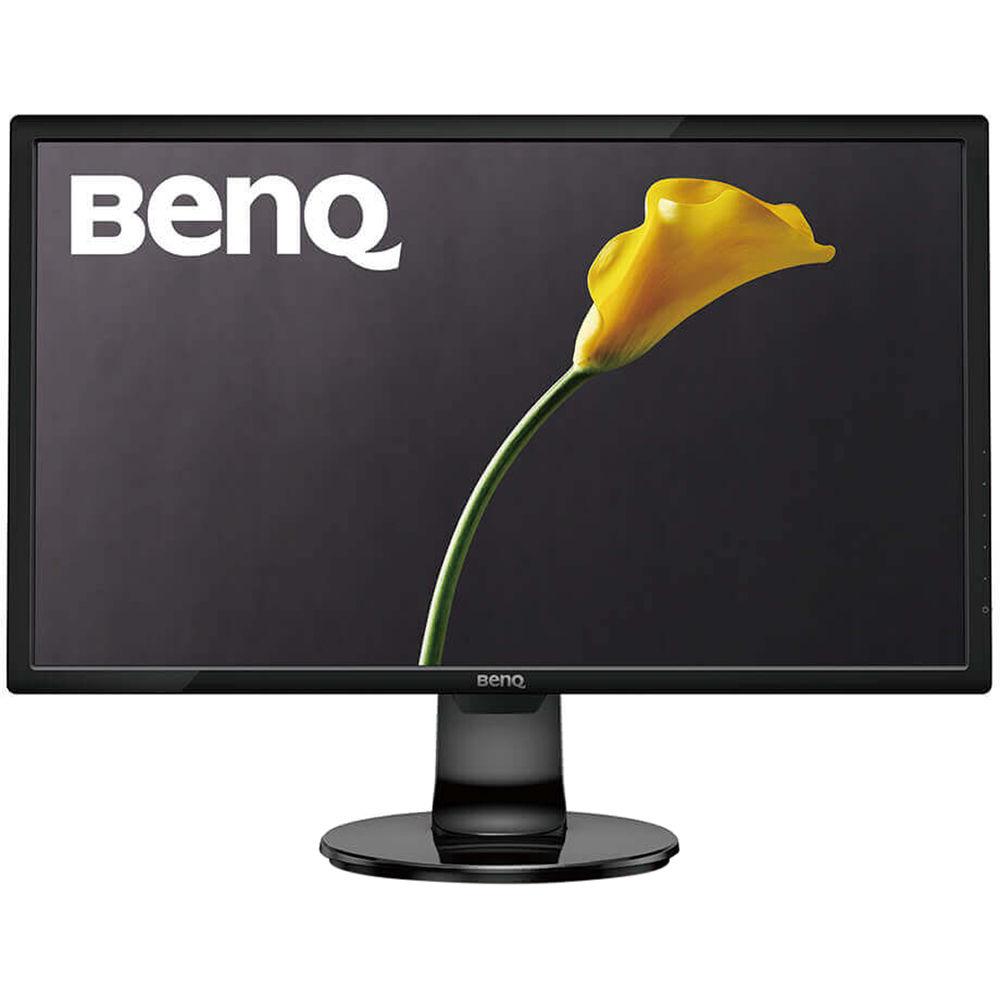

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The GL2460BH 24" 16:9 LCD Display from BenQ is an all-purpose monitor designed for all types of applications. Specs-wise, it has a 1920 x 1080 Full HD resolution, a 1000:1 static contrast ratio, a 250 cd/m² brightness rating, and support for 16.7 million colors for crisp and clear details. Additionally, it's built with eye-care technologies such as low blue light and flicker-free for comfortable viewing over long sessions. Unlike most standard displays with a 60 Hz refresh rate, this monitor supports up to 75 Hz with a 1 ms response time for smooth videos and gaming. Connect this display to your system via VGA, DVI, or HDMI and adjust it to your viewing preference. Otherwise, you can install an optional VESA mount, stand, or arm using the mounting holes on the back. - 1 ms GtG Response Time and 75 Hz Refresh Rate
- A fast 1 ms response time with a 75 Hz refresh rate helps to reduce lag and ghosting for a smoother experience whether you're watching videos or playing games.
- EyeCare Technology
- This monitor features eye care technologies including low blue light and flicker-free to reduce eyestrain and fatigue over extended viewing periods.
- Brightness Intelligence Technology
- Brightness Intelligence Technology adjusts the display's performance for both work and play to protect your vision while still providing you with optimal image quality. It can adjust the display's brightness depending on onscreen content as well as ambient brightness.
UPC: 840046037673 In the Box BenQ GL2460BH 24" 16:9 LCD Display Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GL2460BH 24" 16:9 LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GL2460BH Specs | | | Size | 24" | | Screen Area | 20.92 x 11.77" / 531.36 x 298.89 mm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 92 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | | | Connectivity | 1 x VGA
1 x DVI
1 x HDMI 1.4
1 x 3.5 mm Input
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 27 W (Typical)
15 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | ENERGY STAR, EPEAT Silver, TCO Certified, TUV, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 22.3 x 17.1 x 7.6" / 565.4 x 433.5 x 193.8 mm | | Weight | 7.50 lb / 3.4 kg | | | | Package Weight | 9.9 lb | | Box Dimensions (LxWxH) | 25.5 x 16.25 x 4.75" |
