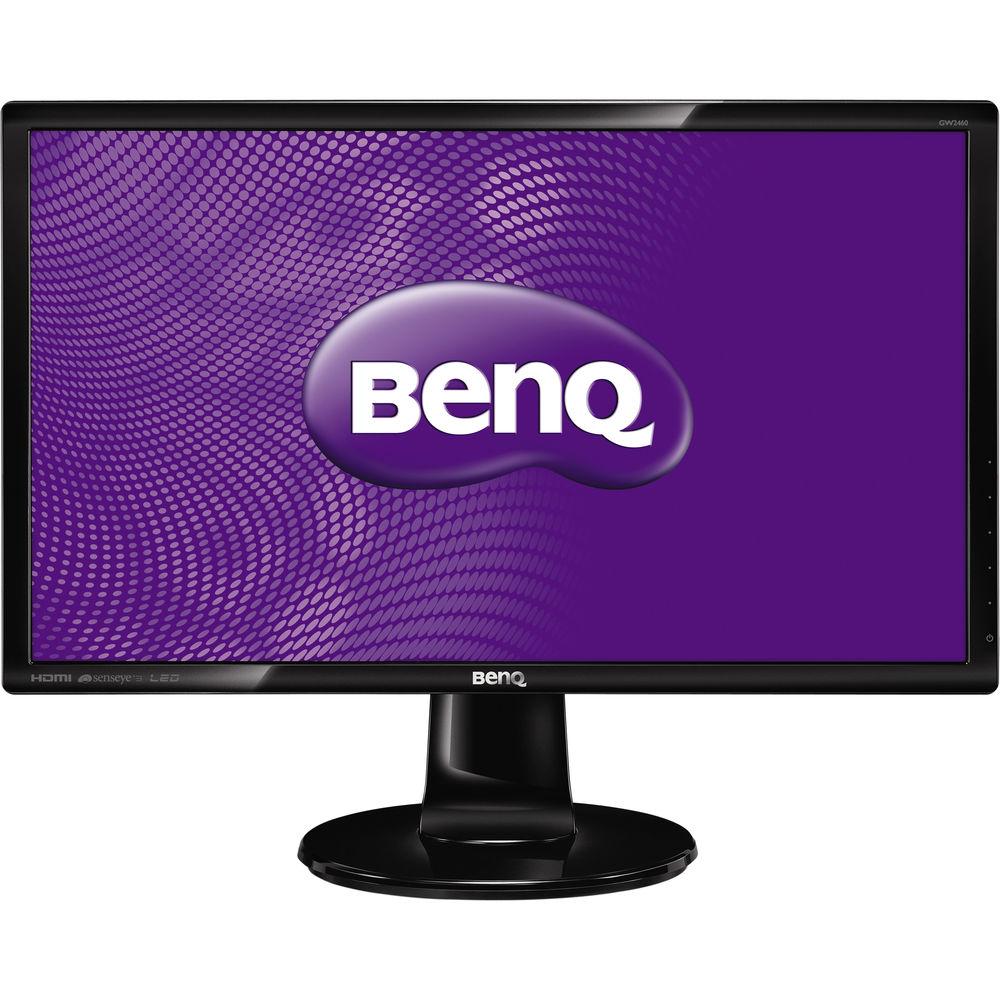

User Manual for BenQ GL2460HM 24" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ GL2460HM 24" Widescreen LED Backlit
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GL2460HM 24" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More ycebequadauxwsrzsbfaxcxqtdbwefzxf The GL2460HM 24" Widescreen LED Backlit LCD Monitor from BenQ features a 24" display complete with a Full HD 1920 x 1080 resolution, a 2 ms response time, 1,000:1 contrast ratio, and a brightness rating of 250 cd/m². The display can also be viewed from nearly any angle as it supports 170° horizontal and 160° vertical viewing angles, support for up to 16.7 million colors and a 72% NTSC color gamut.
The HD display is designed to suit a variety of needs as it comes equipped with features like reading mode, an enhanced dynamic contrast ratio, and multimedia HDMI connectivity. Setup and configuration of the GL2460HM is also simple as it features HDMI, DVI, and D-Sub inputs along with a headphone jack and line in port. - LED Backlit
- With LED backlight technology you benefit from enhanced performance metrics such as higher dynamic contrast, no light leakage, and flicker-free viewing.
- Reading Mode
- For a more comfortable reading experience, BenQ has adjusted the monitor's color temperature, brightness, contrast ratio and sharpness to create what they call Reading Mode, which simulates the look of printed paper to help reduce the eye discomfort typically caused by prolonged and focused use of eyes on computer monitors.
- Improved Eco Mode
- The improved Eco Mode adjusts the backlight brightness level to ensure a high display quality is presented to you with increased energy efficiency. This intelligent mode reduces at least 37% of the power consumed by document viewing, Internet browsing and emailing, and up to 44% of the power consumed by gaming.
- Enhanced Contrast Ratio
- The GL2460HM comes with a dynamic contrast ratio of 12M:1 to add color depth and definition to darkened and complex motion pictures, so that everything you see, from the brightest white to the darkest black, is rendered to deliver a clear, smooth picture performance during movies and video games.
- Integrated Speakers
- Whether you're listening to music or watching your favorite film, the dual 1W speakers provide an enhanced audio experience.
- Full HD 1080p
- The BenQ GL2460HM supports Full HD 1080p with a 16:9 aspect ratio, allowing the subtlest details to stand out with richer, more realistic colors, making your viewing experience even more absorbing.
- Fast Response Time
- Enjoy dynamic videos without ghosting or other artifacts with 2 ms GtG response time.
- Senseye 3
- Experience truer colors with the BenQ Senseye Human Vision Technology. With the help of its six proprietary calibration techniques, Senseye 3 delivers enhanced viewing quality in each of its pre-set viewing modes -VStandard, Movie, Game, Photo, sRGB, Reading, and Eco -V with the Eco Mode especially designed to save power and money.
- Windows 8 Compatible
- The GL2460HM is fully compatible with Windows 8 systems. Plug in the GL2460HM to your computer, and Windows 8 will recognize it instantly, making for easy setup and connection.
- ENERGY STAR Qualified
- The GL2460HM complies with the requirement of ENERGY STAR Program for computer monitors, Version 5.1.
UPC: 840046028220 In the Box BenQ GL2460HM 24" Widescreen LED Backlit LCD Monitor Monitor Stand Monitor Base CD-ROM D-Sub Cable Power Cord Limited 3-Year Warranty More info from BenQ ycebequadauxwsrzsbfaxcxqtdbwefzxf Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GL2460HM 24" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GL2460HM Specs | | | Size | 24" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 12,000,000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC | | Response Time | 2 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.276 x 0.276 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI
1 x HDMI
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 0.3 W (Standby)
23 W (Typical) | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | TCO Certified, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.2 x 17.1 x 7.6" / 56.5 x 43.4 x 19.4 cm
22.2 x 13.1 x 2.1" / 56.5 x 33.3 x 5.4 mm (Without Stand) | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 10.45 lb | | Box Dimensions (LxWxH) | 25.3 x 16.4 x 4.6" |
