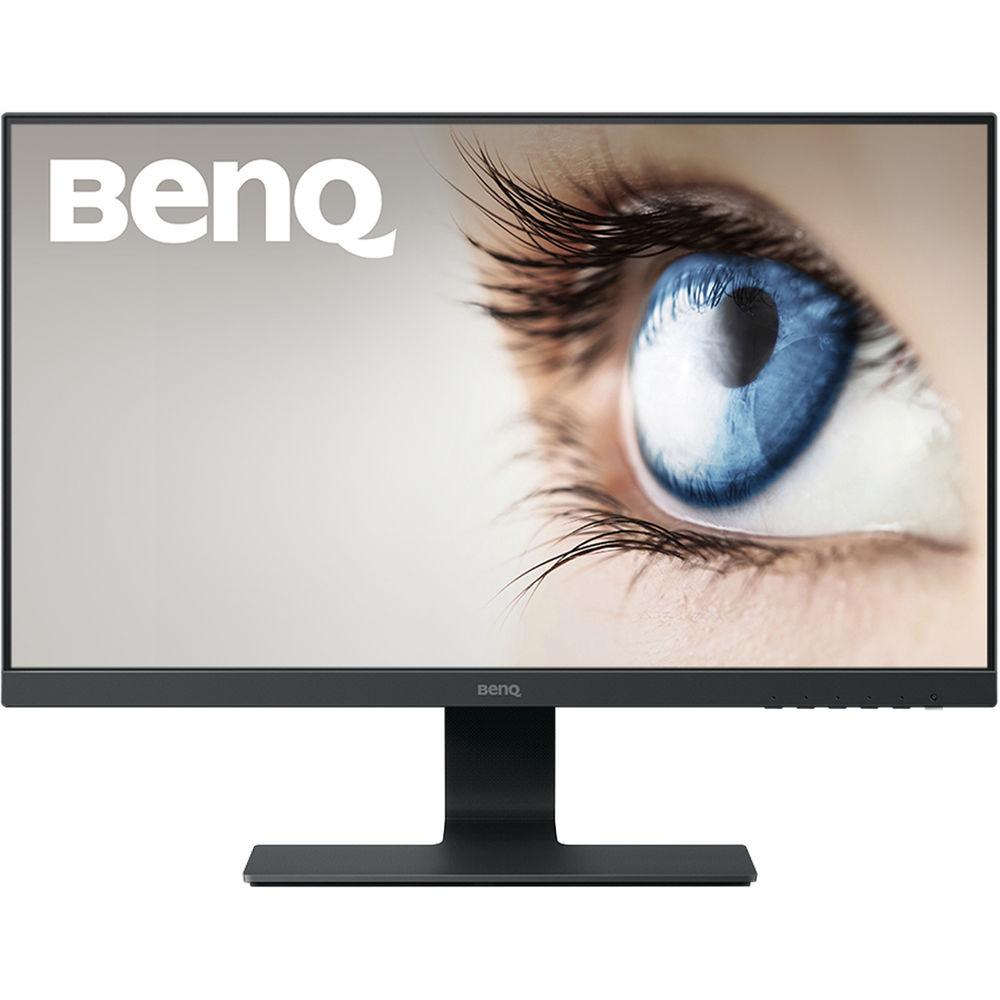

User Manual for BenQ GL2580H 24.5" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ GL2580H 24.5" 16:9 LCD Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GL2580H 24.5" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

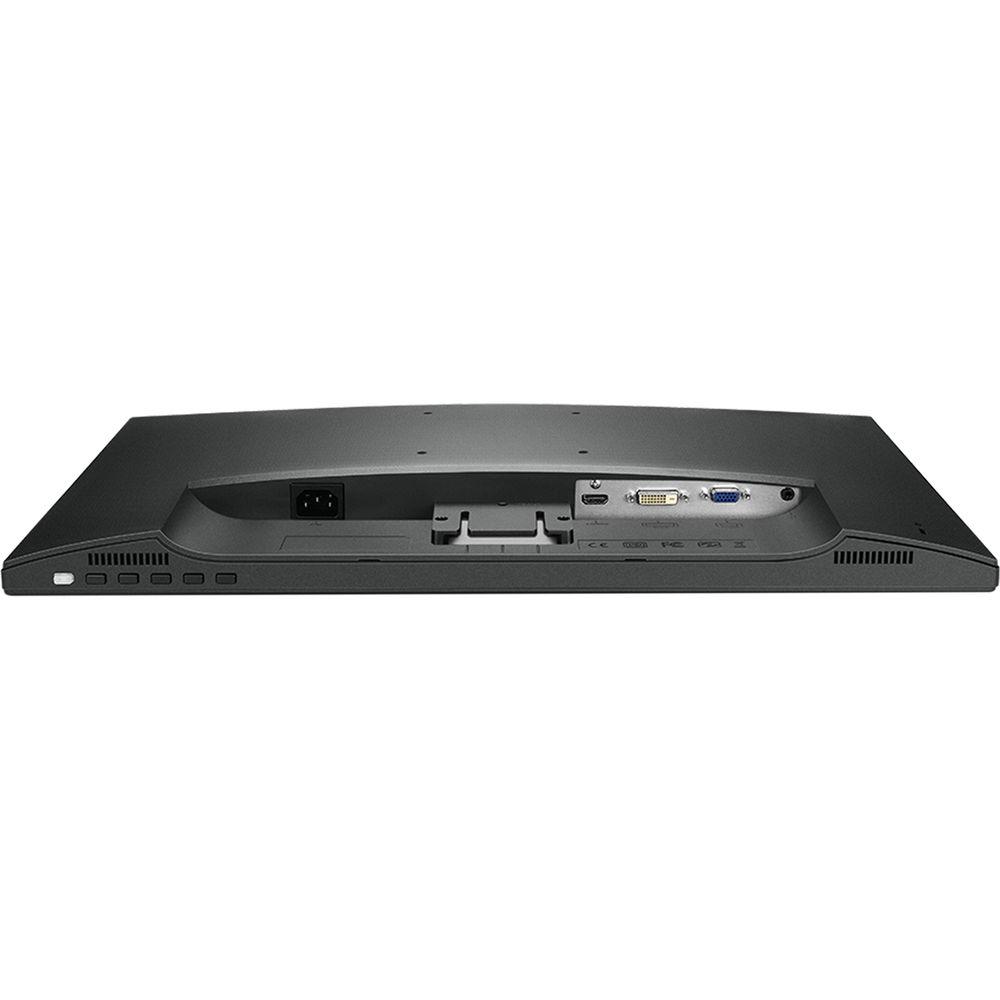

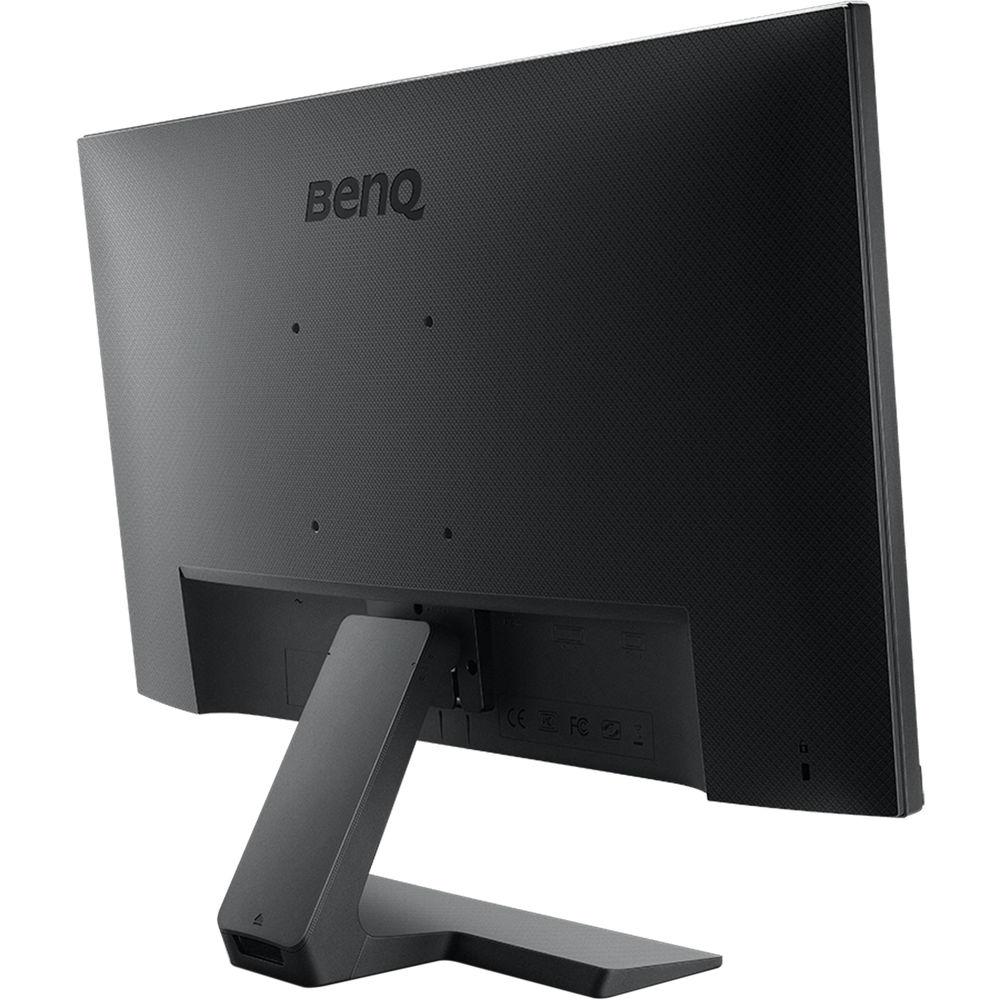

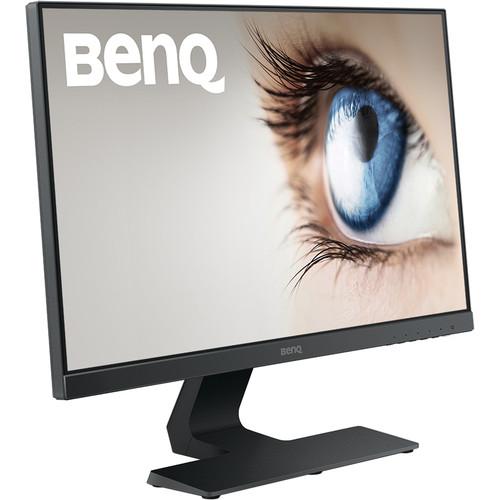

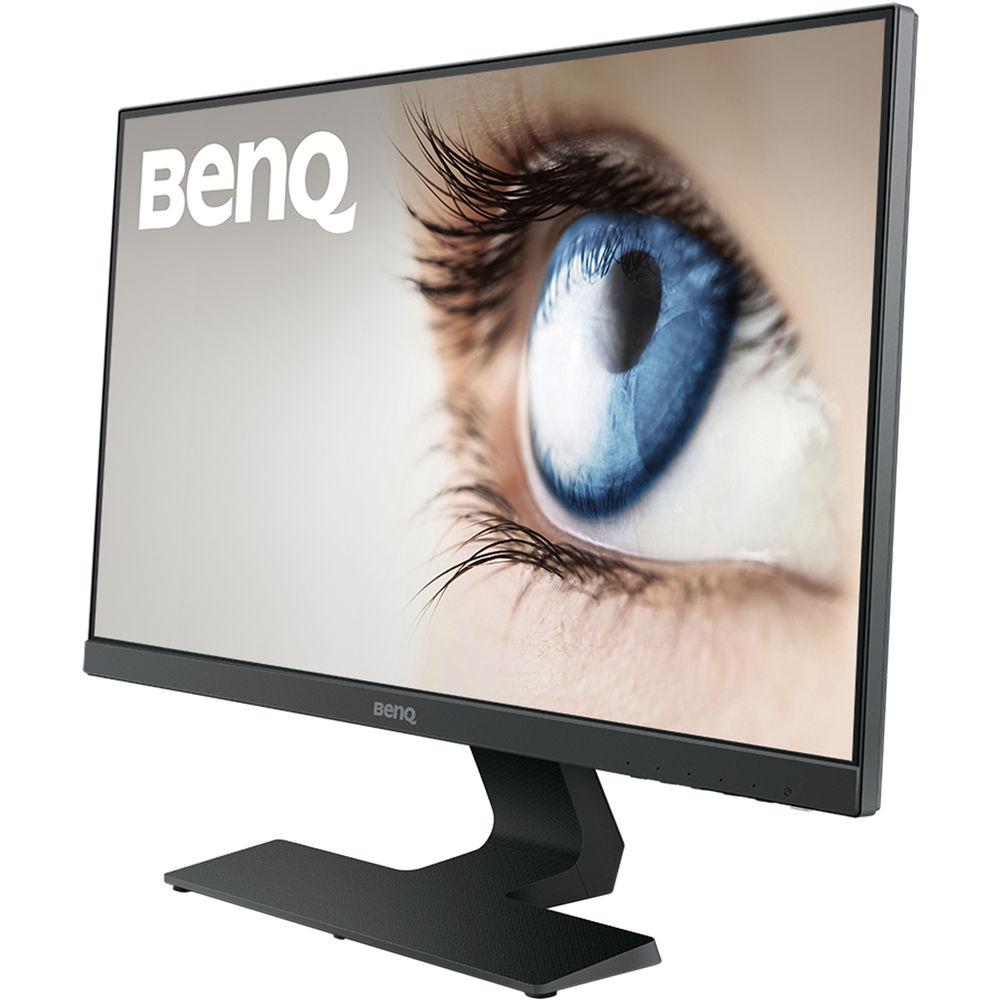

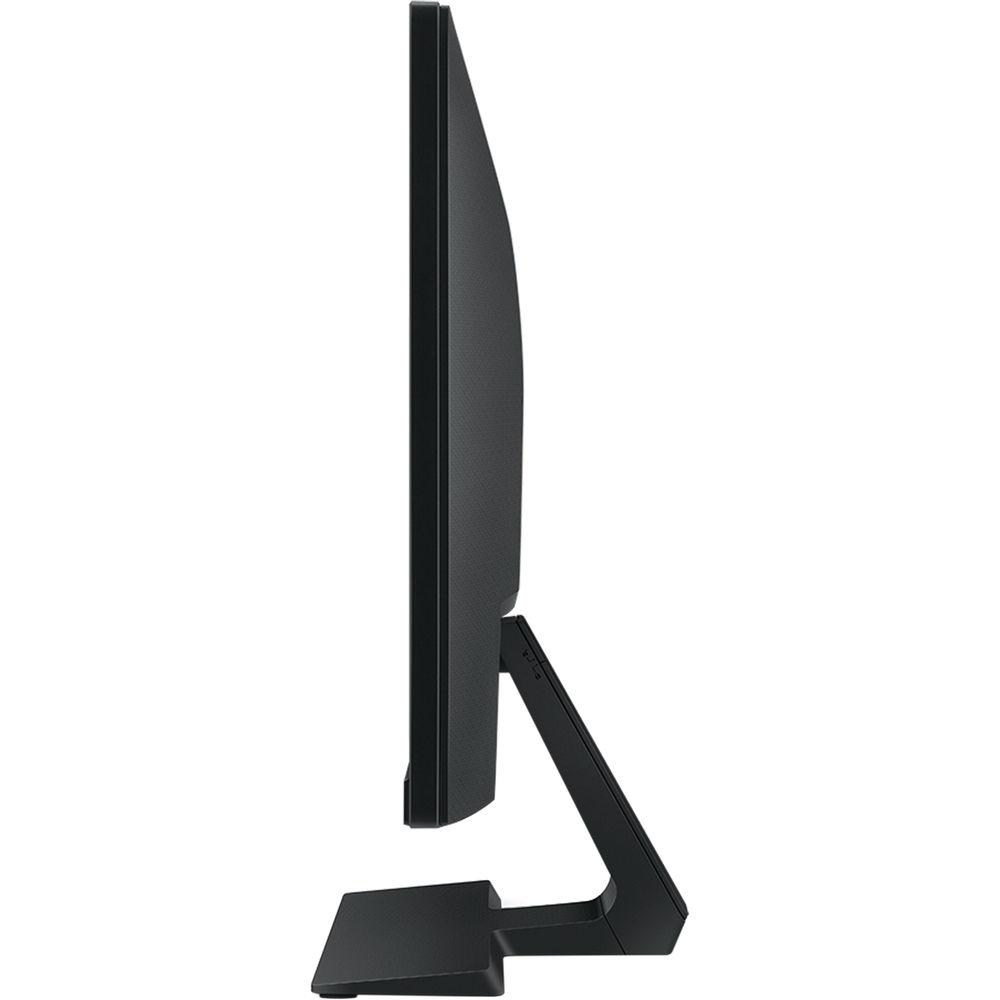

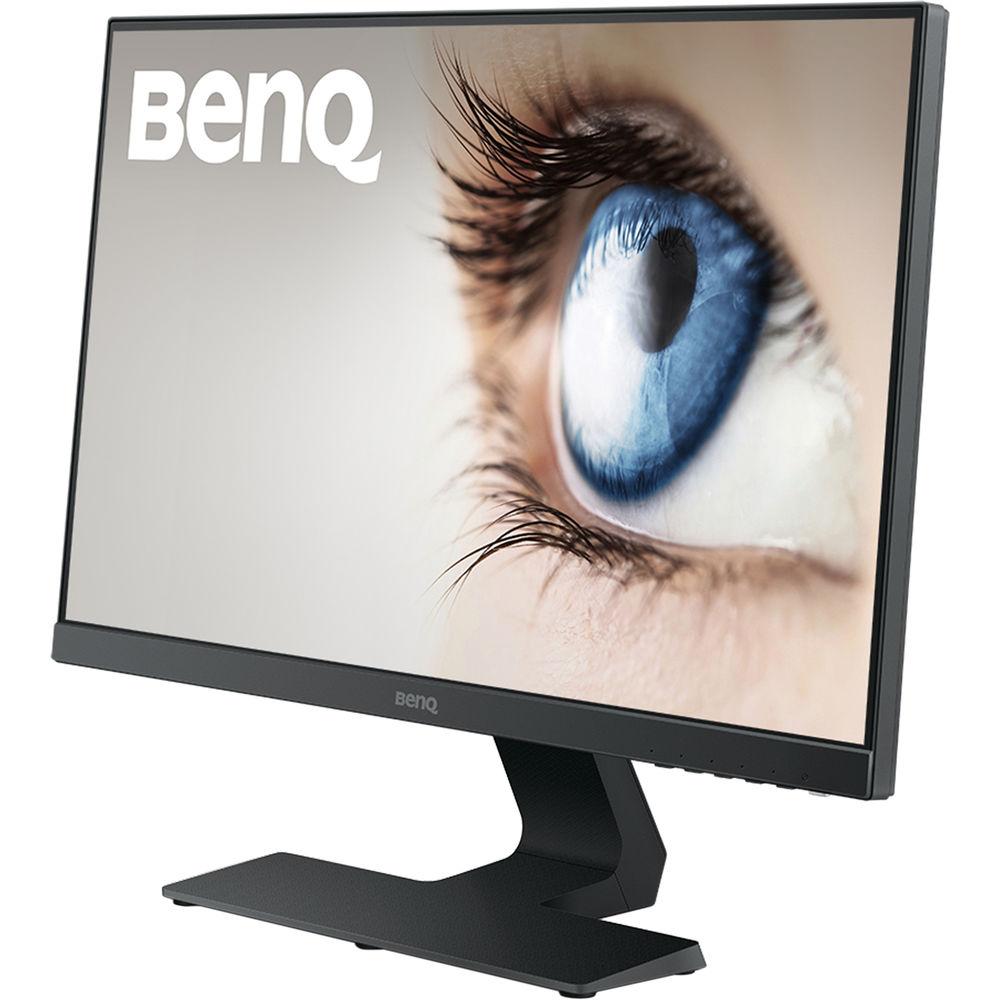

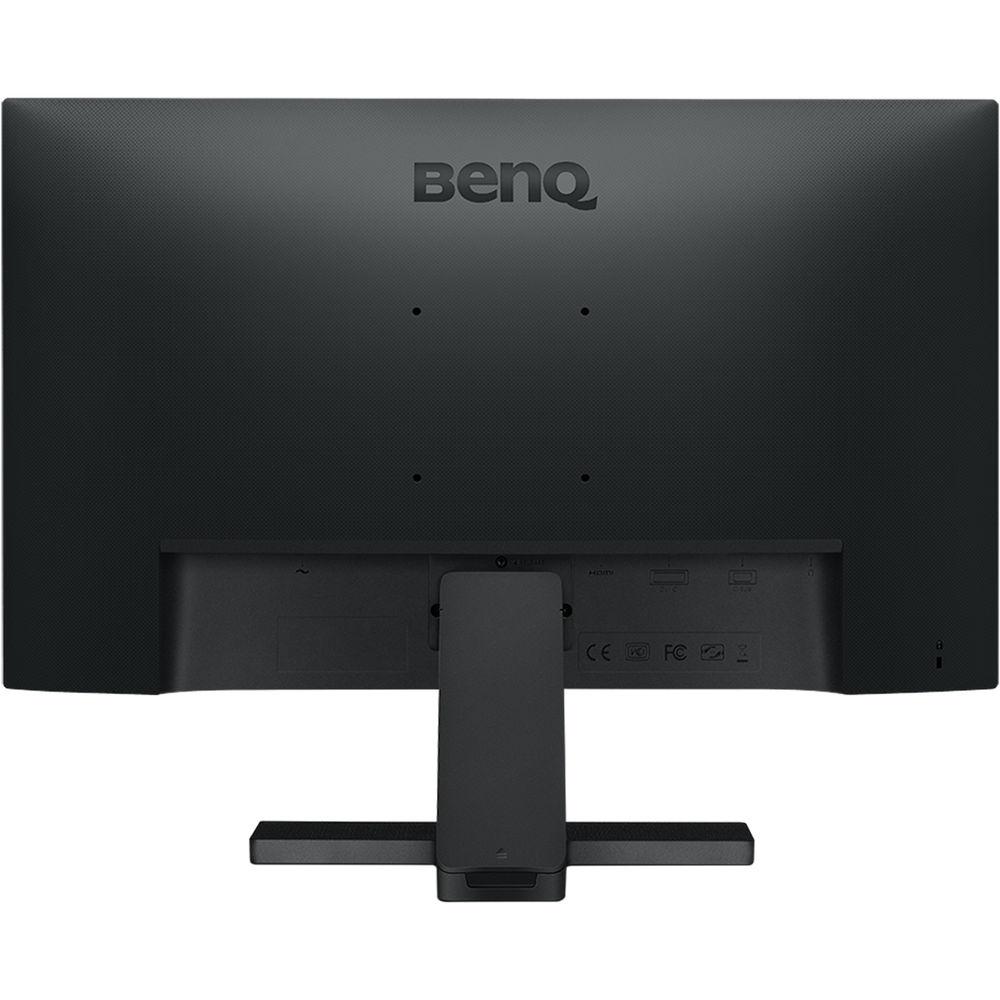

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The GL2580H 24.5" 16:9 LCD Monitor from BenQ features an ultra-slim bezel design to provide you with an immersive experience and a built-in cable management system to help minimize clutter. Specs-wise, it has a 1920 x 1080 resolution, a 250 cd/m² brightness rating, a 1000:1 static contrast ratio, a fast 2 ms response time, and support for 16.7 million colors. With these combined, you'll be able to enjoy crisp and clear Full HD content with deeper blacks and brighter bright colors. Connect this display to your system via DVI, HDMI, or VGA, and then tilt it to your preferred viewing position. Otherwise, you can install an optional mount, stand, or arm using the VESA mounting holes on the back. - Ultra-Slim Bezel Design
- With ultra-slim bezels, this display provides you with an immersive viewing experience.
- Built-In Cable Management System
- The built-in cable management system lets you hide all your cables for a cleaner setup.
- Fast 2 ms Response Time
- A fast response time reduces motion blur, lag, and ghosting for a smoother viewing experience.
- Low Blue Light
- Low Blue Light mode filter out blue light to reduce eye fatigue and irritation.
- Flicker-Free Technology
- Flicker-Free technology eliminates flicking on traditional LCDs to prevent eyestrain and vision damage after prolonged use.
- Special Features
- AMA, HDCP, Dynamic Power Saving (DPS), Display Mode, K Locker
UPC: 840046037222 In the Box BenQ GL2580H 24.5" 16:9 LCD Monitor HDMI Cable Power Cable Limited 3-Year Warranty More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GL2580H 24.5" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GL2580H Specs | Display Size | 24.5" (62.2 cm) | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Display Area (H × V) | 21.41 x 11.91" (54.37 x 30.26 cm) | | Pixel Pitch (H x V) | 0.283 x 0.283 mm | | Brightness | 250 cd/m² | | Static Contrast Ratio | 1000:1 | | Panel Type | TN (Twisted Nematic) | | Viewing Angles (H/V) | 170°/160° | | Response Time (GtG) | 2 ms | | Display Colors | 16.7 Million | | Color Gamut | 72% NTSC
8-bit color | | Backlight | LED | | Horizontal Frequency | 30-83 kHz | | Vertical Frequency | 50-76 Hz | | Video Bandwidth | VGA: 210 MHz
HDMI/DP: 170 MHz | | Connectivity | 1 x DVI
1 x HDMI
1 x VGA
1 x headphone jack | | | | VESA Compatibility | 100 x 100 mm | | Tilt | -5-20° | | | | Power Supply | 90-264 VAC | | Operating Power Consumption (Eco Mode) | 16.5 W | | Power Consumption (Operating) | 24 W | | Power Save Mode | 0.5 W | | Power Off Mode | 0.5 W | | Operating Power Consumption (Energy Star) | 16.5 W | | | | Regulations | EPEAT Silver, TCO 7.0, ENERGY STAR 7.0 | | Certification | Vista, Windows 7, 8, 8.1, 10 compatible | | OSD Languages | 18 Languages: English, Francais, Deutsch, Italiano, Espanol, Polish, Czech, Hungarian, Korean, Romanian, Netherlands, Russian, Swedish, Portuguese, Japanese, Chinese, S-Chinese, and Arabic | | MTBF (Approx.) | Excluding Lamp: 60,000 hours
Backlight: 30,000 hours | | Dimensions (H x W x D) | With Stand: 16.78 x 21.95 x 6.89" (42.63 x 55.75 x 17.51 cm)
Without Stand: 13.07 x 21.95 x 1.96" (33.21 x 55.75 x 4.97 cm) | | Weight | With Stand: 9.7 lb (4.4 kg)
Without Stand: 7.94 lb (3.6 kg) | | | | Package Weight | 12.6 lb | | Box Dimensions (LxWxH) | 26.0 x 16.0 x 5.0" |
