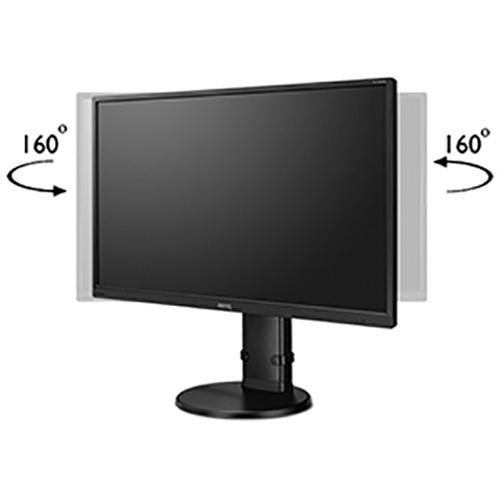

User Manual for BenQ GL2706PQ 27" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ GL2706PQ 27" 16:9 LCD Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GL2706PQ 27" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

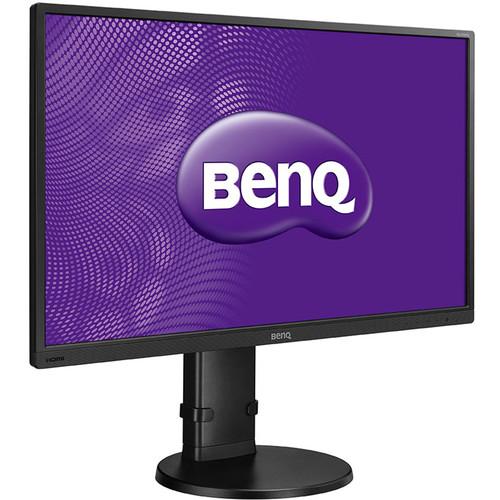

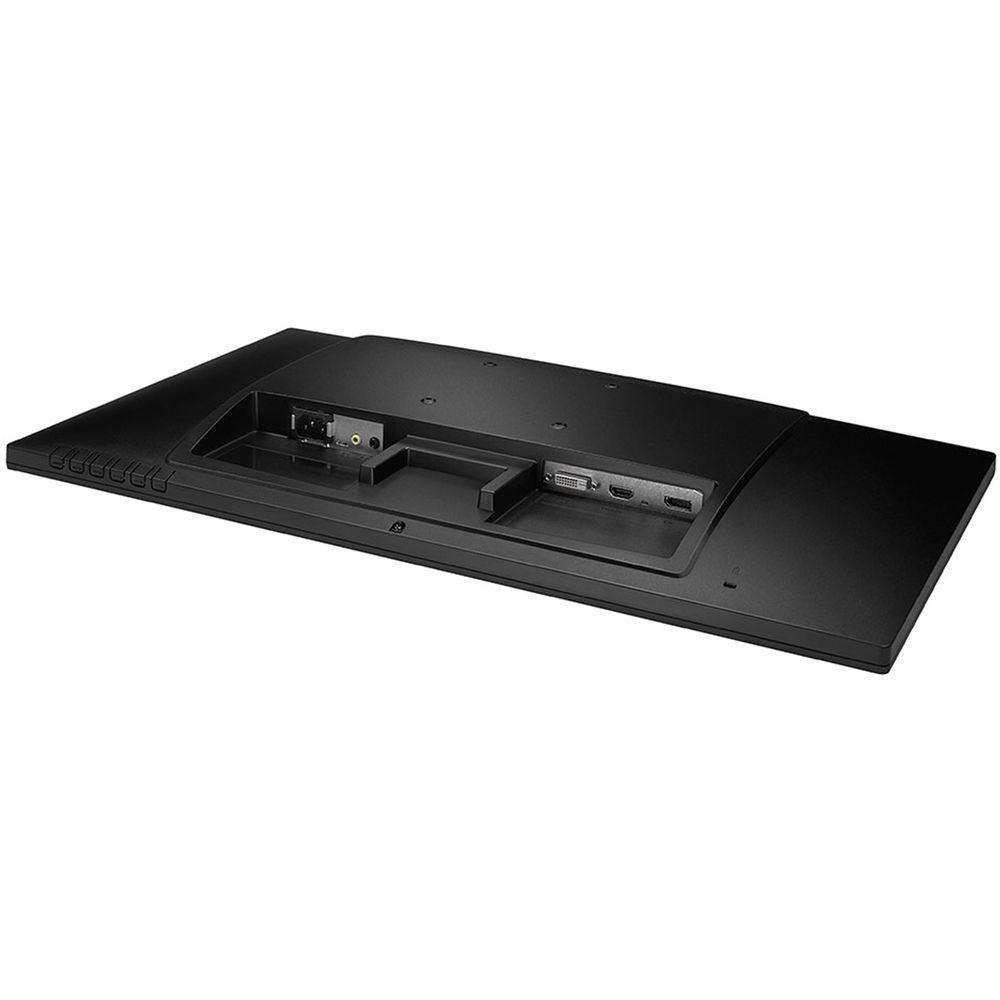

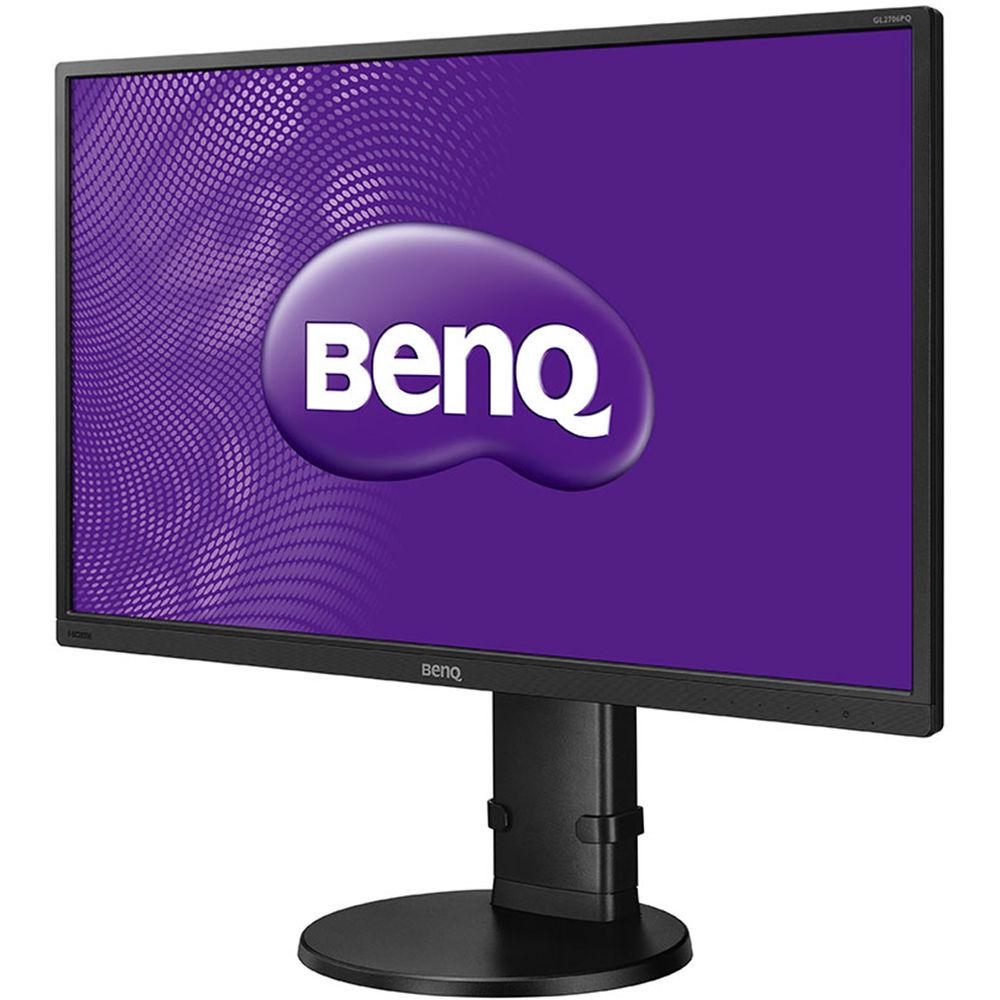

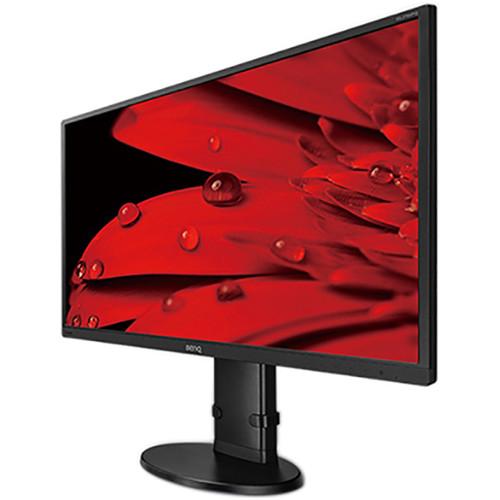

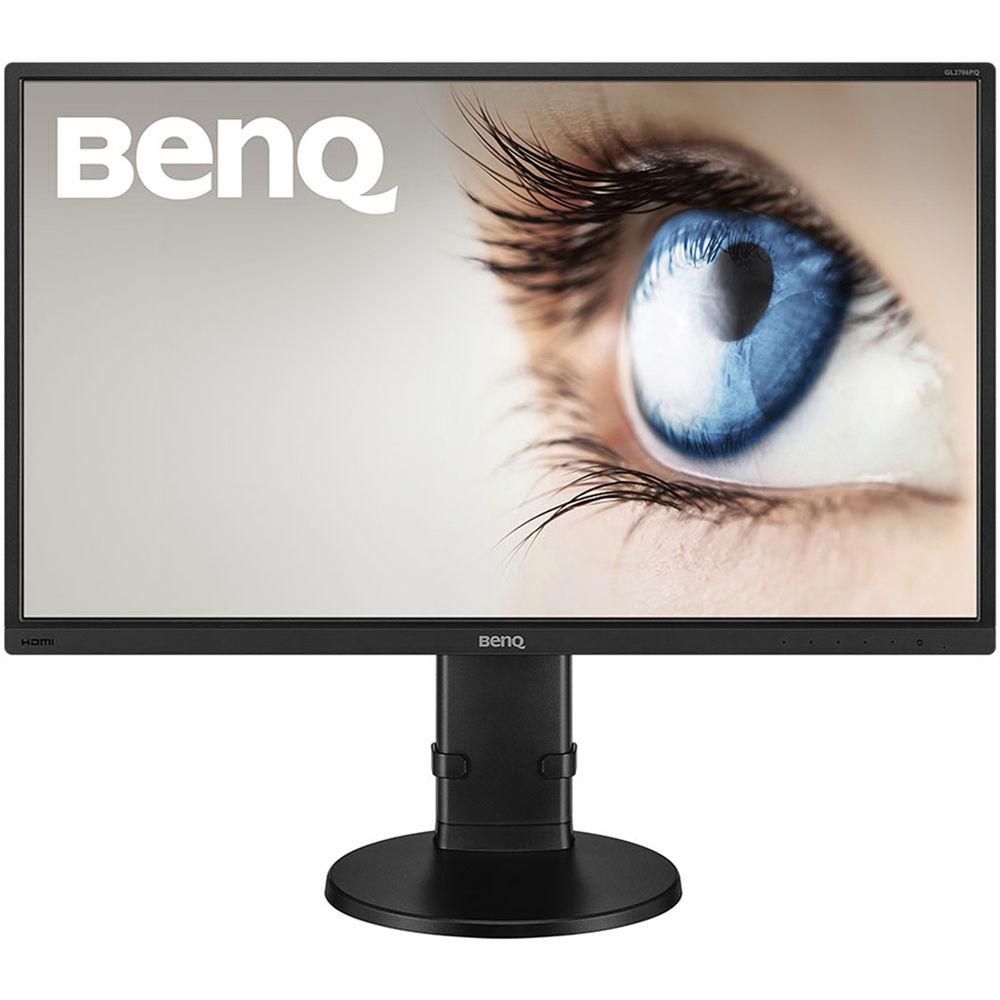

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The GL2706PQ 27" 16:9 LCD Monitor from BenQ is built with a TN (Twisted Nematic) panel, which provides you with limited 170° and 160° viewing angles, but has a fast 1 ms response time for fluid transitions. Its 2560 x 1440 resolution delivers crisp and clear pictures for your high definition content, and it supports 16.7 million colors with a 72% NTSC color gamut for vivid colors. Moreover, a 350 cd/m² brightness rating and a 1000:1 static contrast ratio ensures brighter bright colors and darker blacks for mode depth and detail. Connect it to your system via DVI, HDMI, or DisplayPort. Then tilt, pivot, swivel, and adjust its height to your viewing preference. - ZeroFlicker
- BenQ's ZeroFlicker technology reduces screen flickering to prevent your eyes from getting tired or damage over long periods of use.

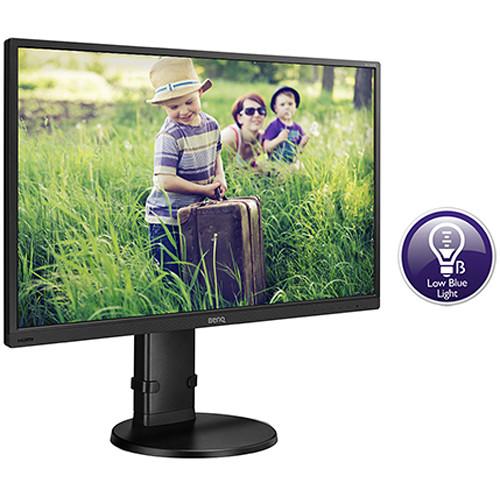

- Low Blue Light
- BenQ's Low Blue Light technology reduces blue light emissions for your viewing comfort.

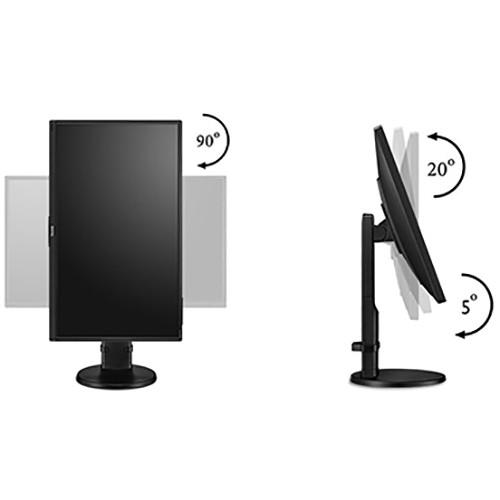

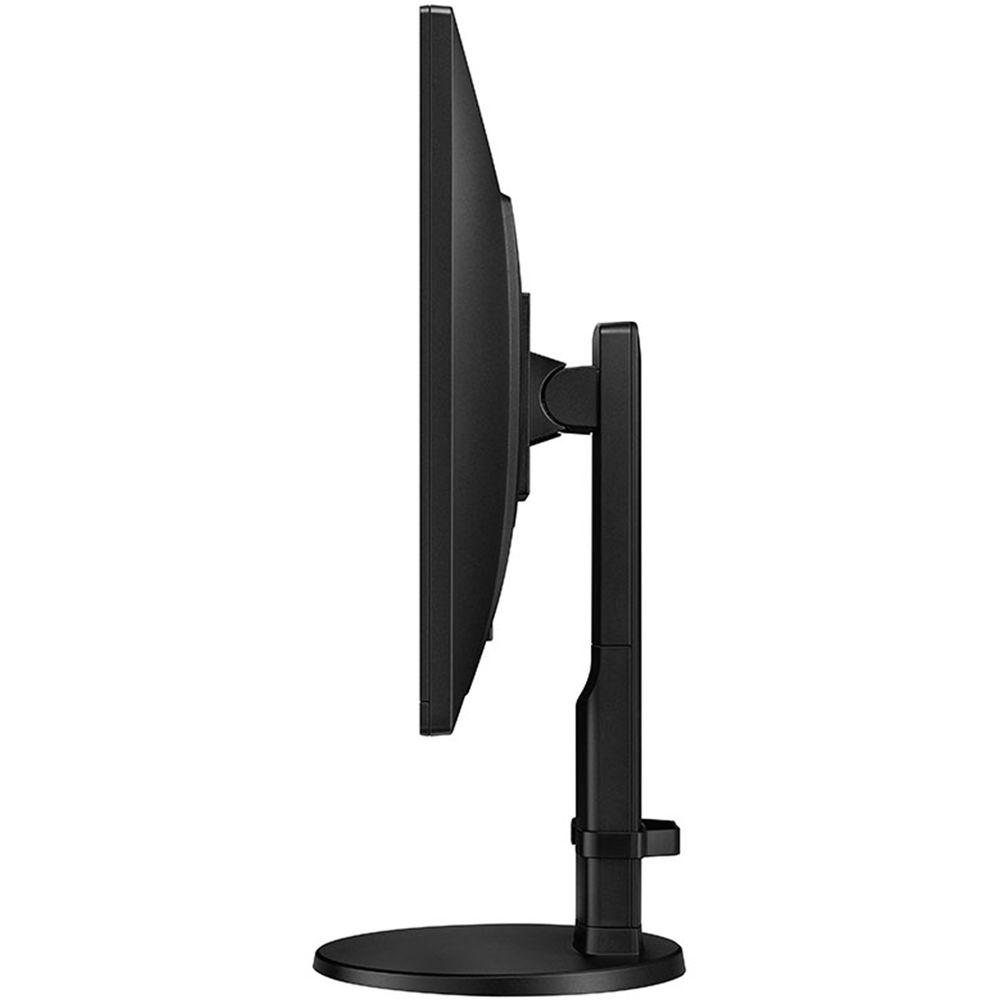

- Adjustability
- Pivot, swivel, rotate, and adjust the display's height as needed to fit your viewing preference.
UPC: 840046035532 In the Box BenQ GL2706PQ 27" 16:9 LCD Monitor HDMI Cable Power Cable Limited 3-Year Warranty More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GL2706PQ 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GL2706PQ Specs | Screen Size | 27" (685.8 mm) | | Aspect Ratio | 16:9 | | Resolution | 2560 x 1440 | | Display Area (H × V) | 23.49 x 13.21" (596.74 x 335.66 mm) | | Pixel Pitch (H x V) | 0.233 x 0.233 mm | | Brightness | 350 cd/m2 | | Static Contrast Ratio | 1000:1 | | Panel Type | TN (Twisted Nematic) | | Viewing Angles (H/V) | 170°/160° | | Response Time (Tr+Tf) | 1 ms | | Display Colors | 16.7 million | | Color Gamut | 72% NTSC | | Audio | 2 x 1 W speakers
1 x headphone jack | | I/O Ports | DVI
HDMI
DisplayPort | | | | Tilt | -5 to 20° | | Swivel | 160°/160° | | Pivot | Yes | | Height Adjustment | 4.72" (120 mm) | | | | Power Supply | 90-264 VAC | | Power Consumption (Operating) | 65.7 W | | Power Consumption (Standby/Sleep) | 0.43 W | | Operating Power Consumption | 26.9 W (ENERGY STAR) | | | | Dimensions | With Stand: 20.98 x 24.52 x 9.06" (533 x 623 x 230 mm)
Without Stand: 14.69 x 24.53 x 2.24" (373 x 623 x 57 mm) | | Weight | 13.67 lb (6.2 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 28.0 x 17.0 x 7.5" |
Rating100% users recommend this product to others. And what about you?
