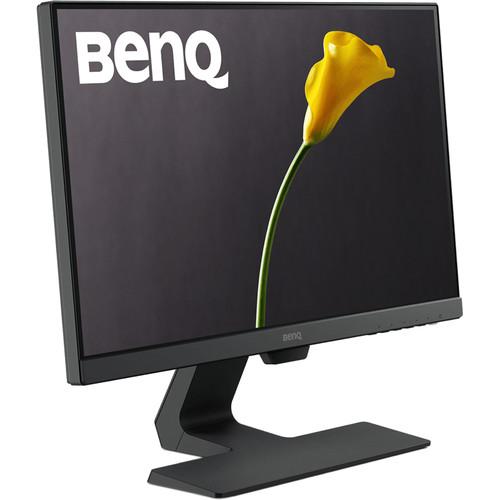

User Manual for BenQ GW2280 22" 16:9 Eye Care LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ GW2280 22" 16:9 Eye Care
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GW2280 22" 16:9 Eye Care contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

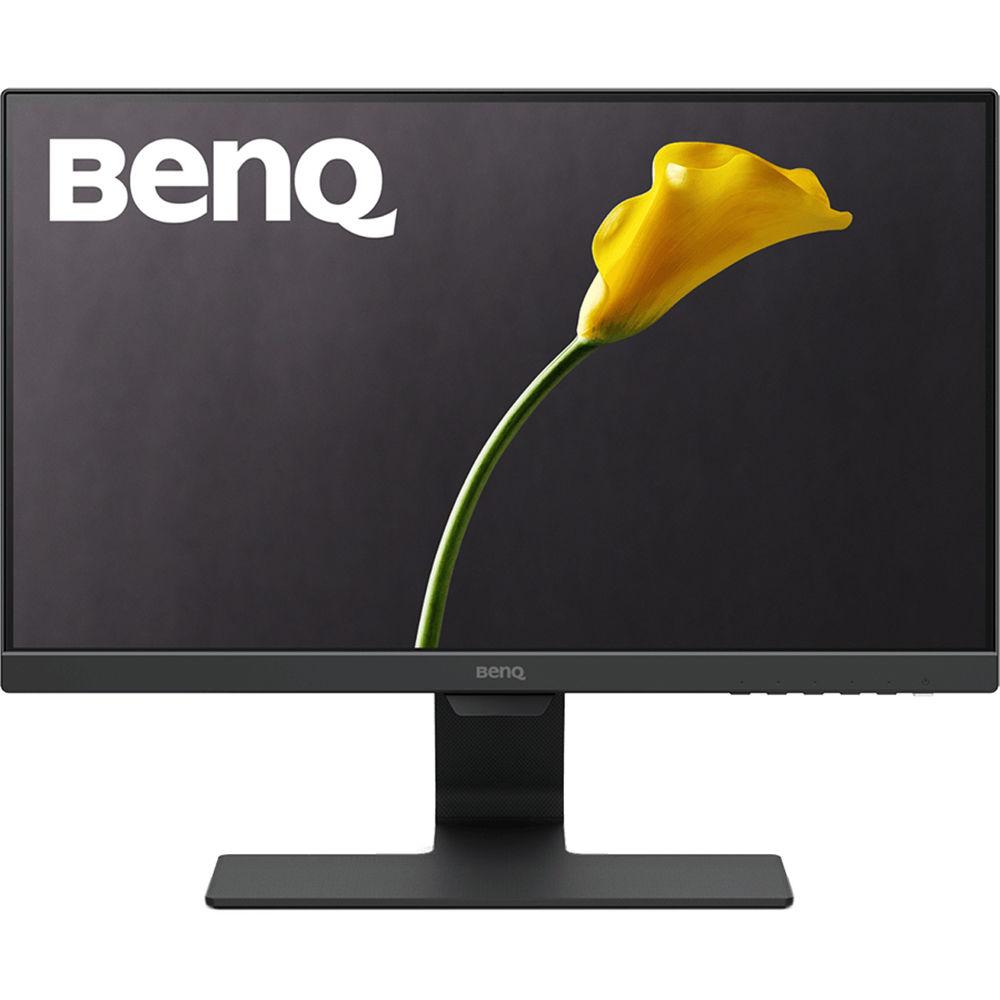

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Sporting TUV Rheinland certification, the GW2280 22" 16:9 Eye Care LCD Monitor from BenQ features both flicker-free technology and a low blue light filter to help alleviate the strain placed on your eyes during periods of extended viewing.

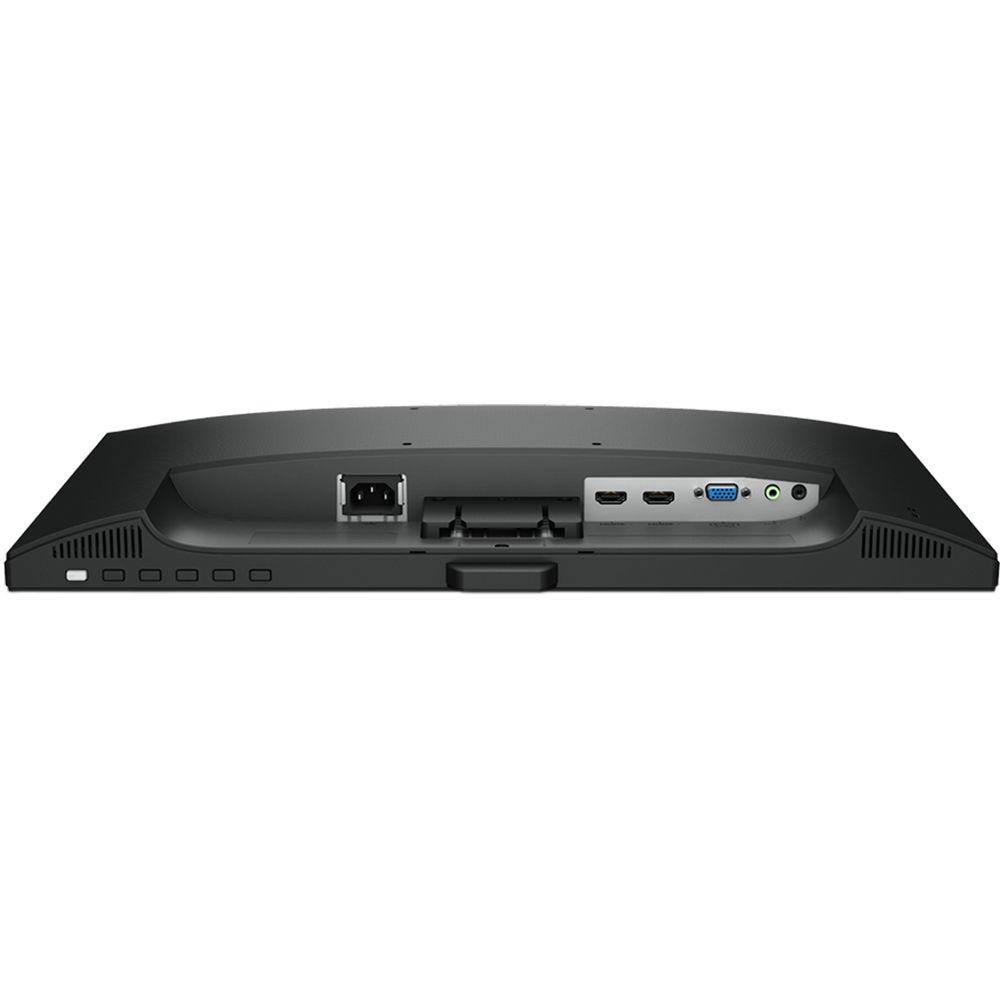

In addition to enhanced eye care technologies, this BenQ monitor features a Full HD 1920 x 1080 resolution display, a 3000:1 contrast ratio, a 5 ms response time, a 250 cd/m² brightness rating, and support for up to 16.7 million colors. Setup has also been simplified thanks to HDMI and VGA inputs while the headphone jack and audio line-in port make it easy to connect audio devices directly to the monitor. Once configured this VA panel supports 178° horizontal and vertical viewing angles to help reduce distortion when viewing the screen from different angles. Additionally, built-in 1W speakers complete your multimedia viewing experience. - Ultra-Slim Bezel Design
- The GW2280 offers an edge-to-edge panel with ultra-slim bezels and an elegant profile that beautifully complements any modern decor.

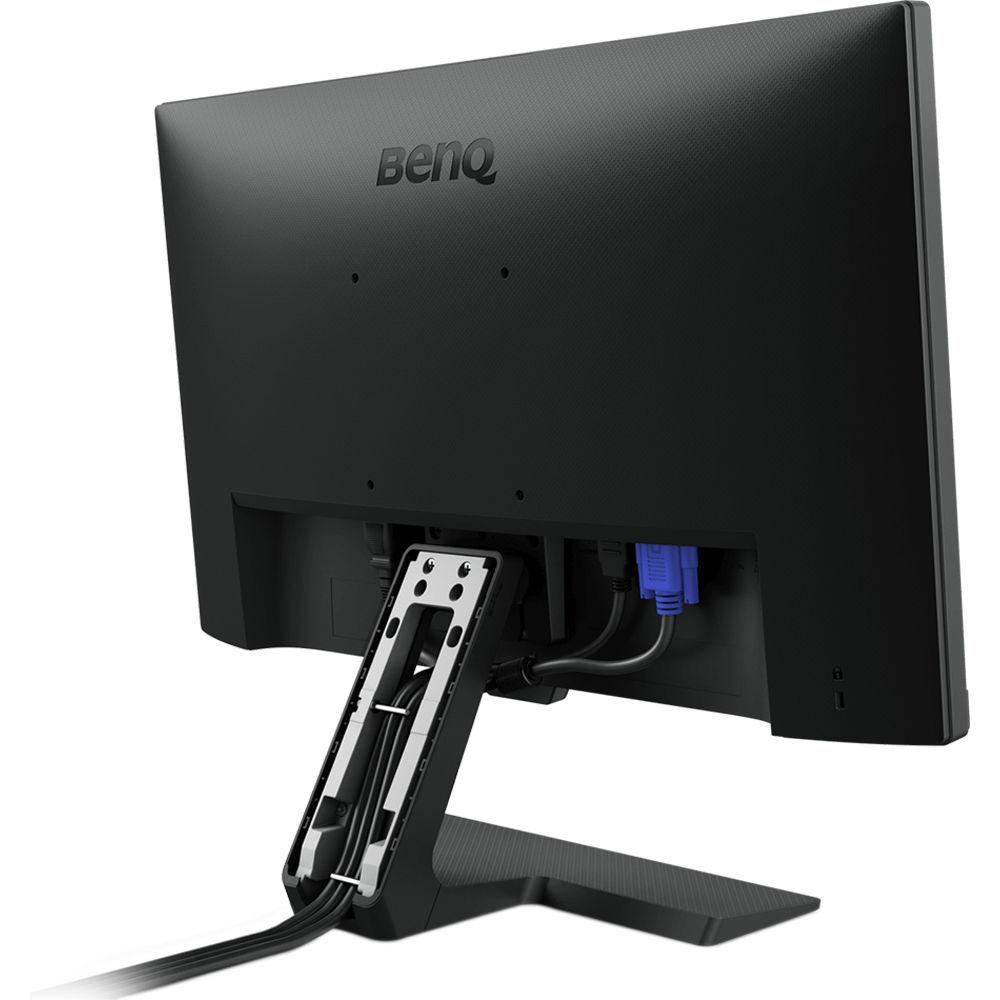

- Cable Management System
- The invisible cable management system neatly hides all wires inside the monitor stand for a clean look.
- Ultra-High Native Contrast Ratio
- The ultra-high 3000:1 native contrast ratio is 3X higher than standard panels and adds enhanced color depth and definition to complex dark images with subtlety and clarity. The high native contrast ratio also enables infinite dynamic contrast to far exceed the highest expectations.
- Wide Viewing Angles
- Advanced VA (Vertical Alignment) panel technology delivers truly authentic colors and ultra-sharp details from left, right, above and below with 178°/178° viewing angles for an improved viewing experience.
- 8-Bit Color Display
- With the ability to render 16.7 million color shades simultaneously, you can expect true colors, silky transitions, and impeccable image quality.
- Brightness Intelligence Technology
-
- Brightness Intelligence Technology (B.I.Tech.) optimizes display performance for work and play, protecting your vision with superb image quality.
- B.I.Tech. detects content intensity to avoid overexposure of bright scenes while enhancing dark areas to maintain clear visibility.
- B.I.Tech. monitors ambient light in your viewing environment and actively adjusts screen brightness for a more comfortable viewing experience possible.
- Low Blue Light Emission
- Proprietary BenQ Low Blue Light Technology filters out hazardous blue light, effectively reducing eye fatigue and irritation.
- Flicker-Free Technology
- Exclusive BenQ Flicker-Free Technology eliminates the harmful flicker of traditional LCDs to prevent fatigue and vision damage.
- Multimedia Enjoyment

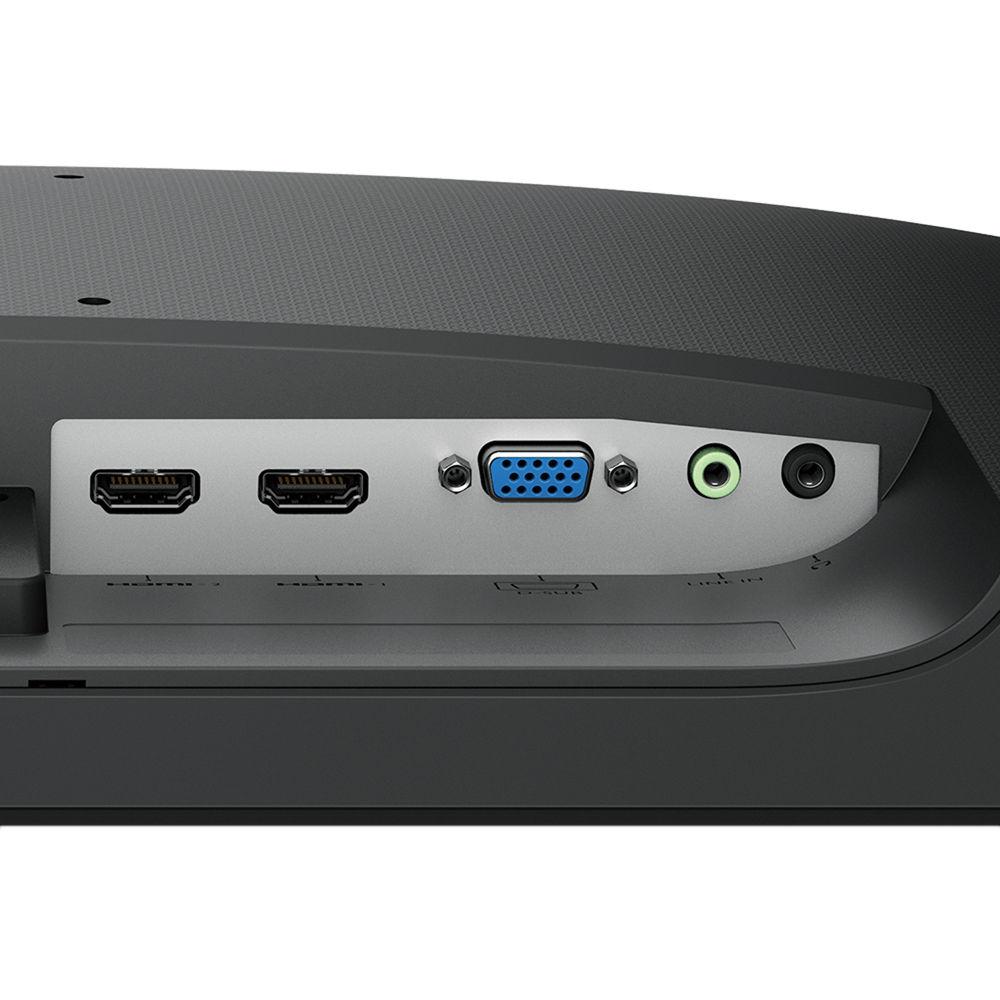

- Embedded with 2 HDMI ports, users can enjoy multimedia fun by easily switching between two media sources without unplugging and plugging in different sources.
UPC: 840046039356 In the Box BenQ GW2280 22" 16:9 Eye Care LCD Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GW2280 22" 16:9 Eye Care LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GW2280 Specs | | | Size | 21.5" | | Screen Area | 18.74 x 10.54" / 47.61 x 26.78 cm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 102 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x VGA Input
2 x HDMI 1.4 Input
1 x 3.5 mm Input
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | Yes, 2 x 1 W | | Supported Languages | Arabic
Czech
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese | | | | Power Consumption | 25 W (Typical)
14 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | ENERGY STAR, EPEAT Silver, TCO Certified, TUV, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 15.4 x 19.3 x 7.2" / 39.2 x 49.0 x 18.3 cm | | Weight | 7.72 lb / 3.5 kg | | | | Package Weight | 10.1 lb | | Box Dimensions (LxWxH) | 23.5 x 14.5 x 5.0" |
