User Manual for BenQ GW2283 21.5" 16:9 Eye-Care Stylish IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ GW2283 21.5" 16:9 Eye-Care Stylish
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GW2283 21.5" 16:9 Eye-Care Stylish contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More xcytvzfytzrsbcz Designed for simplicity, while also delivering authentic colors, deeper blacks, higher contrast, and sharper details, the GW2283 21.5" 16:9 Eye-Care Stylish IPS Monitor from BenQ combines slim bezels with hidden cable management. It features a native resolution of 1920 x 1080 with a 60 Hz refresh rate, as well as coverage for 72% of the NTSC color gamut. It also features In-Plane Switching (IPS) technology, 8-bit support for 16.7 million colors, a 16:9 aspect ratio, a static contrast ratio of 1000:1, a dynamic contrast ratio of 20,000,000:1, a typical brightness level of 250 cd/m2, and a 5 ms (GtG) response time in. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position.

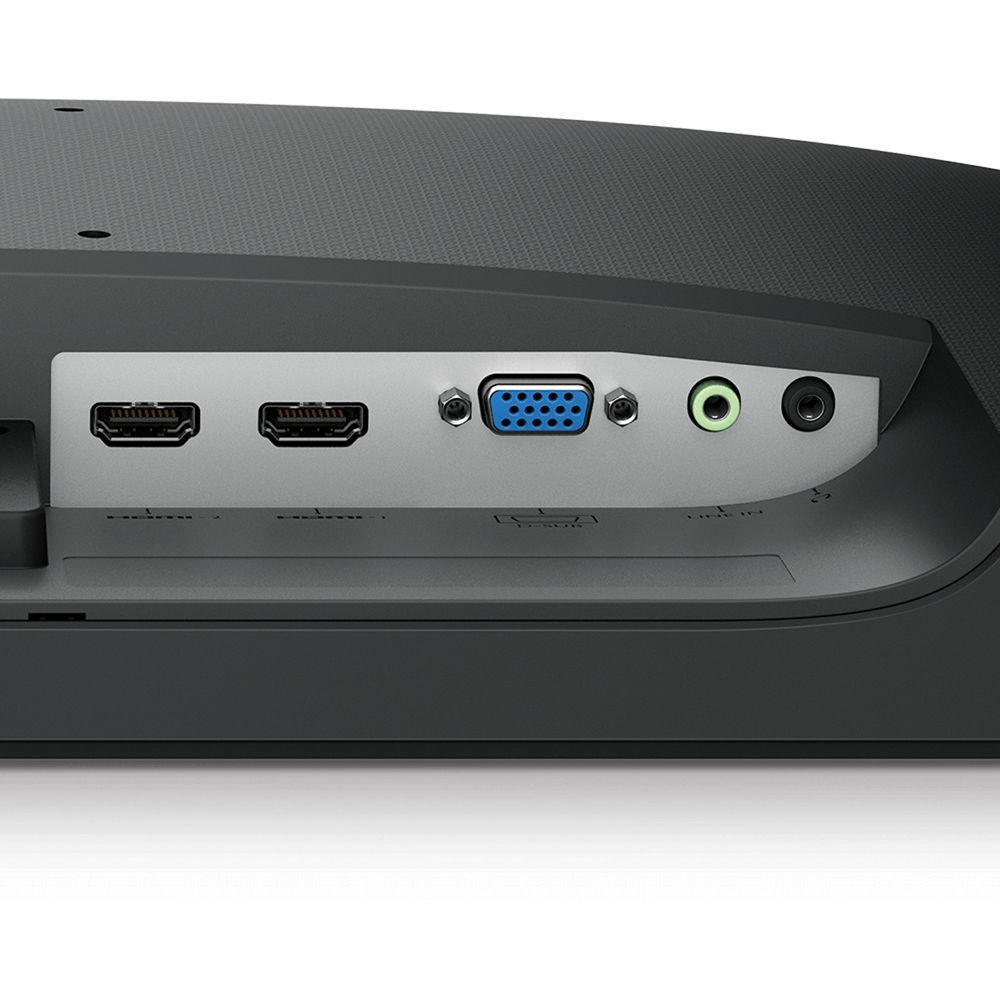

BenQ's GW2283 has one VGA and two HDMI 1.4 inputs, 3.5mm headphone and line in jacks, and dual 1W speakers. To further help improve viewing and accessibility, this display features a tilt of -5 to 20° and is compatible with 100mm VESA mounts. It employs BenQ's Eye-Care, Brightness Intelligence, Picture Perfect Content Optimization, Low Blue Light, and Flicker Free technologies. General Features - Understated, Stylish, and Sophisticated Design
- The GW2283 comes with a stylish and sophisticated design that helps to enhance overall productivity. Empowered by the etching texture and sculpted base, the GW2283 resists fine scratch whirls and eliminates extraneous edges for a clean, functional appeal. Additionally, the edge-to-edge panel with slim bezels complements modern decor. To ensure a clean look, the GW2283 offers an invisible cable management system to neatly hide all wires inside the monitor's stand.
- IPS Wide-Viewing Angle Technology
- IPS (In-Plane Switching) Technology provides accurate color and image reproduction from almost any angle. An expansive 178° viewing angle is good for work and for on-screen reviews with multiple people in the room.
- 8-Bit Color Display
- With the ability to render 16.7 million color shades simultaneously, you can expect true colors, silky transitions, and accurate image quality.
- Multimedia Enjoyment
- Embedded with two HDMI ports, users can enjoy multimedia fun by easily switching between two media sources without needing to remove and insert cables for different devices.
- BenQ's Eye-Care Technology
- BenQ's eye-care technologies reduce eye fatigue for user comfort, enhanced productivity, and workplace safety during extended use.
- TUV Rheinland Certification
- BenQ's eye-care monitors are certified by TUV Rheinland for technical and safety certifications for Flicker-Free, Low Blue Light, and Brightness Intelligence performance that truly benefit human vision. BenQ is committed to safeguard vision health at the forefront of viewing comfort and enjoyment with this permanent addition to its monitor product line.
- Brightness Intelligence Technology
- Brightness Intelligence Technology (B.I.Tech.) optimizes display performance for work and play, protecting your vision with strong image quality.
- Picture Perfect Content Optimization
- BB.I.Tech. detects content intensity to avoid overexposure of bright scenes while enhancing dark areas to maintain a clear visibility.
- Eliminate Eye Strain in Ambient Light
- B.I.Tech. monitors ambient light in your viewing environment and actively adjusts screen brightness for the most comfortable viewing experience possible.
- Low Blue Light
- BenQ Low Blue Light Technology filters out hazardous blue light, effectively reducing eye fatigue and irritation.
- Flicker-Free Technology
- BenQ Flicker-Free Technology helps eliminate the harmful flicker of traditional LCDs to prevent fatigue and vision damage.
- Green Certification Assurance
- BenQ's GW2283 is certified TCO 7.0, Energy Star 7.0, and EPEAT Silver to facilitate environment-friendly purchasing decisions for businesses, institutions, and government.
UPC: 840046034603 In the Box BenQ GW2283 21.5" 16:9 Eye-Care Stylish IPS Monitor Monitor Stand Monitor Base VGA Cable Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GW2283 21.5" 16:9 Eye-Care Stylish IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GW2283 Specs | | | Size | 21.5" | | Screen Area | 18.74 x 10.54" / 476.06 x 267.79 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 102 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI 1.4 Input
1 x VGA Input
1 x 3.5 mm Output
1 x 3.5 mm Input | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | Yes, 2 x 1 W | | Supported Languages | Arabic
Czech
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese | | | | Power Consumption | 25 W (Typical)
16 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | ENERGY STAR, EPEAT Silver, TCO Certified, TUV, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 15.4 x 19.3 x 7.2" / 391.6 x 489.5 x 183.0 mm | | Weight | 6.39 lb / 2.9 kg | | | | Package Weight | 10.175 lb | | Box Dimensions (LxWxH) | 23.2 x 14.9 x 5.0" |
