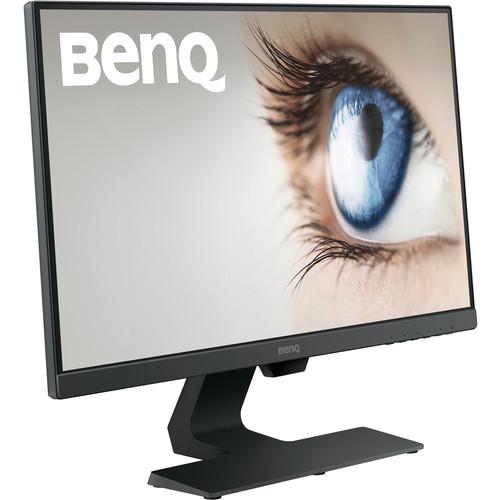

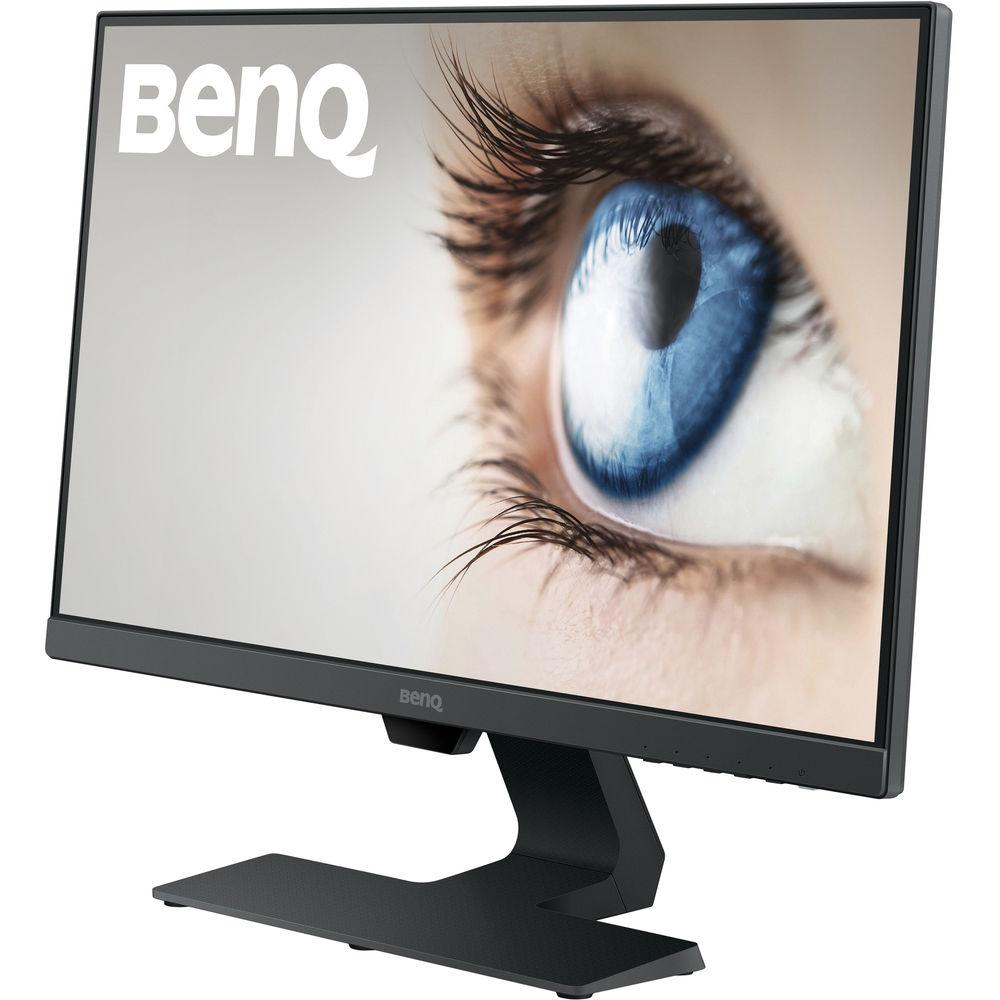

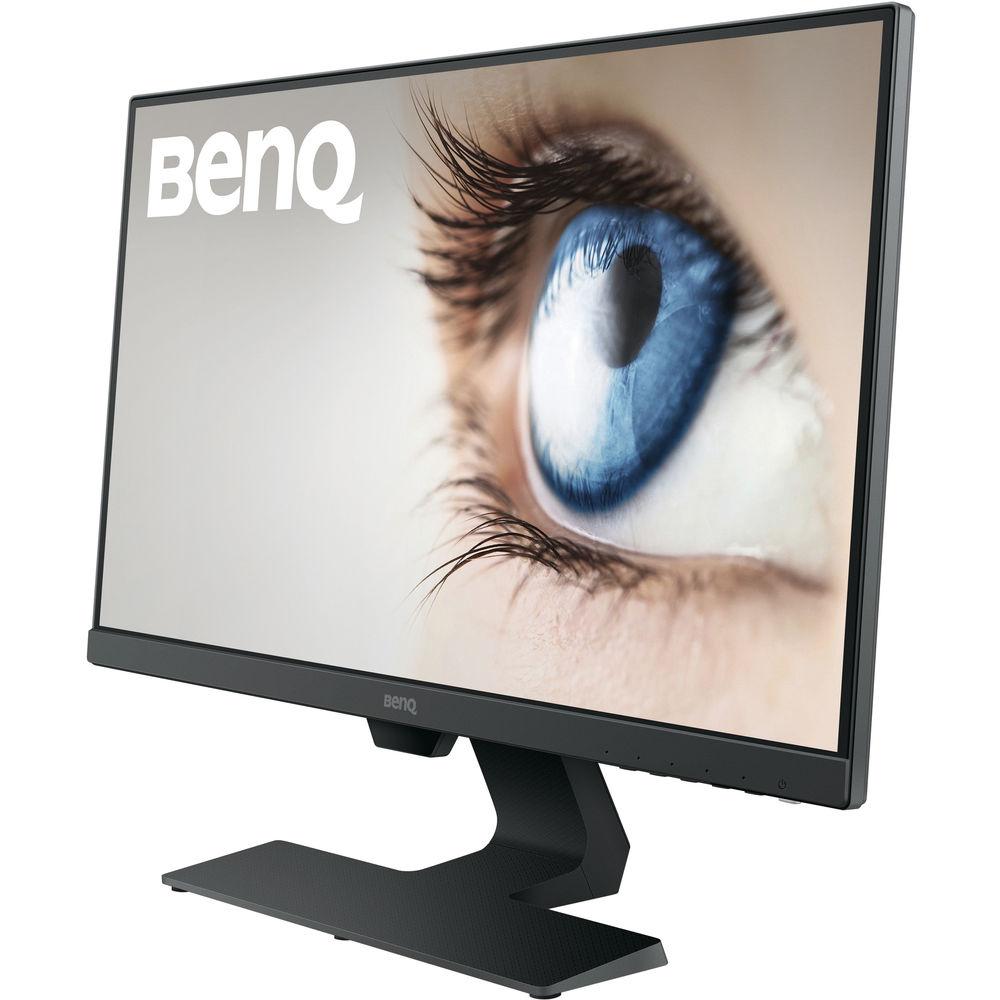

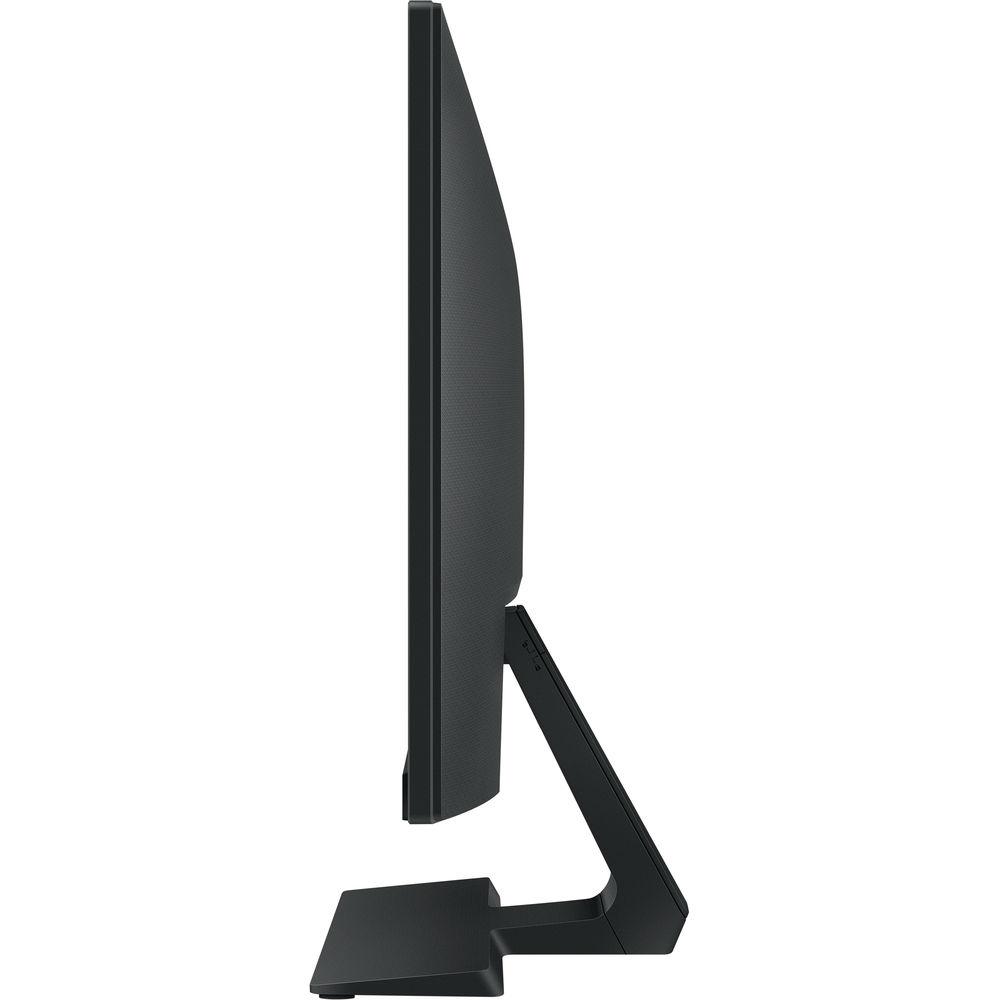

BenQ GW2480 23.8" 16:9 IPS Monitor

Search your instruction manual in PDF to download

User Manual for BenQ GW2480 23.8" 16:9 IPS Monitor

Click to enlarge the picture
BenQ GW2480 23.8" 16:9 IPS Monitor Contents of the user manual for the BenQ GW2480 23.8" 16:9 IPS Monitor
  • Product category: Computer Monitors BenQ
  • Brand: BenQ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for BenQ Computer Monitors

BenQ GW2480 23.8" 16:9 IPS Monitor BenQ GW2480 23.8" 16:9 IPS Monitor BenQ GW2480 23.8" 16:9 IPS Monitor BenQ GW2480 23.8" 16:9 IPS Monitor BenQ GW2480 23.8" 16:9 IPS Monitor BenQ GW2480 23.8" 16:9 IPS Monitor BenQ GW2480 23.8" 16:9 IPS Monitor BenQ GW2480 23.8" 16:9 IPS Monitor BenQ GW2480 23.8" 16:9 IPS Monitor
User manual for the BenQ GW2480 23.8" 16:9 IPS Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any BenQ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!



Product description

10 Factors to Consider When Selecting A Monitor for Video Editing Read More With reduced size bezels, the GW2480 23.8" 16:9 IPS Monitor from BenQ offers a virtually frameless viewing experience. In addition to the frameless design, the IPS (In-Plane Switching) panel offers enhanced 178° horizontal and vertical viewing angles so everyone can see the screen. If that's not enough, this BenQ monitor comes with BenQ Exclusive Eye-Care Technology, which features Brightness Intelligence Technology (B.I.Tech.), a Low Blue Light Filter, and Flicker-Free technology to create a more comfortable viewing experience.

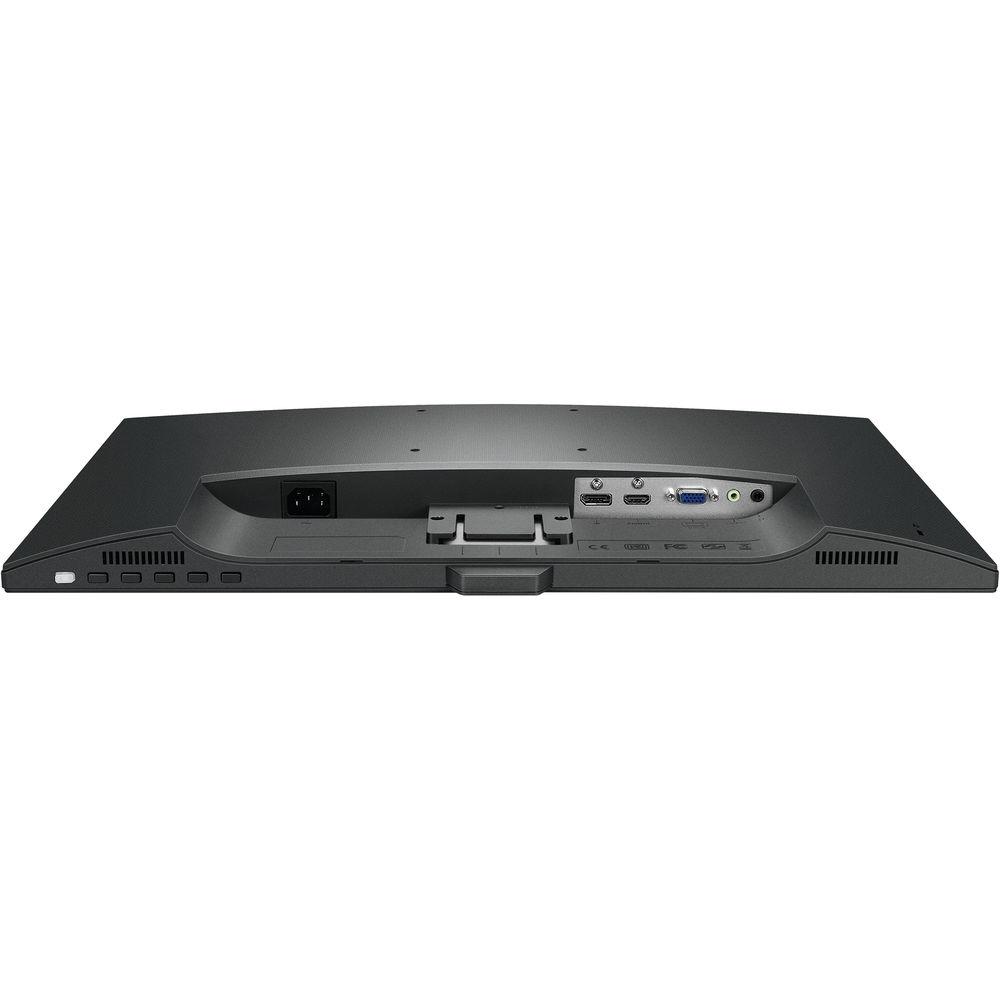

Setup and configuration is simple as the GW2480 monitor comes equipped with HDMI, DisplayPort, and VGA inputs as well as a dedicated headphone jack. Once configured, display features a Full HD 1920 x 1080 resolution along with a 1000:1 contrast ratio, a 250 cd/m² brightness ratings, and a 5 ms response time for a clear picture with reduced ghosting and blur. Additionally, this monitor comes equipped with dual 1W speakers for a complete multimedia viewing experience.

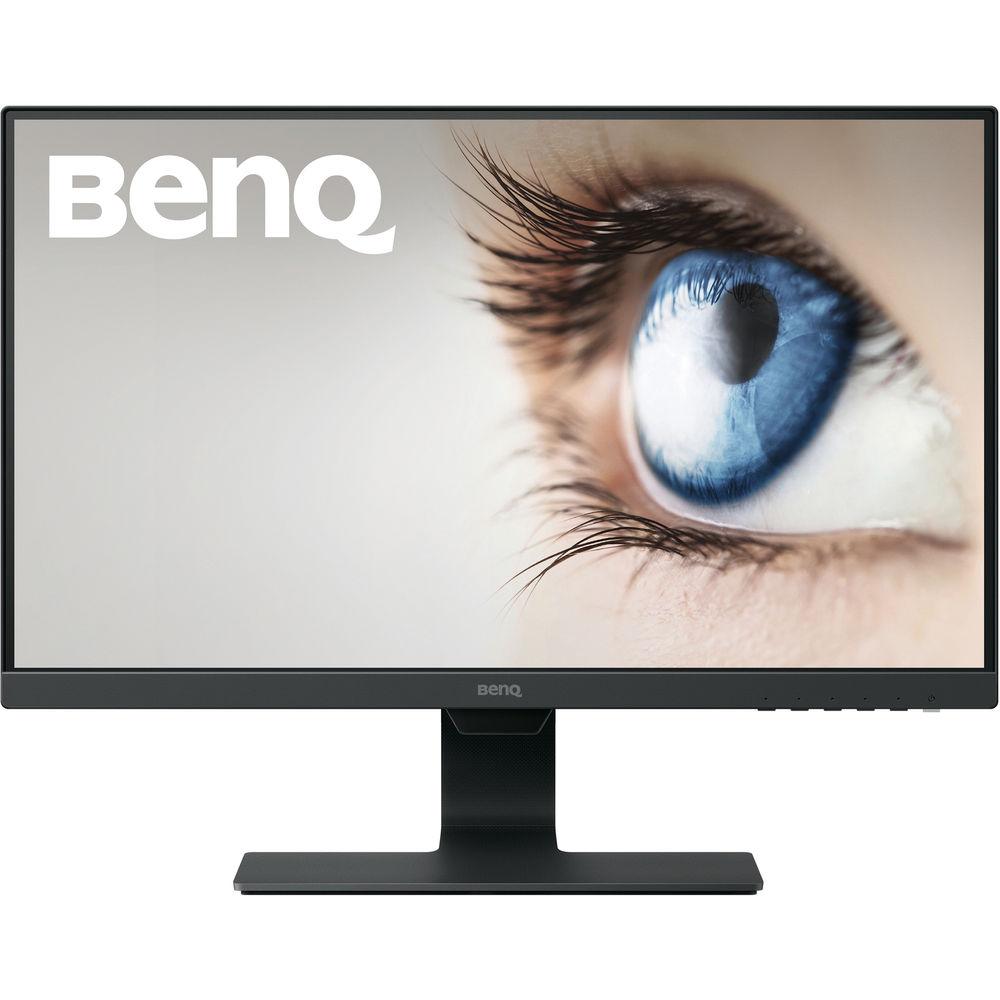

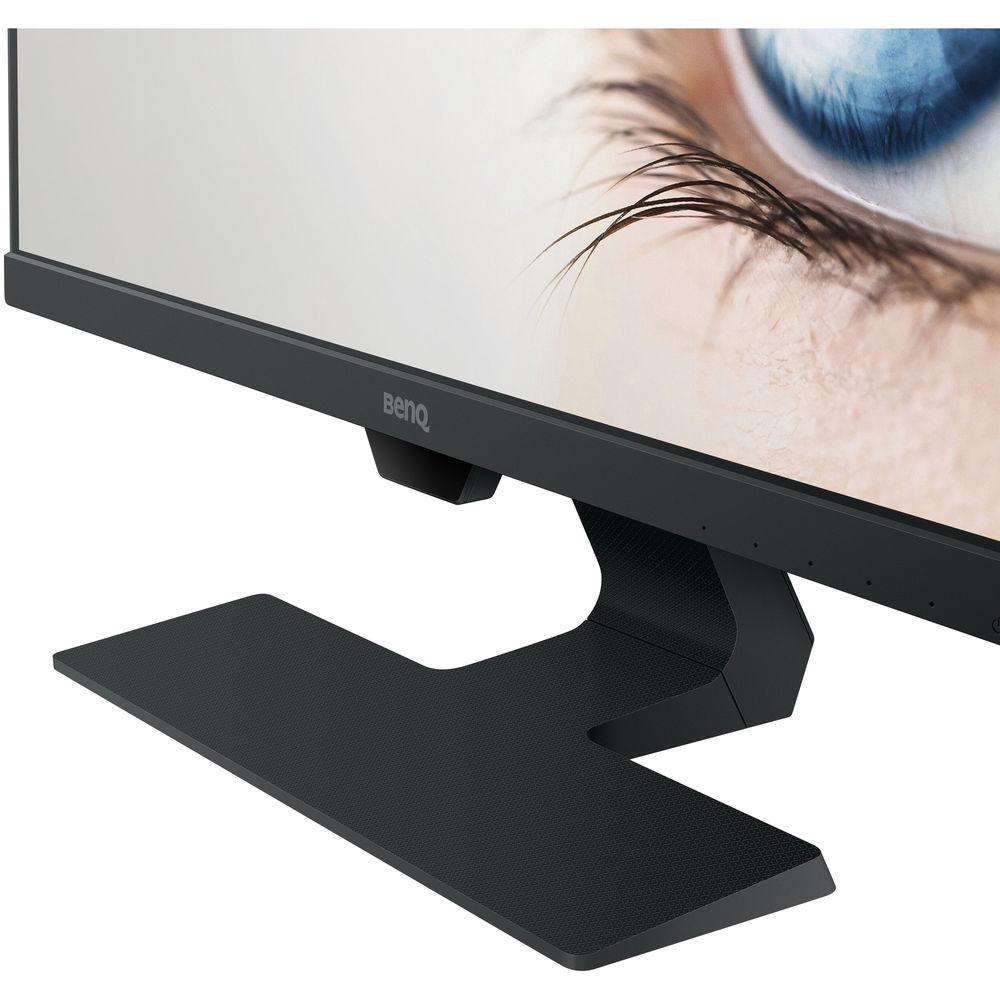

    Ultra Slim Bezel Design
  • The GW2480 offers an edge-to-edge panel with slim bezels.

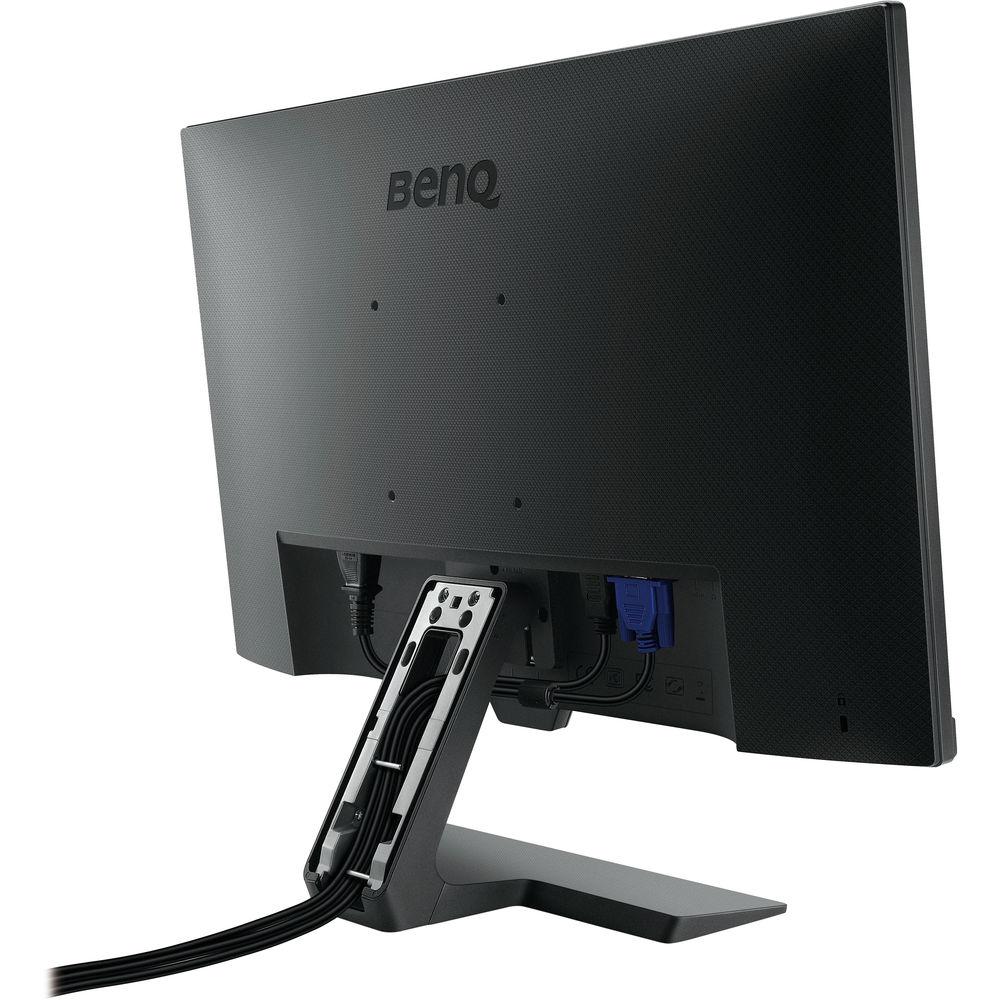

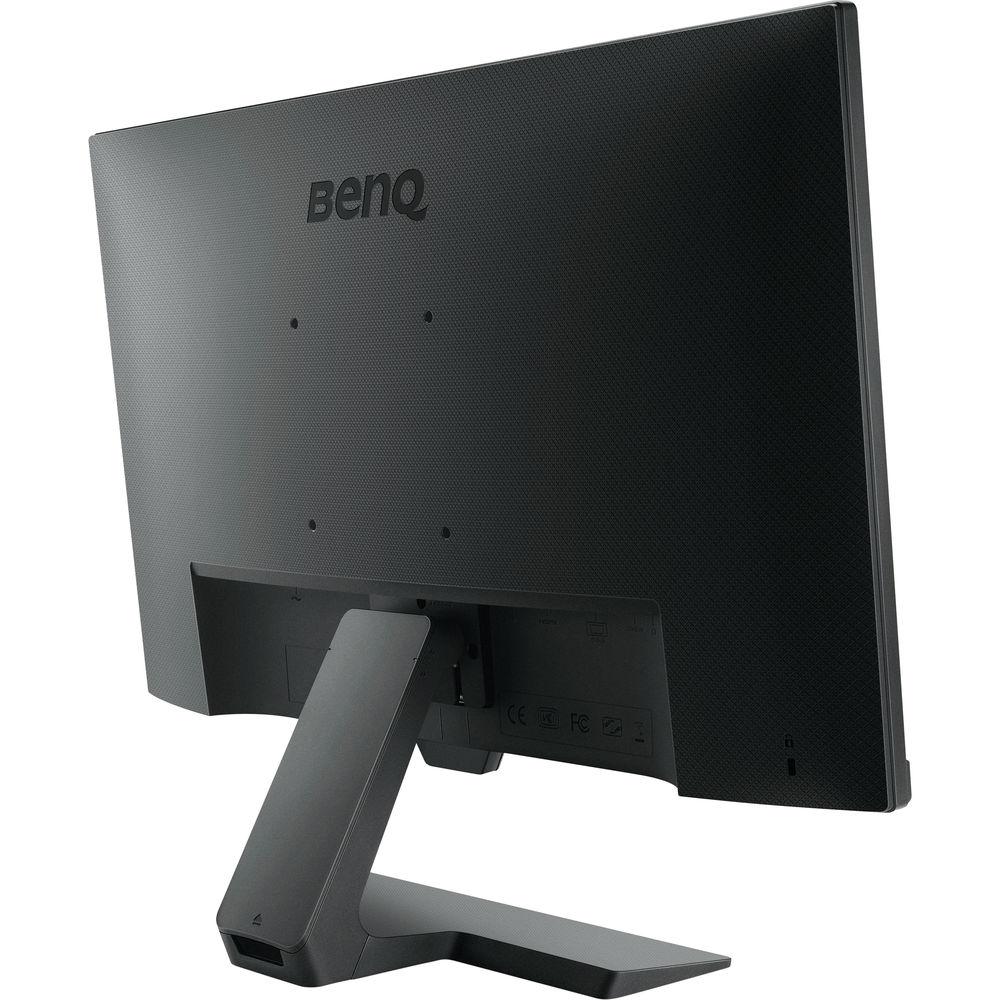

    Cable Management System
  • Invisible cable management system neatly hides all wires inside the monitor stand for the cleanest look.
    IPS Wide Viewing Angle Technology
  • IPS (In-Plane Switching) Technology ensures accurate color and image reproduction from any angle. 178° horizontal and vertical viewing angles ensure uniform viewing for multiple people in the room.
    BenQ Exclusive Eye-Care Technology
    • Brightness Intelligence Technology
      Brightness Intelligence Technology (B.I.Tech.) optimizes display performance for work and play, protecting your vision with high image quality.

    • Picture Perfect Content Optimization
      B.I.Tech. detects content intensity to avoid overexposure of bright scenes while enhancing dark areas to maintain clear visibility.

    • Eliminate Eye Strain in Any Ambient Light
      B.I.Tech. monitors ambient light in your viewing environment and actively adjusts screen brightness for the most comfortable viewing experience possible.

    • Low Blue Light
      Proprietary BenQ Low Blue Light Technology filters out hazardous blue light, effectively reducing eye fatigue and irritation.

    • Flicker-Free Technology
      Exclusive BenQ Flicker-Free Technology eliminates the harmful flicker of traditional LCDs to prevent fatigue and vision damage.
    Additional Features
  • AMA
    HDCP 1.4
    Dynamic Power Saving (DPS)
    Display Mode
    Preset Modes
    Picture Mode
UPC: 840046037079 In the Box BenQ GW2480 23.8" 16:9 IPS Monitor
  • HDMI Cable
  • Limited 3-Year Warranty
  • More info from BenQ ddyyyacvxfdtxwfsrbadvxvw Table of Contents




    Upload User Manual

    Have you got an user manual for the BenQ GW2480 23.8" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BenQ GW2480 Specs

    LCD Size 23.8" / 60.5 cm
    Aspect Ratio 16:9
    Resolution 1920 x 1080
    Display Area 20.75 x 11.67" / 552.7 x 29.6 cm
    Pixel Pitch 0.274 mm
    Brightness 250 cd/m²
    Native Contrast Ratio 1000:1 (typical)
    Panel Type IPS (In-Plane Switching)
    Viewing Angles (H/V) 178°/178°
    Response Time 5 ms
    Display Colors 16.7 million
    Color Gamut 72% NTSC
    Color Tables 8-bit
    Backlight LED
    Regulations EPEAT Silver
    TCO 7.0
    ENERGY STAR 7.0
    Audio/Video Input/Output Horizontal Frequency (kHz):
    30~80 kHz
    Vertical Frequency (Hz):
    50~76 Hz
    Video Bandwidth (MHz):
    VGA: 210 MHz
    HDMI/DP: 170 MHz

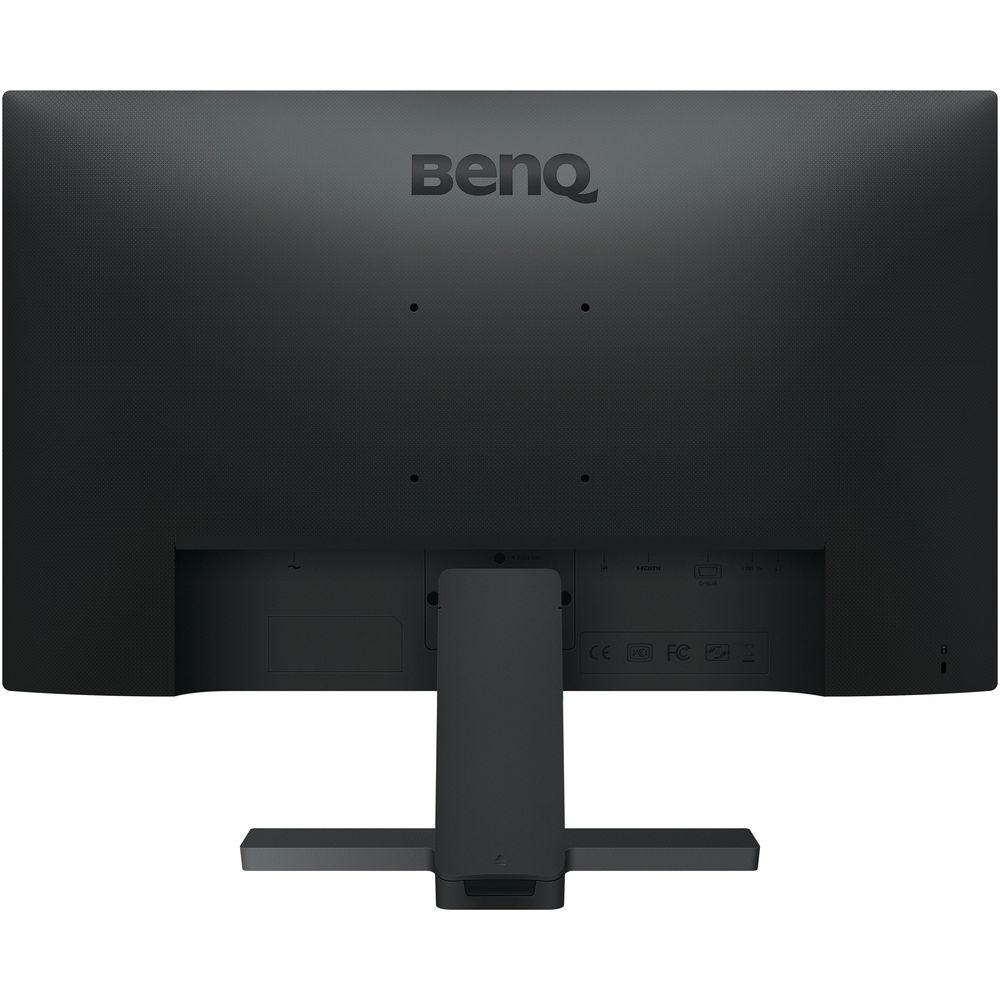

    VESA Mount Standard 100 x 100 mm
    Tilt -5 to 20°
    Kensington Lock Support Yes
    OSD Languages 18 Languages (English / French / German / Italiano / Spanish / Polish / Czech / Hungarian /Korean / Romanian / Netherlands / Russian / Swedish / Portuguese / Japanese / Chinese / S-Chinese / Arabic)‎
    I/O 1 x HDMI
    1 x DisplayPort
    1 x VGA
    Audio 2 x 1 W speakers
    1 x Headphone jack
    Power Power Consumption (Eco Mode)
    16 W
    Power Supply
    90-264 VAC built in
    Power Consumption (On Mode)
    27 W
    Power Consumption (Power saving Mode)
    0.5 W
    Power Consumption (Off Mode)
    0.5 W
    Power Consumption (Based on ENERGY STAR)
    16 W
    Reliability MTBF (h, excludes lamp): 60,000
    Backlight Life (h, min): 30,000
    Backlight Life (h, typical): 30,000
    Certifications Windows Vista, 7, 8, 8.1, 10
    Dimensions With Stand
    16.54 x 21.26 x 6.89" / 42 x 54 x 17.5 cm
    Without Stand
    13.39 x 21.26 x 1.97" / 34 x 54 x 5 cm
    Weight With Stand
    8.47 lb / 3.84 kg
    Without Stand
    6.7 lb / 3.04 kg
    Package Weight 11.5 lb
    Box Dimensions (LxWxH) 25.0 x 16.0 x 5.0"
