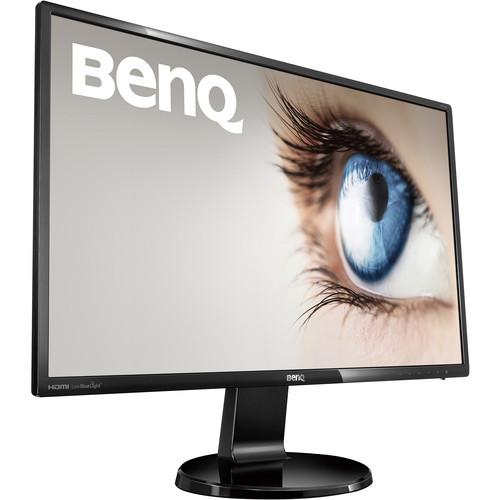

User Manual for BenQ GW2760HL 27" 16:9 LCD Display Click to enlarge the picture
Contents of the user manual for the BenQ GW2760HL 27" 16:9 LCD Display
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GW2760HL 27" 16:9 LCD Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

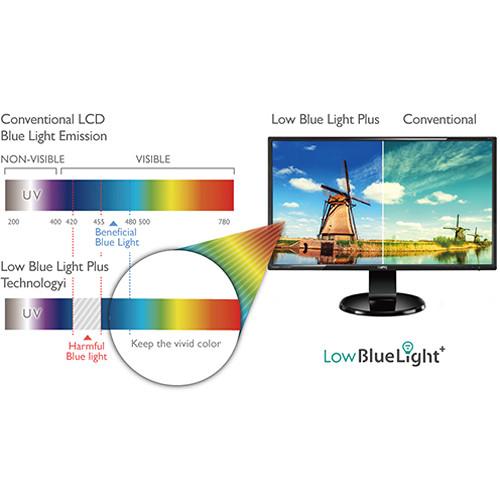

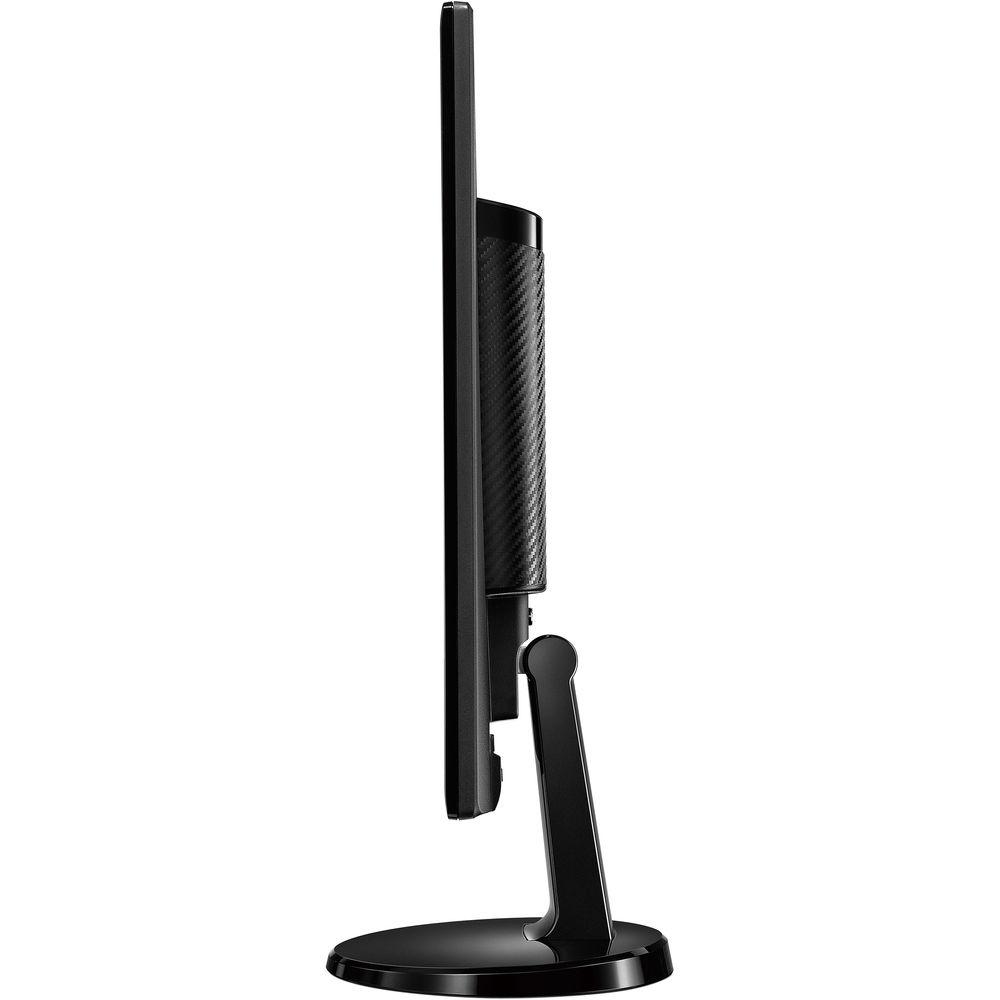

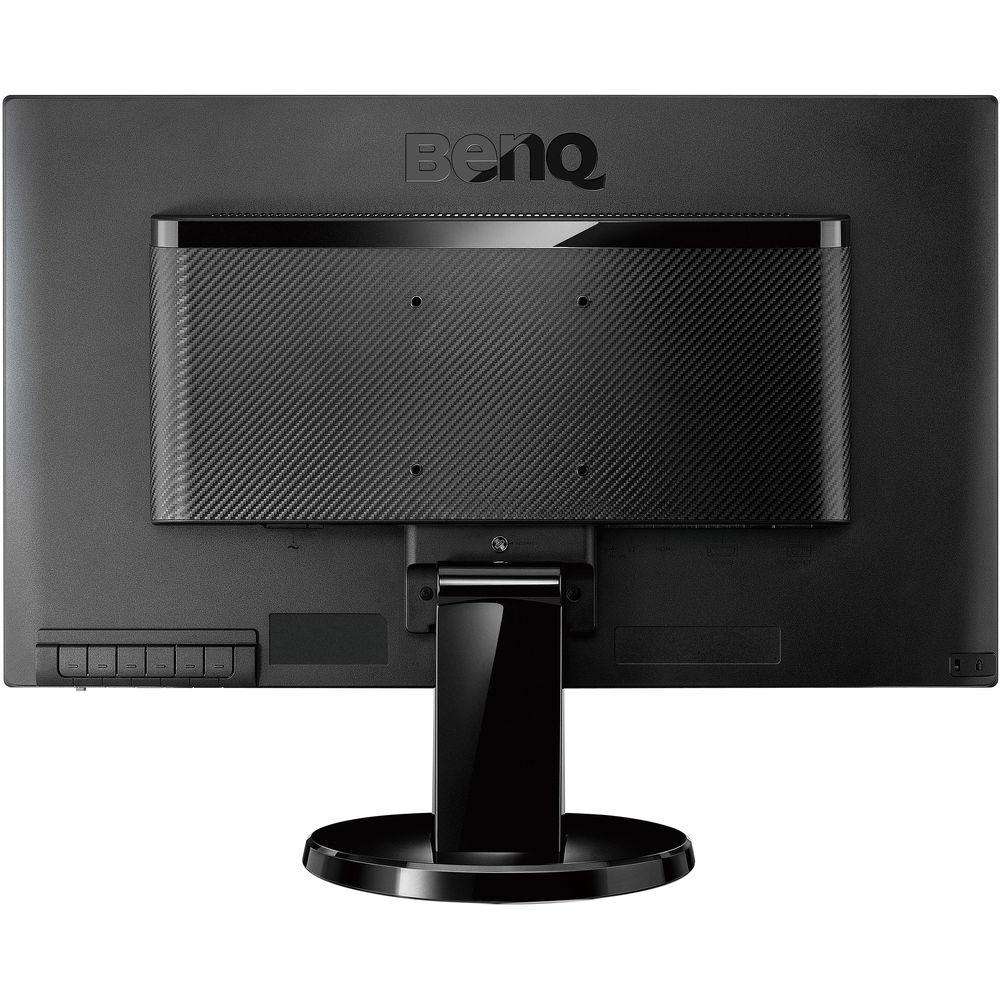

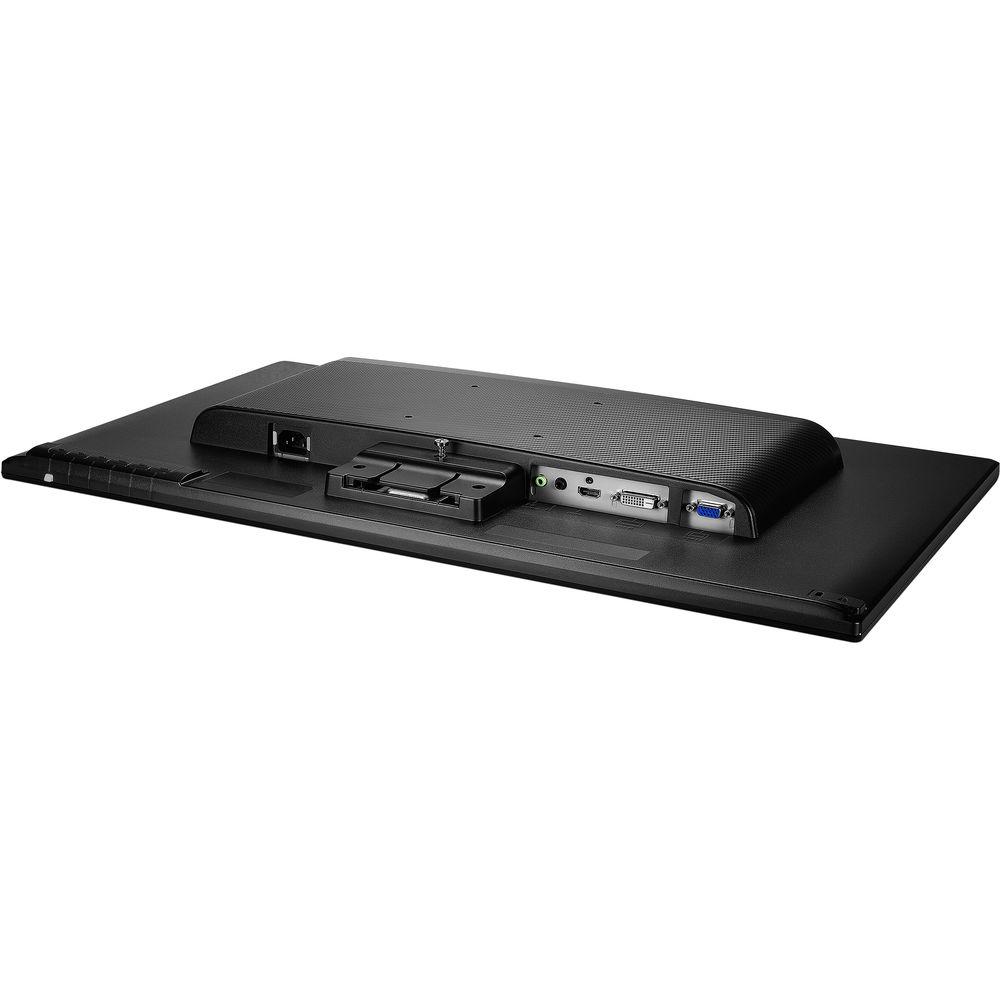

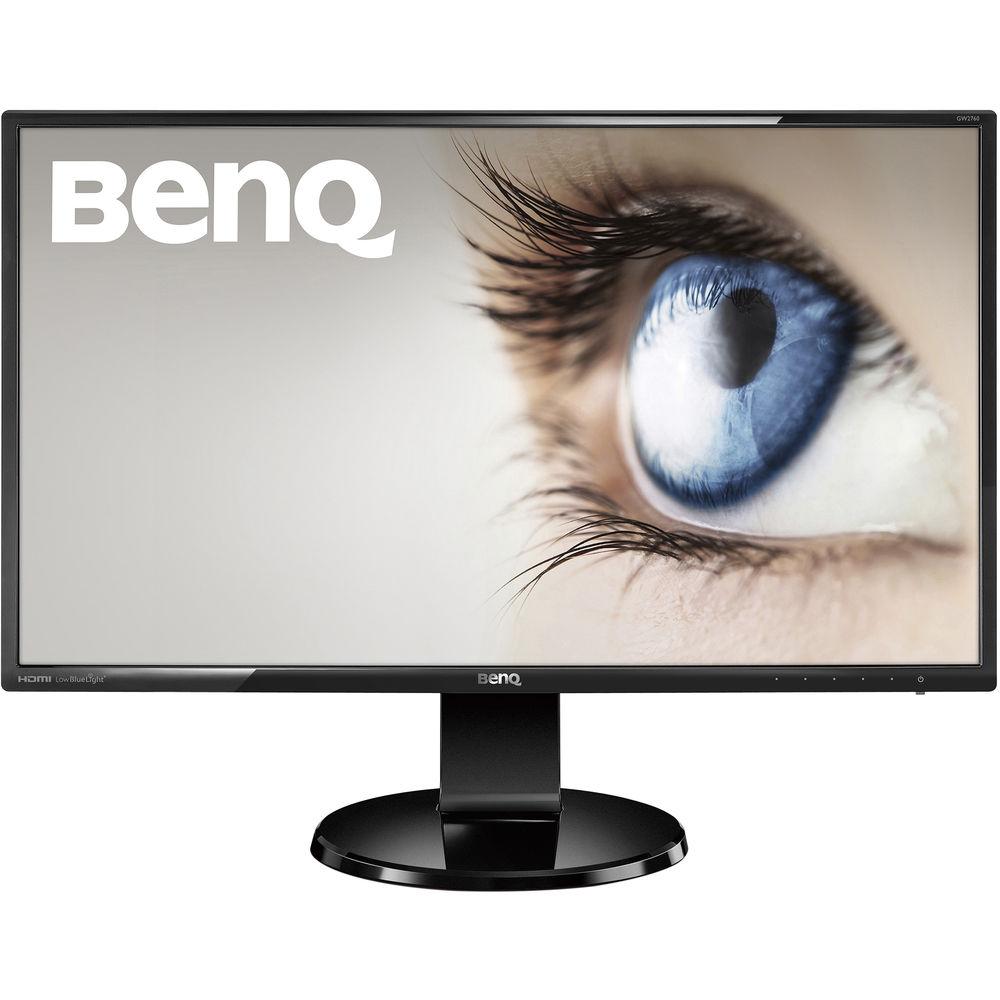

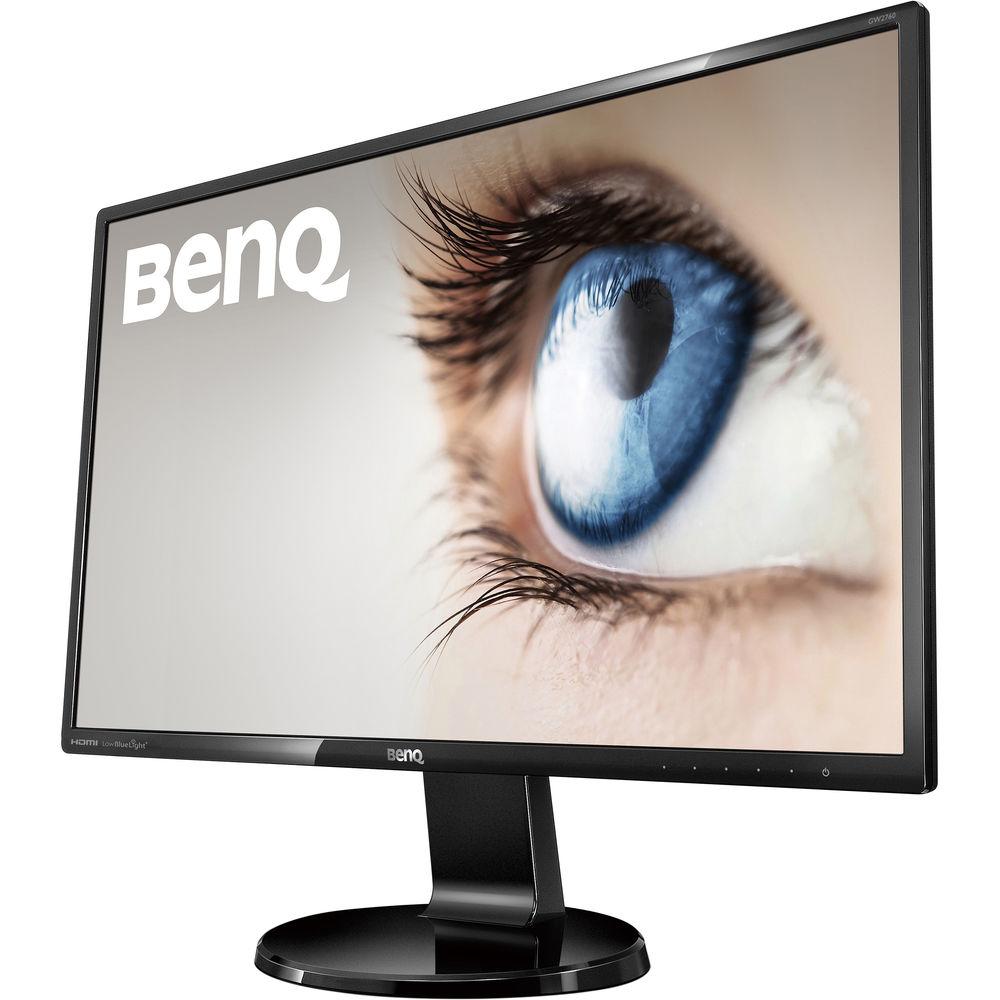

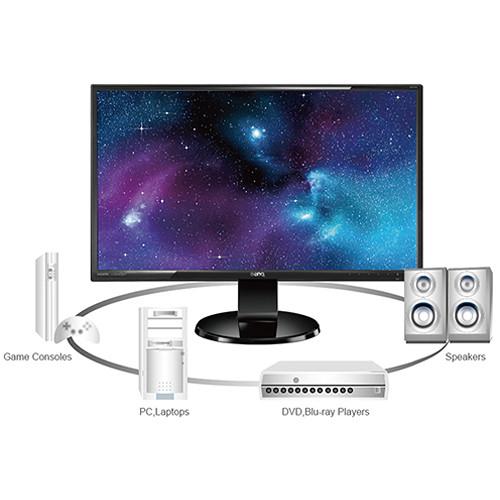

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The GW2760HL 27" 16:9 LCD Display is part of the Eye-Care series from BenQ. These monitors are designed to protect your eyes with technology like Low Blue Light and Flicker-free. It's built with a VA (Vertical Alignment) panel that provides you with vivid colors and wide 178° viewing angles, and features a 1920 x 1080 resolution for crisp and clear viewing of high definition content. Moreover, it has a 300 cd/m² brightness rating and a 3000:1 static contrast ratio for brighter bright colors and darker blacks. This monitor also supports up to 16.7 million colors. Connect it to your system via VGA, DVI, or HDMI and then tilt it to your viewing preference. Otherwise, you can install an optional arm, stand, or mount using the VESA mounting holes on the back. - Low Blue Light
- BenQ's Low Blue Light technology reduces blue light emissions and provides you with four different viewing modes for varying applications such as multimedia, Web-surfing, office, and reading.
- Flicker Free
- BenQ's Flicker-free technology reduces screen flickering to prevent your eyes from getting tired or damage over long periods of use.
- High Native Contrast Ratio
- This VA panel delivers true black colors so the image is naturally richer and multi-dimensional. An ultra-high contrast ratio of 3000:1 brings improved definition from dark shadows to more intricate, detailed images.
- 8-Bit Color Display
- Covering 16.7 million color shades, this display delivers vivid colors, silky transitions, and stunning image quality.
- Special Features
- AMA, HDCP, Dynamic Power Saving (DPS), Color Temperature: Reddish / Normal / Bluish / User Mode, OSD Languages: (English / Francais / Deutsch / Italiano / Espanol / Polish / Czech / Hungarian / Romanian / Nether-lands / Russian / Swedish / Portuguese / Japanese / Chinese / S-Chinese / Arabic/ Korean), Mac Compatible, Windows 7 / 8 / 8.1 / 10 Compatible
UPC: 840046036492 In the Box BenQ GW2760HL 27" 16:9 LCD Display VGA Cable Power Cable Limited 3-Year Warranty More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GW2760HL 27" 16:9 LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GW2760HL Specs | Display Size | 27" (685.8 mm) | | Panel Type | VA (Vertical Alignment) | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Display Area (H × V) | 23.53 x 13.23" (597.6 x 336.15 mm) | | Pixel Pitch | 0.31125 mm | | Brightness | 300 cd/m2 | | Static Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 12 ms, 4 ms (GtG) | | Display Colors | 16.7 million | | Color Gamut | 72% NTSC | | Color Depth | 8-bit | | Horizontal Frequency | 30-83 kHz | | Vertical Frequency | 50-76 Hz | | Video Bandwidth | 205 MHz | | Backlight | LED | | Audio | 2 x 1 W speakers
1 x Headphone jack
1 x Line-in | | Ports and Connectors | VGA, DVI, HDMI | | | | VESA Compatibility | 100 x 100 mm | | Tilt | -5 to 20° | | | | Power Supply | 90-264 VAC | | Operating Power Consumption (Eco Mode) | 27 W | | Power Consumption (Active) | 48 W | | Power Consumption (Standby/Sleep) | 0.3 W | | | | Security | Kensington lock | | MTBF (Approx.) | 60,000 hours | | Lamp Life | 30,000 hours | | Dimensions | Without Stand: 14.45 x 24.51 x 2" (367.05 x 622.6 x 50.72 mm) | | Weight | 9.9 lb (4.5 kg) | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 27.5 x 17.0 x 5.0" |
