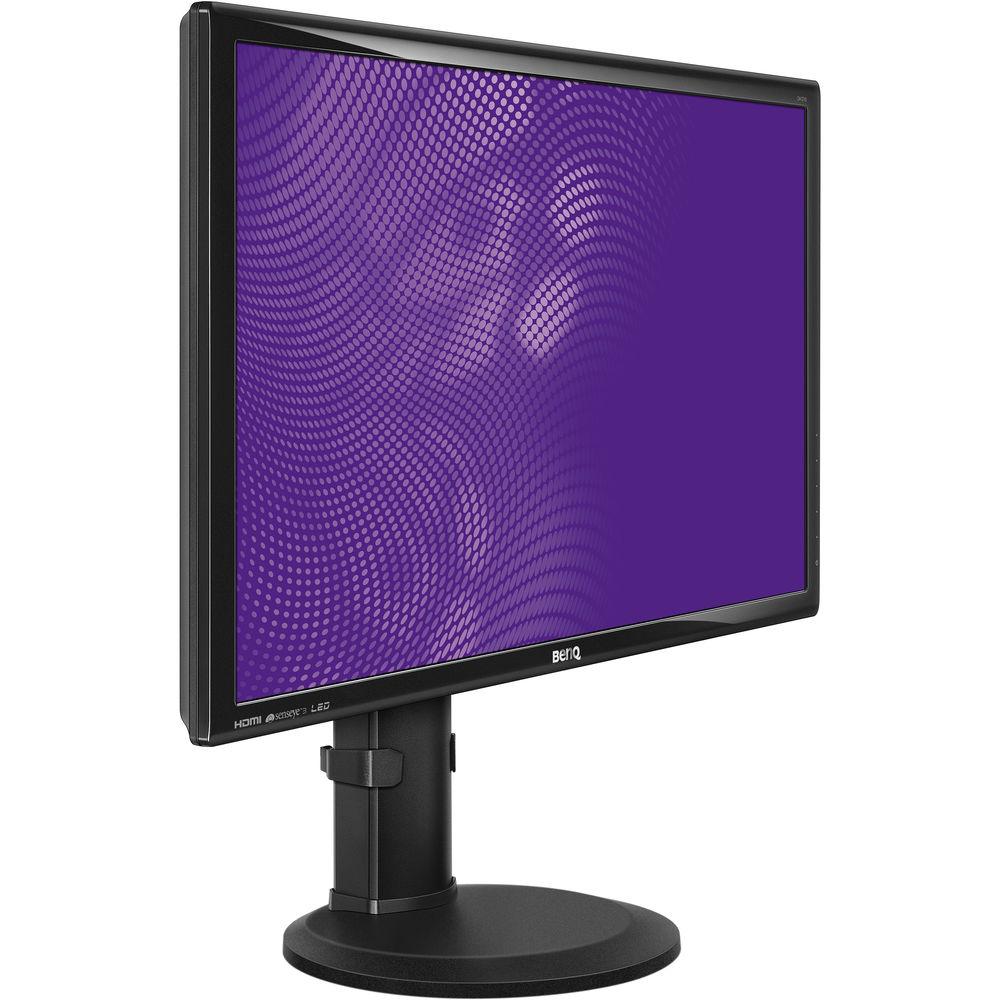

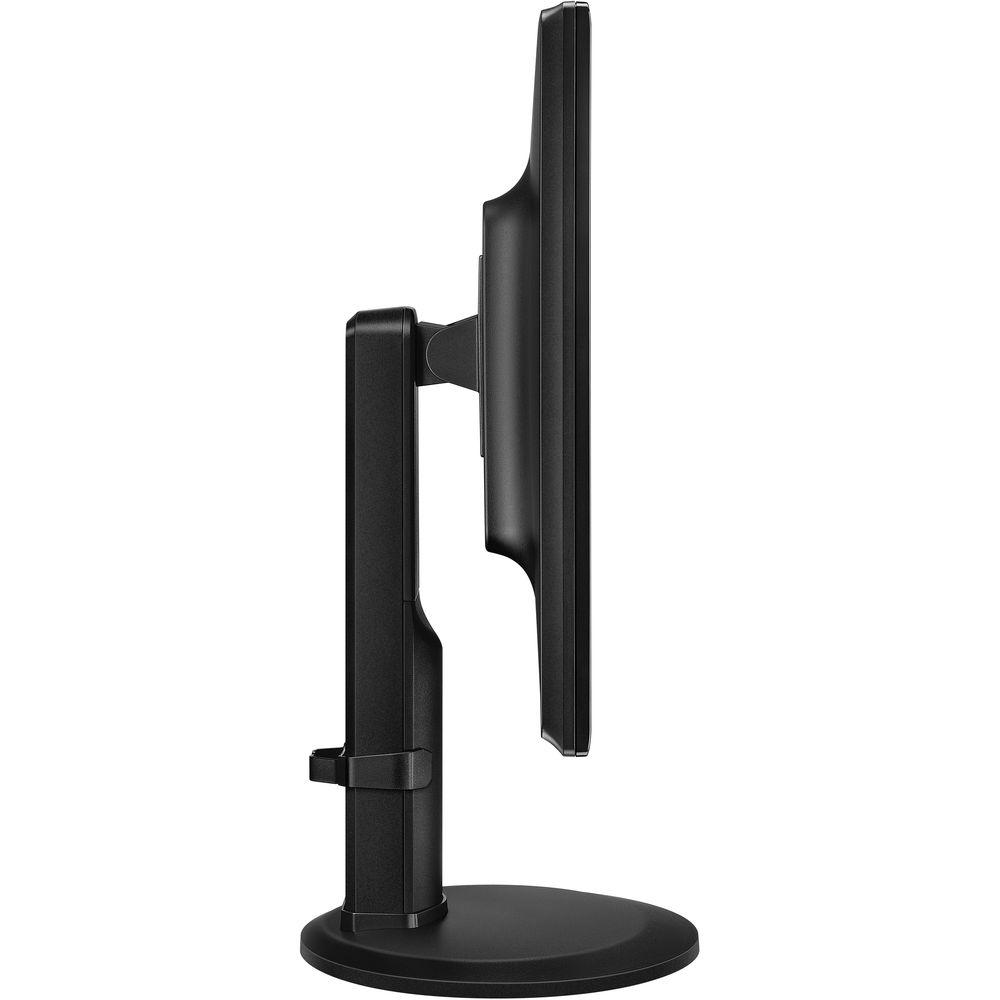

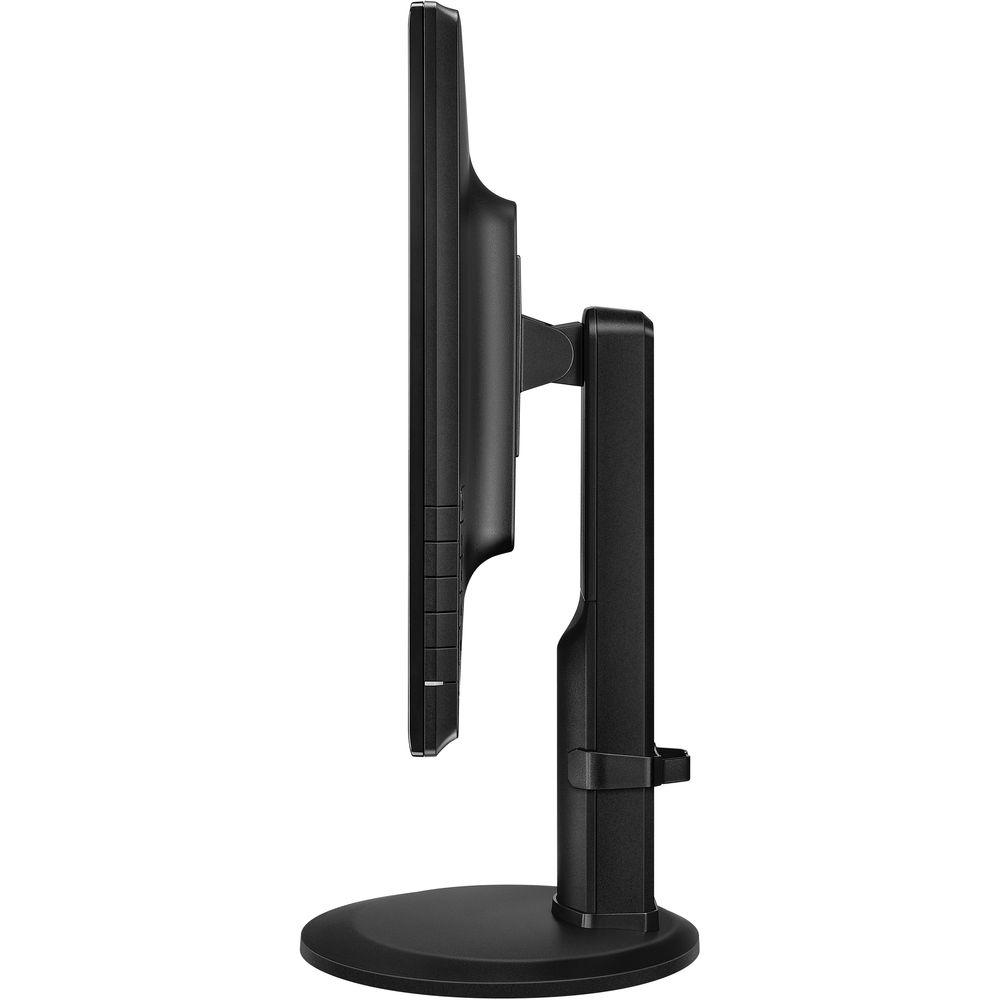

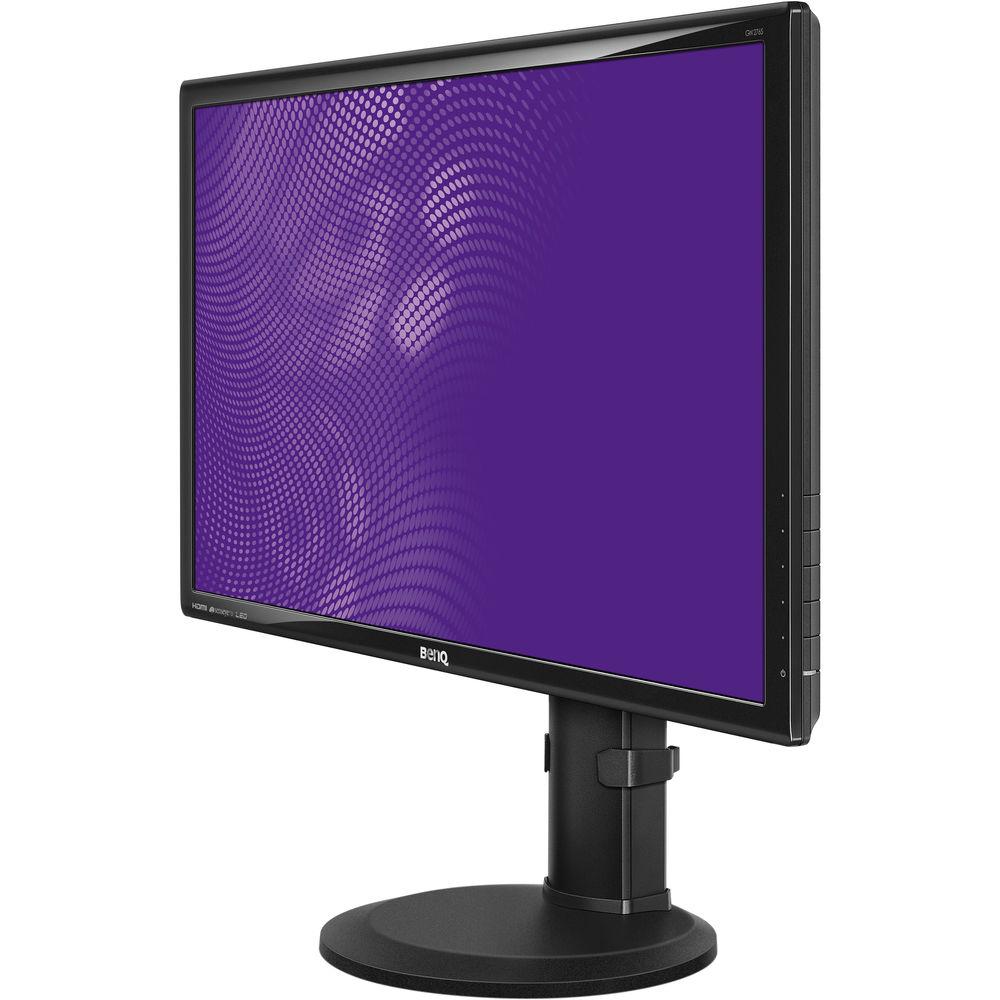

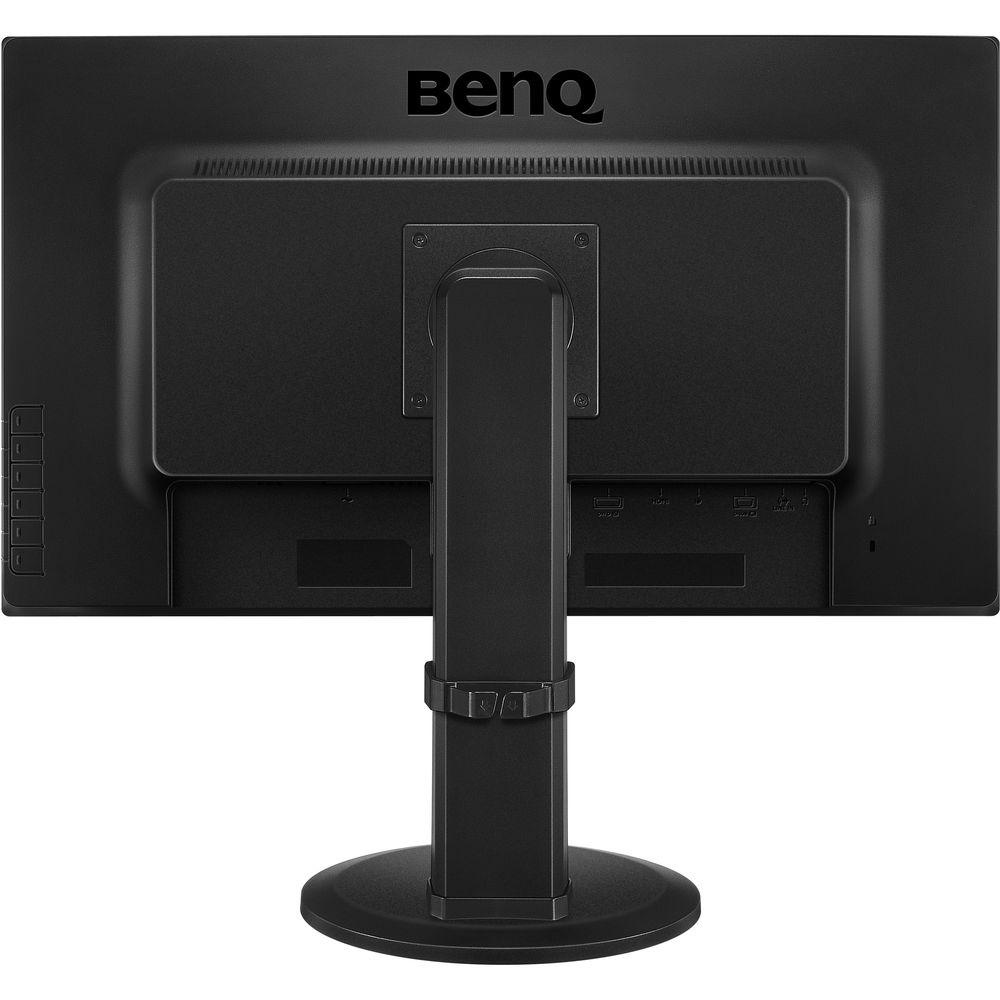

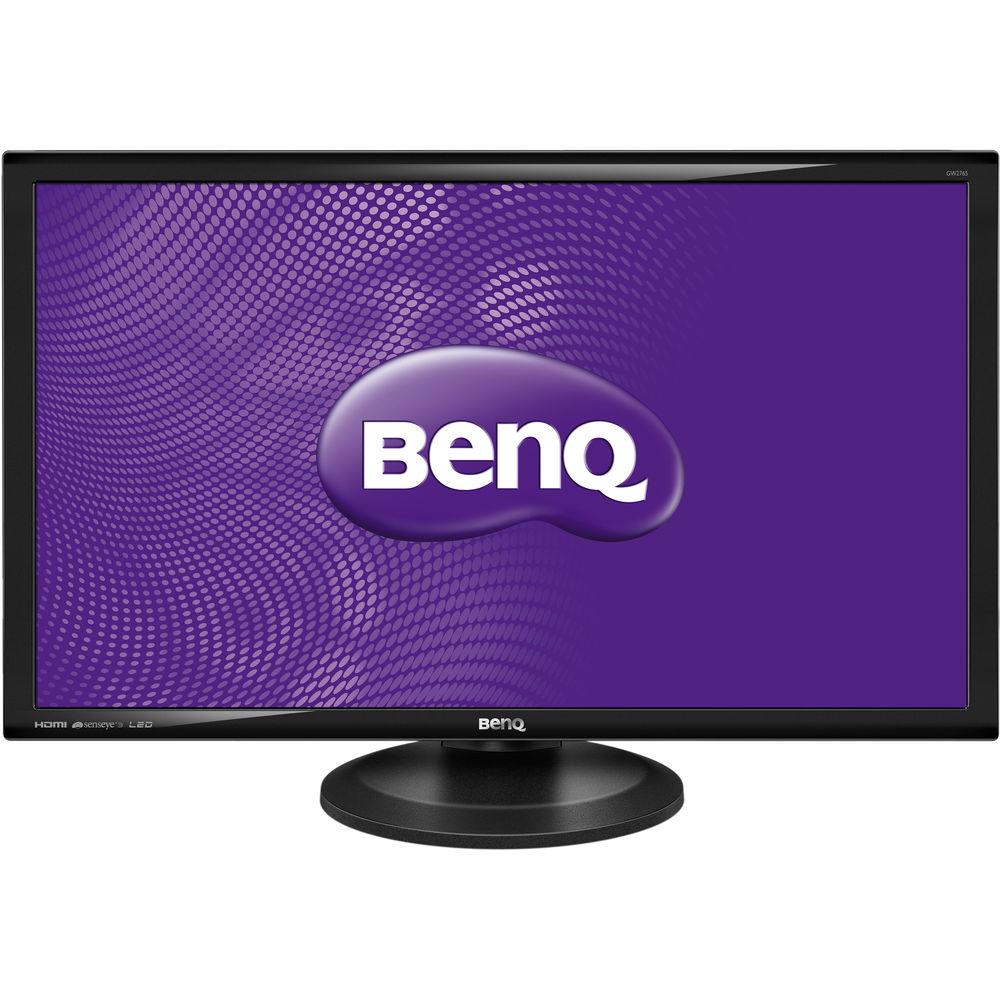

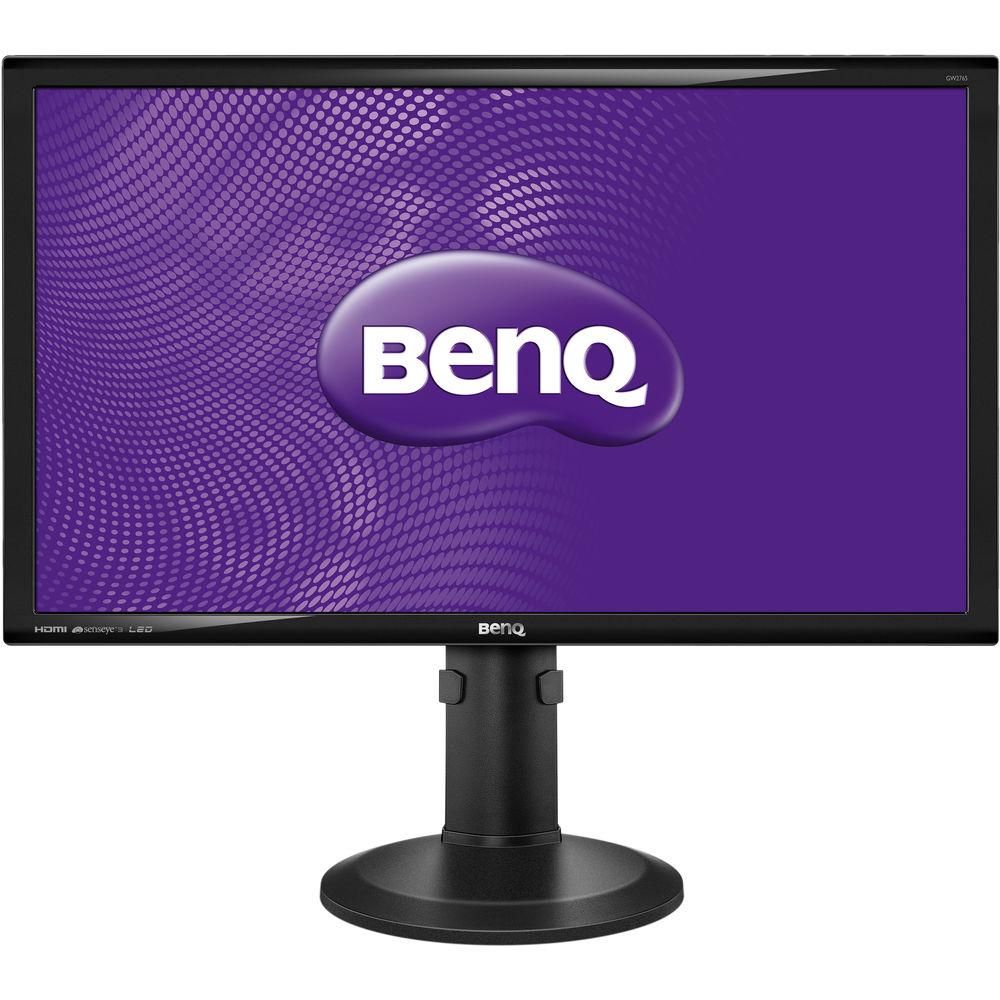

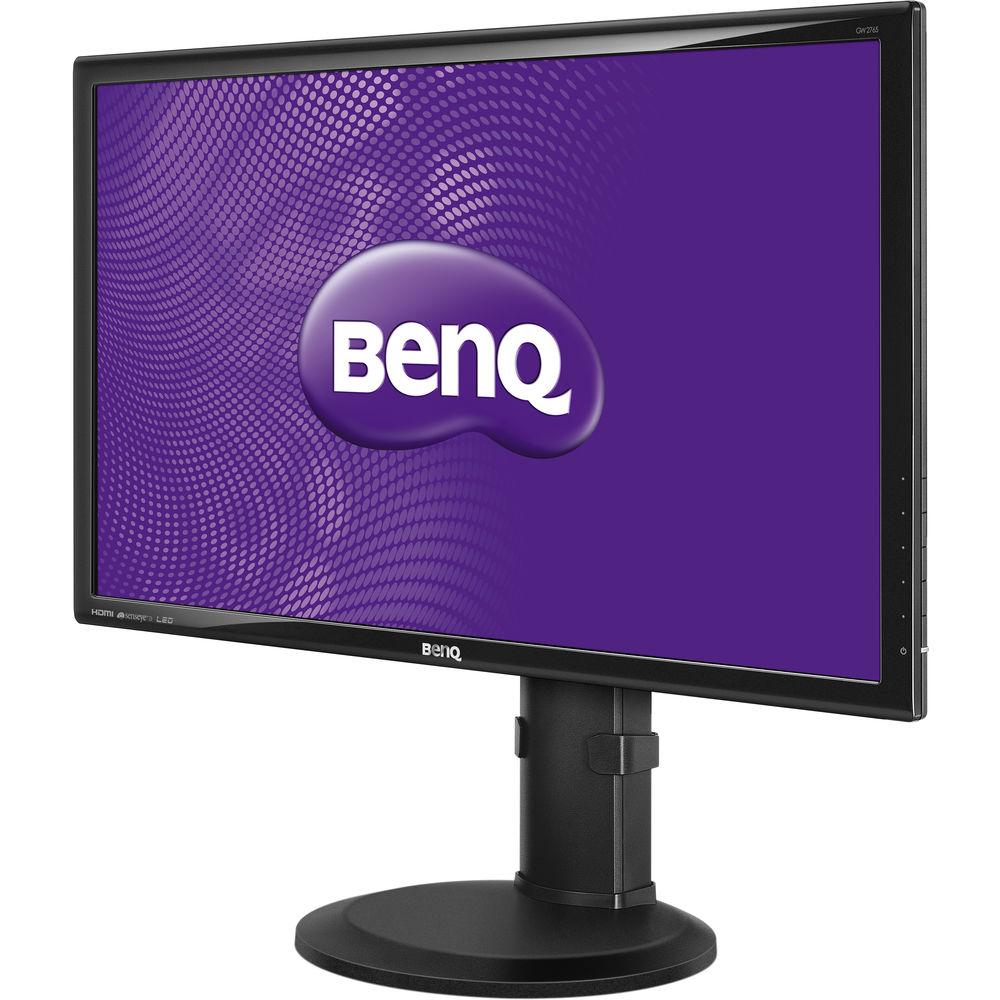

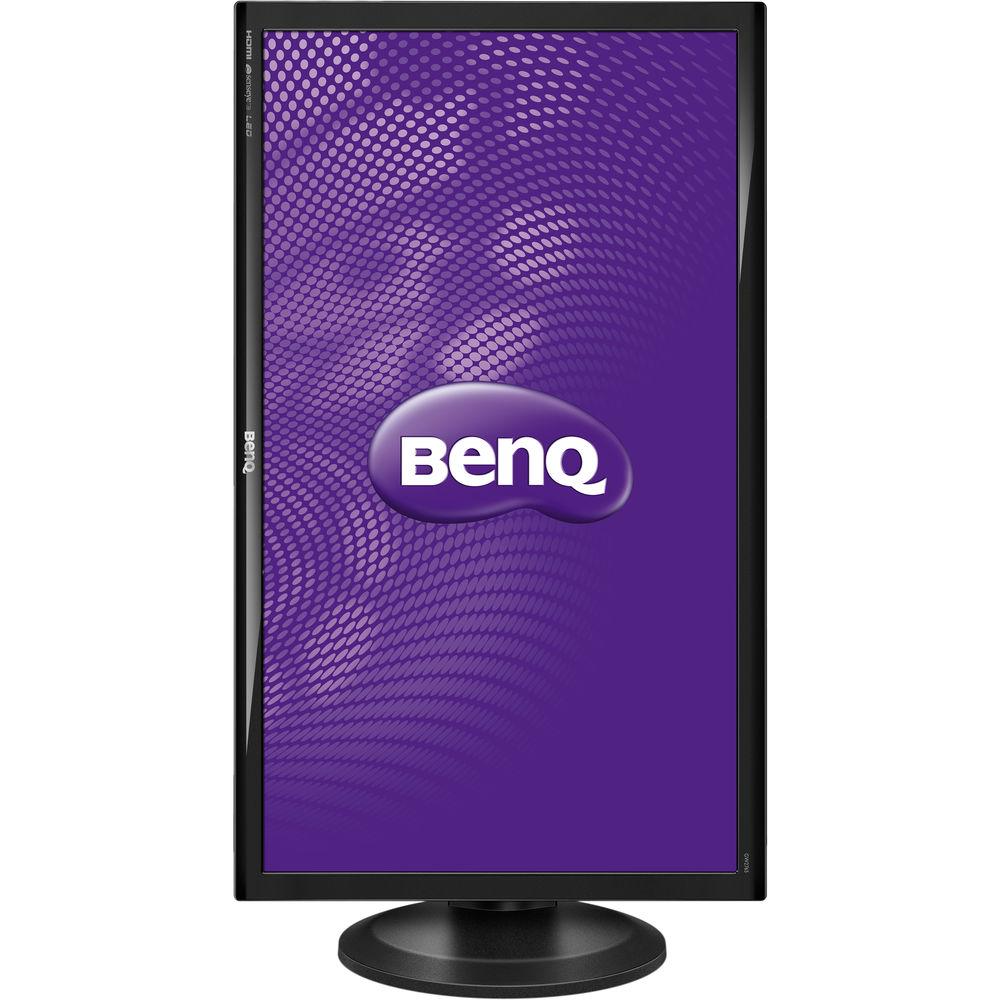

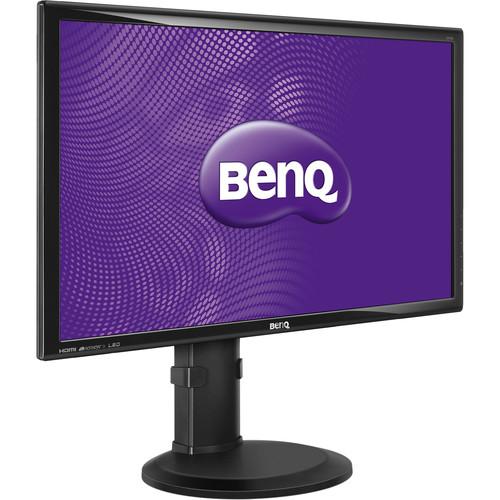

User Manual for BenQ GW2765HT 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ GW2765HT 27" 16:9 IPS Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GW2765HT 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The GW2765HT 27" 16:9 IPS Monitor from BenQ features a 27" display complete with a 2560 x 1440 resolution, a 4 ms response time, a 1,000:1 contrast ratio, and a brightness rating of 300 cd/m². The display can also be viewed from nearly any angle as it supports 178° horizontal and 178° vertical viewing angles and support for up to 1.07 billion colors. The HD display is designed to suit a variety of needs as it comes equipped with features like reading mode, an enhanced dynamic contrast ratio, and multimedia HDMI connectivity. - IPS Technology
- The 27" widescreen IPS (In-Plane Switching) display panel lets you enjoy a wide 178°/178° viewing angle.
- Display
- The 27" panel displays 109 pixels per inch (ppi) allowing images to look crisper.
- RevolutionEyes Technology
- The RevolutionEyes technology offers incredible eye comfort features allowing you to watch movies, read, and work on documents or surf the web for hours on end without causing eye strain.
- ZeroFlicker Backlight
- The ZeroFlicker technology eliminates flickering at all brightness levels and effectively provides long lasting comfortable viewing.
- Low Blue Light Technology
- With adjustable low blue light levels, users can increase their viewing comfort while preventing any damages caused by blue lights. In addition, users no longer need to purchase additional yellow tinted glasses because the low blue light technology is built-in.
- HDMI Multimedia Interface
- The HDMI high-speed multimedia interface makes this monitor convenient to use, allowing you to enjoy digital entertainment even with additional multimedia equipment in the future.
- Integrated Speakers
- Whether you're listening to music or watching your favorite film, the dual 1W speakers provide an enhanced audio experience.
- Ergonomic Monitor Positioning
- Extensive monitor adjustments - height, tilt, pivot, and swivel - allow you to position the display as per your height and viewing preferences.
- Senseye 3 Visual Solution
- With the help of its six proprietary calibration techniques, Senseye 3 delivers enhanced viewing quality in each of its pre-set viewing modes - Standard, Movie, Game, Photo, sRGB, Reading, M-book, and Eco - with the Eco Mode especially designed to save power and money.
- Windows 8/8.1 Compatible
- The GW2765HT has passed Windows 8/8.1 certification and is fully compatible with both color systems. Plug in the GW2765HT to your computer, and Windows 8/8.1 will recognize it instantly, making setup and connection.
UPC: 840046030742 In the Box BenQ GW2765HT 27" 16:9 IPS Monitor Monitor Stand Monitor Base CD-ROM Power Cord Limited 3-Year Warranty User Manual PDF 7.7mb More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GW2765HT 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GW2765HT Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 100% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2331 x 0.2331 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 0.5 W (Standby)
32 W (Typical) | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Height Adjustment | 5.1" / 13 cm | | Swivel Adjustment | 320° (-160 to 160°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 25.2 x 21.8 x 9.6" / 64.1 x 55.5 x 24.4 cm
25.2 x 14.9 x 2.2" / 64.1 x 37.9 x 5.6 mm (Without Stand) | | Weight | 15.2 lb / 6.9 kg | | | | Package Weight | 19.85 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 9.0" |
