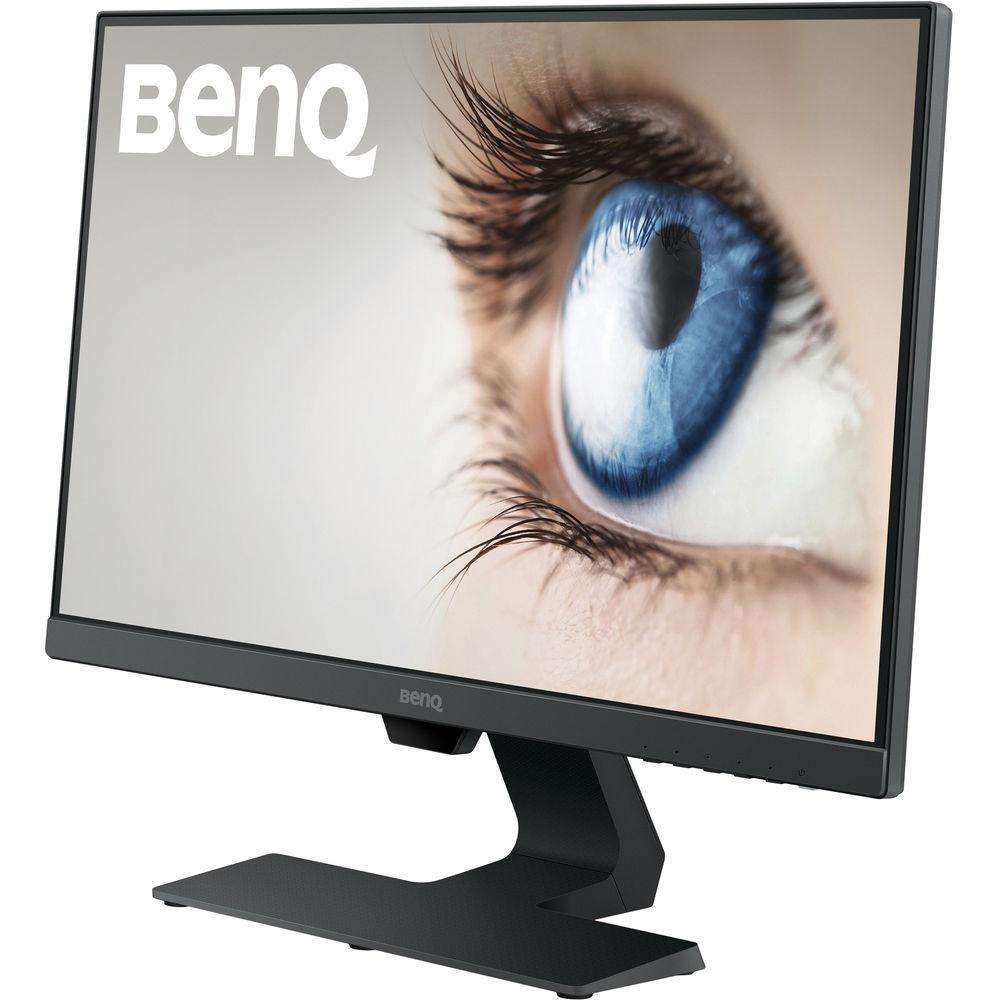

User Manual for BenQ GW2780 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ GW2780 27" 16:9 IPS Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ GW2780 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

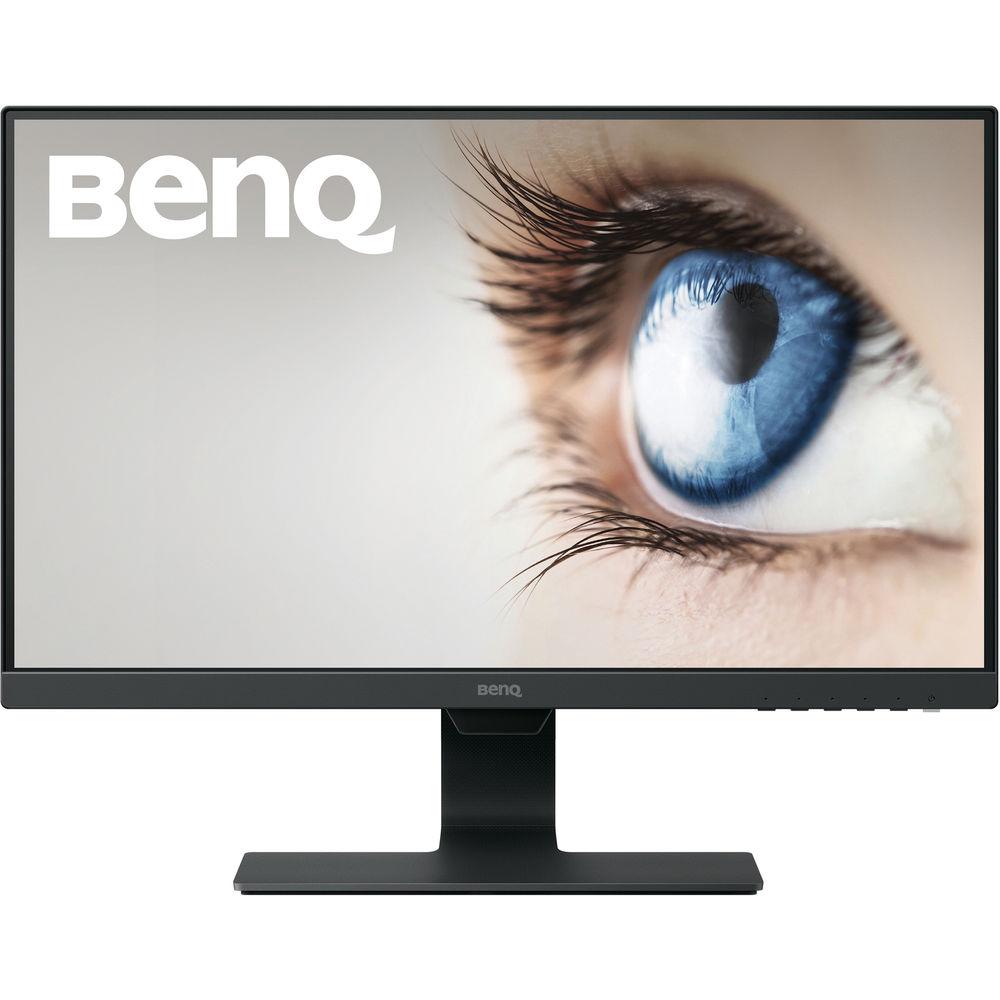

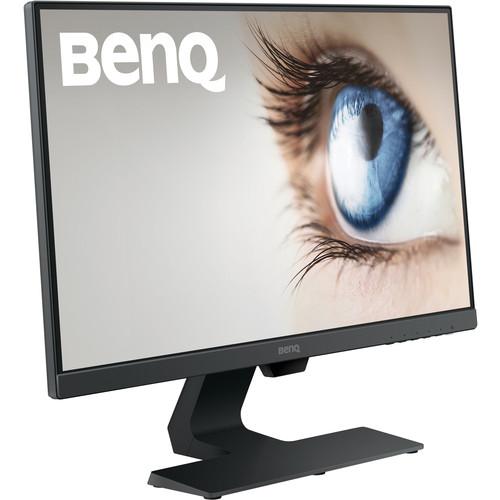

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With reduced size bezels, the GW2780 27" 16:9 IPS Monitor from BenQ offers a virtually frameless viewing experience. In addition to the frameless design, the IPS (In-Plane Switching) panel offers enhanced 178° horizontal and vertical viewing angles so everyone can see the screen. If that's not enough, this BenQ monitor comes with BenQ Exclusive Eye-Care Technology, which features Brightness Intelligence Technology (B.I.Tech.), a Low Blue Light Filter, and Flicker-Free technology to create a more comfortable viewing experience.

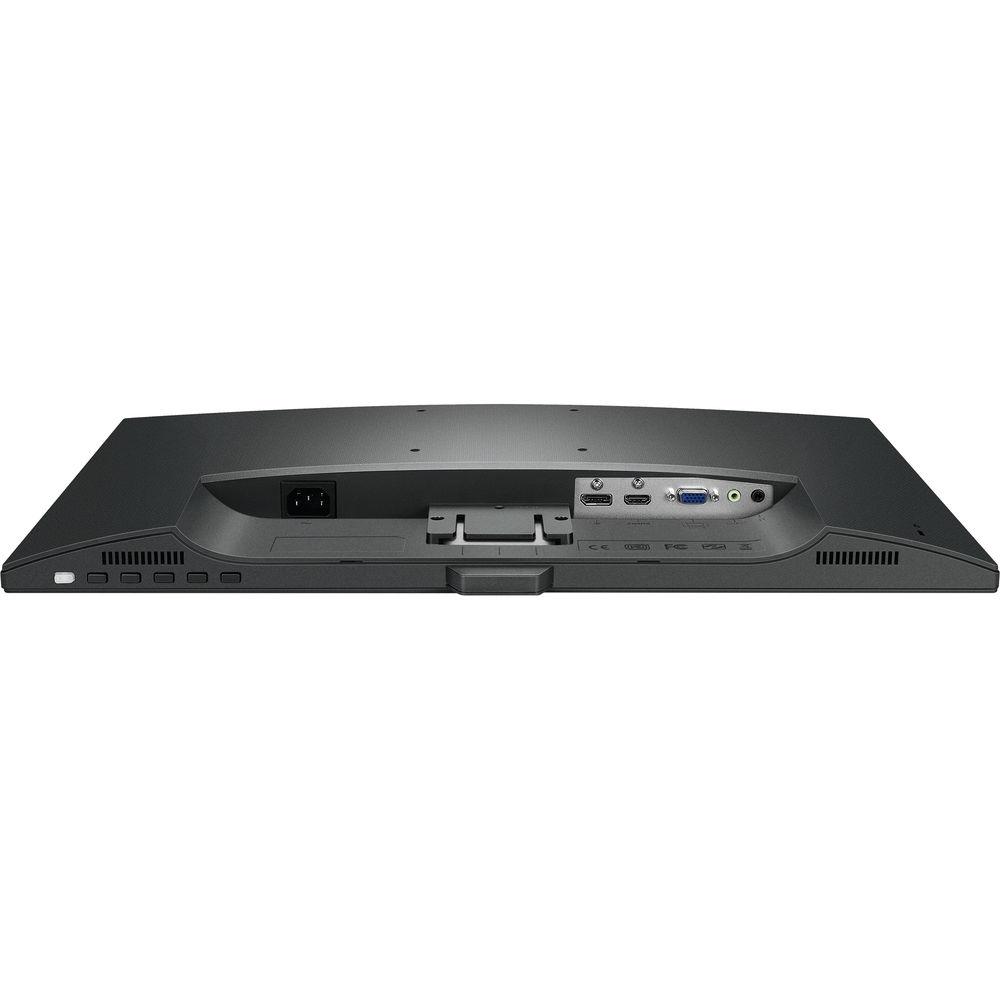

Setup and configuration is simple as the GW2780 monitor comes equipped with HDMI, DisplayPort, and VGA inputs as well as a dedicated headphone jack. Once configured, display features a Full HD 1920 x 1080 resolution along with a 1000:1 contrast ratio, a 250 cd/m² brightness ratings, and a 5 ms response time for a clear picture with reduced ghosting and blur. Additionally, this monitor comes equipped with dual 2W speakers for a complete multimedia viewing experience. - Ultra Slim Bezel Design
- The GW2780 offers an edge-to-edge panel with slim bezels.
- Cable Management System
- Invisible cable management system neatly hides all wires inside the monitor stand for the cleanest look.
- IPS Wide Viewing Angle Technology
- IPS (In-Plane Switching) Technology ensures accurate color and image reproduction from any angle. 178° horizontal and vertical viewing angles ensure uniform viewing for multiple people in the room.
- BenQ Exclusive Eye-Care Technology
-
- Brightness Intelligence Technology
Brightness Intelligence Technology (B.I.Tech.) optimizes display performance for work and play, protecting your vision with high image quality.
- Picture Perfect Content Optimization
B.I.Tech. detects content intensity to avoid overexposure of bright scenes while enhancing dark areas to maintain clear visibility.
- Eliminate Eye Strain in Any Ambient Light
B.I.Tech. monitors ambient light in your viewing environment and actively adjusts screen brightness for the most comfortable viewing experience possible.
- Low Blue Light
Proprietary BenQ Low Blue Light Technology filters out hazardous blue light, effectively reducing eye fatigue and irritation.
- Flicker-Free Technology
Exclusive BenQ Flicker-Free Technology eliminates the harmful flicker of traditional LCDs to prevent fatigue and vision damage.
- Additional Features
- AMA
HDCP 1.4
Dynamic Power Saving (DPS)
Display Mode
Preset Modes
Picture Mode UPC: 840046037109 In the Box BenQ GW2780 27" 16:9 IPS Monitor HDMI Cable Limited 3-Year Warranty More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ GW2780 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ GW2780 Specs | LCD Size | 27" / 68.58 cm | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Display Area | 23.53 x 13.24" / 59.8 x 33.6 cm | | Pixel Pitch | 0.311 mm | | Brightness | 250 cd/m² | | Native Contrast Ratio | 1000:1 (typical) | | Panel Type | IPS (In-Plane Switching) | | Viewing Angles (H/V) | 178°/178° | | Response Time | 5 ms | | Display Colors | 16.7 million | | Color Gamut | 72% NTSC | | Color Tables | 8-bit | | Backlight | LED | | Regulations | EPEAT Silver
TCO 7.0
ENERGY STAR 7.0 | | Audio/Video Input/Output | Horizontal Frequency (kHz):
30~80 kHz
Vertical Frequency (Hz):
50~76 Hz
Video Bandwidth (MHz):
VGA: 210 MHz
HDMI/DP: 170 MHz | | VESA Mount Standard | 100 x 100 mm | | Tilt | -5 to 20° | | Kensington Lock Support | Yes | | OSD Languages | 18 Languages (English / French / German / Italiano / Spanish / Polish / Czech / Hungarian /Korean / Romanian / Netherlands / Russian / Swedish / Portuguese / Japanese / Chinese / S-Chinese / Arabic) | | I/O | 1 x HDMI
1 x DisplayPort
1 x VGA | | Audio | 2 x 2 W speakers
1 x Headphone jack | | Power | Power Consumption (Eco Mode)
18 W
Power Supply
90-264 VAC built in
Power Consumption (On Mode)
32 W
Power Consumption (Power Saving Mode)
0.5 W
Power Consumption (Off Mode)
0.5 W
Power Consumption (Based on ENERGY STAR)
18 W | | Reliability | MTBF (h, excludes lamp): 60,000
Backlight Life (h, min): 30,000
Backlight Life (h, typical): 30,000 | | Certifications | Windows Vista, 7, 8, 8.1, 10 | | Dimensions | With Stand
18.23 x 24.09 x 7.2" / 46.3 x 61.2 x 18.3 cm
Without Stand
15 x 24.09 x 1.97" / 38.1 x 61.2 x 5 cm | | Weight | With Stand
10.69 lb / 4.85 kg
Without Stand
8.64 lb / 3.92 kg | | | | Package Weight | 14.25 lb | | Box Dimensions (LxWxH) | 28.5 x 16.0 x 5.5" |
