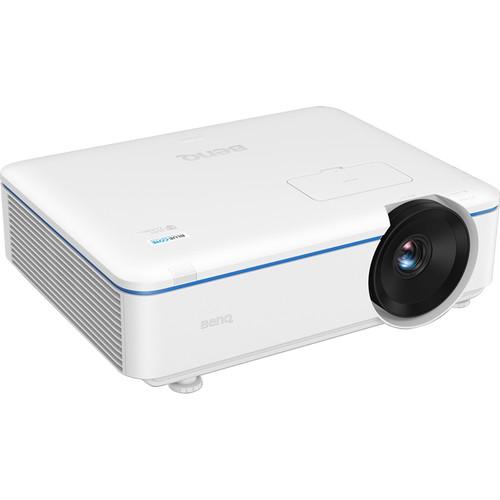

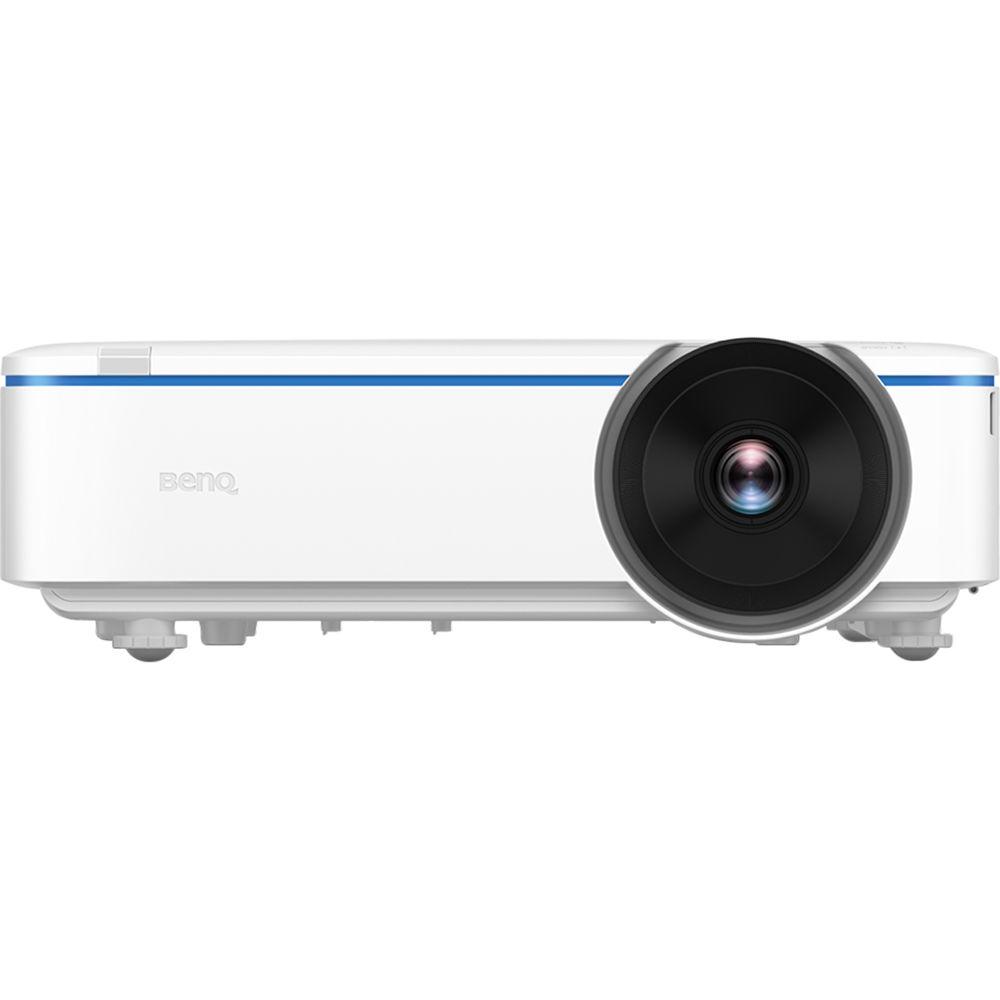

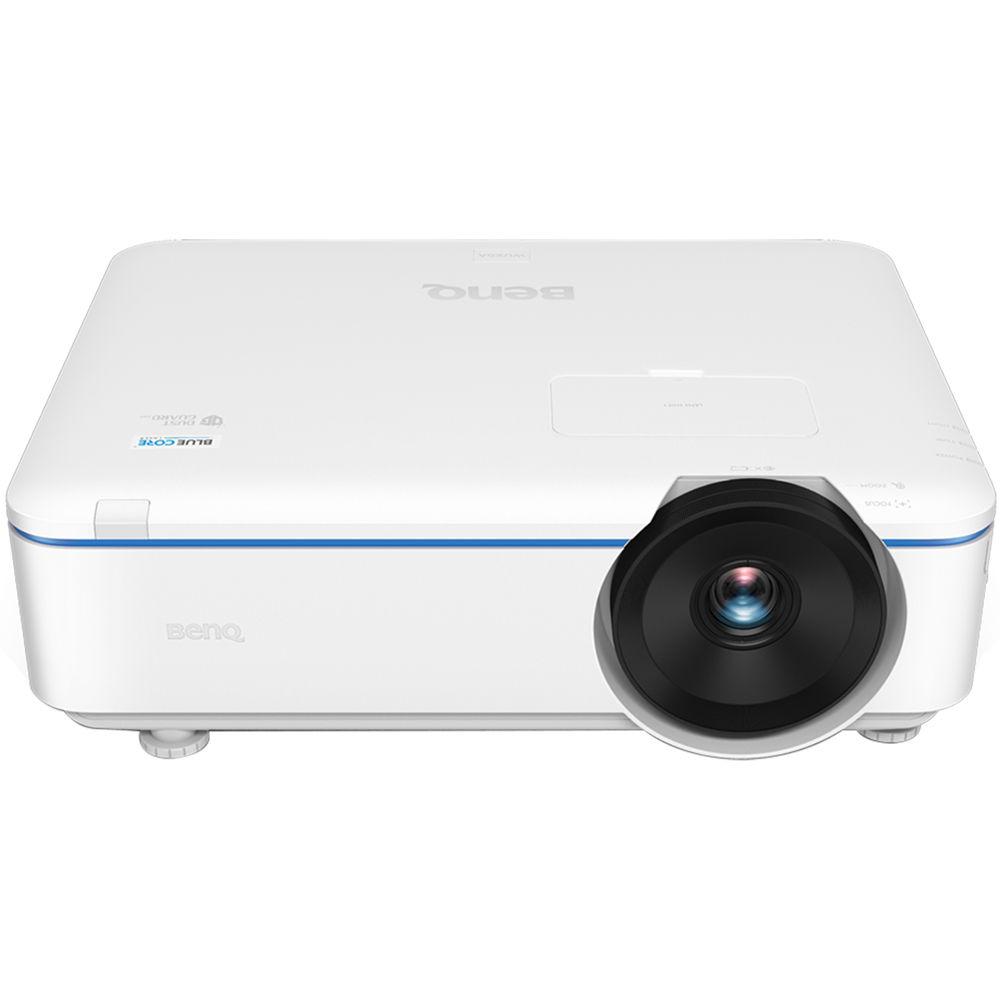

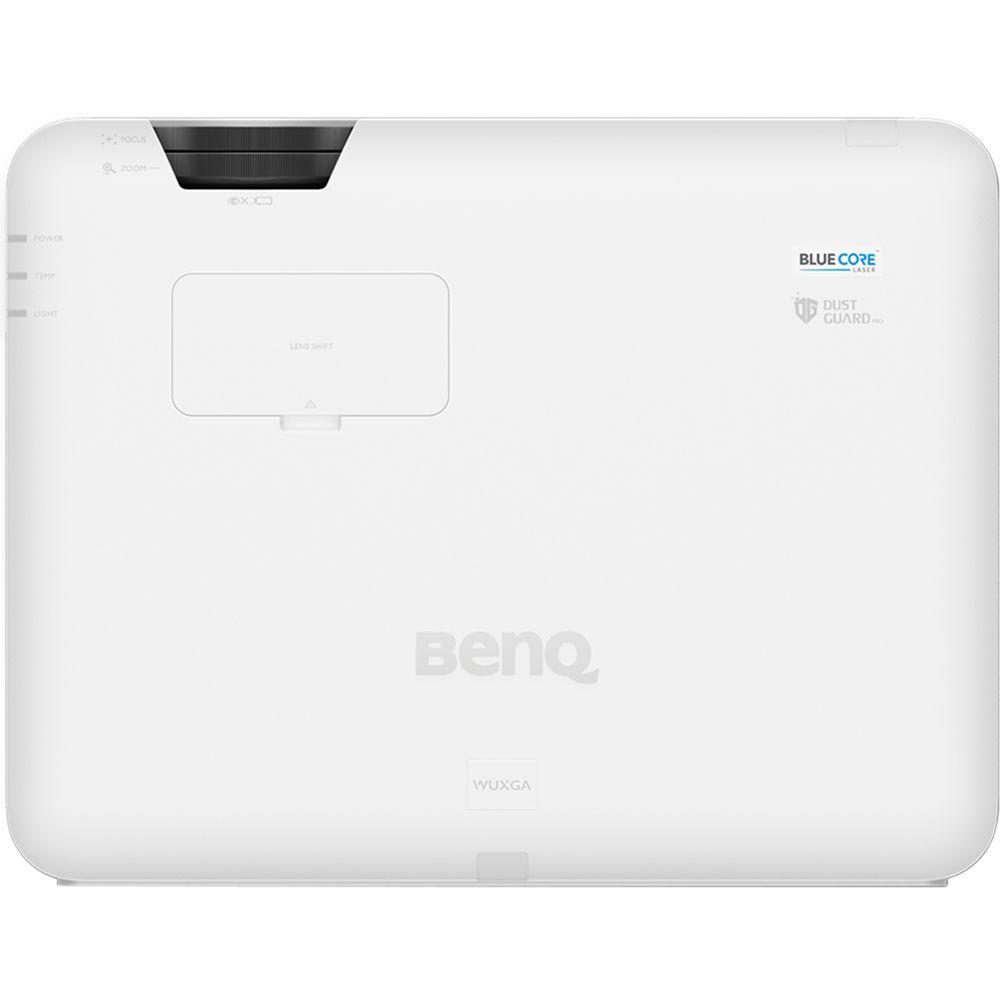

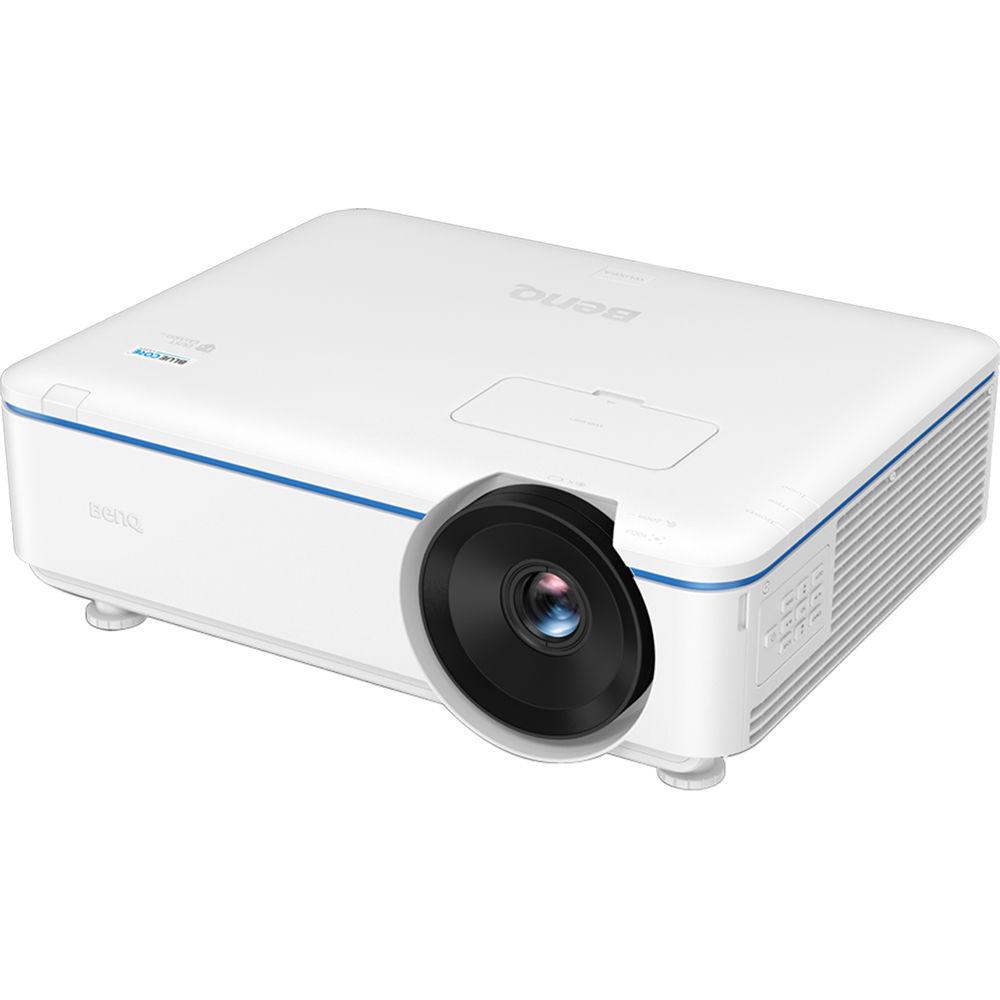

User Manual for BenQ LU950 5000-Lumen WUXGA Laser DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ LU950 5000-Lumen WUXGA Laser DLP
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ LU950 5000-Lumen WUXGA Laser DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description Present in nearly any environment with the BenQ LU950 5000-Lumen WUXGA Laser DLP Projector. Its 5000 lumens of brightness overcomes ambient light in many situations, while its 100,000:1 dynamic contrast ratio helps keep images and text clear and distinct. Its 1.36 to 2.18:1 throw ratio and 1.6x zoom provide a range of installation options.

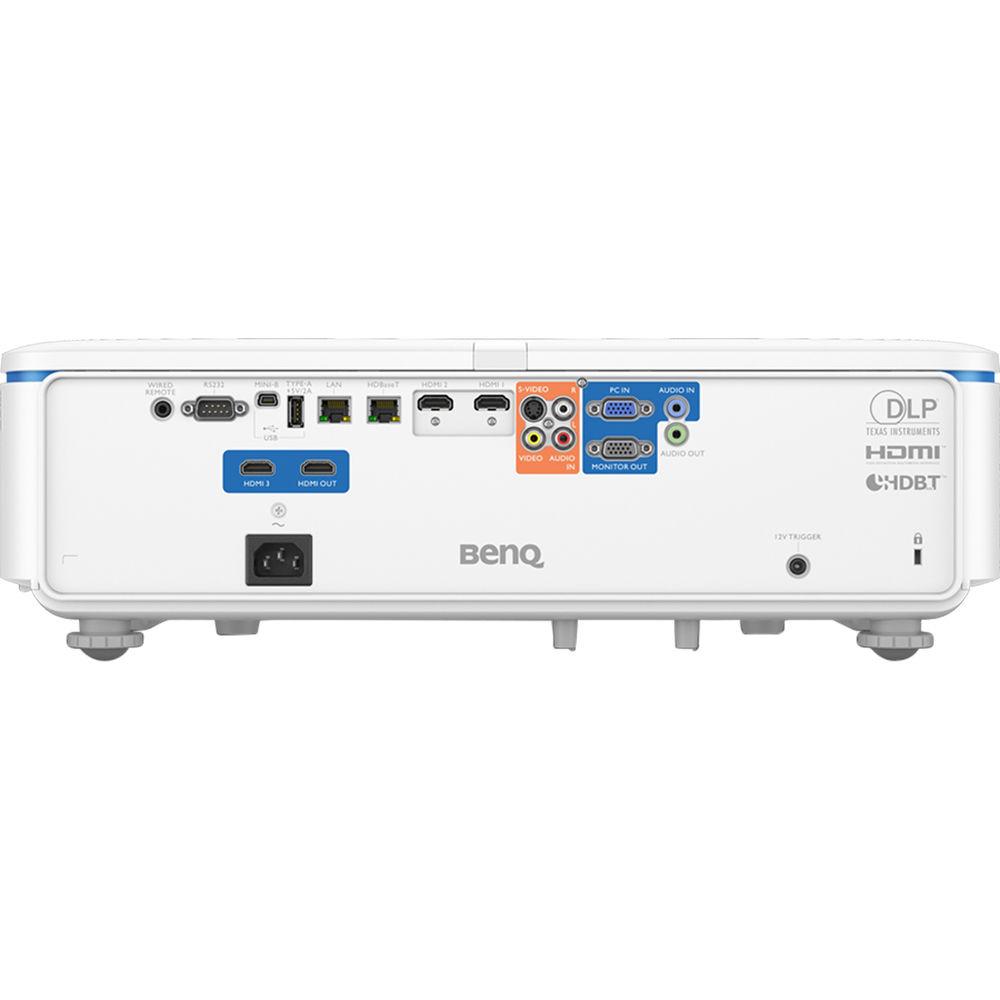

The LU950 has HDBaseT, VGA, S-Video, RCA composite video, and three HDMI inputs to support both analog and digital video sources. Its VGA and HDMI outputs allows you to daisy-chain multiple projectors or displays to show the same video source. A built-in 10W speaker eliminates the need for a separate speaker system, but the projector also features an 1/8" audio output to connect external speakers. It is controllable via Ethernet, HDBaseT, or RS-232 and includes a remote control. BlueCore Laser Technology - Enhanced Brightness
- The virtually zero-deviation alignment of the BlueCore laser diodes helps boost luminous flux into the light tunnel to produce up to 5000 lumens of brightness.
- Secondary Yellow-Infused Color Wheel
- Dual synchronized BlueCore color wheels use an additive yellow segment, simulating the RGBY spectrum for augmented chromatic performance.
- Hermetically Sealed DLP Chip
- The DLP chip is hermetically sealed to resist heat to help it provide up to 100,000 hours of life without degradation.
Designed for Long-Lasting Image Quality - DLP Technology
- The BlueCore line of projectors use a single-chip DLP designed to produce true-to-life colors and legible text.
- WUXGA Resolution for Enhanced Detail and Expanded Content
- With WUXGA (1920 x 1200) native resolution that exceeds Full HD 1080p, the BenQ LU950 offers enhanced details and image clarity when projecting high-resolution images.
- High Brightness for Clarity in Bright Environments
- The LU950 outputs up to 5000 lumens of brightness, allowing presenters and participants to deliver their presentations in comfortably lit medium-sized conference rooms for effective collaboration, note-taking, and interaction.
- Laser-Powered High Dynamic Contrast
- Thanks to its laser light source, the LU950 provides up to a 100,000:1 dynamic contrast ratio for deep blacks, vivid colors, and fine detail. It also features spontaneous response, requiring virtually no wait time to turn it on or resume from screen blanking.
- HDMI Output for Multi-Screen Projection
- For large meeting rooms, multiple projected screens can offer enhanced viewing experiences for the audience. With the HDMI output, a digital signal is sent to other projectors or displays with virtually no signal degradation.
- DICOM Simulation Mode
- The LU950 offers a DICOM Simulation Mode that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function, for display of grayscale images. The DICOM Simulation Mode, which supports both Blue and Clear Base, adjusts the gradation between the minimum and the maximum luminance, so gradation is distributed optimally. This feature is optimized for displaying medical images such as X-rays, CAT scans, and MRIs, which makes the LU950 useful for non-diagnostic purposes such as lectures, academic meetings, and hospital conferences. This feature is recommended for use in medical schools for training and educational use only.
Installation Flexibility - 360° Rotation Projection
- The LU950 can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors, or angled signage to fulfill nearly any projection demand.

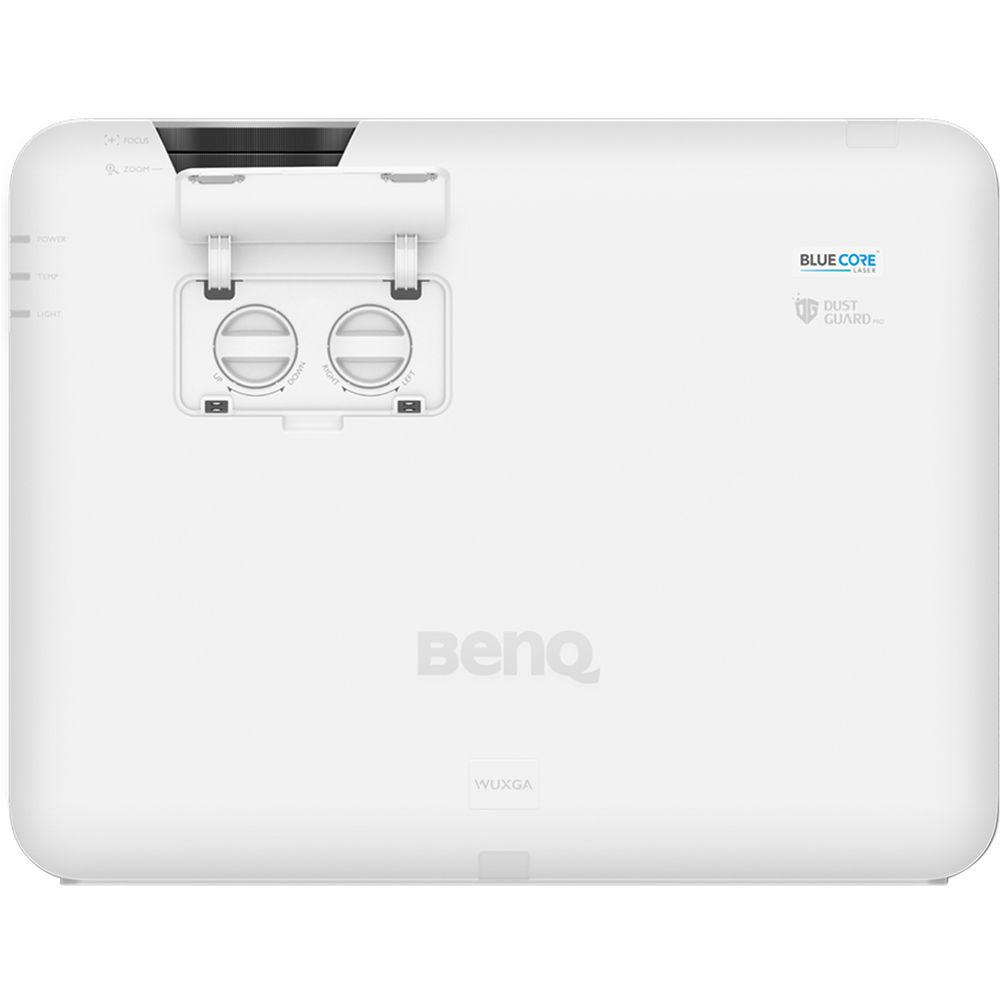

- Zoom and Lens Shift
- The horizontal and vertical lens shift options, as well as 1.6x zoom, help you align images in nearly any challenging venue, such as when lights or vents are located in the mounting area. Lens shift enables you to move the image up or down by 60% of the screen height or left or right by 23% of the screen width, while the zoom offers a wider range of throw distances for installation flexibility in various scenarios.
- Digital Image Shrinking and Shift
- This feature lets installers shrink the image to 75% of its original size in 0.5% increments via the OSD menu. The image can also be shifted, so installers don't have to reinstall or adjust the projector physically in case the image isn't precisely aligned in the desired frame and space.
- Image Memory
- The Image Memory function helps installers save up to five sets of image settings that can be individually recalled, reducing installation time or eliminating the need for re-installation or adjustment when the projector is in the same environment with different image source formats or aspect ratios.
- Remote Control Projector ID Setting for Independent Control
- Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.

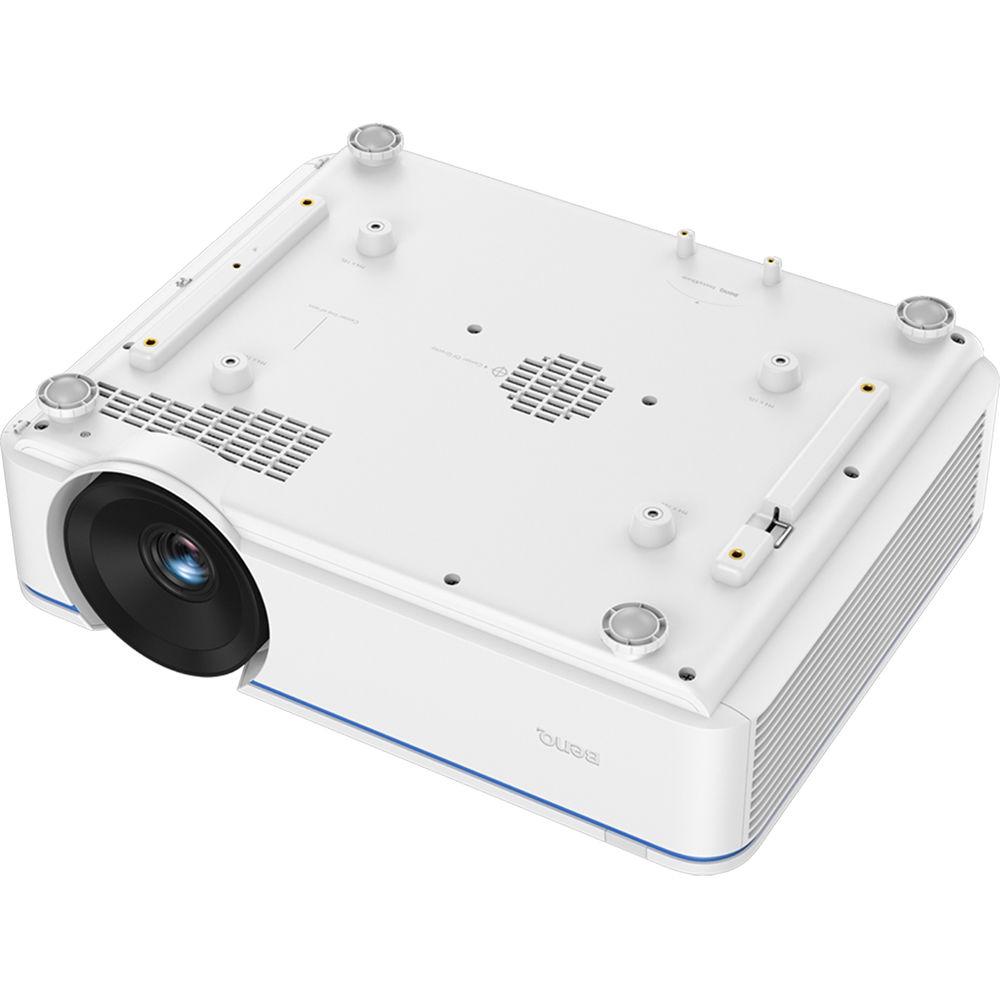

- Grip Bottom Surface Design
- The LU950 is designed with grips on its bottom surface to help safely transport the projector during installation or moving from one venue to another.

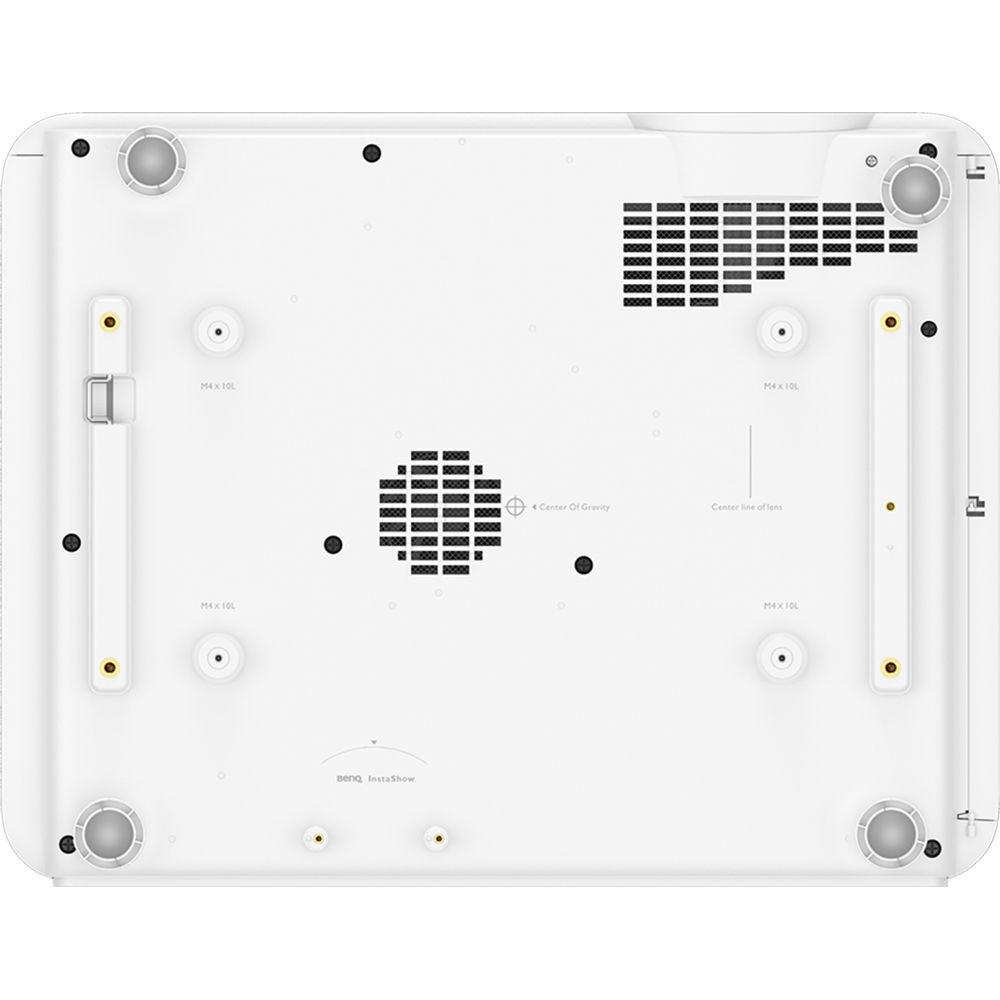

- Center-of-Gravity Mark on Case Bottom
- The bottom of the projector has a mark indicating its center of gravity to help make installation easier.
- Wired Remote Control Option
- The wired remote control option allows installers and IT managers extra setup convenience and ease of operation for enhanced dependability.
Engineered for Enhanced Reliability - IP5X DustGuard Pro for Dustproofing
- The LU950 is designed with sealed laser modules and enclosed light engines to help protect the DMD chip, color wheel sensor, laser bank, and other optical components, helping to eliminate color wheel sensor failure, visible spots on the image, and color decay for reduced service costs and downtime.
- Anti-Dust-Accumulation Sensor Helps Resist Dust Buildup
- The color wheel features a sensor with an anti-dust-buildup feature, helping to prolong optimal performance by repelling dust that can accumulate on the sensor and block the IR signal, which can cause flickering, abnormal colors, or shutdown.
- Designed for up to 20,000 Hours of Performance
- The laser light source can last up to 20,000 hours, resisting color decay over time, making the LU950 well suited for presentation or exhibition applications.
- High Altitude Mode for Elevated Environments
- Equipped with an integrated air pressure sensor, the LU950's High Altitude Mode automatically alerts you to enable efficient cooling and properly maintain operating temperatures in high-altitude environments with thinner atmospheres.
Engineered for Low Maintenance Costs - Laser Light Source Provides Value over Time
- With the laser light source lasting up to 20,000 hours of maintenance-free operation, the costs associated with lamp replacement and maintenance are virtually eliminated. Based on the average brightness cutoff of typical lamps, the laser light source can exceed 10 lamp replacements over the lifetime of the laser.
Integrated Network Control and Management System Compatibility - Designed for Comprehensive Control System Compatibility
- The LU950 is compatible with a number of projector control systems, including Extron, Crestron, AMX, and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, the LU950 also supports RS-232 for reliable long-distance installations up to 49'.
- Centralized Control with BenQ MDA Software
- BenQ Multiple Display Administrator (MDA) software provides centralized multiple-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.
- HDBaseT Compatibility
- HDBaseT connectivity combines video, audio, and device control signals from multiple sources including computers, laptops, document cameras, and Blu-ray players onto a single CAT5 cable, helping to ensure seamless transmissions up to 328'.
Wireless Presentation Option - One Button to Start Full HD Wireless Presentations
- The BenQ InstaShow WDC10 is a zero-software solution that allows up to 16 presenters to lead from nearly any device. The plug-and-play device requires no driver installation and is compatible with virtually any OS or hardware platform with a USB and HDMI port, making it easy for presenters to wirelessly take turns delivering presentations for enhanced meeting efficiency.
UPC: 840046039400 In the Box BenQ LU950 5000-Lumen WUXGA Laser DLP Projector Remote Control 2 x AAA Batteries Lens Cover Anti-Dust Filter Power Cord Limited 1-Year Warranty on Projector Limited 90-Day or 500-Hour Warranty on Light Source, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ LU950 5000-Lumen WUXGA Laser DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ LU950 Specs | | | Display System | 0.47" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 5000 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 100,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Lens | f/1.81 - 2.1 (f = 14.3 - 22.9 mm) | | Lens Shift | Vertical: ± 60%
Horizontal: ± 23% | | Optical Zoom | Manual: 1.6x | | Throw Distance | 5.741 - 30.577' / 1.75 - 9.32 m | | Throw Ratio | 1.36 - 2.18:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Control, Data, Video Input/Output
3 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI (HDMI Type-A) Audio, Video Output
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x S-Video (4-Pin DIN) Video Input
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Remote Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x Ethernet (RJ45) LAN Input/Output
1 x RS-232 (DE-9) Control
1 x 12 V Trigger Control Output
1 x USB 2.0 (USB Type-A) Power Output
1 x Mini-USB Service Input | | Memory Card Slot | None | | | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 37 dB
Low Brightness: 35 dB | | Security | Security Bar | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 530 W
Medium Brightness: 475 W
Low Brightness: 365 W
Standby Mode (Lamp Off): <2 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 - 90% | | Storage Humidity | 10 - 90% | | Dimensions (W x H x D) | 19.3 x 6.3 x 15.0" / 490.0 x 159.0 x 380.0 mm | | Weight | 20.72 lb / 9.4 kg | | | | Package Weight | 27.05 lb | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 12.0" |
