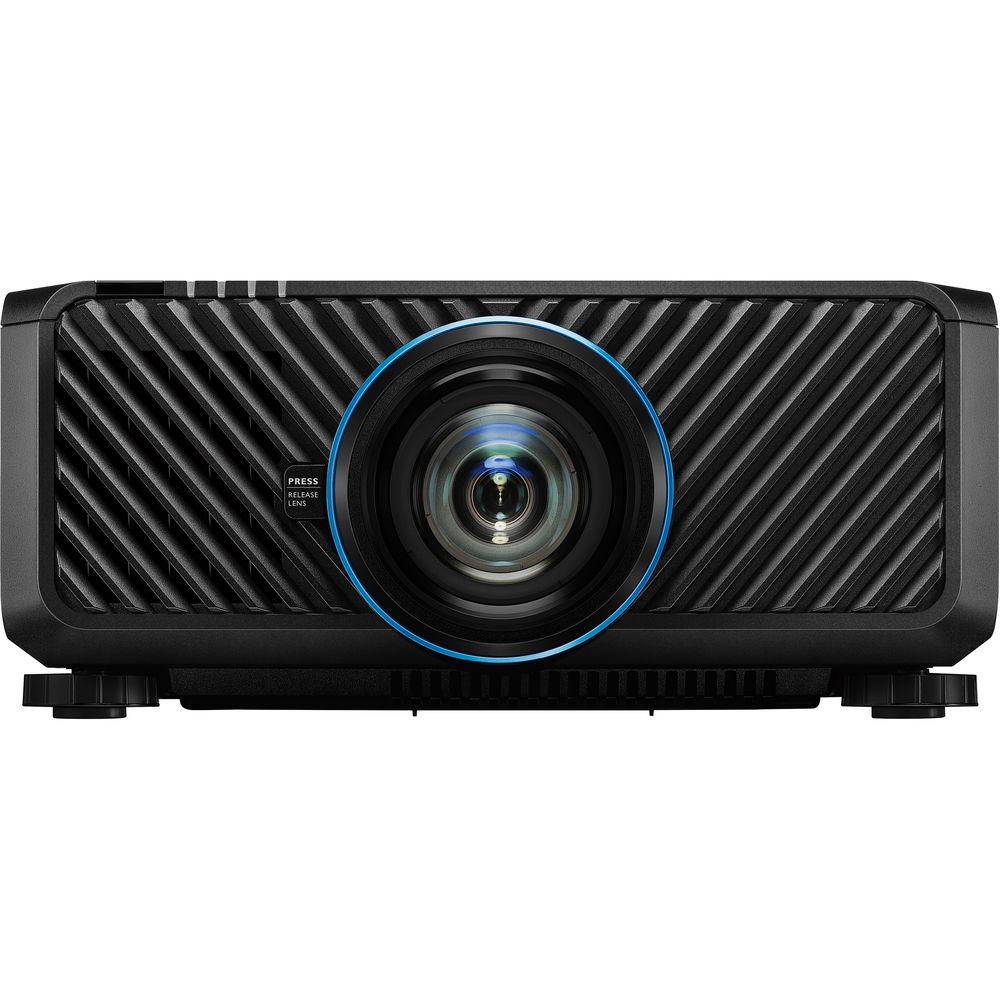

User Manual for BenQ LU9715 WUXGA 8000-Lumen DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ LU9715 WUXGA 8000-Lumen DLP Projector
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ LU9715 WUXGA 8000-Lumen DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description The LU9715 WUXGA 8000-Lumen DLP Projector from BenQ delivers 8000 ANSI lumens of brightness and 100,000:1 contrast ratio. It offers WUXGA native resolution (1920 x 1200) for detailed clarity when high-resolution images are projected. The Blue Core laser engine provides significantly improved color performance through a dual color wheel system, with support for 360° and portrait installations and 24/7 operation for expanded application opportunities. - WUXGA native resolution (1920 x 1200)

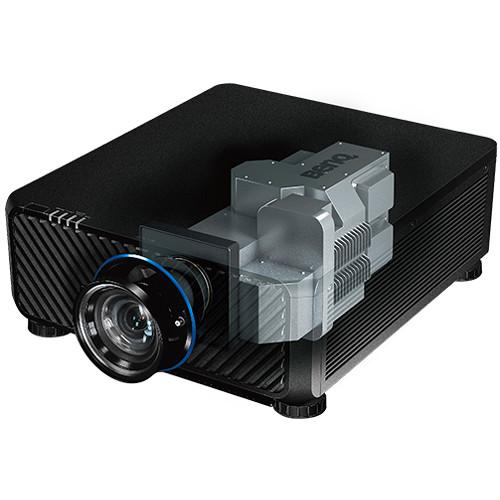

- Blue Core 1-chip DLP high brightness laser technology for large venue applications
- Produces RGBY colors and a wider range of color gamut
- Controls light output for quick response and clear images at a high contrast ratio of 100,000:1 with automatic brightness adjustments to retain clarity and subtle details in dark scenes and balance in bright scenes
- Blue Core laser light source offers up to 20,000 hours of lamp life
- 360° and portrait projection accommodate different spaces

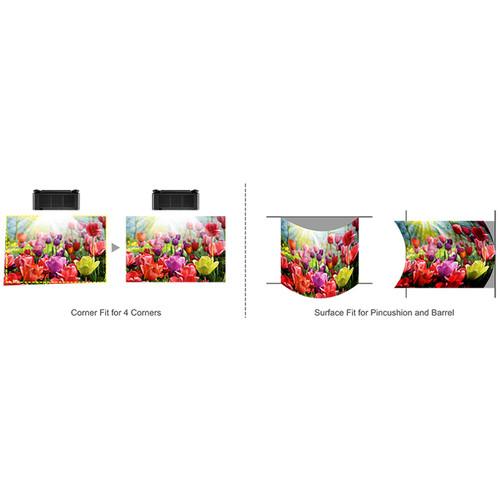

- Built-in edge blending and geometric correction
UPC: 840046033644 In the Box BenQ LU9715 WUXGA 8000-Lumen DLP Projector Remote Control without Battery Wired Remote Cable VGA (D-Sub 15-pin) Cable Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ LU9715 WUXGA 8000-Lumen DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ 9H.JEV77.26E Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | VGA - 640 x 480 | | Max Brightness | 8000 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 100000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 23 to 85 Hz | | | | Projection Size | 80 - 500" / 203.20 - 1270.00 cm | | | | Keystone Correction | Vertical: ± 30°

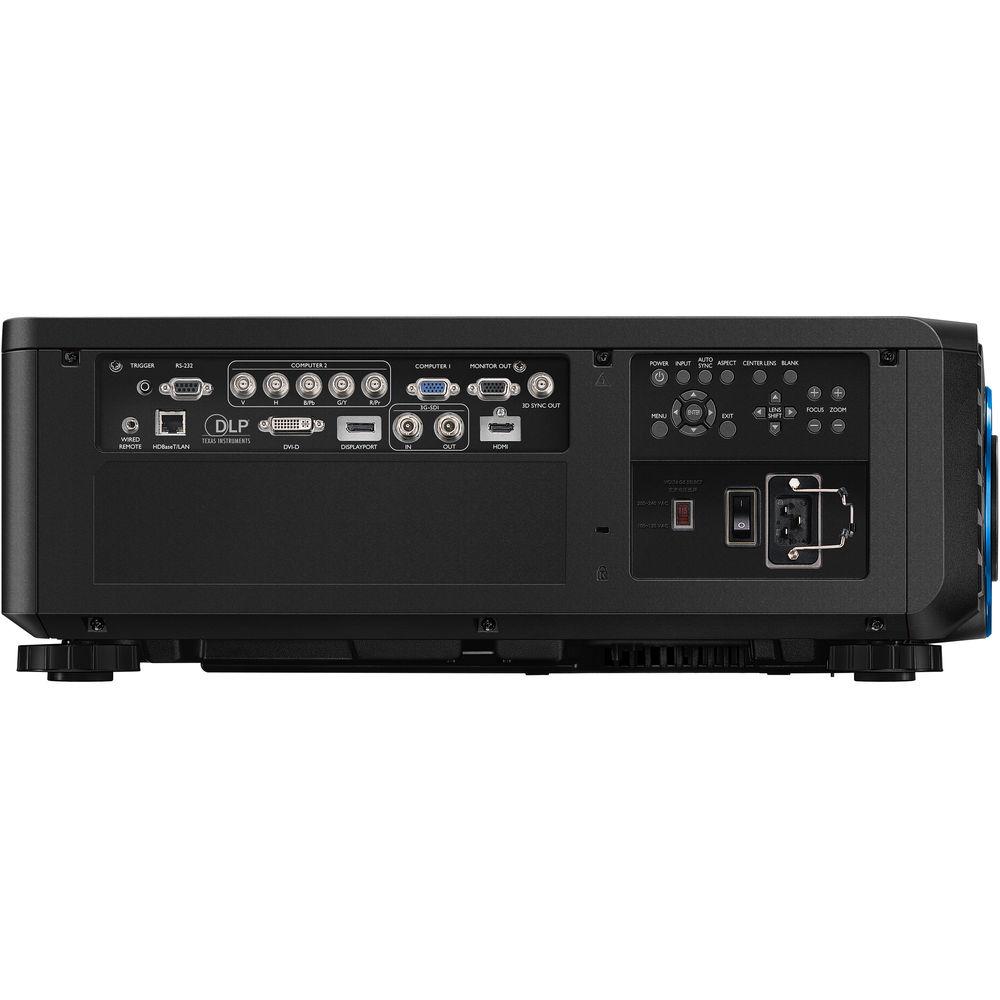

Horizontal: ± 30° | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x VGA (DE-15) Video (Output)
1 x HDMI Video
1 x DVI-D Video
1 x 3G-SDI (BNC) Video (Input/Output)
1 x DisplayPort Video (Input/Output)
1 x Ethernet (RJ45) LAN 1 x RS232 (DB-9-pin)
1 x 3D Syncx (Output)
1 x Wired Remote
2 x IR Receiver (Front & Rear) | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours
Low Brightness: 45,000 Hours | | Fan Noise | Medium Brightness: 40 dB
Low Brightness: 37 dB | | Supported Languages | Dutch
English
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish 12 languages | | Power Consumption | Medium Brightness: 885 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 19.7 x 8.3 x 23.0" / 500.0 x 211.0 x 583.0 mm |
