BenQ LX810STD 3000-Lumen XGA Short-Throw Laser

Search your instruction manual in PDF to download

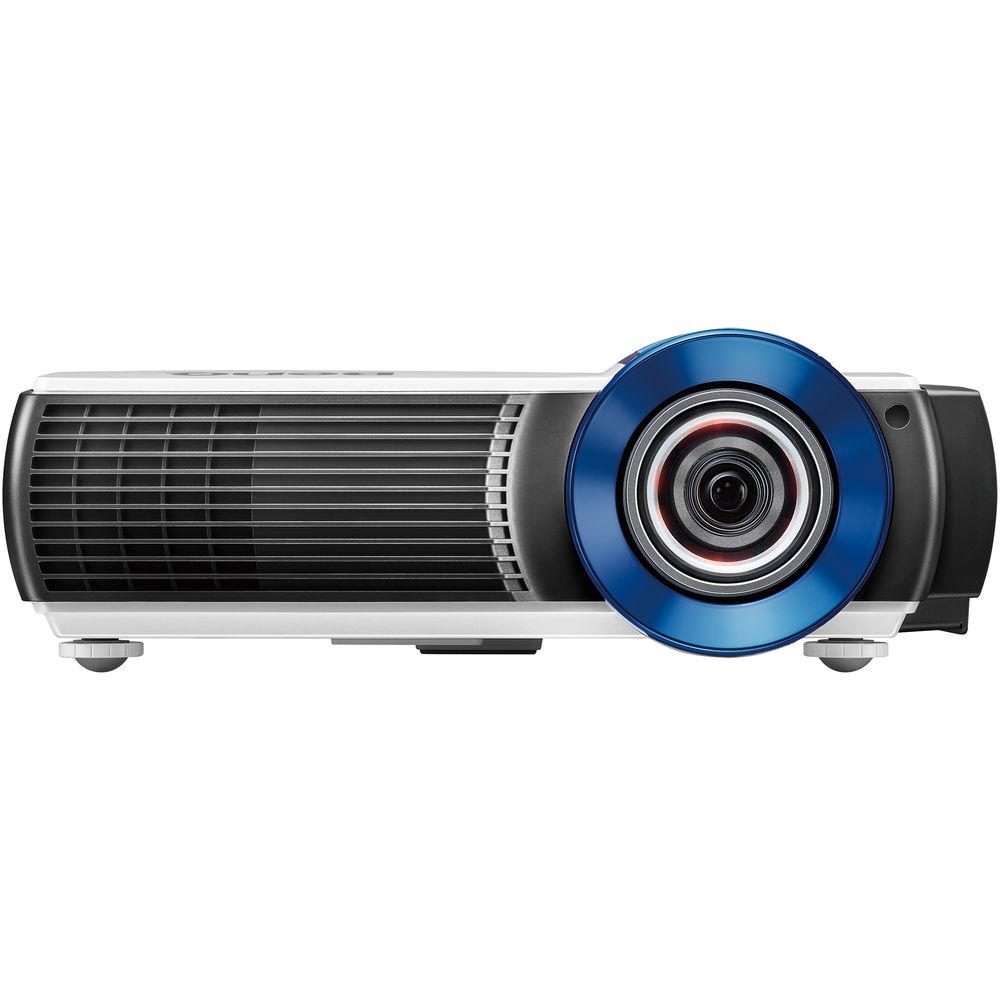

User Manual for BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector

Click to enlarge the picture
BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector Contents of the user manual for the BenQ LX810STD 3000-Lumen XGA Short-Throw Laser
  • Product category: Multimedia Projectors BenQ
  • Brand: BenQ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for BenQ Multimedia Projectors

BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector
User manual for the BenQ LX810STD 3000-Lumen XGA Short-Throw Laser contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any BenQ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!



Product description

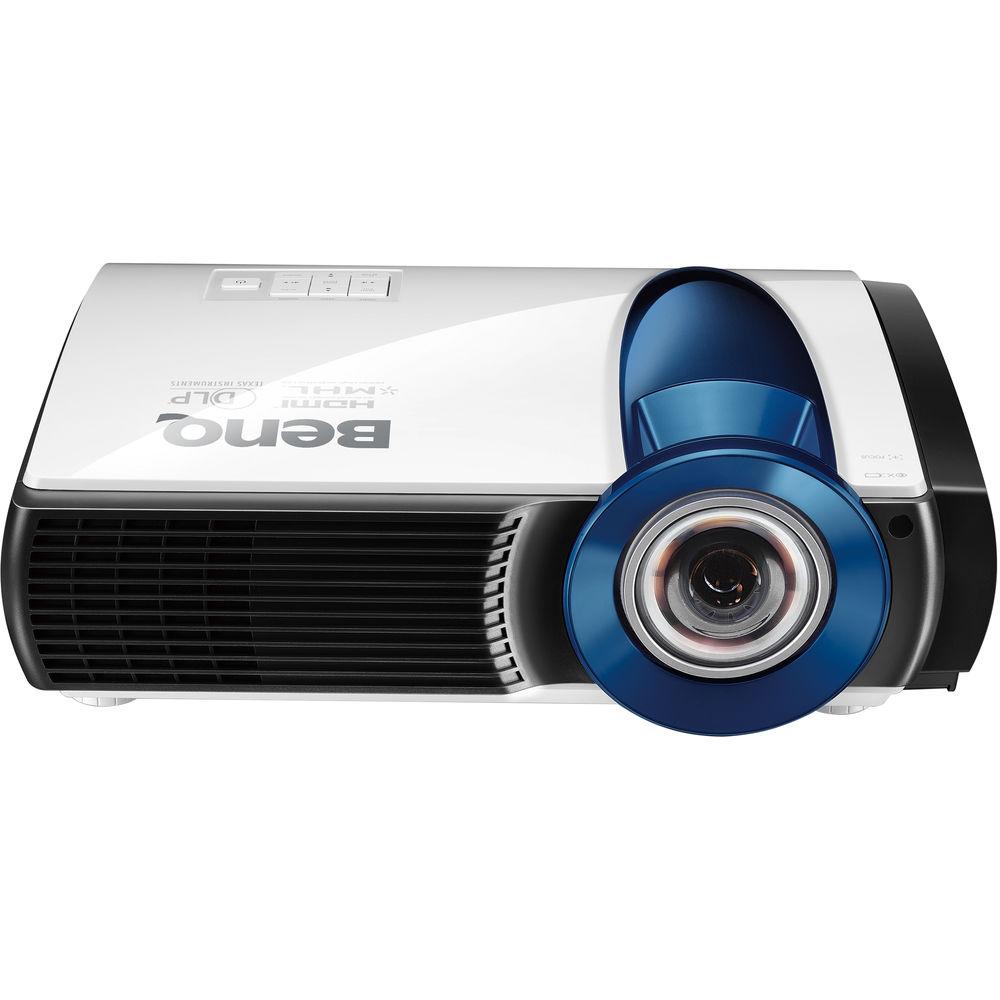

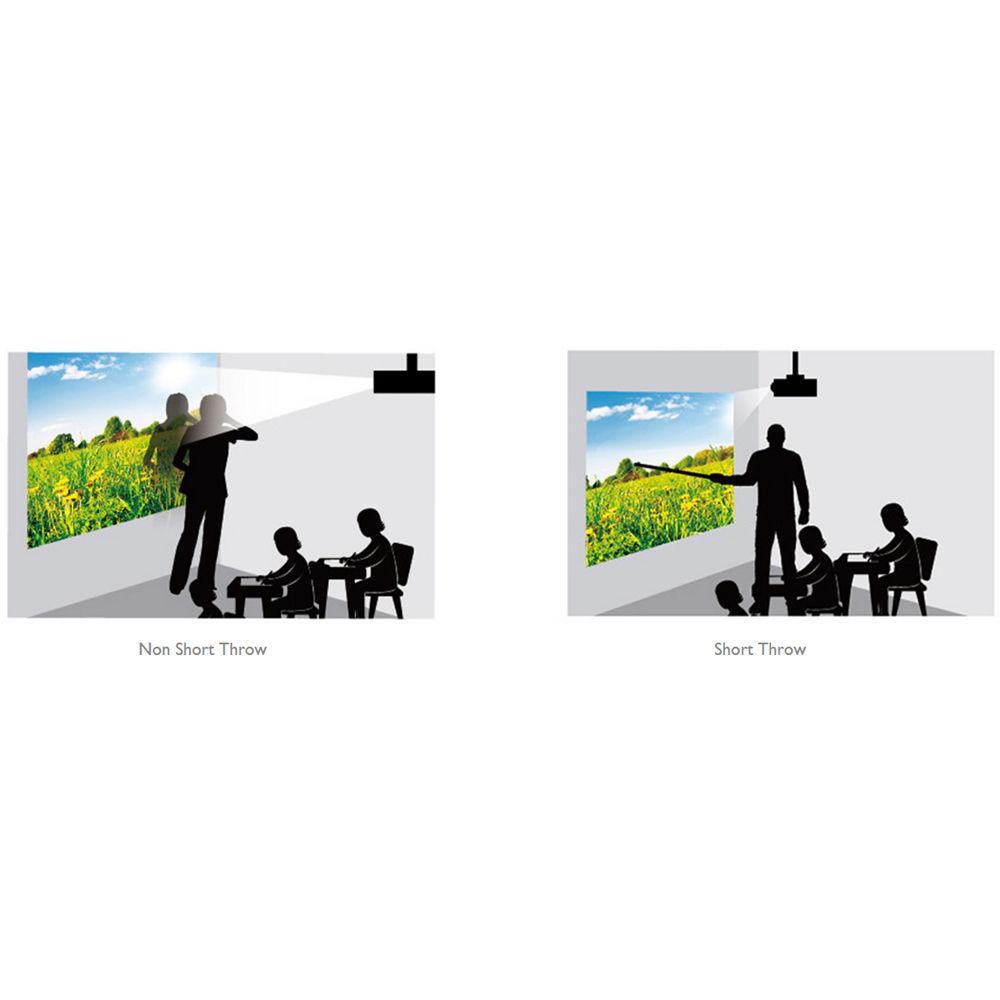

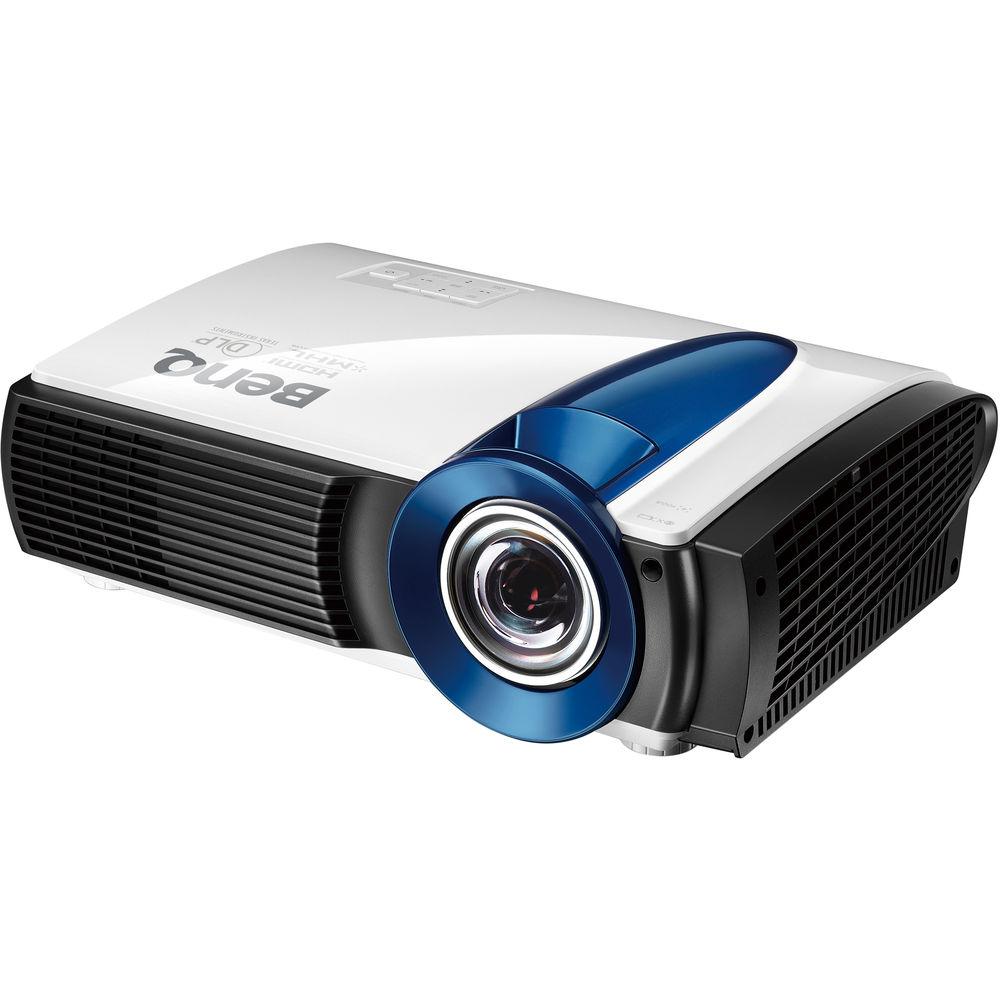

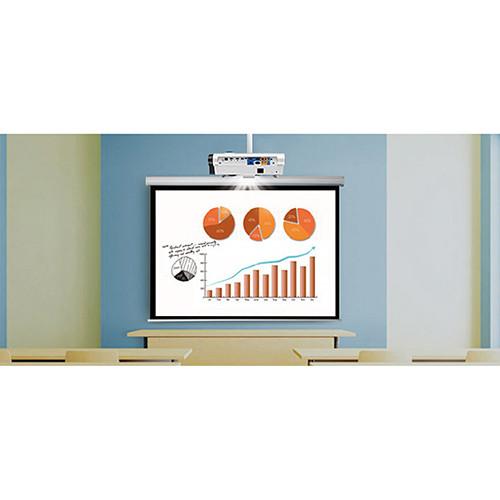

Enjoy engaging presentations with a reduced risk of shadows with the BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector. It features a short 0.61:1 throw ratio, which will allow you to place it near your screen or other display surface, reducing the likelihood of someone passing in front of it and casting a shadow. Its 3000 lumens of brightness combined with its 100,000:1 dynamic contrast ratio and 1024 x 768 native resolution will help ensure clear images even in rooms with ambient light.

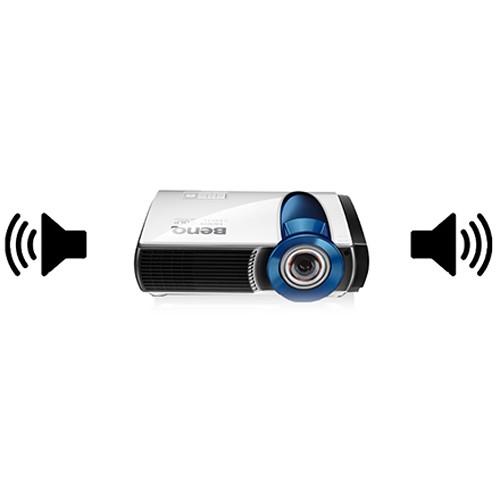

The LX810STD has S-video, composite video, two VGA, and two HDMI inputs to support a variety of types of source devices. Its VGA output lets you daisy-chain multiple projectors or displays together so you can present the same thing in multiple areas, and the analog audio input and output and integrated dual 10W speakers enable sound to accompany your presentations. As an added convenience, this projector is compatible with BenQ's PointWrite system, which is an optional add-on that provides a number of interactive features. The LX810STD includes a VGA cable and IR remote control.

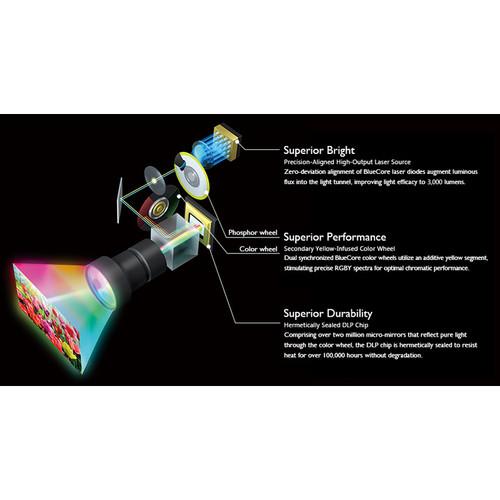

    Blue Core Laser for Augmented Color
  • To harness the output of the laser light source, BenQ utilized dual color wheels for Blue Core Laser projectors to enhance the RGBY colors achieved by eliminating the white segment of single color wheels. Through a mixture of the red, green, blue, and yellow color segments, the LX810STD is designed to produce brilliant color with a wider color gamut for efficient, enhanced color precision and white brightness.
    Enhanced Brightness
  • The laser light source is engineered to be precisely aligned, augmenting luminous flux into the light tunnel, enhancing light efficiency.
    Fashioned for Enhanced Durability
  • Comprising over two million micro-mirrors that reflect light through the color wheel, the DLP chip is hermetically sealed to resist heat for approximately 100,000 hours without degradation.
In the Box BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector
  • Remote Control with Battery
  • Power Cord
  • VGA Cable
  • Limited 1-Year Warranty on Projector
  • Limited 90-Day or 500-Hour Warranty on Lamp, Whichever Comes First
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the BenQ LX810STD 3000-Lumen XGA Short-Throw Laser DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BenQ LX810STD Specs

    Display System 1-Chip DLP
    Native Chip Resolution 1024 x 768 (XGA)
    Supported Resolutions Minimum: VGA - 640 x 480
    Maximum: WUXGA - 1920 x 1200
    Max Brightness 3000 Lumens
    Offset 115% ± 2.5%
    Aspect Ratio Native: 4:3
    Dynamic Contrast Ratio 100,000:1
    DLP Link 3D None
    Color Depth 10-Bit (1.07 Billion Colors)
    Scan Horizontal: 15 to 102 kHz
    Vertical: 23 to 120 Hz
    Focus Manual
    Lens f/2.6 (f = 6.9 mm)
    Lens Shift None
    Optical Zoom None
    Throw Ratio 0.61:1 (78" @ .96 m)
    Projection Size 60 - 120" / 152.40 - 304.80 cm
    Keystone Correction Vertical: ± 40°
    Ceiling Mountable Yes
    Built-In Speaker Yes (Stereo)
    Speaker Power 20W

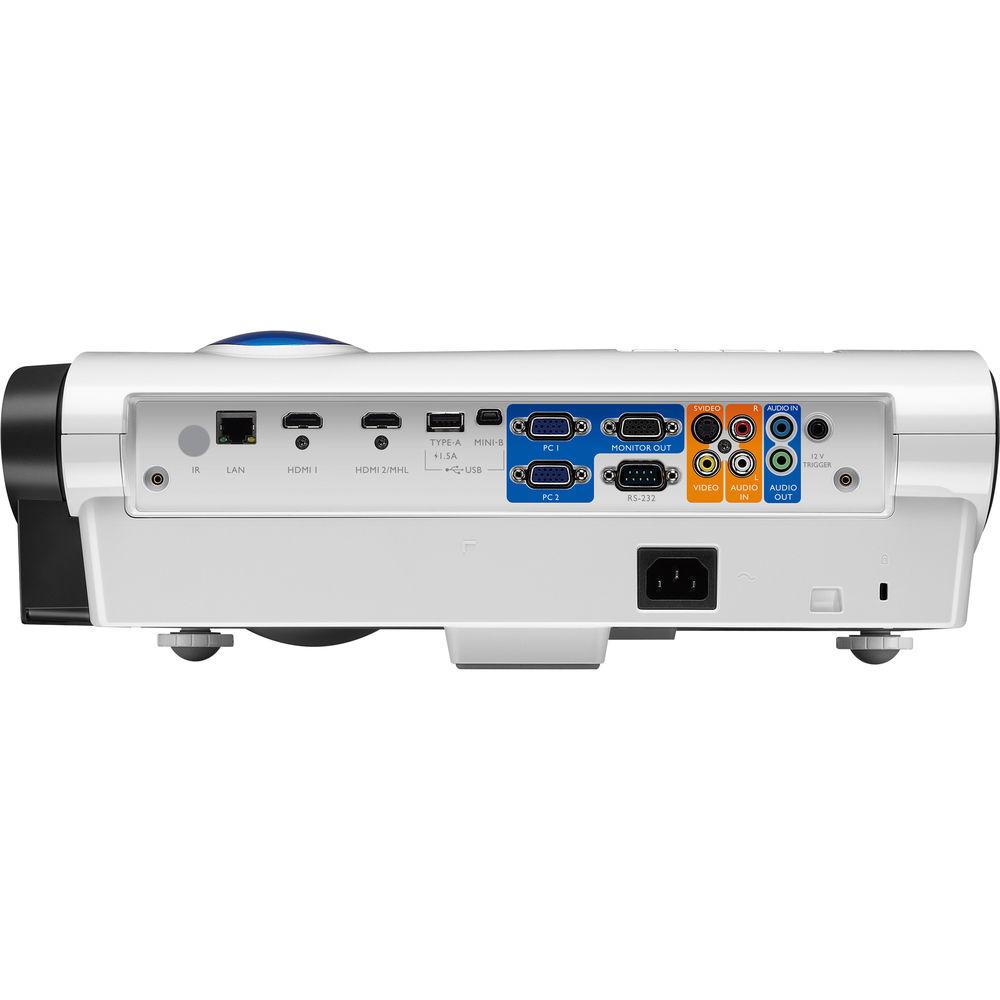

    Inputs/Outputs 2 x HDMI Audio/Video (Input)
    2 x VGA (DE-15) Video (Input)
    1 x S-Video (4-Pin DIN) Video (Input)
    1 x Composite (RCA) Video (Input)
    1 x RCA Stereo (L/R) Audio (Input)
    1 x 1/8" (3.5 mm) Mini Audio (Input)
    1 x VGA (DE-15) Video (Output)
    1 x 1/8" (3.5 mm) Mini Audio (Output)
    1 x Ethernet (RJ45) LAN (Input)
    1 x USB Type-B Female (Input)
    1 x USB Power (Output)
    1 x RS-232C (Unspecified Connector) Control (Input)
    1 x 12 V Trigger Control (Output)
    Light Source Laser Phosphor
    Expected Lamp Life Medium Brightness: 20,000 Hours
    Low Brightness: 25,000 Hours
    Fan Noise Medium Brightness: 39 dB
    Low Brightness: 36 dB
    Security None
    Supported Languages Arabic
    Bulgarian
    Croatian
    Czech
    Dutch
    English
    Finnish
    French
    German
    Greek
    Hindi
    Hungarian
    Indonesian
    Italian
    Japanese
    Korean
    Norwegian
    Polish
    Portuguese
    Romanian
    Russian
    Simplified Chinese
    Spanish
    Swedish
    Thai
    Traditional Chinese
    Turkish
    AC Input Power 120 to 240 VAC, 50 / 60 Hz
    Power Consumption Full Brightness: 305 W
    Standby Mode (Lamp Off): <0.5 W
    Dimensions (W x H x D) 16.4 x 5.9 x 11.7" / 416.0 x 150.0 x 298.0 mm Including adjustment foot and filter
    Weight 12.35 lb / 5.6 kg Projector only
    Package Weight 17.3 lb
    Box Dimensions (LxWxH) 19.2 x 15.7 x 11.6"
