User Manual for BenQ MH535FHD 3600-Lumen Full HD DLP Home Theater Projector Click to enlarge the picture
Contents of the user manual for the BenQ MH535FHD 3600-Lumen Full HD DLP
- Product category: Home Theater Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Home Theater Projectors
 |
User manual for the BenQ MH535FHD 3600-Lumen Full HD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

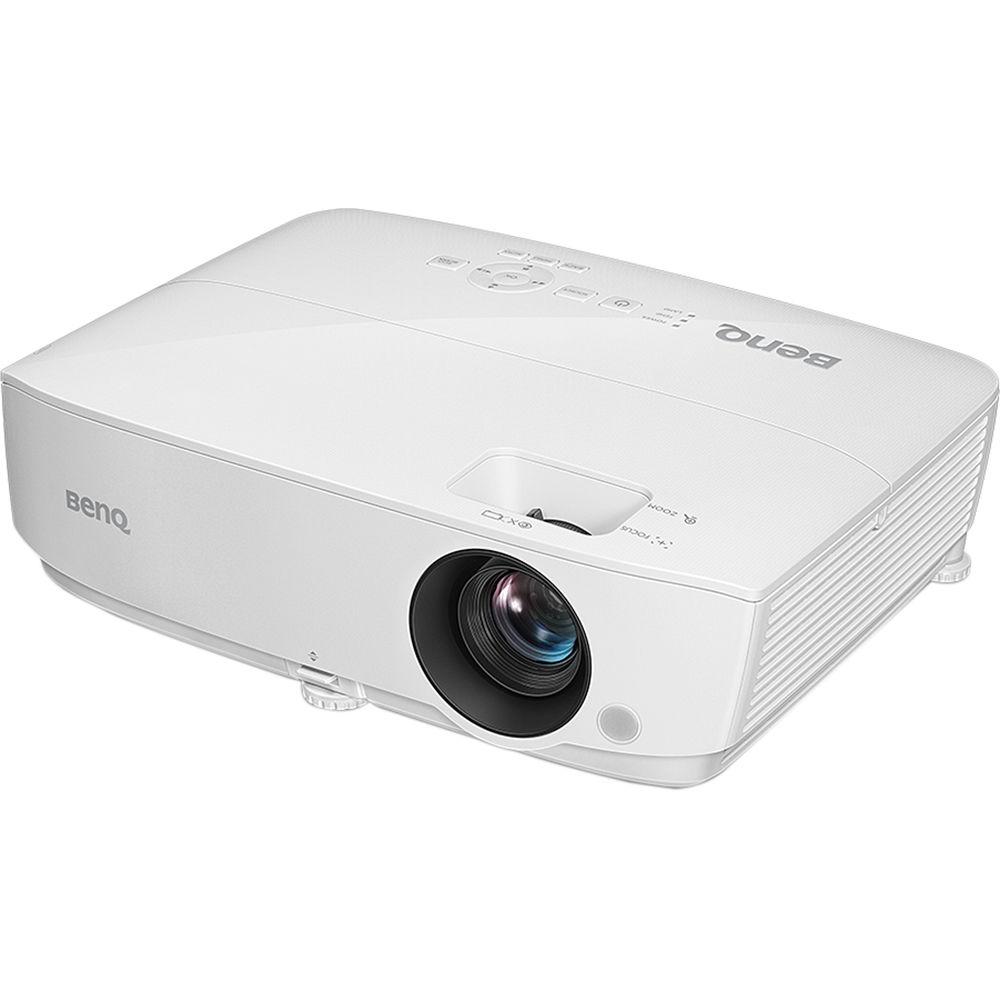

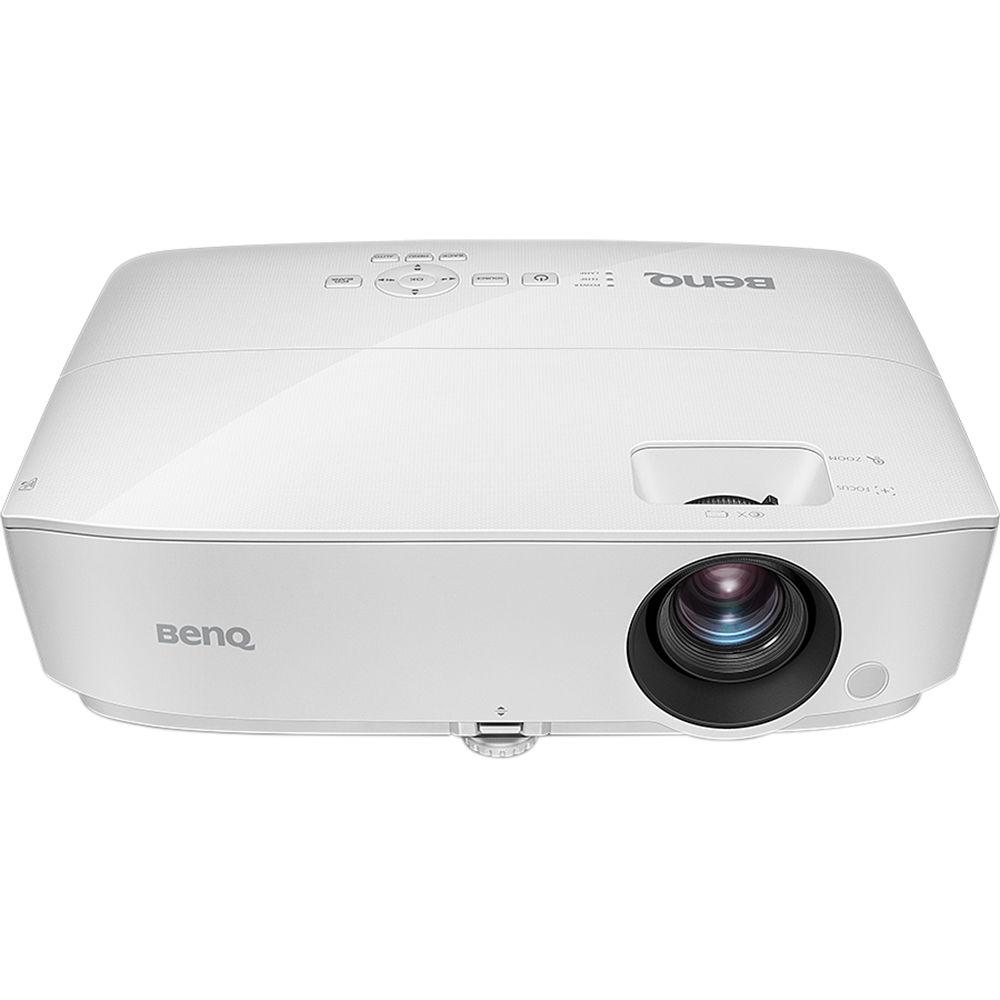

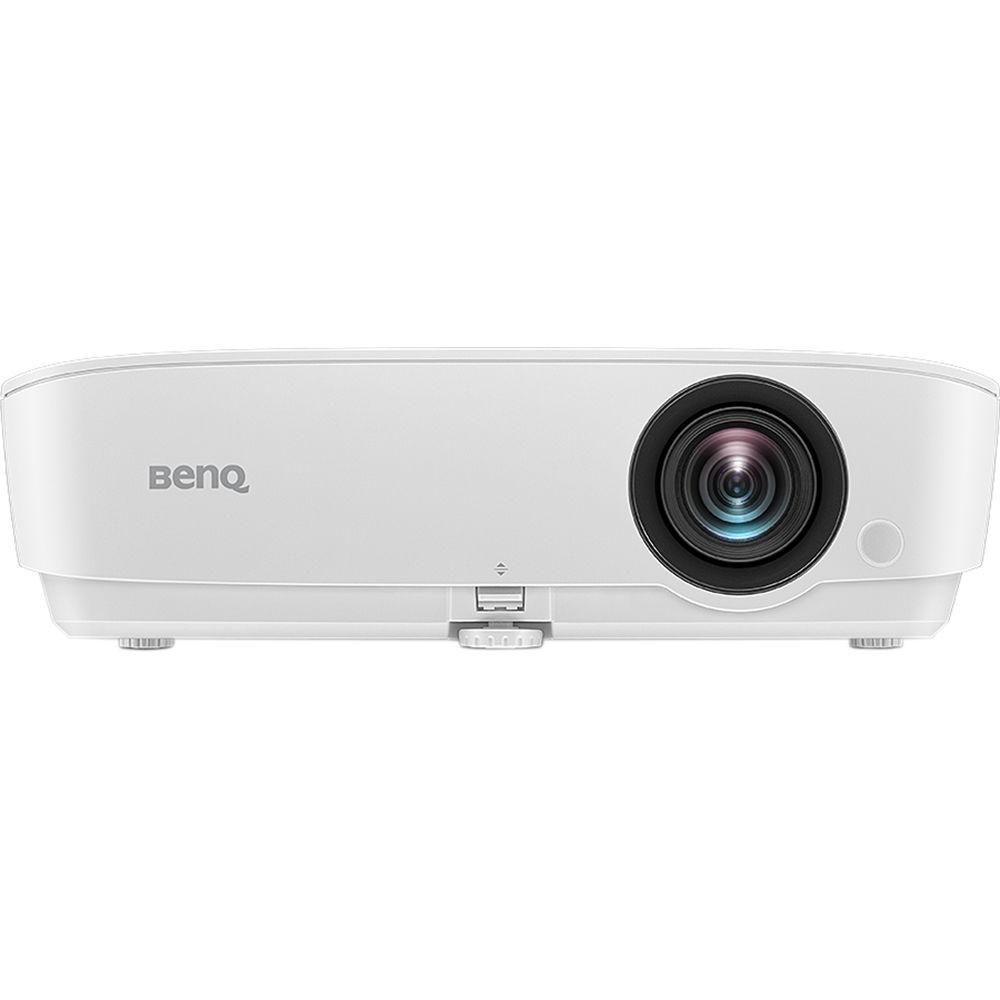

Product description Buying Guide to Projectors Read More Enjoy movies and presentations in nearly any environment with the BenQ MH535FHD 3600-Lumen Full HD DLP Home Theater Projector. Its 3600 lumens of brightness will overcome ambient light in many situations, while its 15,000:1 dynamic contrast ratio will help keep images and text clear and distinct. Its 1.37 to 1.64:1 throw ratio and 1.2x zoom offer a range of installation options.
The MH535FHD has RCA composite, two VGA, and two HDMI inputs to support various types of video sources. Its VGA output will allow you to daisy-chain multiple projectors or displays to allow them to show the same video source. A built-in 2W speaker eliminates the need for a separate speaker system, but the projector also features an 1/8" audio output to connect external speakers. It is controllable via USB and RS-232, and includes a VGA cable and IR remote control. - 3600 Lumens of Brightness for Clear Images
- The 3600-lumen brightness helps provide comfortable lights-on presentations in well-lit theater and meeting rooms. The high luminance boosts picture quality with enhanced color for pictures and videos, as well as crisp text and details.
- 15,000:1 Dynamic Contrast Ratio for Enhanced Detail
- The projector's 15,000:1 dynamic contrast ratio, enabled by DLP technology and an all-glass optical lens system, helps deliver augmented clarity, smooth gradational mid-tone color transitions, and sharp readability.
- Full HD Resolution for Expanded Viewing
- The 1080p native resolution helps provide enhanced detail in both video and presentation media.
- Dual HDMI and VGA Inputs
- Dual HDMI inputs, in addition to dual VGA inputs, help provide simple, quick connection to your source devices.
- Vertical Keystone Correction for Aligned Images
- Countering the trapezoid effect when the projector must be placed off-center, such as placement on top of a table, the vertical keystone function adjusts the image for a squared-off image. Keystone correction makes it simple to project aligned images from a variety of locations.
- Adjustable Feet
- The projector's triple adjustment feet help enhance flexibility in a variety of meeting rooms, with the additional feet placed at the corners of the projector to facilitate easy movement.
- One-Touch Access to Installation Functions

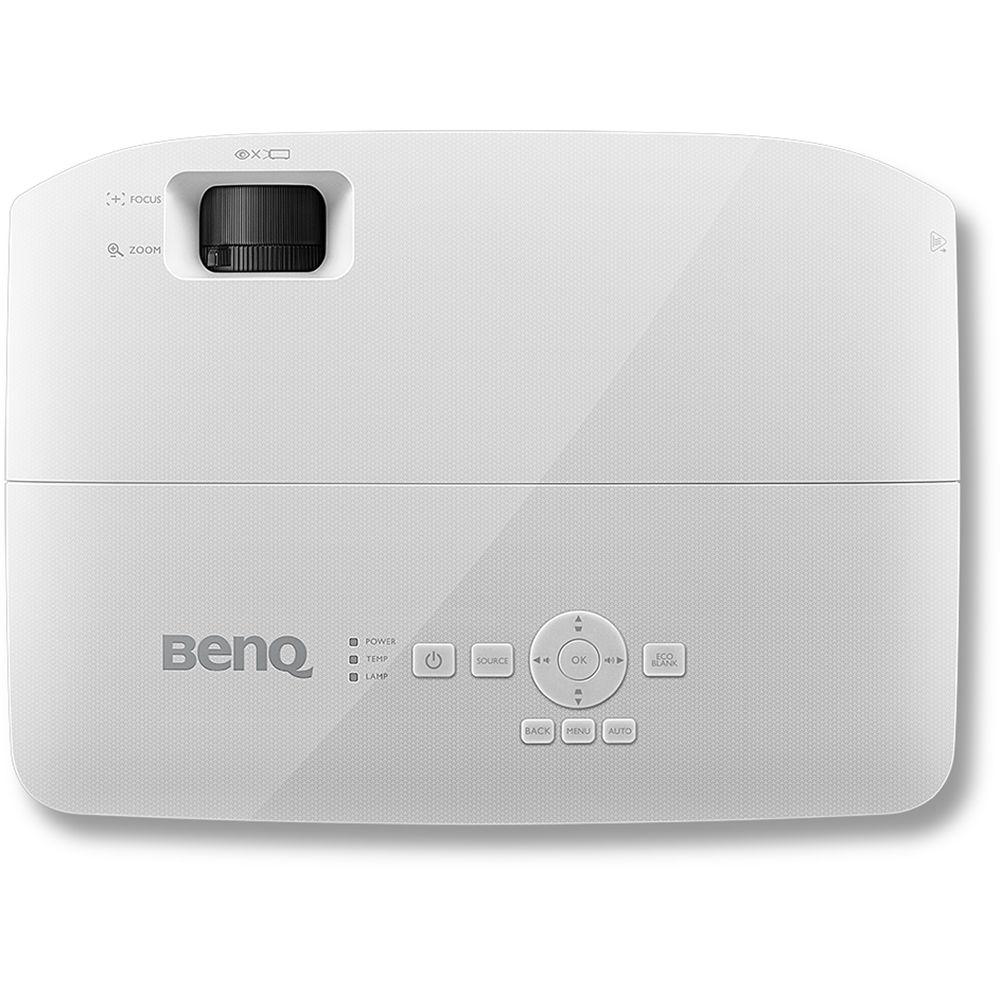

- The included remote control features a dedicated Quick Install button, which instantly accesses installation-friendly functions such as Test Pattern and Keystone directly without having to dig through an on-screen menu.
- Top Lamp Door for Efficient Replacement
- Located on top of the projector, an easy-to-open lamp door allows for fast lamp access, maintenance, and replacement for virtually uninterrupted productivity, whether the projector is placed on a table-top or ceiling-mounted. The lamp door helps reduce downtime by eliminating the need to uninstall mounted projectors, expediting lamp changes.
- SmartEco Mode
- Detecting the input content to determine the amount of brightness required for optimum color and contrast performance, SmartEco Mode reduces lamp power by up to 70% while delivering suitable image quality.
- Eco Blank Mode
- Automatically enabled when the projector is turned on for over three minutes without a display source, Eco Blank Mode helps eliminate unnecessary energy waste and prolong the life of the projector lamp.
- Auto Power Off
- The MH535FHD powers down after 20 minutes of inactivity to help reduce energy waste and concerns of leaving the equipment on.
UPC: 840046040451 In the Box BenQ MH535FHD 3600-Lumen Full HD DLP Home Theater Projector Remote Control with Battery VGA Cable Power Cord Limited 3-Year Warranty on Projector More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MH535FHD 3600-Lumen Full HD DLP Home Theater Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MH535FHD Specs | | | Display System | DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3600 Lumens | | Offset | 107% ± 5% | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 15,000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 15 to 102 kHz

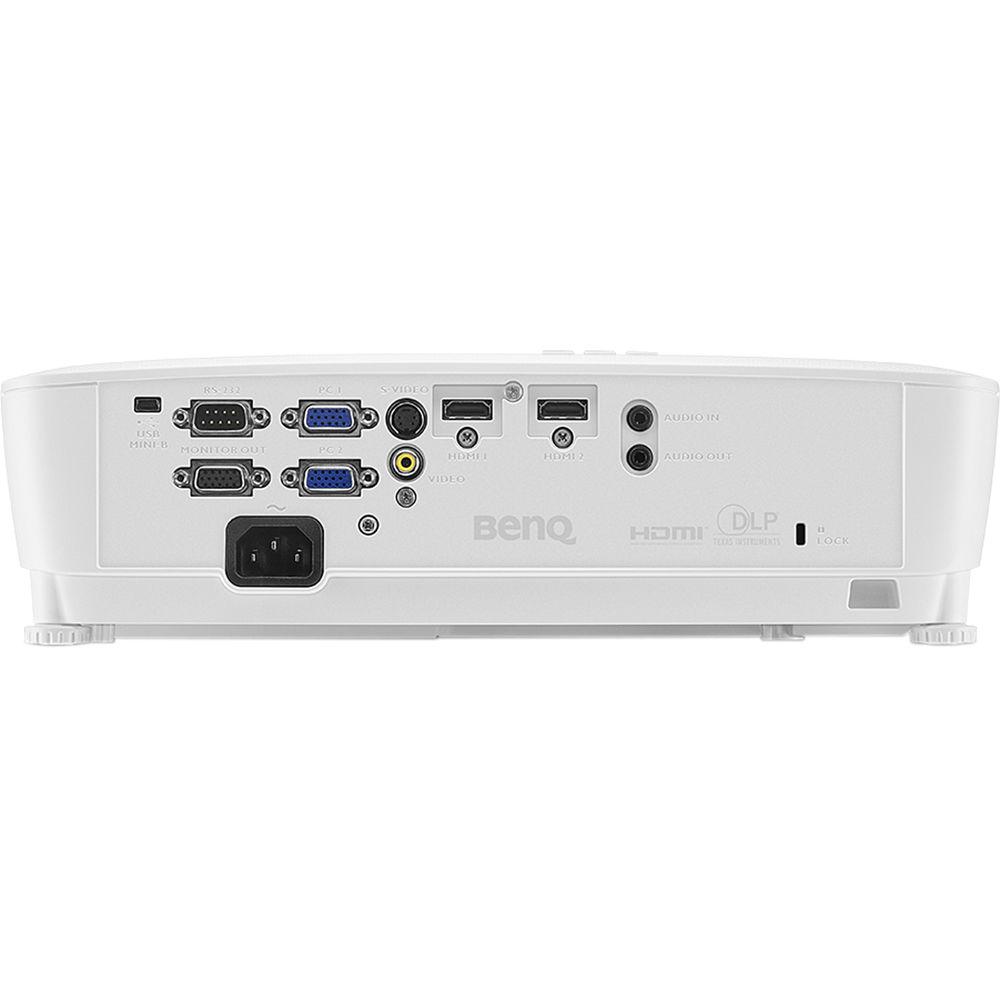

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Lens | f/2.47 - 2.66 (f = 20.4 - 24.48 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 2.89 - 40.138' / 0.881 - 12.234 m | | Throw Ratio | 1.37 - 1.64:1 (60" @ 1.82 m) | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x USB 2.0 (Mini-USB) Control Output
1 x RS-232 (DE-9) Control | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 203 W | | Expected Lamp Life | Full Brightness: 4500 Hours
Medium Brightness: 6000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 32 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Security Bar | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 252 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 - 90% | | Storage Humidity | 10 - 90% | | Dimensions (W x H x D) | 13.1 x 3.9 x 9.5" / 332.4 x 99.0 x 241.3 mm | | Weight | 5.33 lb / 2.42 kg | | | | Package Weight | 8.025 lb | | Box Dimensions (LxWxH) | 16.6 x 13.4 x 5.9" |
