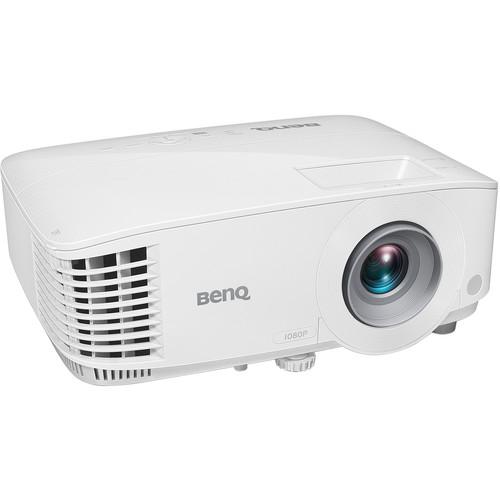

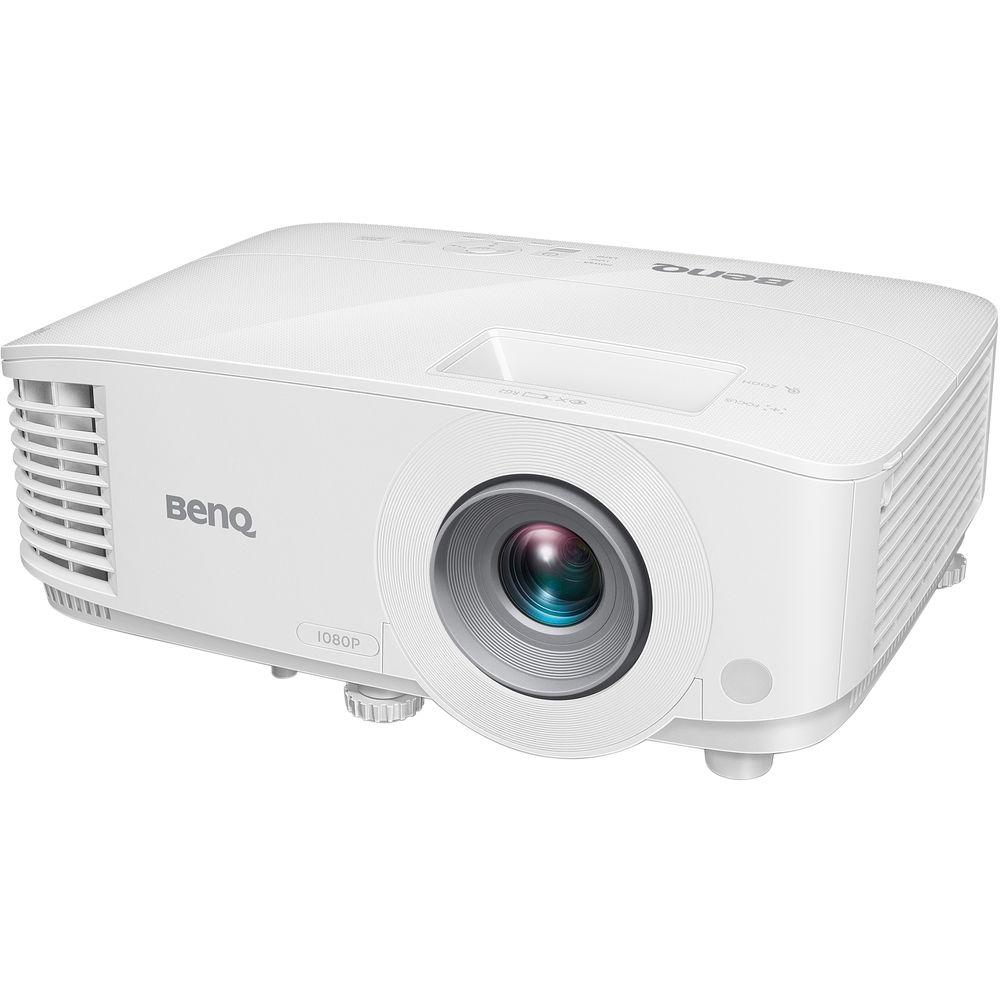

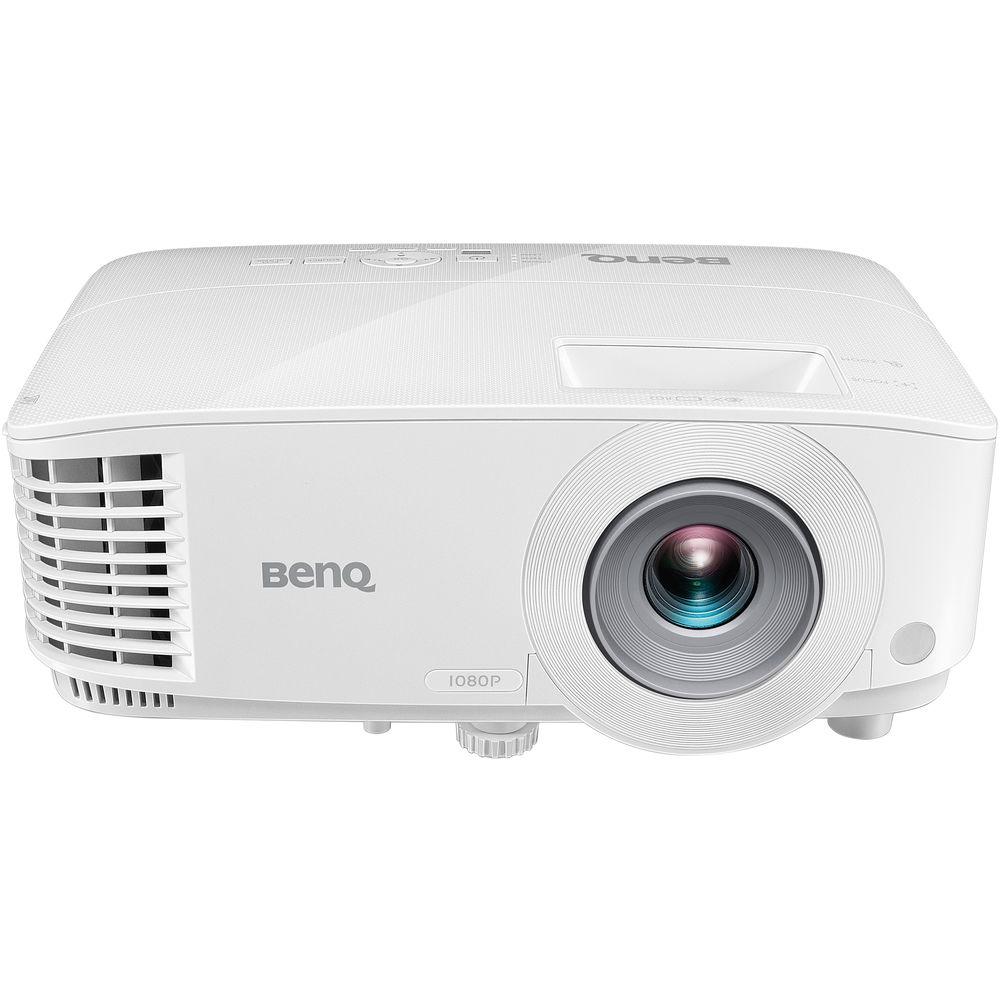

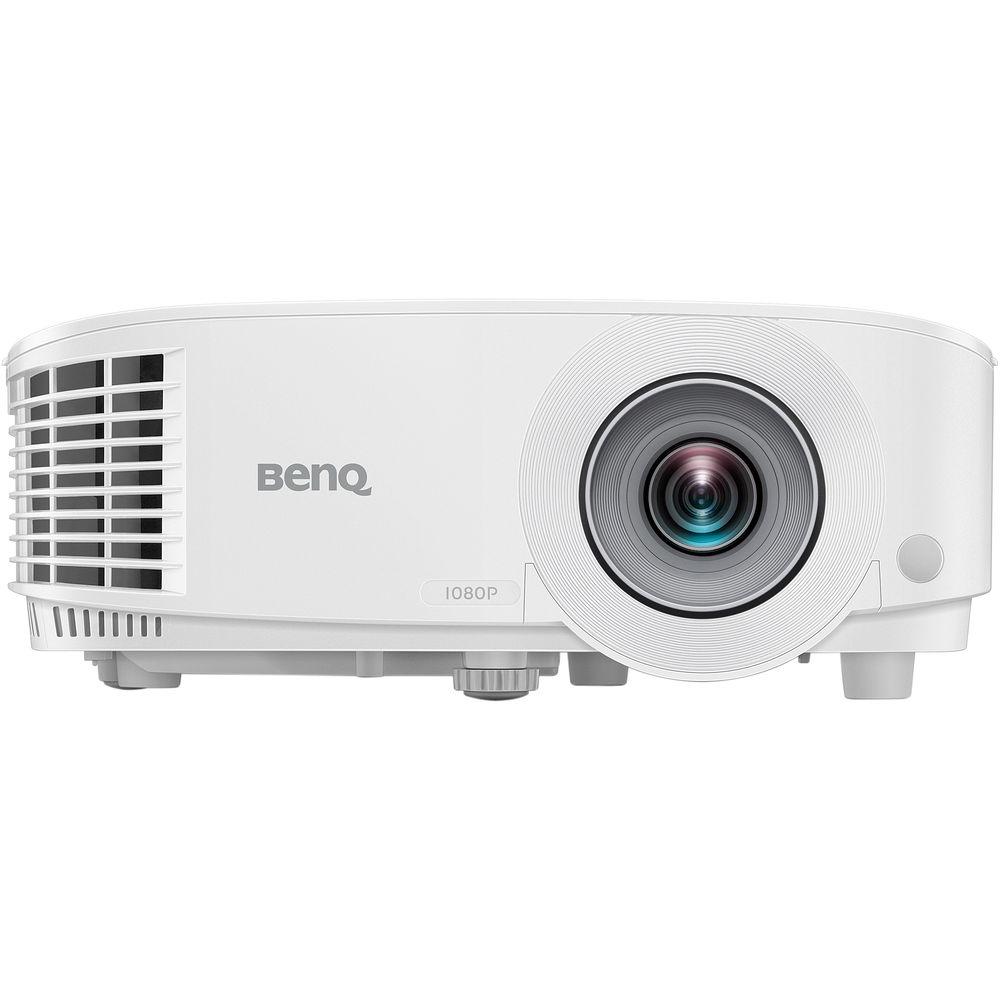

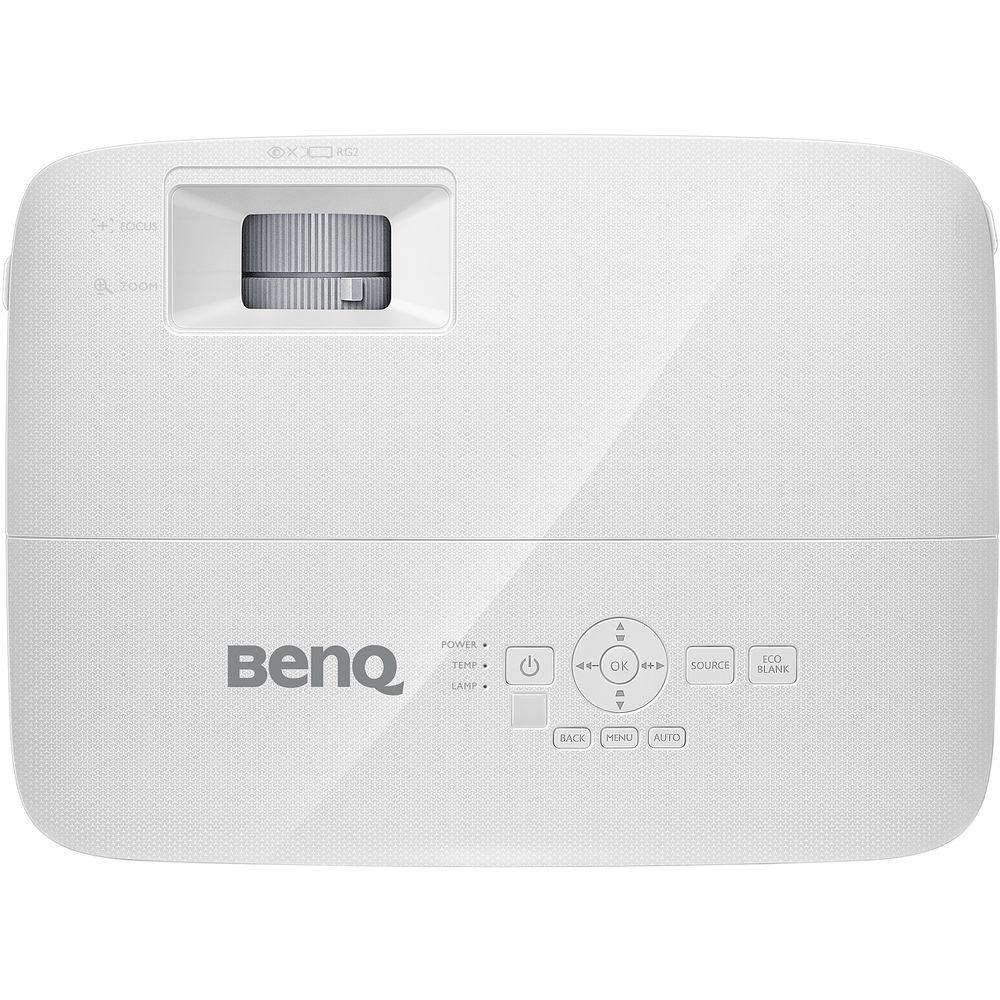

User Manual for BenQ MH733 4000-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MH733 4000-Lumen Full HD DLP
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MH733 4000-Lumen Full HD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description Present in nearly any environment with the BenQ MH733 4000-Lumen Full HD DLP Projector. Its 4000 lumens of brightness overcomes ambient light in many situations, while its 16,000:1 dynamic contrast ratio helps keep images and text clear and distinct. Its 1.15 to 1.5:1 throw ratio and 1.3x zoom provide a range of installation options.
The MH733 has one VGA and two HDMI inputs to support both analog and digital video sources. One HDMI input is MHL-compatible for wired mirroring of your favorite smart device. Its VGA output allows you to daisy-chain multiple projectors or displays to show the same video source. A built-in 10W speaker eliminates the need for a separate speaker system, but the projector also features an 1/8" audio output to connect external speakers. It is controllable via Ethernet or RS-232 and includes a VGA cable and IR remote control. - Clarity in Ambient Light Environments
- The 4000-lumen brightness of the MH733 allows you to conduct your presentations in comfortably lit medium-sized conference rooms without compromising debates, collaborations, note-taking and interactions, enhancing productivity without sacrificing image quality.
- Full HD Resolution for Clear Images
- With Full HD (1920 x 1080) native resolution, the MH733 offers augmented detail, readability, and display capacity for your presentations.

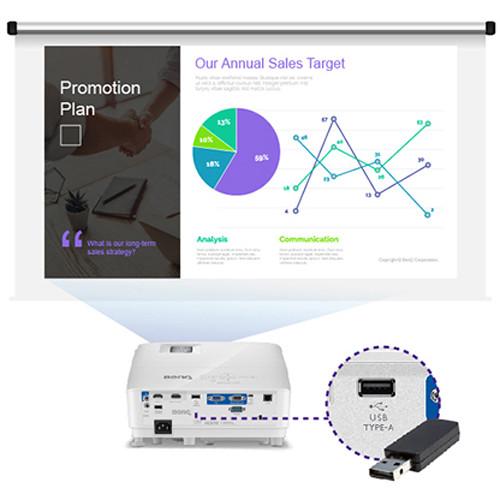

- USB Reader for Computer-Less Presentation
- Supporting a range of file types, including JPEG, PDF, Microsoft Word, Excel, and PowerPoint files, the MH733's USB port lets you project images or documents directly without a laptop.
- Image Calibration for Aligned Projection
- The MH733 is equipped with a two-dimensional keystone range of ±30° on the horizontal axis and ±20° on the vertical axis to counteract the trapezoid effect when the projector is installed off-center. Corner Fit allows you to adjust each corner independently to achieve the desired image geometry.
- Control System Compatibility

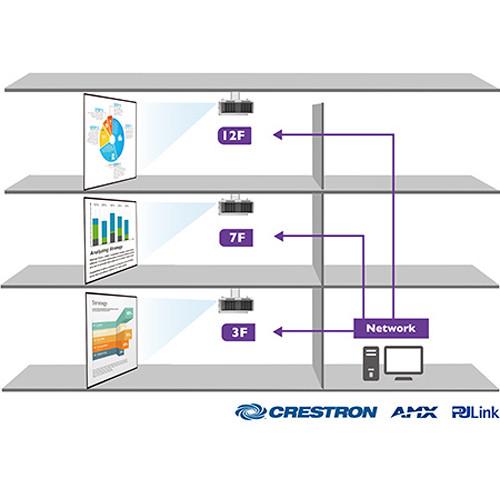

- The MH733 is compatible with popular control systems, including Crestron, AMX, PJ Link, and Extron IP Link for network control via your LAN, simplifying integration into corporate network infrastructures. The projector also supports RS-232 for long-distance installation up to 49.2' when there is no LAN available.
- Split-Screen Projection and Meeting Control
- The MH733 allows projection from up to four different computers or smart devices via the QCast app, enabling more ideas to be shared effectively.
- Centralized Control of Multiple Projectors with BenQ MDA Software
- BenQ Multiple Display Administrator (MDA) software provides centralized multiple-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.
- 1-to-1 Direct Projector Control via a Web Browser
- The MH733 features a setting that allows IT managers to remotely control any specific projector on the network through a web browser without having to physically visit the meeting room, saving time and effort.
- LampSave Mode
- LampSave Mode adjusts lamp power dynamically according to the displayed content to extend projector lamp life up to 50% compared to normal mode, lowering the total cost of ownership.
- Designed to Last Long
- The micro-mirrors of the DLP chip and the nearly-sealed DLP engine design help this projector last without any loss in picture quality.
- Network Presentation Through the QCast App
- When the MH733 is installed on a LAN and paired with a device running the QCast app, you can directly present a number of file types. The app also lets you mirror your computer or Android 5.0 or higher device.
- Live Internet Connectivity via the QCast App
- QCast adds Internet connectivity to the MH733, allowing you to browse the Internet whenever you need to search and share information during your presentation.
- Remote Control with the QCast App
- The QCast app also provides remote control functionality with buttons that are designed to be easy to read to control the projector while it is ceiling mounted or if the original remote control is not available.
- Wireless Presentation with the Optional WDRT8192 Adapter
- The separately sold WRDT8192 wireless adapter adds Wi-Fi connectivity to the MH733, allowing you to cast from your device to the projector wirelessly.
UPC: 840046037307 In the Box BenQ MH733 4000-Lumen Full HD DLP Projector Remote Control 2 x AAA Batteries VGA Cable Power Cord Limited 1-Year Warranty on Projector Limited 90-Day or 500-Hour Warranty on Lamp More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MH733 4000-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MH733 Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 4000 Lumens | | Offset | 105% ± 2.5% vertical | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 16,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.3x | | Throw Ratio | 1.15 - 1.5:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

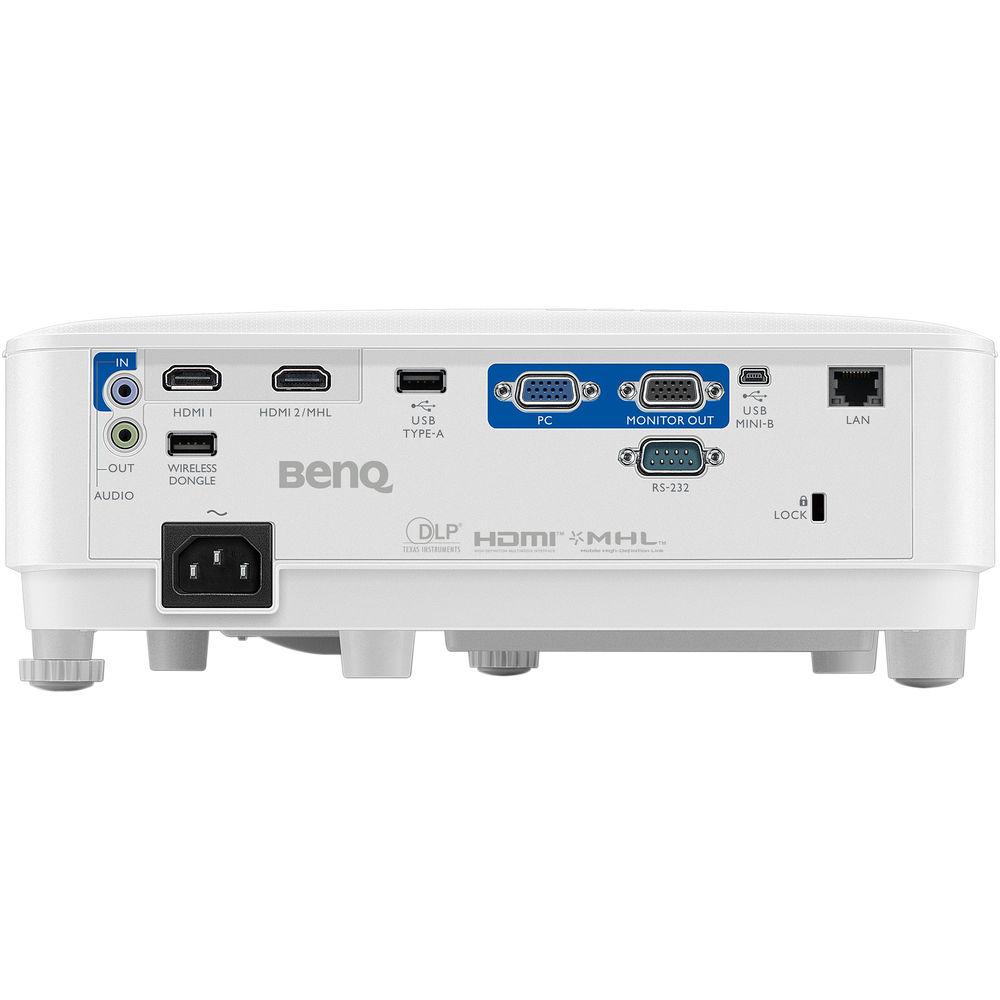

Manual-Horizontal: ± 20° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Audio/Video (Input)
1 x Proprietary Type-A Female (Input)
1 x USB Type-B Female (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 8000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 33 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Security Bar | | Supported Document File Types | DOC, PDF, PPT, XLS | | Supported Photo File Types | JPEG | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 355 W
Medium Brightness: 320 W
Low Brightness: 240 W
Standby Mode (Lamp Off): <2 W | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Storage Humidity | 10 - 90% | | Dimensions (W x H x D) | 11.7 x 4.7 x 8.7" / 296.0 x 120.0 x 221.0 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 16.0 x 13.3 x 6.6" |
