User Manual for BenQ MH760 5000-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MH760 5000-Lumen Full HD DLP
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MH760 5000-Lumen Full HD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description Show your presentations in nearly any environment with the BenQ MH760 5000-Lumen Full HD DLP Projector. Its 5000 lumens of brightness will overcome ambient light in most situations, while its 3000:1 contrast ratio will help keep images and text clear and distinct. Its 1.15 to 1.5:1 throw ratio and 1.3x zoom, along with vertical lens shift and keystone correction, offer a range of installation options.

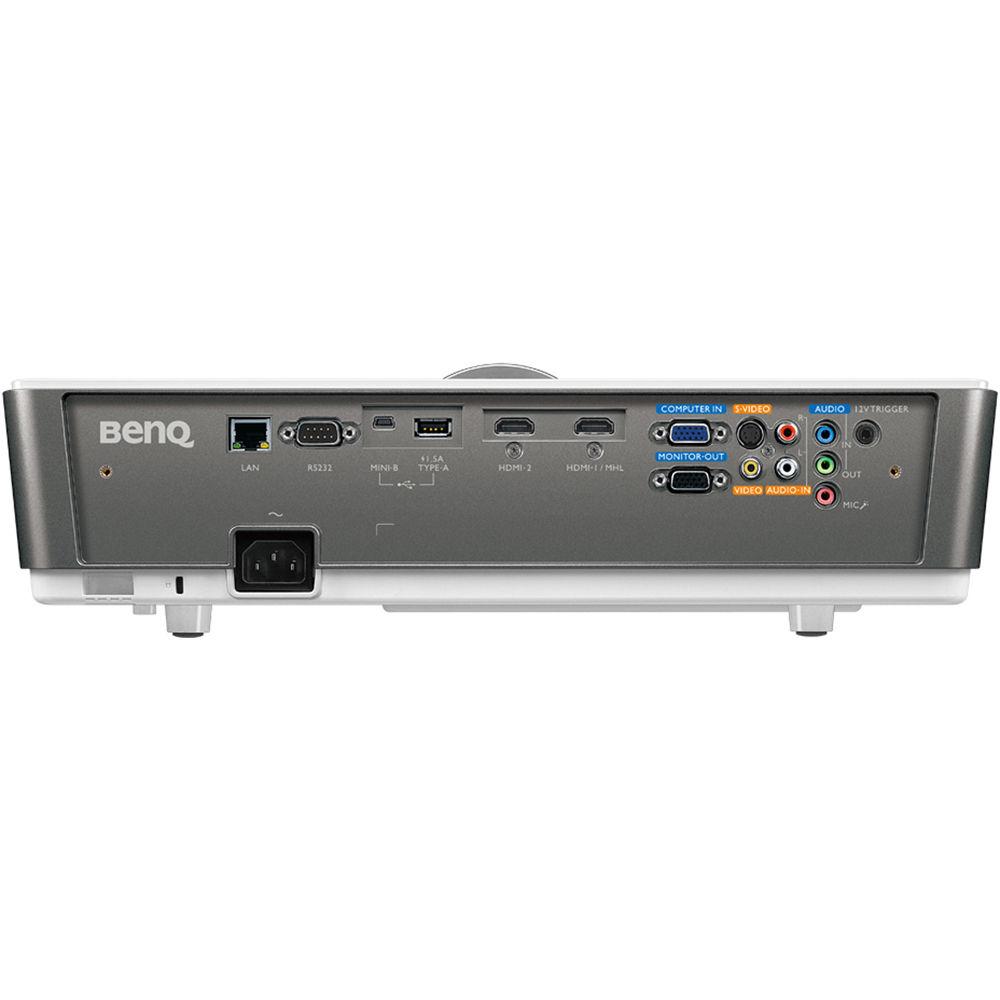

The MH760 has RCA composite, S-Video, VGA, and two HDMI inputs to support various types of video sources. One HDMI port is MHL-compatible, providing a wired option to mirror your compatible device. Its VGA output will allow you to daisy-chain multiple projectors or displays to allow them to show the same video source. Dual built-in 10W speakers eliminate the need for a separate speaker system, but the projector also features an 1/8" audio output to connect external speakers. It is controllable via Ethernet and RS-232, and includes a VGA cable and IR remote control. - Enhanced Clarity in Comfortably Lit Environments
- The 5000-lumen brightness level allows presentations to be shown in comfortably lit medium-sized conference rooms, so viewers can take notes and otherwise participate in the meeting.
- Full HD Resolution for Enhanced Image Clarity
- With Full HD (1920 x 1080) native resolution in the 16:9 aspect ratio, BenQ the MH760 delivers enhanced details and readability.
- Flexible Throw Ratio & 1.3x Zoom
- The 1.3x zoom feature allows the MH760 to be mounted anywhere from 15.1 to 19.6' from the screen and project images up to 180", helping to avoid costly renovation or installation downtime.
- Vertical Lens Shift for Precise Installations
- Lens shift helps to compensate for minor miscalculations and misalignment during projector installation. Placed adjacent to the lens, this control enables vertical lens movement within the chassis for aligned pictures without distortion.
- Advanced Image Calibration for Projection Alignment
- The MH760 is equipped with a two-dimensional keystone correction range of ±30° on both horizontal and vertical axes to counteract the trapezoid effect when the projector must be installed off-center. Installers can use Corner Fit control to adjust each corner respectively to achieve an aligned image geometry.
- Central Lens Design for Simplified Installation Alignment
- The symmetrically centered lens design allows easy installation without extra calculations or adjustments.
- LAN Control Compatibility
- The MH760 is compatible with a number of popular projector control systems, including Crestron, AMX, and PJ-Link, for network control via LAN, making it simple to integrate into corporate network infrastructures. The MH760 also supports RS-232 for long-distance installations (up to 49.2') when there is no LAN infrastructure.
- Centralized Control with BenQ MDA Software
- BenQ's Multiple Display Administrator (MDA) software provides centralized multiple-projector management options, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.
- Upper Lamp Door for Simplified Lamp Maintenance
- A quick-release lamp door provides IT managers convenient access for lamp maintenance without having to remove the projector from the ceiling mount.
- DLP Technology Helps Prevent Color Decay and Conserve Energy
- The digital micro-mirror devices are designed to resist color decay, and a nearly-sealed projection engine is engineered to prevent dust from entering the optical area, helping to resist heat damage and further preserve picture quality.
- Designed for Accurate Imaging
- The MH760 is designed to produce realistic colors and vivid images, combining an interchangeable six-segment color wheel with DLP BrilliantColor Technology.
- Sharp Images
- Increased sharpness is achieved by maximizing the fill ratio of individual pixels and employing BenQ's SmartEco Technology.
- Optional Wireless Presentation Solutions
- The MH760 is compatible with a number of wireless presentation solutions, including the InstaShow wireless presentation system and the QCast WiFi dongle, both available separately.
UPC: 840046037505 In the Box BenQ MH760 5000-Lumen Full HD DLP Projector Remote Control with Battery VGA Cable Power Cord Limited 1-Year Warranty on Projector Limited 90-Day or 500-Hour Warranty on Lamp, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MH760 5000-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MH760 Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: UXGA - 1600 x 1200 | | Max Brightness | 5000 Lumens | | Offset | 109% ± 2.5% | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 3000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 24 to 120 Hz | | | | Lens | f/2.59 - 2.87 (f = 16.88 - 21.88 mm) | | Lens Shift | Vertical: + 6% | | Optical Zoom | 1.3x | | Throw Ratio | 1.15 - 1.5:1 | | Projection Size | 60.00 - 180.00" / 152.40 - 457.20 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x USB Power (Output)
1 x USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x 12 V Trigger Control (Output) | | | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 33 dB | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 490 W
Standby Mode (Lamp Off): <6 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 16.2 x 4.7 x 10.5" / 411.4 x 118.4 x 267.5 mm | | Weight | 10.80 lb / 4.9 kg | | | | Package Weight | 15.4 lb | | Box Dimensions (LxWxH) | 23.2 x 15.9 x 8.9" |
