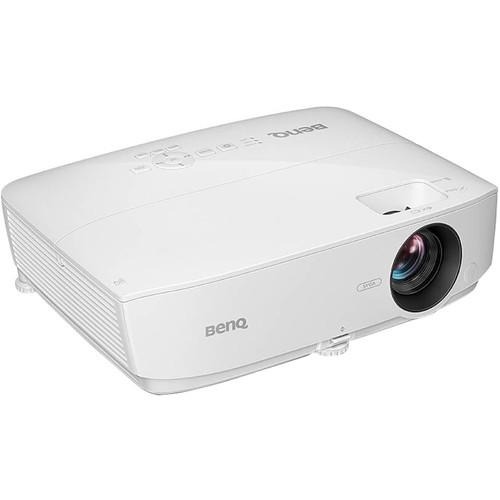

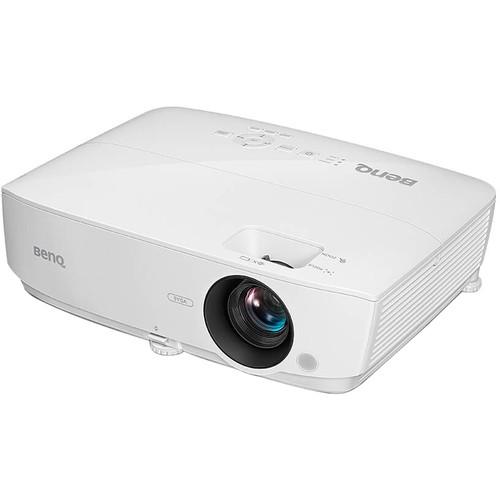

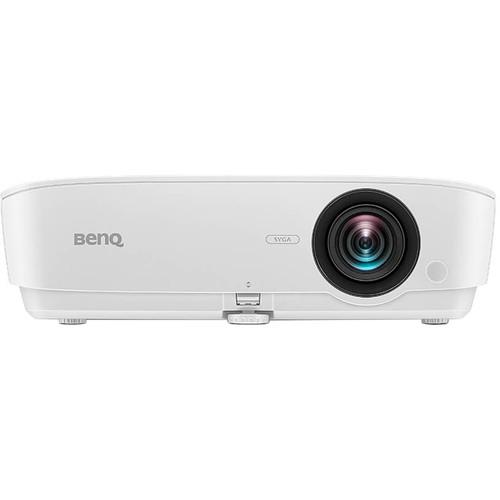

BenQ MS535A 3600-Lumen SVGA DLP Projector

Search your instruction manual in PDF to download

User Manual for BenQ MS535A 3600-Lumen SVGA DLP Projector

Click to enlarge the picture
BenQ MS535A 3600-Lumen SVGA DLP Projector Contents of the user manual for the BenQ MS535A 3600-Lumen SVGA DLP Projector
  • Product category: Multimedia Projectors BenQ
  • Brand: BenQ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for BenQ Multimedia Projectors

BenQ MS535A 3600-Lumen SVGA DLP Projector BenQ MS535A 3600-Lumen SVGA DLP Projector BenQ MS535A 3600-Lumen SVGA DLP Projector BenQ MS535A 3600-Lumen SVGA DLP Projector BenQ MS535A 3600-Lumen SVGA DLP Projector BenQ MS535A 3600-Lumen SVGA DLP Projector BenQ MS535A 3600-Lumen SVGA DLP Projector BenQ MS535A 3600-Lumen SVGA DLP Projector BenQ MS535A 3600-Lumen SVGA DLP Projector
User manual for the BenQ MS535A 3600-Lumen SVGA DLP Projector contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any BenQ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!



Product description

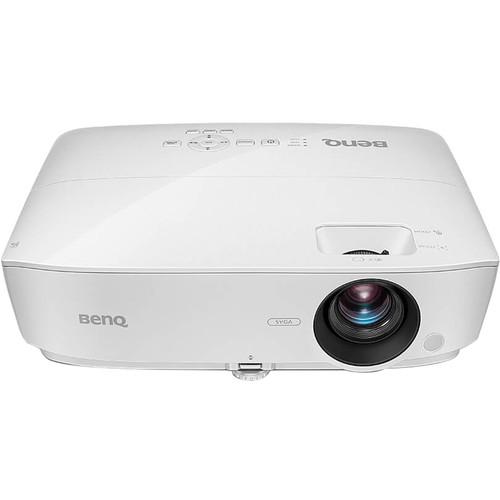

Show your presentations in most small meeting rooms with the BenQ MS535A 3600-Lumen SVGA DLP Projector. Its 3600 lumens of brightness will overcome ambient light in many situations, while its 15,000:1 dynamic contrast ratio will help keep images and text clear and distinct. Its 1.94 to 2.32:1 throw ratio and 1.2x zoom offer a range of installation options.

The MS535A has RCA composite, S-Video, two HDMI, and two VGA inputs to support various types of video sources. Its VGA output will allow you to daisy-chain multiple projectors or displays to allow them to show the same video source. A built-in 2W speaker eliminates the need for a separate speaker system, but the projector also features an 1/8" audio output to connect external speakers. It is controllable via USB or RS-232 and includes a VGA cable and IR remote control.

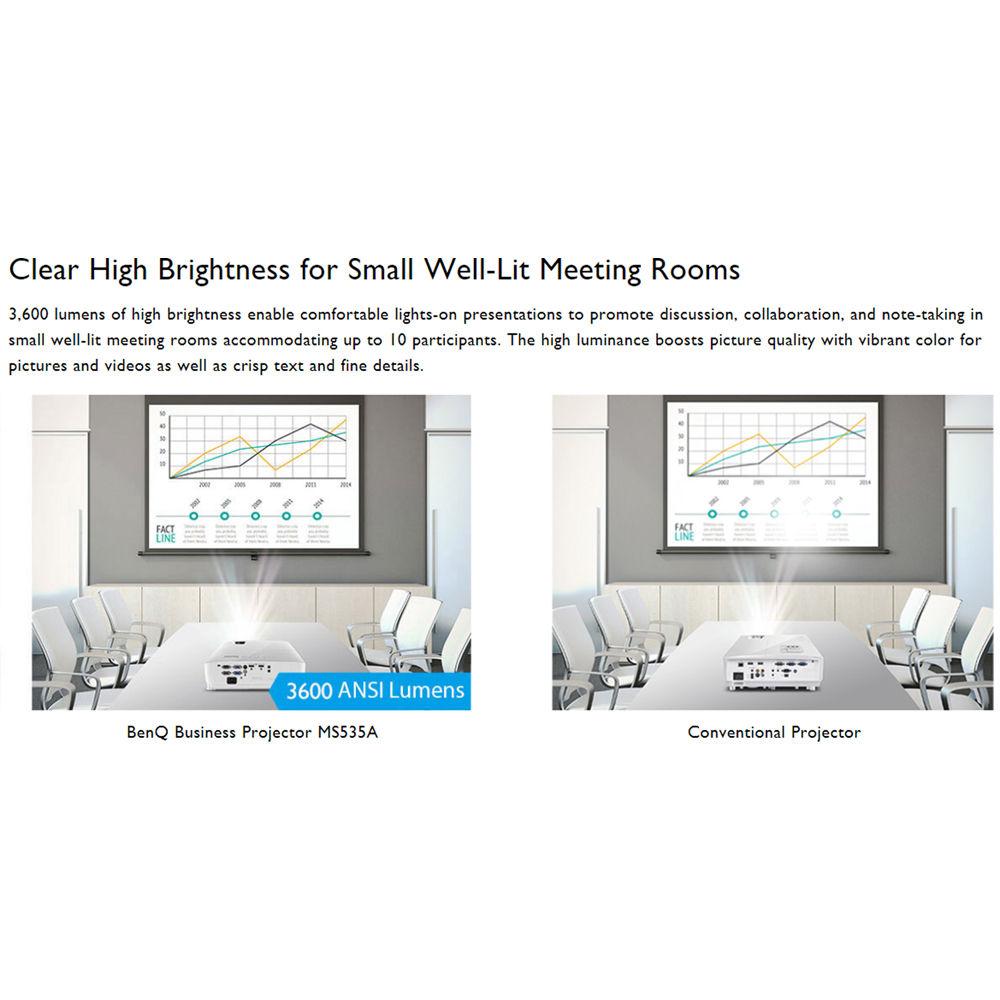

    High-Brightness Design for Small Meeting Rooms
  • The brightness of 3600 lumens is designed to allow comfortable lights-on presentations to help promote discussion, collaboration, and note-taking in small, well-lit meeting rooms accommodating up to 10 participants. This brightness level helps boost picture quality with vibrant color for pictures and videos as well as crisp text and fine details.

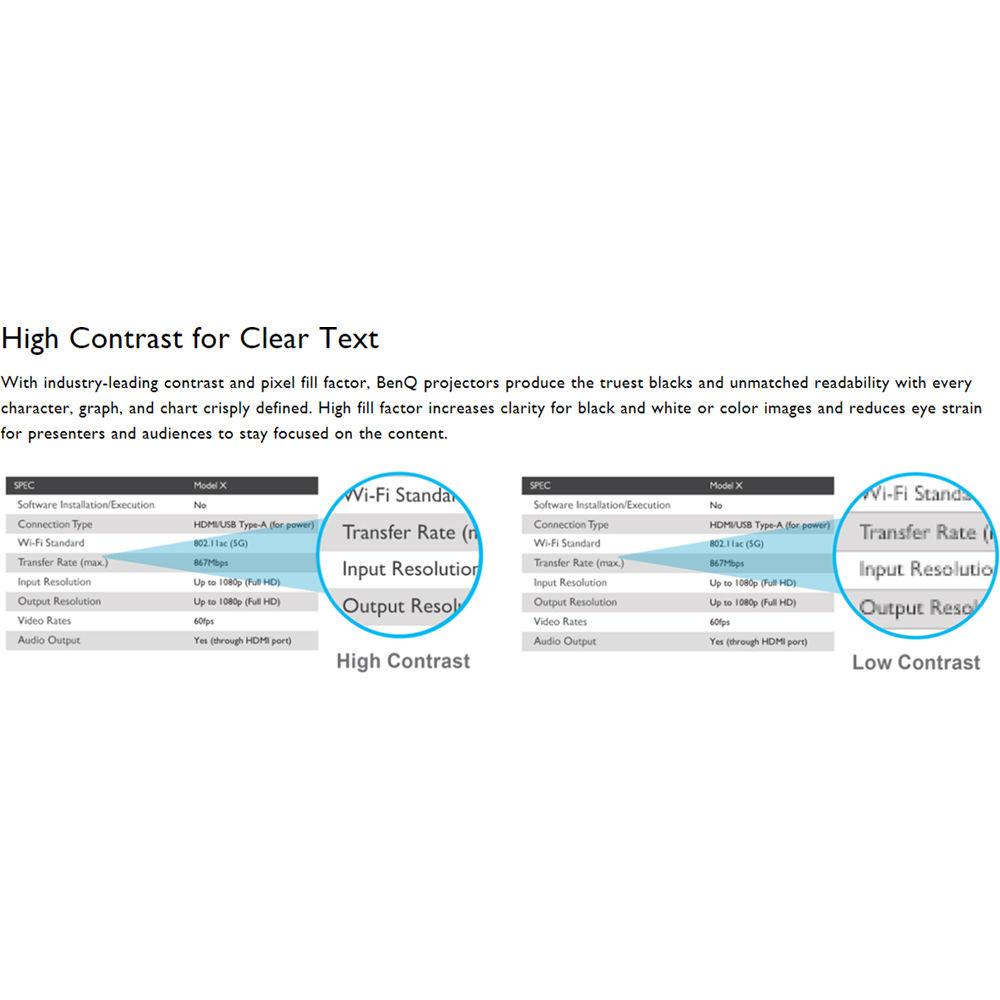

    High Dynamic Contrast for Clear Text
  • The MS535A features a 15,000:1 dynamic contrast ratio to help it produce true blacks and enhanced readability for individual characters and overall images. A high fill factor helps augment clarity for images and reduces eye strain for presenters and audiences to stay focused on the content.
    Connectivity Options

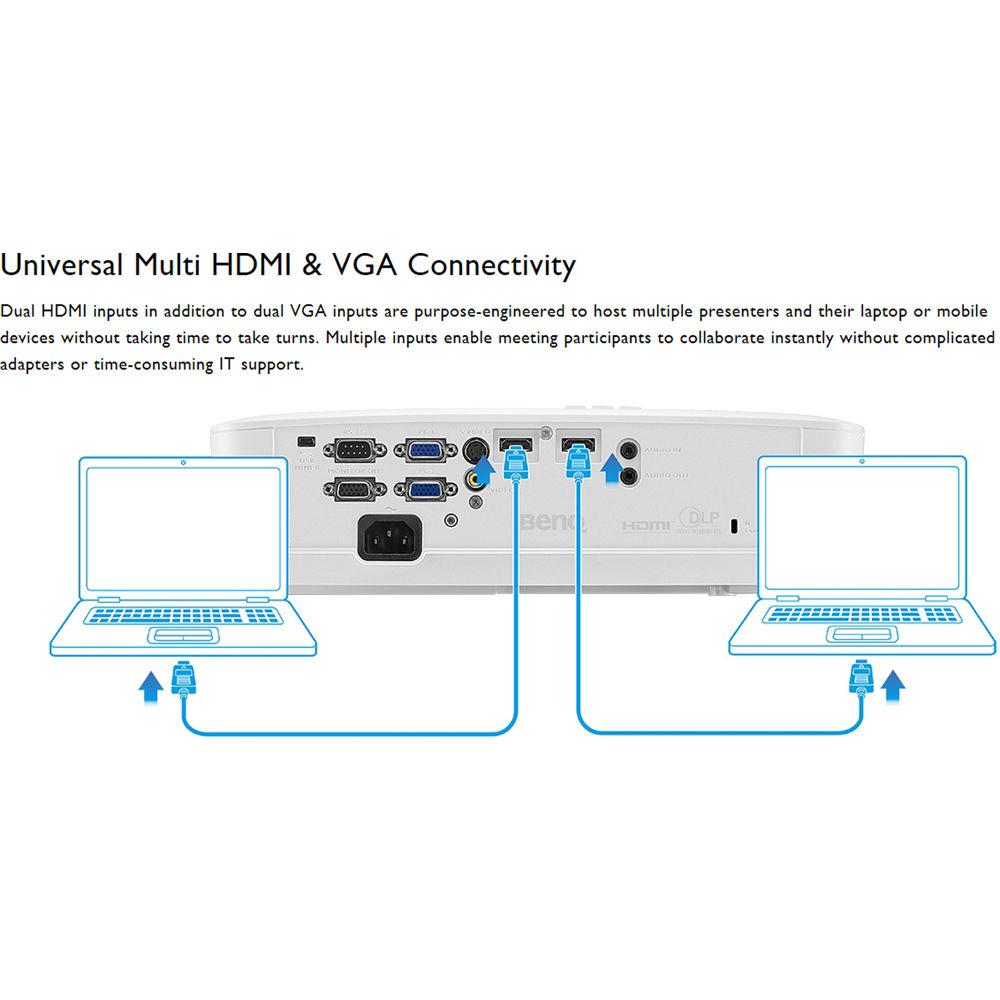

  • Dual HDMI and dual VGA inputs allow multiple presenters to connect their devices without having to take turns or swap wires, allowing for quick, convenient collaboration.

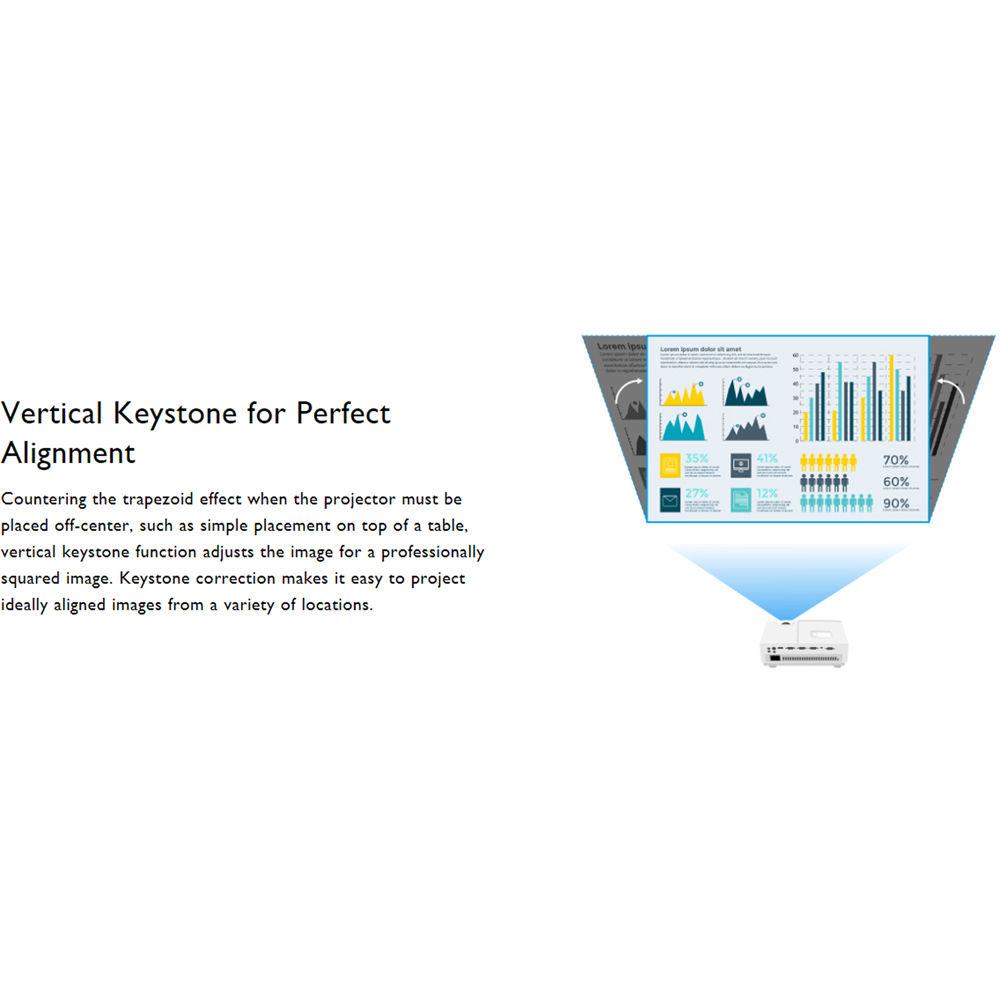

    Vertical Keystone Image Alignment
  • Countering the trapezoid effect when the projector is placed off-center from the projection surface, such as placement on top of a table, vertical keystone correction adjusts the image to properly square it, making it easy to project from a variety of locations.
    Three Adjustment Feet
  • Having three adjustable feet helps enhance flexibility in a variety of meeting rooms, with the additional feet at the corners of the projector to help facilitate easy movement to start projecting quickly.

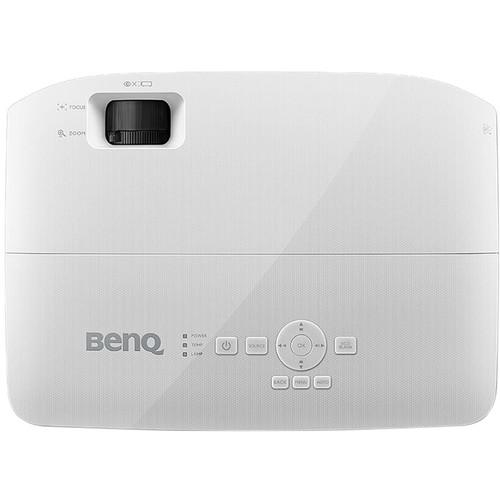

    One-Touch Access to Installation Functions
  • The remote features a dedicated Quick Install button, which is designed to instantly access installation-friendly functions, such as Test Pattern and Keystone directly without searching through menus in the on-screen display.
    Easy-Access Top Door for Lamp Replacement
  • The lamp replacement door is designed to allow for fast lamp replacement for virtually uninterrupted productivity when the projector is ceiling-mounted.
    Eco-Friendly Optimization
  • SmartEco Mode is designed to analyze input content to determine the brightness required for optimal color and contrast performance, conserving up to 70% of lamp power without compromising image quality. Eco Blank Mode is engineered to automatically activate after three minutes of inactivity with no source content to save energy and eliminate distractions. Auto Power Off enables the projector to power down after 20 minutes of inactivity to minimize energy waste and projector life concerns. When inactive, the MS535A uses just 0.5W, further enhancing energy savings.
    Cable Lock Slot to Discourage Theft
  • Designed to help secure tabletop projectors, the cable lock interface provides the capability to connect an optional cable lock; a security bar is also onboard to deter opportunistic thieves.
UPC: 840046040918 In the Box BenQ MS535A 3600-Lumen SVGA DLP Projector
  • Remote Control with Battery
  • VGA Cable
  • Power Cord
  • Limited 3-Year Warranty on Projector
  • Limited 1-Year or 2000-Hour Warranty on Lamp, Whichever Comes First
  • More info from BenQ ebeetvxxdcbtvuzvzqscevaffr Table of Contents




    Upload User Manual

    Have you got an user manual for the BenQ MS535A 3600-Lumen SVGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BenQ MS535A Specs

    Display System DMD DLP
    Native Chip Resolution 800 x 600 (SVGA)
    Supported Resolutions Maximum: WUXGA - 1920 x 1200
    Max Brightness 3600 Lumens
    Offset 106% ± 5% vertical
    Aspect Ratio Native: 4:3
    Dynamic Contrast Ratio 15,000:1
    Supported 3D Formats Frame Sequential (up to 720p)
    Frame Packing (up to 1080p)
    Side by Side (up to 1080p)
    Top Bottom (up to 1080p)
    Color Depth 10-Bit (1.07 Billion Colors)
    Scan Horizontal: 15 to 102 kHz
    Vertical: 23 to 120 Hz
    Focus Manual
    Lens f/2.46 - 2.66 (f = 21.8 - 25.6 mm)
    Optical Zoom Manual: 1.2x
    Throw Distance 3.881 - 46.401' / 1.183 - 14.143 m
    Throw Ratio 1.94 - 2.32:1 (60" @ 2.37 m)
    Projection Size 30 - 300" / 76.20 - 762.00 cm
    Keystone Correction Vertical: ± 40°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-In Speaker Yes (Mono)
    Speaker Power 2W

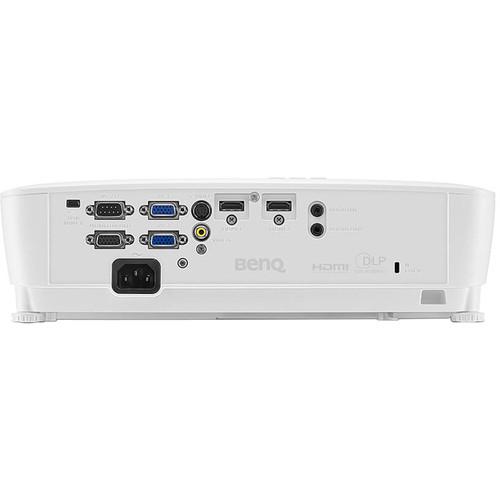

    Inputs/Outputs 2 x HDMI (HDMI Type-A) Audio, Video Input
    2 x VGA (DE-15) Video Input
    1 x VGA (DE-15) Video Output
    1 x S-Video (4-Pin DIN) Video Input
    1 x Composite (RCA) Video Input
    1 x 1/8" (3.5 mm) Mini Audio Input
    1 x 1/8" (3.5 mm) Mini Audio Output
    1 x USB 2.0 (USB Type-B) Control Input
    1 x RS-232 (DE-9) Control Input
    Memory Card Slot None
    Wireless LAN / Wi-Fi None
    Light Source Lamp
    Lamp Power 210 W
    Expected Lamp Life Full Brightness: 5000 Hours
    Medium Brightness: 10,000 Hours
    Low Brightness: 15,000 Hours
    Fan Noise Full Brightness: 32 dB
    Medium Brightness: 29 dB
    Security Cable Lock Slot
    Security Bar
    Supported Languages Arabic
    Bulgarian
    Croatian
    Czech
    Danish
    Dutch
    English
    Finnish
    French
    German
    Greek
    Hindi
    Hungarian
    Indonesian
    Italian
    Japanese
    Korean
    Norwegian
    Polish
    Portuguese
    Romanian
    Russian
    Simplified Chinese
    Spanish
    Swedish
    Thai
    Traditional Chinese
    Turkish
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Power Consumption Full Brightness: 260 W
    Medium Brightness: 211 W
    Standby Mode (Lamp Off): <0.5 W
    Max Operating Altitude 9842' / 3000 m
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Operating Humidity 10 - 90%
    Storage Humidity 10 - 90%
    Dimensions (W x H x D) 13.1 x 3.9 x 9.5" / 332.4 x 99.0 x 241.3 mm With feet
    13.1 x 3.6 x 9.5" / 332.4 x 91.0 x 241.3 mm Without feet
    Weight 5.31 lb / 2.41 kg
    Package Weight 8.0 lb
    Box Dimensions (LxWxH) 16.5 x 13.0 x 5.9"
