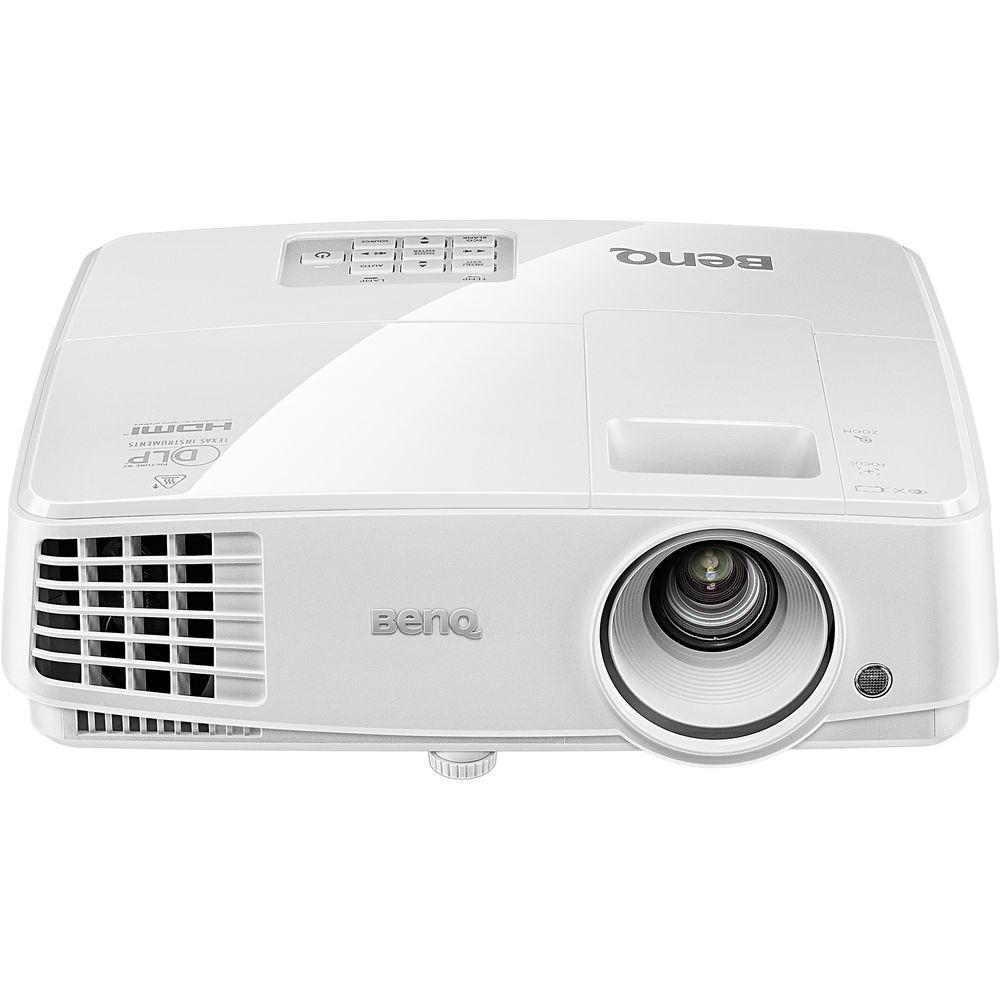

User Manual for BenQ MW526A 3300-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MW526A 3300-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MW526A 3300-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

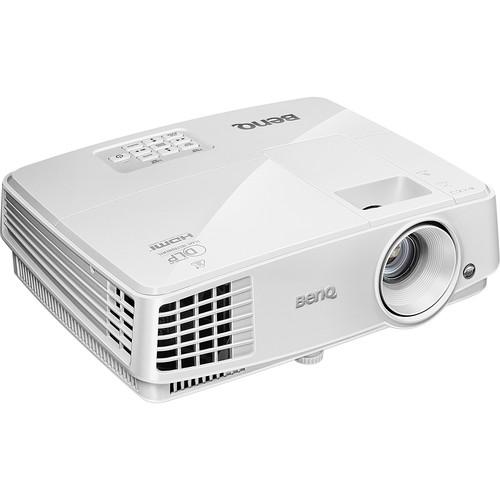

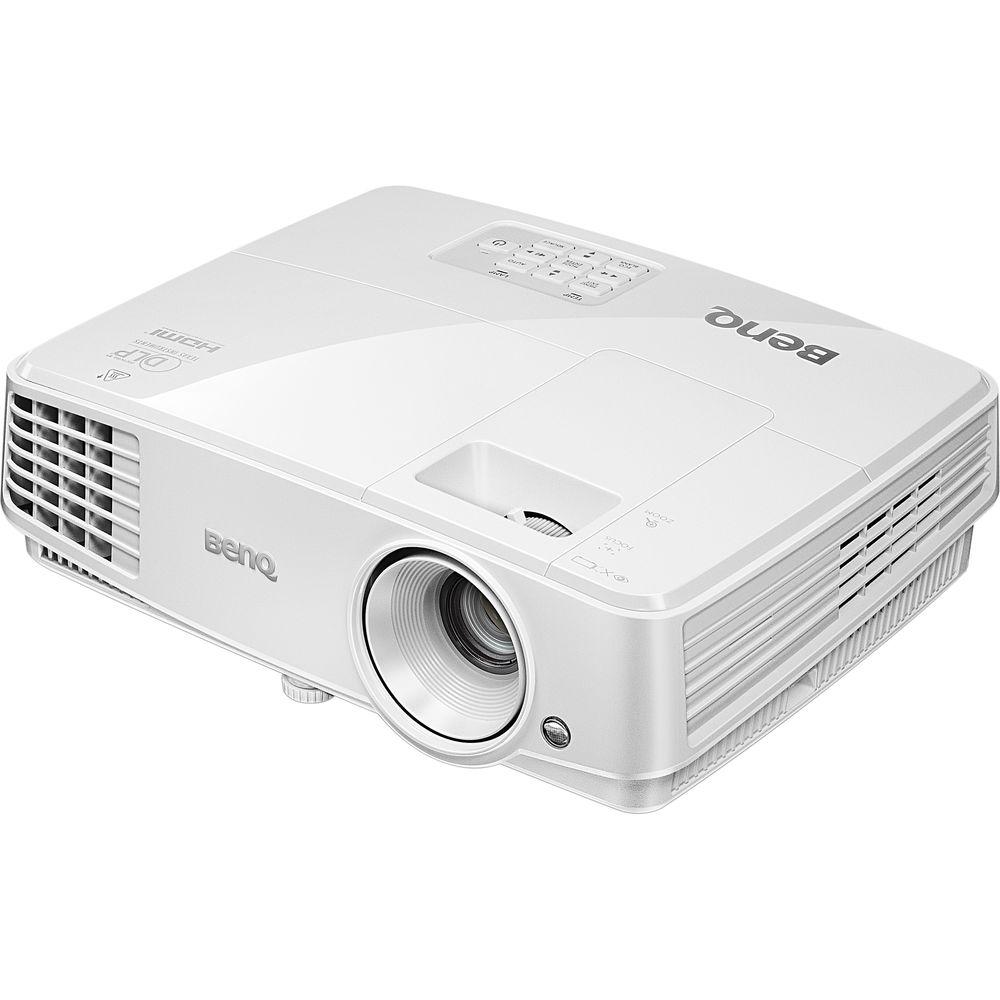

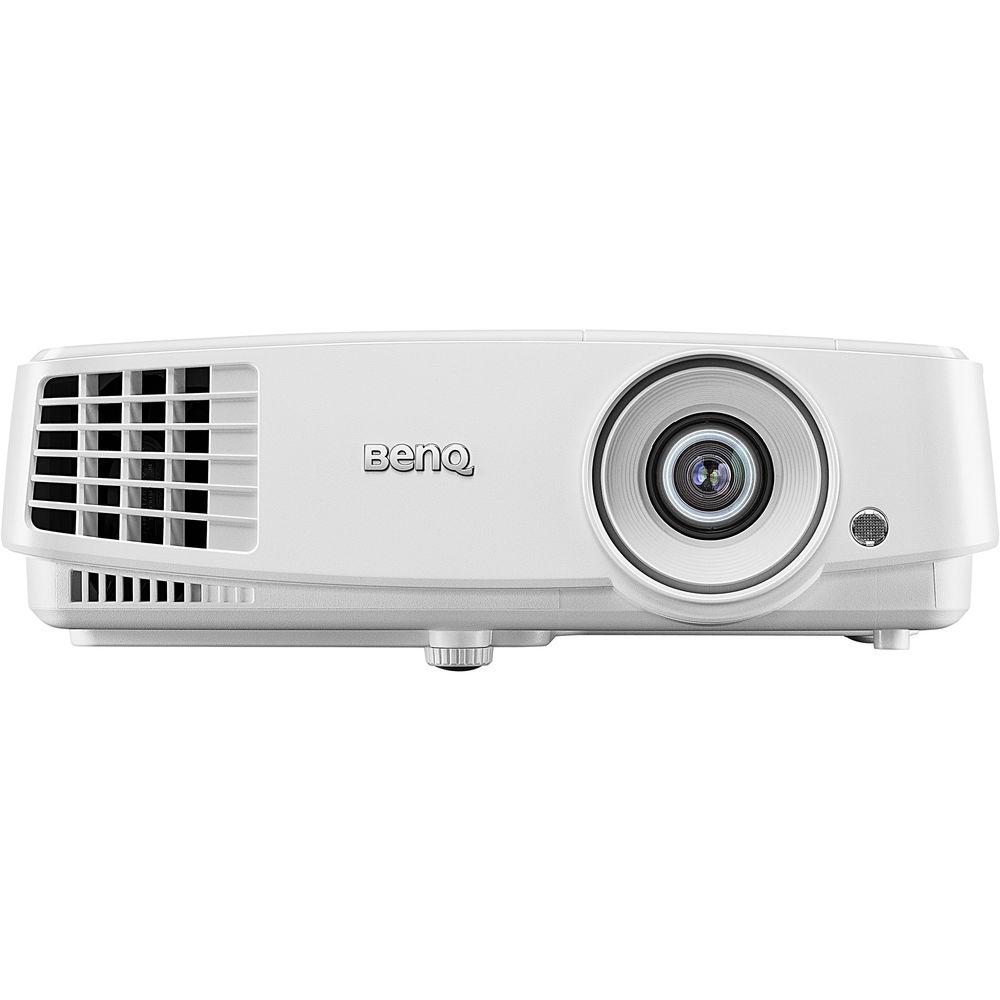

Product description Bring your classroom presentations to life with the BenQ MW526A 3300-Lumen WXGA Projector. It supports 3D playback with optional 3D glasses for a more immersive experience. Its 3300 lumens of brightness will effectively combat most ambient light, and its 13,000:1 contrast ratio combined with its 1280 x 800 native resolution will deliver clear images at most seating distances. Plus, its 1.96 to 2.15:1 throw ratio will enable you to place the projector near the back of the room, preventing passersby from easily walking into it.

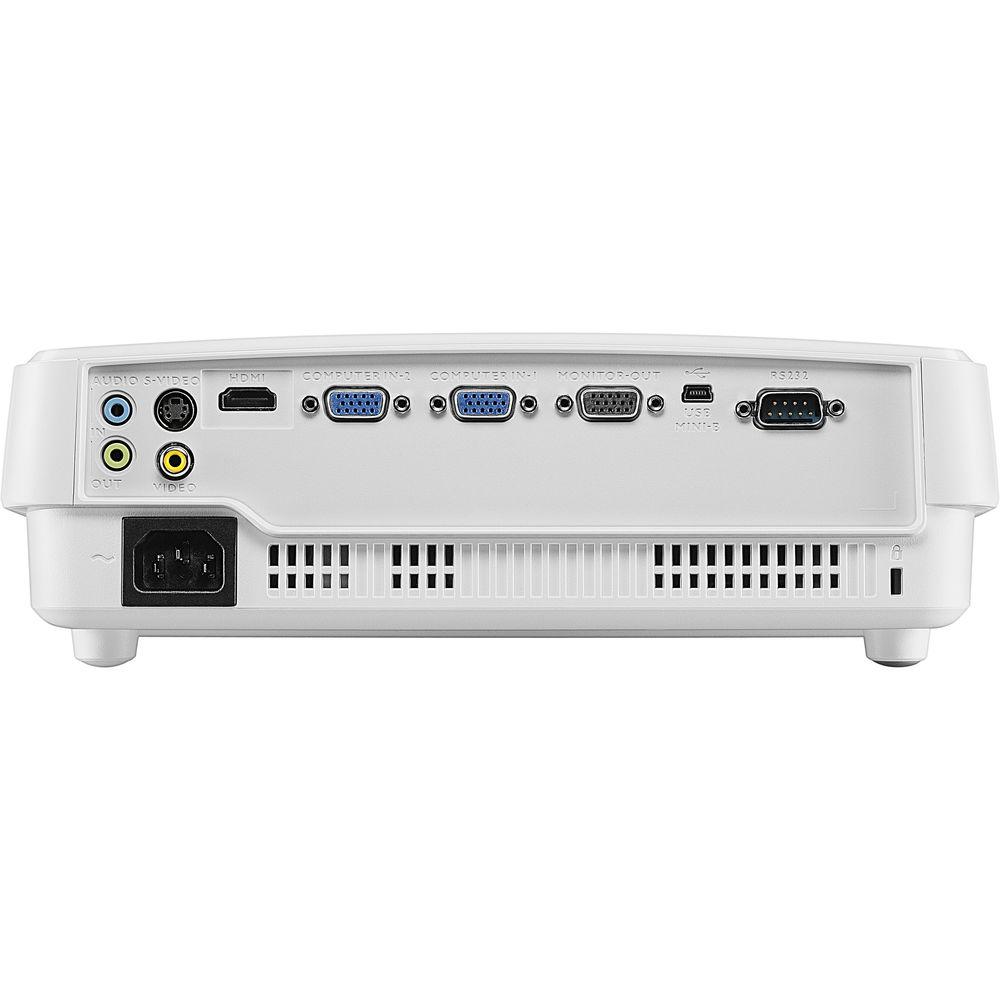

The MW526A can connect to most sources with its HDMI, S-video, RCA, and two VGA inputs, and can also be daisy-chained to other projectors to show the same image with its VGA output. An analog audio input and built-in 2W speaker will bring sound to your presentations; and if you need more power, the projector also has an analog audio output. It is controllable via RS-232 or the included IR remote. Also included is a VGA cable for instant connectivity. - SmartEco Lamp Saving Technology
- Incorporating SmartEco lamp saving technology, the MW526A is designed to provide energy savings while continuing to deliver amazing picture quality. SmartEco mode is designed to use only the exact amount of lamp power the projector needs to deliver the best contrast and brightness performance. This feature enables the MW526A to deliver uncompromised projection quality with the added benefit of reducing the total cost of ownership by extending lamp life and lowering power consumption.
- LampSave Mode

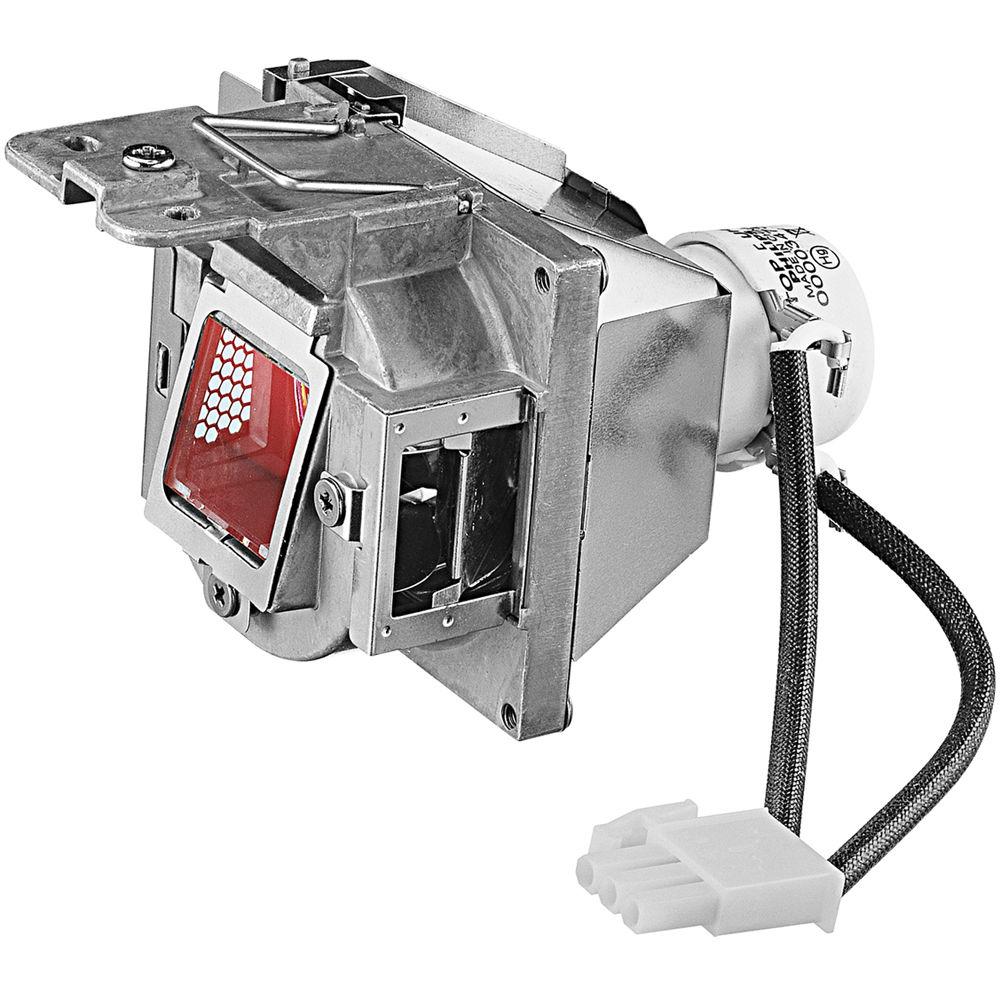

- Projector lamp replacement costs make up the biggest part of the total cost of projector ownership. The LampSave mode is designed to dynamically adjust the lamp power brightness level to match displayed content and extend projector lamp life by 50%. The lamp replacement frequency is also reduced by up to 50%, effectively reducing replacement and maintenance costs.
- No Source Detected Mode
- The MW526A automatically switches to Eco Blank mode after the projector is turned on for over three minutes without an active source being displayed, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
- 0.5W in Standby Mode
- When inactive, the MW526A keeps power consumption to a minimum with 0.5W standby power. This helps extend the projector lamp life and lower energy costs.
- Blu-ray Full HD 3D Supported
- The MW526A supports 3D functionality, allowing schools to bring an immersive learning experience to their students with cost-efficient active-shutter 3D glasses and 3D content from your Blu-ray player.
- Colorific Technology Delivers Enhanced Color
- BenQ uses Colorific technology to optimize images for specific color balance effects for diverse applications such as presentations, movies, spreadsheets, and photographs. Every Colorific-enabled projector generates more than one billion colors by combining up to seven different colors to create enhanced images. You'll experience dramatic contrasts for better clarity, higher impact, and greater legibility. Colorific projectors are designed to be dependable year after year. You can rely on the colors to remain the same from day one to a decade later, without the risk of fading, ghosting images, or yellowing.
- No Filters to Replace
- DLP Technology also includes a filter-free engine design for long-lasting image quality and reduced TCO. SmartEco Technology is designed to further boost contrast performance and image quality endurance while saving up to 70% on lamp power consumption.
- Sharp Clarity with Ultra-Readability
- Enabling a 96% fill factor, DLP technology supplies pixel circuitry behind the pixel, eliminating the thick dark bezels around individual pixels which diminish color and detail. A higher fill factor and less black border translate into noticeably purer, more intense color, and smoother image quality. The ${Model} also features high contrast ratios for enhanced rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused. Your presentations will be more easily readable and effective, even from the back row of a well-lit room.
- Vibrant, True-to-Life Colors
- Even in well-lit venues, DLP projectors are designed to achieve the optimal balance of brightness and color accuracy. BrilliantColor technology additionally boosts true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors yellow, cyan, and magenta along with the primary red, blue, and green colors. From intense hues to elusive mid-tones like aqua blues and light yellows, every presentation is rendered in pure, living splendor.
UPC: 840046034566 In the Box BenQ MW526A 3300-Lumen WXGA DLP Projector Remote Control with Battery VGA Cable Power Cord Limited 1-Year Warranty on Projector Limited 180-Day or 500-Hour Warranty on Lamp, Whichever Comes First More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MW526A 3300-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MW526A Specs | | | Display System | 1-Chip DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3300 Lumens | | Offset | 120% ± 5% | | Aspect Ratio | Native: 4:3 | | Contrast Ratio | 13000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential (up to 720p)
Frame Packing (up to 1080p)
Side by Side (up to 1080i/p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Lens | f/2.56 - 2.8 (f = 21 - 23.1 mm) | | Optical Zoom | Manual: 1.1x | | Throw Distance | 6.562 - 21.654' / 2 - 6.6 m | | Throw Ratio | 1.96 - 2.15:1 (50" @ 2 m) | | Projection Size | 36 - 300" / 91.44 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x HDMI Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Mini-USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 4500 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 33 dB
Low Brightness: 28 dB | | Security | Cable Lock Slot
Password Protection | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 270 W
Low Brightness: 220 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 11.1 x 3.7 x 8.7" / 28.2 x 9.4 x 22.1 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 13.9 x 11.6 x 5.6" |
