User Manual for BenQ MW526AE 3300-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MW526AE 3300-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MW526AE 3300-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

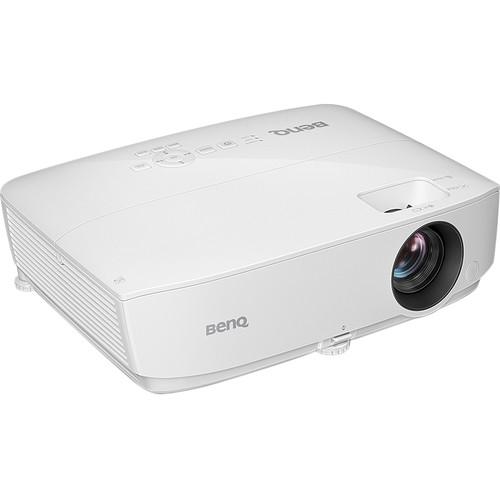

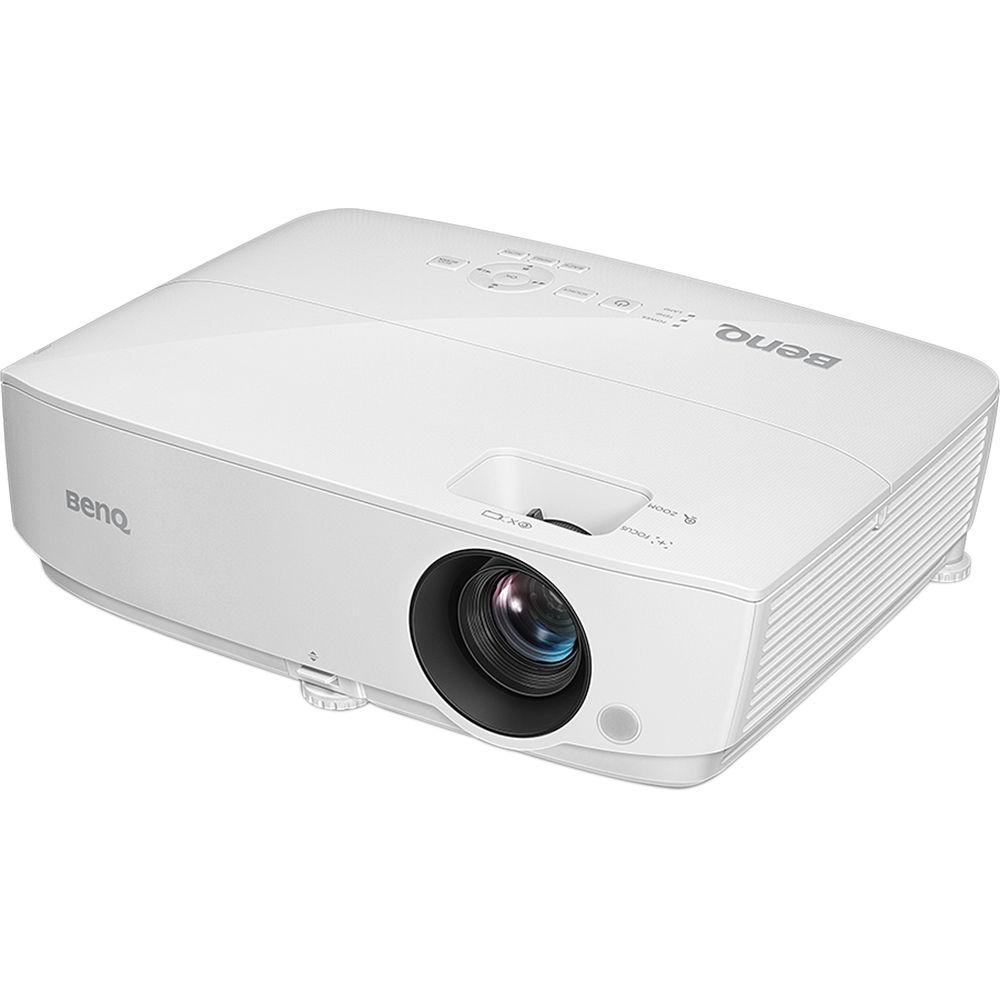

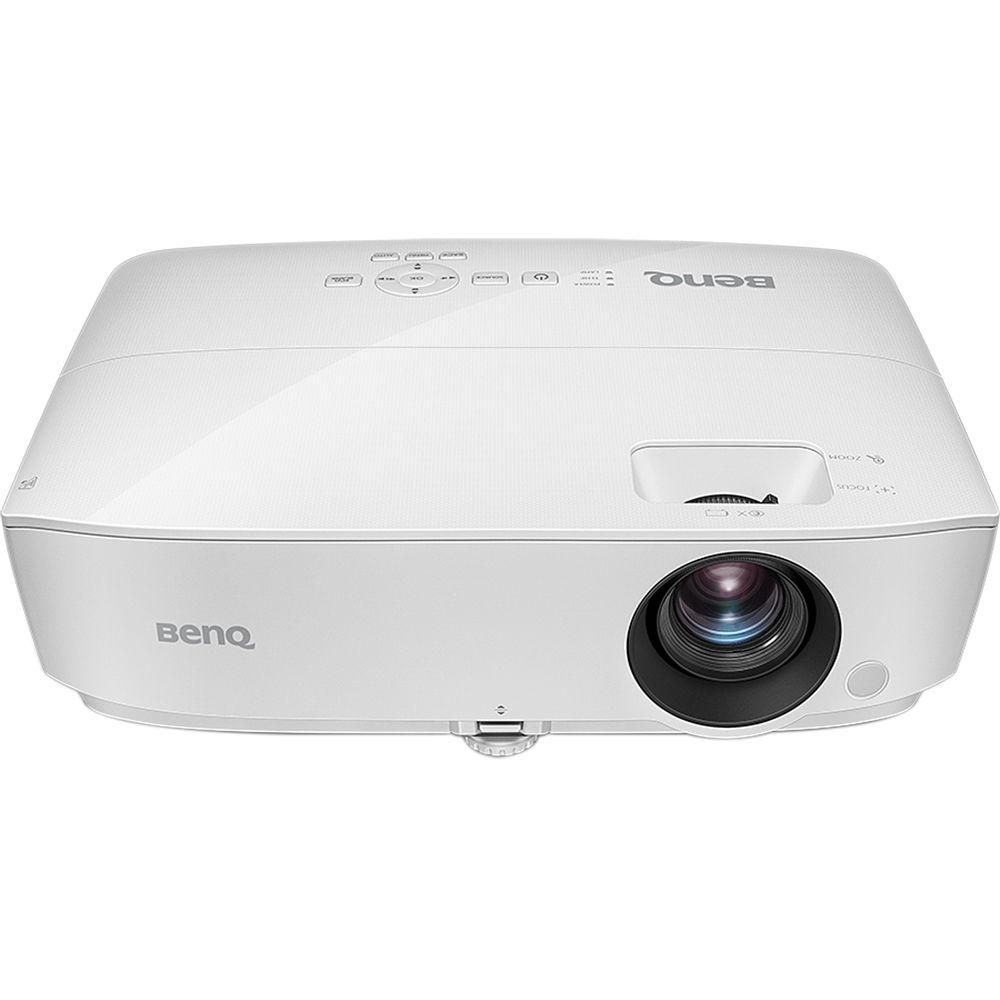

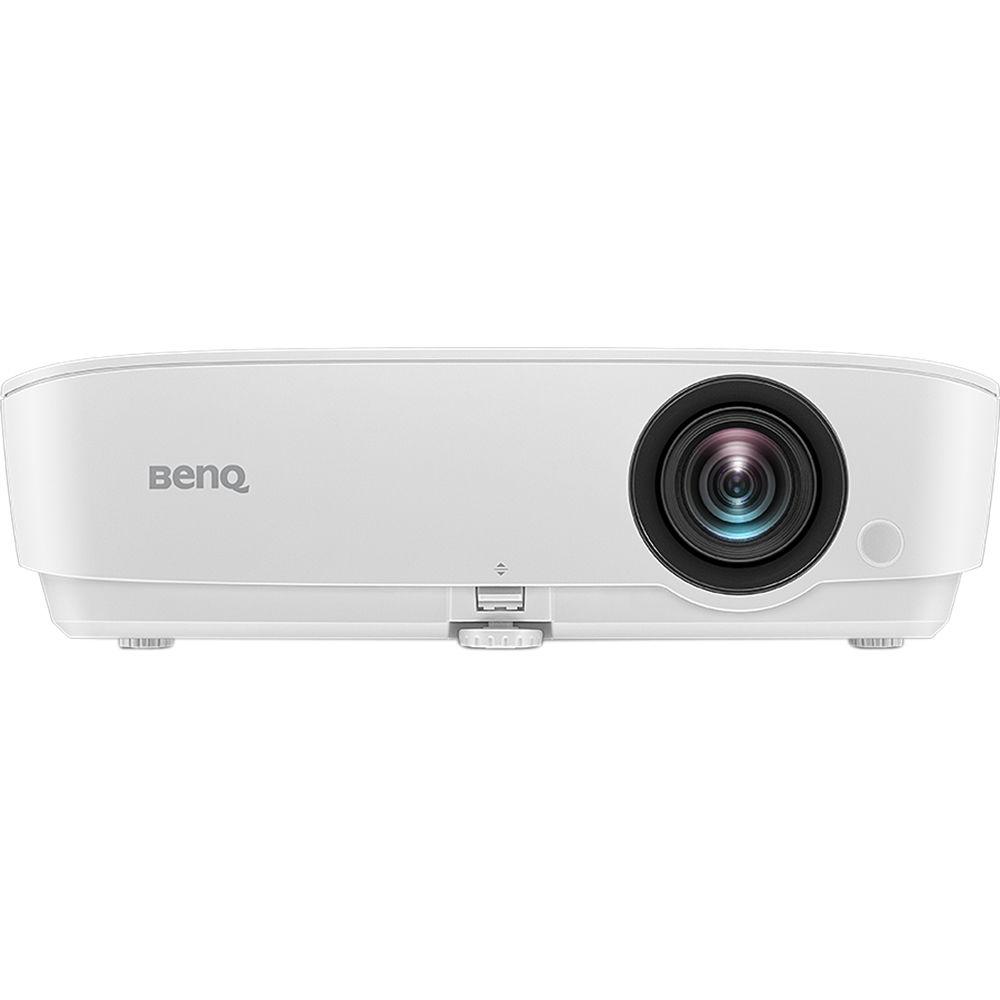

Product description Show your presentations in nearly any environment with the BenQ MW526AE 3300-Lumen WXGA DLP Projector. Its 3300 lumens of brightness will overcome ambient light in many situations, while its 15,000:1 contrast ratio will help keep images and text clear and distinct. Its 1.55 to 1.86:1 throw ratio and 1.2x zoom offer a range of installation options.

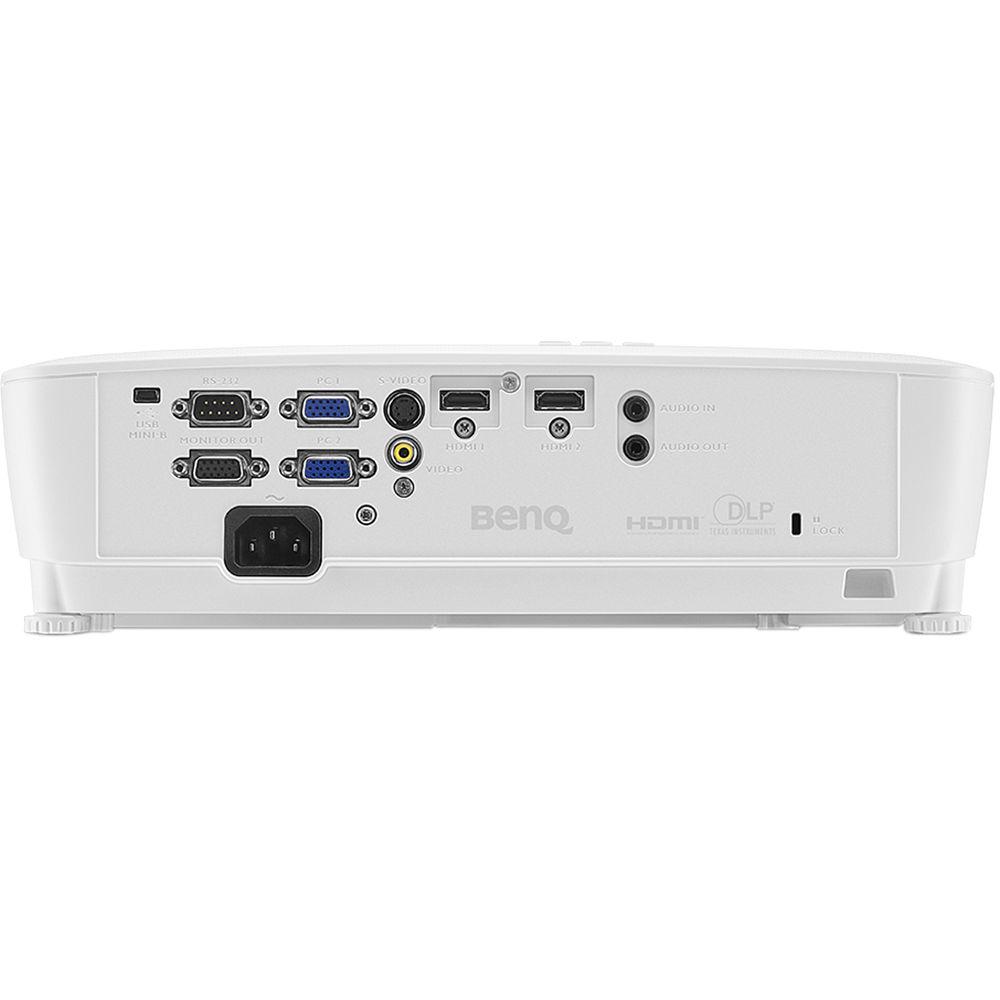

The MW526AE has RCA composite, S-Video, two VGA, and two HDMI inputs to support various types of video sources. Its VGA output will allow you to daisy-chain multiple projectors or displays to allow them to show the same video source. A built-in 2W speaker eliminates the need for a separate speaker system, but the projector also features an 1/8" audio output to connect external speakers. It is controllable via RS-232, and includes a VGA cable and IR remote control. - 3300 Lumens of Brightness for Clear Images

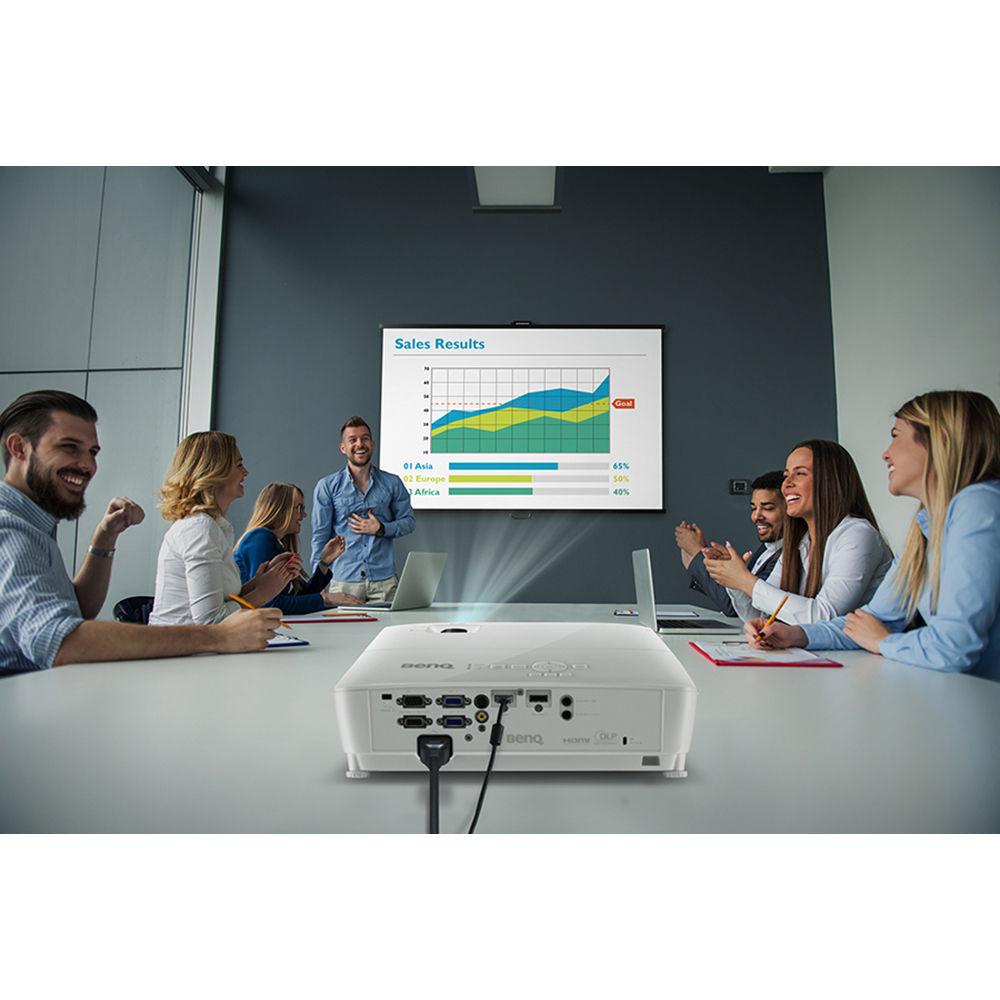

- 3300 lumens of brightness help provide comfortable lights-on presentations in well-lit meeting rooms. The high luminance boosts picture quality with enhanced color for pictures and videos, as well as crisp text and details.
- 15,000:1 Contrast Ratio for Enhanced Detail
- The projector's 15,000:1 contrast ratio, enabled by DLP technology and an all-glass 5G optical lens system, helps deliver augmented clarity, smooth gradational mid-tone color transitions, and sharp readability.

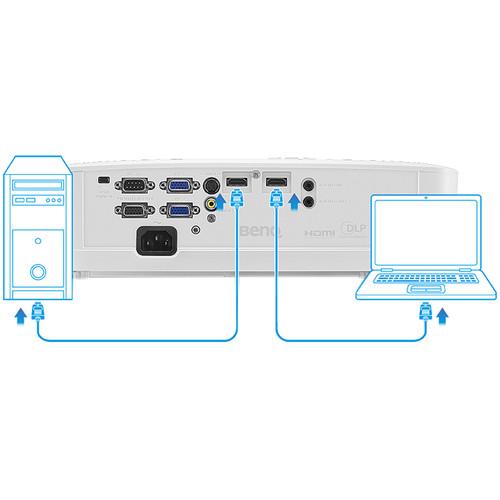

- Dual HDMI and VGA Inputs
- Dual HDMI inputs, in addition to dual VGA inputs, are purpose-engineered to host multiple presenters and their laptops or mobile devices. Multiple inputs enable meeting participants, teachers, and students to collaborate instantly without adapters or time-consuming IT support.

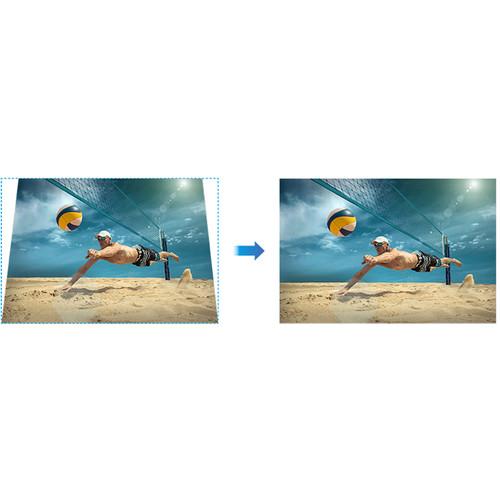

- Vertical Keystone Correction for Aligned Images
- Countering the trapezoid effect when the projector must be placed off-center, such as placement on top of a table, the vertical keystone function adjusts the image for a squared-off image. Keystone correction makes it simple to project aligned images from a variety of locations.
- Adjustable Feet
- The projector's three adjustment feet help enhance flexibility in a variety of meeting rooms, with the additional feet placed at the corners of the projector to facilitate easy movement.
- Designed for Room-to-Room Portability
- The cabinet is designed to resist dirt and fingerprints as the projector is moved from one room to another, and the remote control's layout helps simplify picture adjustment to the new room.
- SmartEco Mode
- Detecting the input content to determine the amount of brightness required for optimum color and contrast performance, SmartEco Mode reduces lamp power while maintaining image quality.
- Eco Blank Mode
- Automatically enabled when the projector is turned on for over three minutes without a display source, Eco Blank Mode helps eliminate unnecessary energy waste and prolong the life of the projector lamp, saving up to 70% lamp power and blanking the screen to focus full audience attention on the presenter or instructor.
- LampSave Mode
- LampSave Mode adjusts lamp power dynamically according to content to extend lamp life up to 50% compared to normal mode.
- Quick-Access Top Lamp Door for Efficient Replacement
- Located on top of the projector, an easy-to-open lamp door allows for fast lamp access, maintenance, and replacement for virtually uninterrupted productivity, whether the projector is placed on a table-top or ceiling-mounted in meeting rooms. The quick-access lamp door helps reduce downtime by eliminating the need to uninstall mounted projectors, expediting lamp changes.

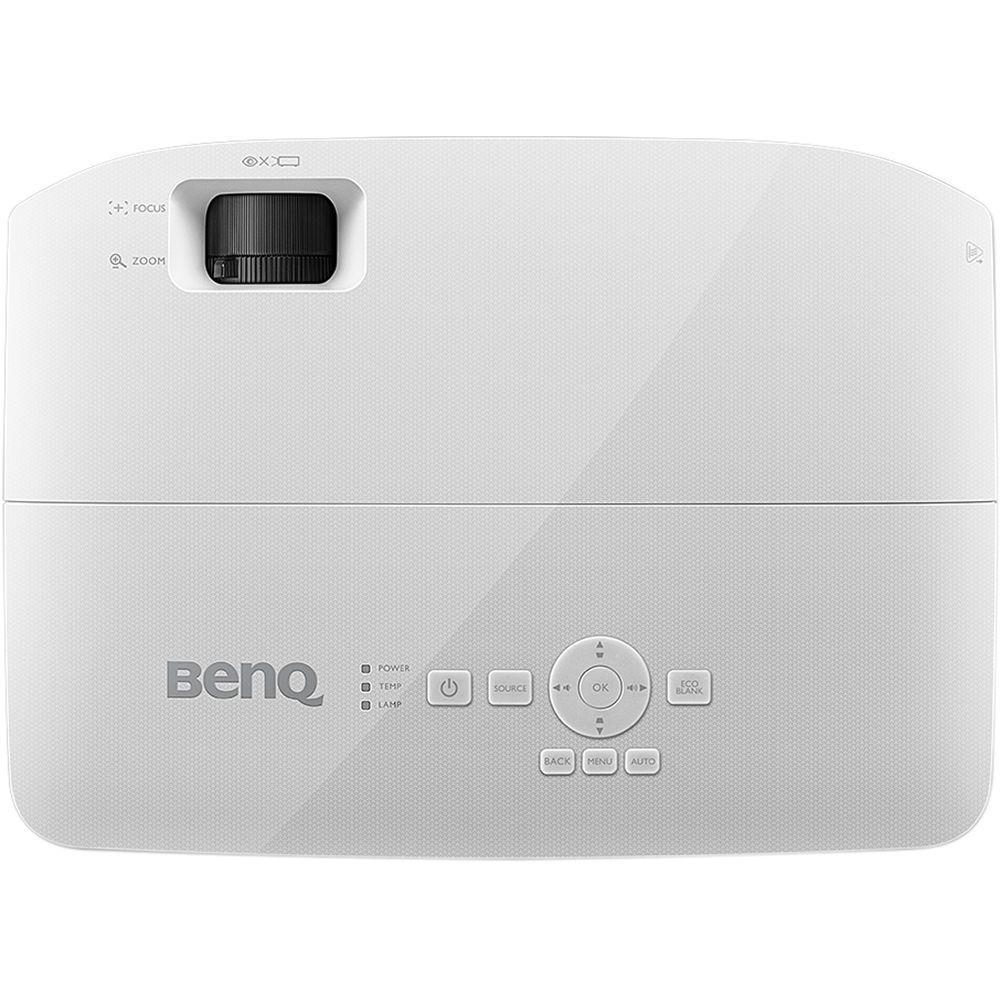

- One-Touch Access to Installation Functions
- The remote control includes a dedicated Quick Install button which is designed to instantly access installation-friendly functions, such as Test Pattern and Keystone, directly without scrolling through menus in the On-Screen Display.
- Designed to Last Long
- The micro-mirrors of the DLP chip and the nearly-sealed DLP engine design help this projector last without any loss in picture quality.
- Built for Accurate Imaging
- DLP BrilliantColor technology and the interchangeable six-segment color wheels are designed to produce accurate colors.
UPC: 840046037192 In the Box BenQ MW526AE 3300-Lumen WXGA DLP Projector Remote Control with Battery VGA CAble Power Cord Limited 1-Year Warranty on Projector Limited 90-Day or 500-Hour Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MW526AE 3300-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MW526AE Specs | | | Display System | 1-Chip DC3 DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3300 Lumens | | Offset | 104% ± 2.5% vertical | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 15000:1 | | Supported 3D Formats | Frame Sequential (up to 720p)
Frame Packing (up to 1080p)
Side by Side (up to 1080p)
Top Bottom (up to 1080p) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Lens | f/2.46 - 2.66 (f = 21.8 - 25.6 mm) | | Lens Shift | None | | Optical Zoom | 1.2x | | Throw Ratio | 1.55 - 1.86:1 | | Projection Size | 60.00 - 300.00" / 152.40 - 762.00 cm | | | | Keystone Correction | Vertical | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Internal Storage | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 203 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 32 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Security Bar | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 260 W
Medium Brightness: 252 W
Low Brightness: 211 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 4917' / 1499 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 13.1 x 3.9 x 8.4" / 332.4 x 99.0 x 214.3 mm | | Weight | 5.31 lb / 2.41 kg | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 16.5 x 13.2 x 6.0" |
