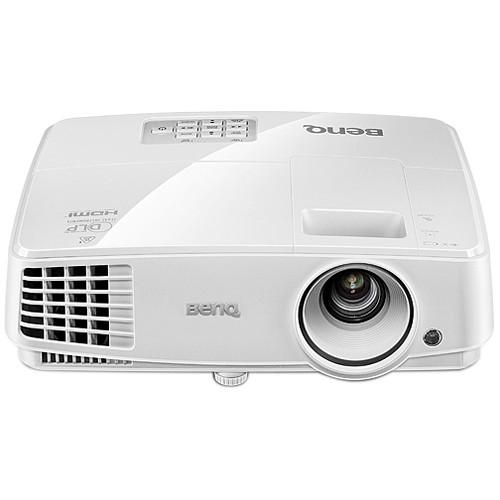

User Manual for BenQ MW571 3200-Lumen WXGA DLP Multimedia Projector Click to enlarge the picture
Contents of the user manual for the BenQ MW571 3200-Lumen WXGA DLP Multimedia
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MW571 3200-Lumen WXGA DLP Multimedia contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

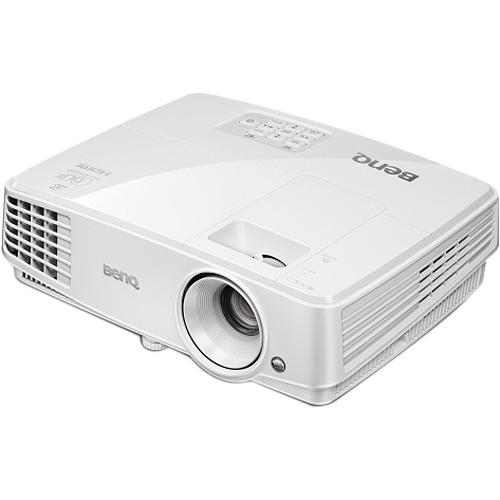

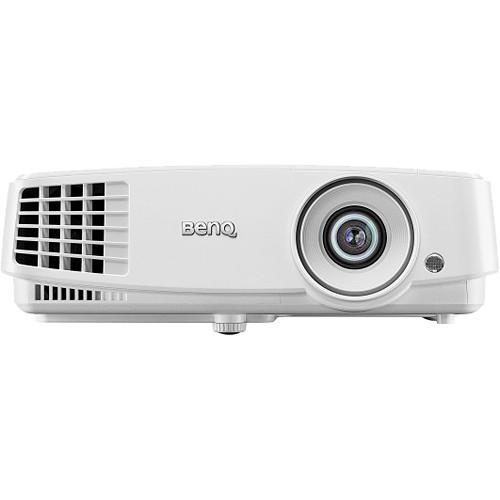

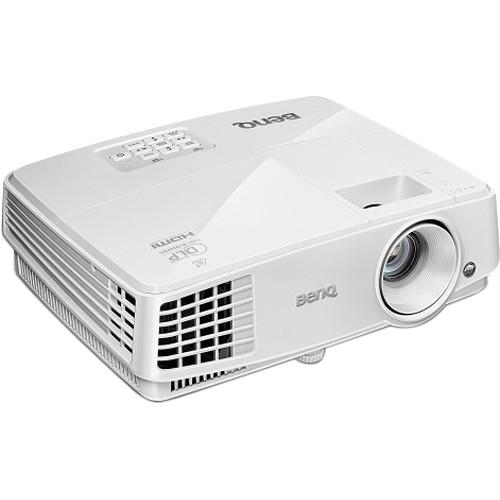

Product description Project high-resolution images in professional and educational environments with the BenQ MW571 3200-Lumen WXGA DLP Multimedia Projector. It features 3200 lumens of brightness and a notable 13,000:1 contrast ratio. Additionally, this projector has a WXGA 1280 x 800 native resolution, and supports up to WUXGA 1920 x 1200 video signals. The MW571 is powered by a DLP chip system, and the lamp features a long life of up to 10,000 hours in LampSave mode. Furthermore, you can use the MW571 to project up to 180" images, and it features a 1.21 - 1.57:1 throw ratio.

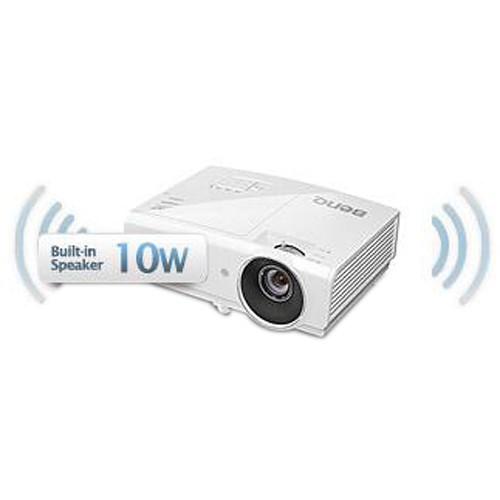

With HDMI, S-video, RCA composite video, and two VGA inputs, this projector is well equipped for external video sources. It also supports component video cables over VGA when used with an optional adapter. Other features include a 0.5W standby power consumption level, optional ceiling mount compatibility, and the inclusion of a remote control and VGA cable. A 10W speaker is also built into the projector for powerful audio playback. - SmartEco Mode
- The SmartEco mode dynamically adjusts lamp power to maximize power saving while delivering the optimized contrast and brightness performance using only as much light as needed.
- Eco Blank Mode
- Eco Blank mode allows teachers to blank the projector image when they need to direct their students' focus back on them, or simply when the projector is not in use. When activated, this special feature dims lamp power automatically, lowering the total power consumption by up to 70%.
- LampSave Mode
- LampSave dynamically adjusts the lamp power to match the content being displayed. This is designed to extend projector lamp life by up to 50% as compared to normal mode.
- Supports Full 3D Blu-ray
- When paired with sold separately 3D glasses and content, this projector allows you to enjoy immersive 3D images.

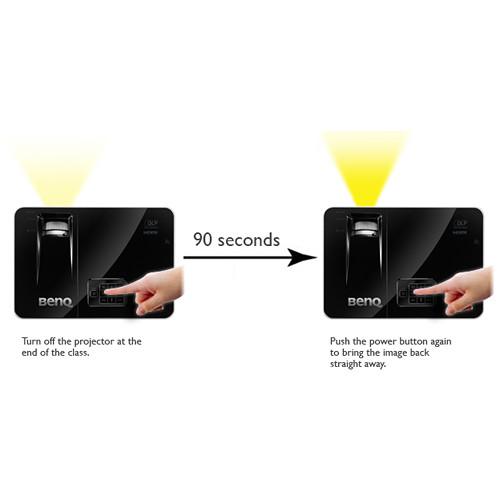

- Instant Restart
- The Instant Restart feature gives users a 90-second window to turn the projector back on after it has been powered off. The lamp will come back on instantly, no waiting necessary.
- Teaching Templates
- With three different line pattern designs to choose from (Letter Formation, Worksheet, and Coordinate Chart), you can enhance your boardroom or classroom learning experience.
- LAN Monitor and Control with Crestron and PJ-Link
- LAN Control is designed to help IT managers schedule projector maintenance tasks effectively and efficiently, providing full access and control over every projector directly from any authorized computer on the network. The MW571 offers seamless support for the Crestron and PJ-Link LAN Control systems.
- Colorific Technology
- This BenQ projector uses Colorific technology to optimize images for specific color balance effects, which is suitable for diverse applications such as presentations, movies, spreadsheets, and photographs. This projector generates more than one billion colors by combining up to seven different colors to create vibrant, true-to-life images.
- BrilliantColor Technology
- This projector is designed to achieve the optimal balance of brightness and color accuracy. BrilliantColor contributes to this by enabling up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with the primary Red, Blue, and Green colors.
- Additional Features
-
- Filter-free engine design
- 5 selectable aspect ratio modes
- Front IR receiver
- ecoFACTS label
UPC: 840046033576 In the Box BenQ MW571 3200-Lumen WXGA DLP Multimedia Projector Power Cord Remote Control with Battery VGA Cable Limited 3-Year Warranty for Projector Limited 1-Year or 2,000-Hour Warranty for Lamp Guides & Manuals More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MW571 3200-Lumen WXGA DLP Multimedia Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the BenQ MW571 3200-Lumen WXGA DLP Multimedia Projector can be downloaded in PDF format at the link stated below.
Technical parametersBenQ MW571 Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3200 Lumens | | Offset | 120% ± 5% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 13000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential (up to 720p)
Frame Packing (up to 1080p)
Side by Side (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 23 to 120 Hz

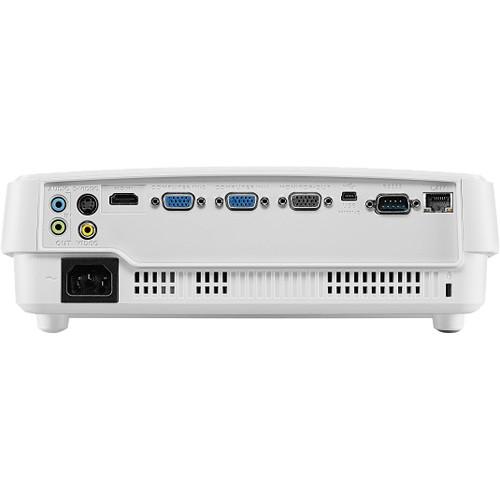

Horizontal: 15 to 102 Hz | | | | Lens | f/2.59 - 2.87 (f = 16.88 - 21.88 mm) | | Optical Zoom | 1.3x | | Throw Ratio | 1.21 - 1.57:1 | | Projection Size | 60 - 180" / 152.40 - 457.20 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) Control
1 x Mini-USB Type-B Female
1 x RS-232C (Unspecified Connector) Control | | | | Lamp Power | 196 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 33 dB
Low Brightness: 28 dB | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 265 W
Low Brightness: 220 W
Standby Mode (Lamp Off): <6 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 11.1 x 3.7 x 8.7" / 283.0 x 95.0 x 222.0 mm With Feet
11.1 x 3.5 x 8.7" / 283.0 x 88.7 x 222.0 mm Without Feet | | Weight | 4.19 lb / 1.90 kg | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 13.8 x 11.7 x 5.8" |
