User Manual for BenQ MW571H 3300-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MW571H 3300-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MW571H 3300-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

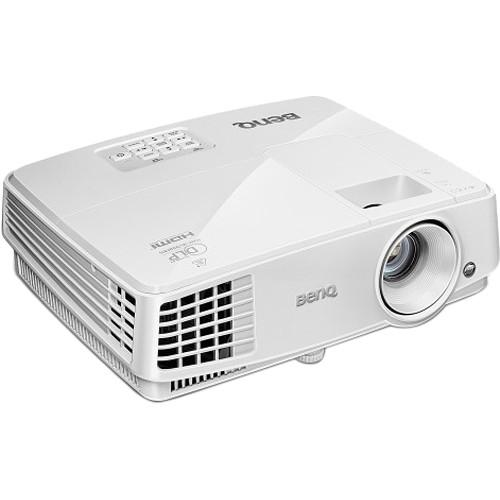

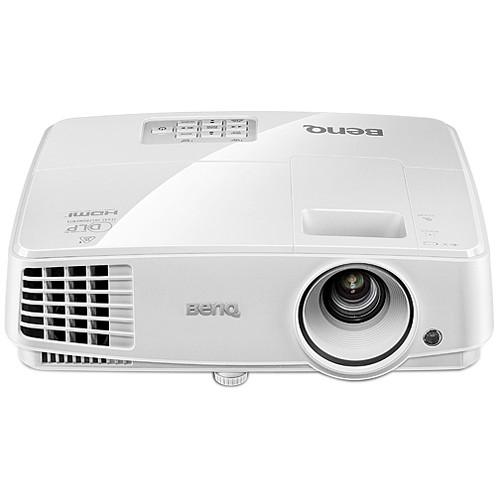

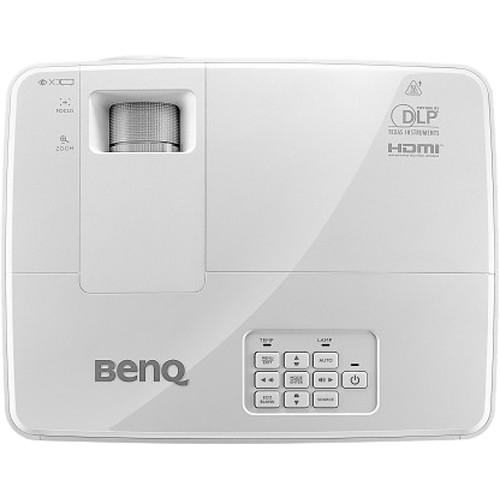

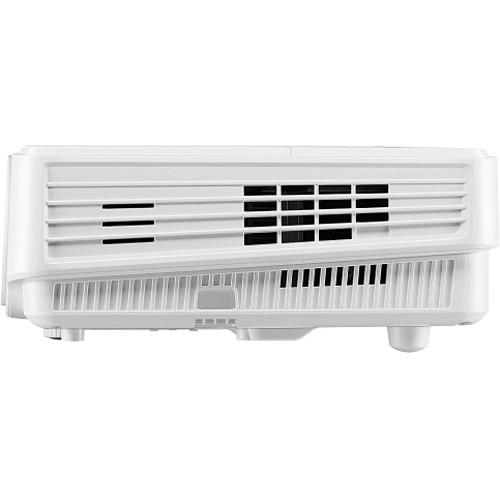

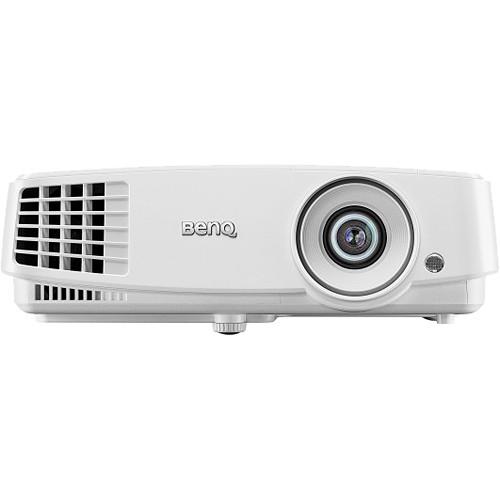

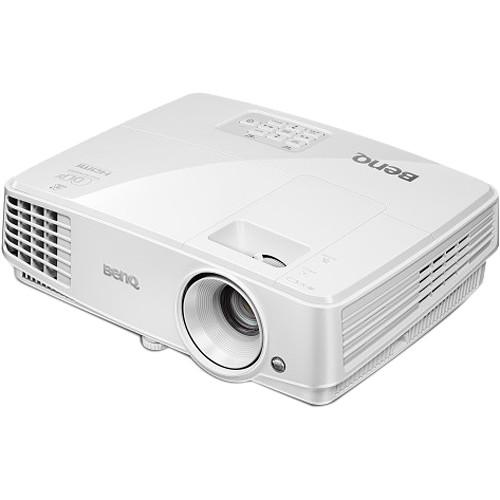

Product description Show your presentations in nearly any environment with the BenQ MW571H 3300-Lumen WXGA DLP Projector. Its 3300 lumens of brightness will overcome ambient light in many situations, while its 13,000:1 dynamic contrast ratio will help keep images and text clear and distinct. Its 1.21 to 1.57:1 throw ratio and 1.3x zoom offer a range of installation options.

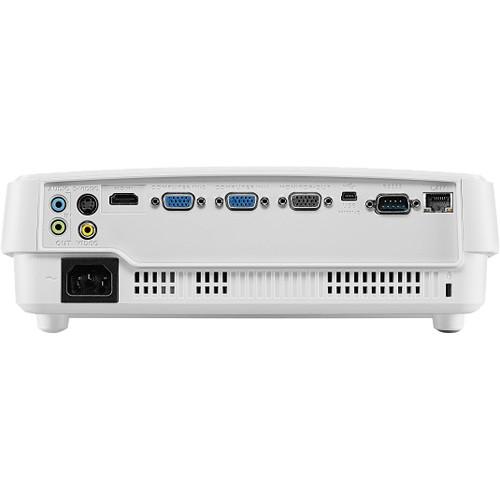

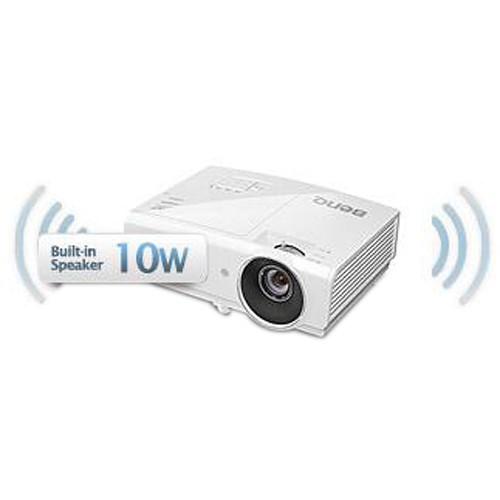

The MW571H has RCA composite, S-Video, HDMI, and two VGA inputs to support various types of video sources. Its VGA output will allow you to daisy-chain multiple projectors or displays to allow them to show the same video source. A built-in 10W speaker eliminates the need for a separate speaker system, but the projector also features an 1/8" audio output to connect external speakers. It is controllable via RS-232, and includes a VGA cable and IR remote control. -
- Full HD 3D support
- Low standby power consumption of 0.5W
- Automatic power off after 20 minutes without a display source
- 28 language options
- Dynamic, Presentation, sRGB, Cinema, Cinema 3D, and two customizable picture modes
UPC: 840046040291 In the Box BenQ MW571H 3300-Lumen WXGA DLP Projector Remote Control with Battery VGA Cable Power Cord Limited 3-Year Warranty on Projector Limited 1-Year or 2000-Hour Warranty on Lamp More info from BenQ vsassqxqxdtqavazbv Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MW571H 3300-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MW571H Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3300 Lumens | | Offset | 120% ± 5% vertical | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 13,000:1 | | Supported 3D Formats | Frame Sequential (up to 720p)
Frame Packing (up to 1080p)
Side by Side (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Lens | f/2.59 - 2.87 (f = 16.88 - 21.88 mm) | | Optical Zoom | Manual: 1.3x | | Throw Distance | 61.5 - 239.6" / 156.21 - 608.584 cm | | Throw Ratio | 1.21 - 1.57:1 | | Projection Size | 60 - 180" / 152.40 - 457.20 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x S-Video (4-Pin DIN) Video Input
1 x Composite (RCA) Video Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9) Control Input | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 196 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 32 dB
Low Brightness: 28 dB | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 265 W
Low Brightness: 220 W
Standby Mode (Lamp Off): 6 W | | Dimensions (W x H x D) | 11.1 x 3.7 x 8.7" / 28.2 x 9.4 x 22.1 cm With feet
11.1 x 3.5 x 8.7" / 28.2 x 8.9 x 22.1 cm Without feet | | Weight | 4.19 lb / 1.90 kg | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 13.9 x 11.6 x 5.6" |
