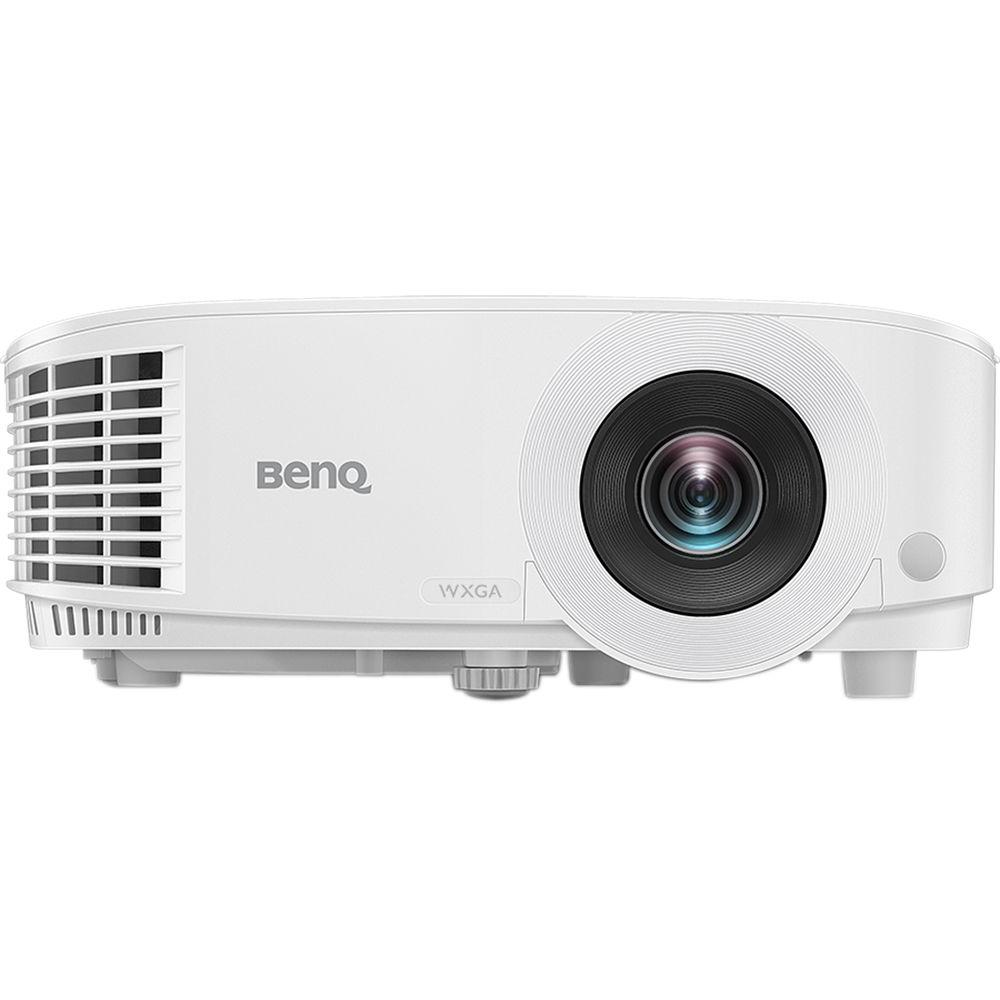

User Manual for BenQ MW612 4000-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MW612 4000-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MW612 4000-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description Show your presentations in nearly any environment with the BenQ MW612 4000-Lumen WXGA DLP Projector. Its 4000 lumens of brightness overcomes ambient light in many situations, while its 20,000:1 dynamic contrast ratio helps keep images and text clear and distinct. Its 1.55 to 1.7:1 throw ratio and 1.1x zoom provide a range of installation options.
The MW612 has one VGA, one composite video, one S-Video, and two HDMI inputs to support various types of video sources. One HDMI input is MHL-compatible for wired mirroring of your favorite smart device. Its VGA output allows you to daisy-chain multiple projectors or displays to show the same video source. A built-in 2W speaker eliminates the need for a separate speaker system, but the projector also features an 1/8" audio output to connect external speakers. It is controllable via RS-232 and includes a VGA cable and IR remote control. - 4000 Lumens of Brightness for Small, Well-Lit Meeting Rooms
- The 4000-lumen brightness level is designed to enable comfortable lights-on presentations to promote discussion, collaboration, and note-taking in small, well-lit meeting rooms accommodating up to roughly 20 participants. This brightness level helps enhance picture quality with vibrant color for crisp text and fine details.
- 20,000:1 Dynamic Contrast Ratio for Clear Text
- The MW612 is engineered to produce true blacks and augmented readability for well-defined graphs and charts, thanks to its 20,000:1 dynamic contrast ratio. Its high fill factor helps increase clarity for color or black-and-white images and helps reduce eye strain so presenters and audiences can stay focused on the content.
- MHL Connectivity

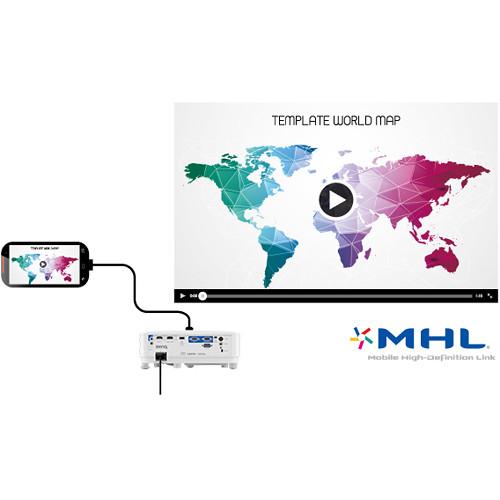

- MHL connectivity lets Android smart devices mirror documents, photos, videos, and other content via a compatible cable, to share ideas and presentations while simultaneously charging the mobile device.
- Enhanced Connectivity
- The MW612 has two HDMI ports (one with MHL compatibility for compatible mobile devices), S-Video, RCA composite video, and VGA inputs to support multiple presenters.
- USB Power Output
- The MW612 has an embedded USB port capable of supplying 5 V / 1.5 A DC power for wireless adapters, simplifying installation.
- Vertical Keystone for Proper Alignment
- Countering the trapezoid effect, when the projector is placed vertically and off-center, such as on a table, vertical keystone correction adjusts the image to help display it properly.
- Adjustment Feet for Convenient Setup
- The MW612 has two adjustment feet designed to enhance flexibility for projector setup and mobility in various types of meeting rooms, allowing you to project at the desired height.
- SmartEco Mode
- SmartEco Mode analyzes input content to determine the brightness required for optimal color and contrast performance, conserving up to 70% of lamp power without compromising image quality.
- Eco Blank Mode
- When the projector detects no source content, Eco Blank Mode automatically activates after three minutes of inactivity to eliminate distractions and save energy.
- Auto Power Off
- The MW612 will turn off after 16 to 20 minutes of inactivity to reduce energy waste and alleviate the concerns of people who turn off the equipment.
- LampSave Mode
- LampSave Mode adjusts lamp power dynamically according to the displayed content which extends projector lamp life and results in fewer lamp replacements. This contributes to overall lower cost of ownership.
- Standby Mode
- While the projector is inactive, its power consumption is reduced to 0.5W, maximizing energy saving while the projector is connected but not in use.
- Designed to Last Long
- The micro-mirrors of the DLP chip and the nearly-sealed DLP engine design help this projector last without any loss in picture quality.
- Present Wirelessly with the Optional QCast or QCast Mirror Adapter
- The MW612 is equipped for Wi-Fi. When the optional QCast or QCast Mirror wireless adapter is connected to both an HDMI port and its built-in USB power supply, you can project wirelessly from your compatible tablet, smartphone, or laptop running iOS, Mac, Android, or Windows.
UPC: 840046038755 In the Box BenQ MW612 4000-Lumen WXGA DLP Projector Remote Control 2 x AAA Batteries VGA Cable Power Cord Limited 1-Year Warranty on Projector Limited 90-Day or 500-Hour Warranty on Lamp, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MW612 4000-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MW612 Specs | | | Display System | 0.65" DC3 DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 4000 Lumens | | Offset | 100% ± 2.5% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 20,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

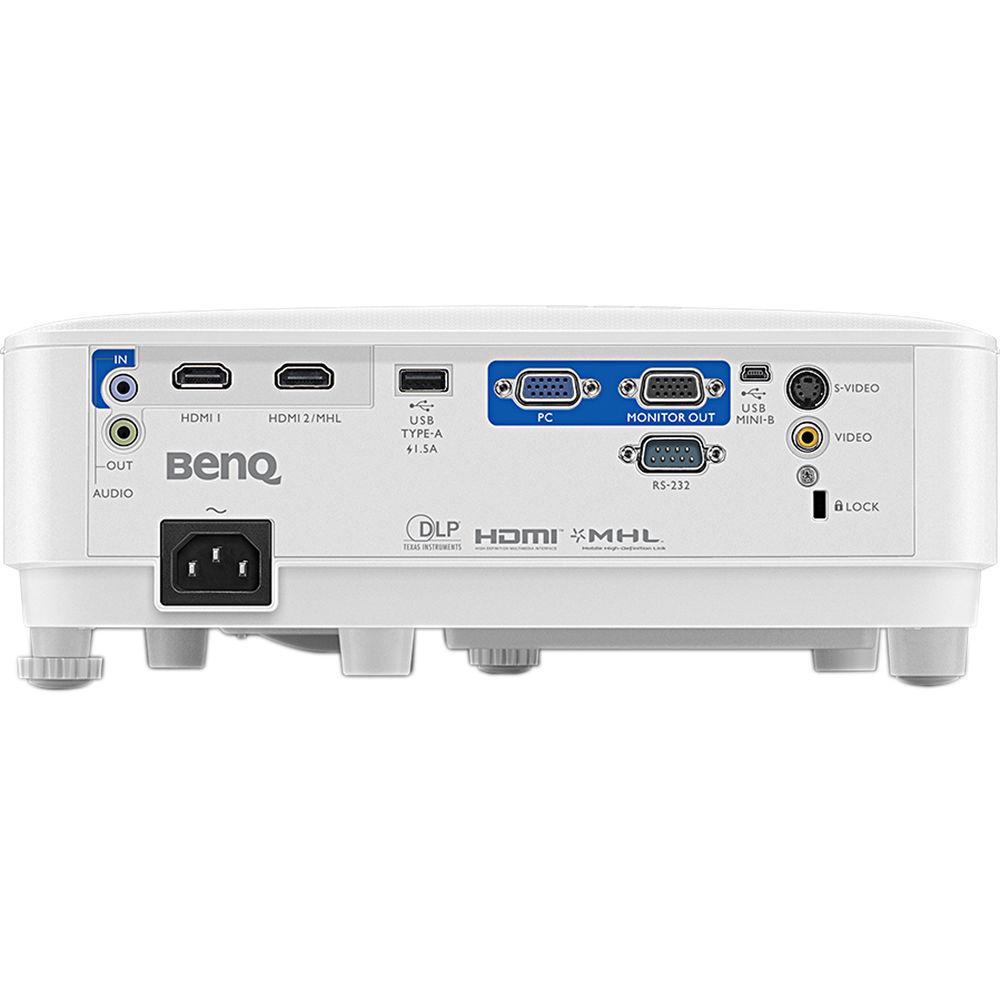

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Throw Ratio | 1.55 - 1.7:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Control/Service (Input)
1 x USB Power (Output)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 8000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 34 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Security Bar | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 355 W
Medium Brightness: 320 W
Low Brightness: 240 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 11.7 x 4.7 x 8.7" / 296.0 x 120.0 x 221.0 mm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 16.1 x 13.3 x 6.7" |
